Diagnostic Procedure 3

Final checking after repairing SRS by using CONSULT II - Diagnosis mode




1. After repairing SRS, connect both battery cables.

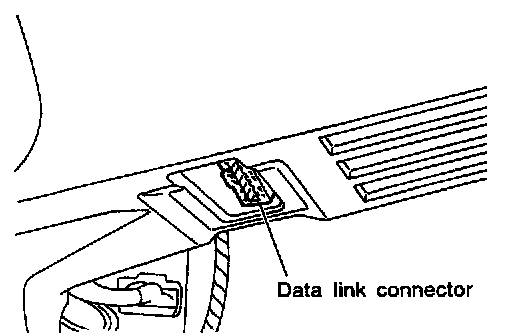

2. Connect CONSULT-II to Data link connector.
3. Turn ignition switch from OFF to ON.

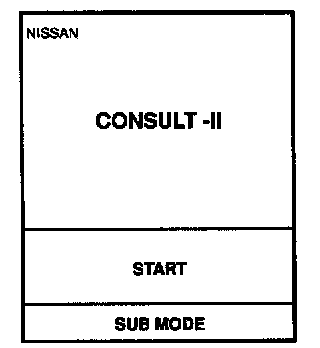

4. Touch "START".

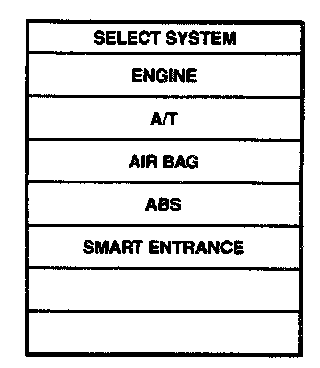

5. Touch "AIRBAG".

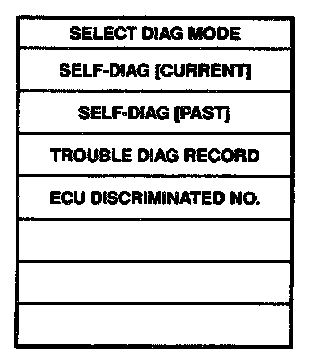

6. Touch "SELF-DIAG [CURRENT]".

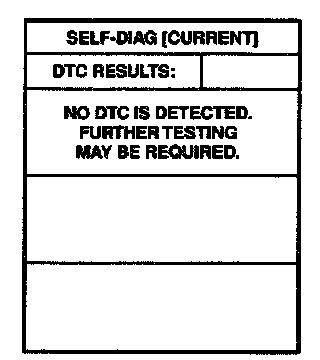

7. If no malfunction is detected on "SELF-DIAG [CURRENT]", repair of SRS is completed. Go to step 8.
(When the malfunction is only in the seat belt pre-tensioner system, go to step 11.)
If any malfunction is displayed on "SELF-DIAG [CURRENT]", the malfunctioning part is not repaired completely or another malfunctioning part is detected. Go to DIAGNOSTIC PROCEDURE 2, Diagnostic Procedure 2 and repair malfunctioning part completely.

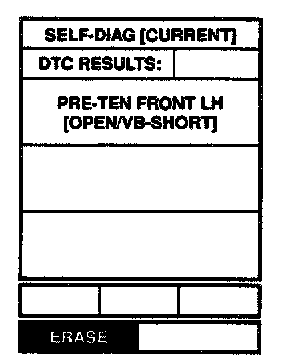

8. Touch "ERASE".

NOTE: Touch "ERASE" to clear the memory of the malfunction ("SELF-DIAG [PAST]").

If the memory of the malfunction in "SELF-DIAG [PAST]" is not erased, the User mode shows the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

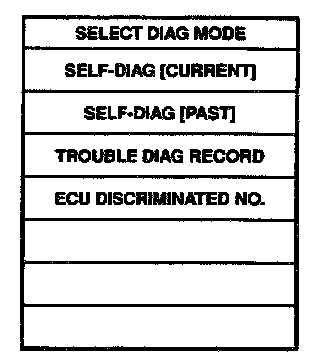

9. Touch "BACK" key of CONSULT-II to "SELECT SYSTEM" screen. Touch "SELF-DIAG [PAST]".

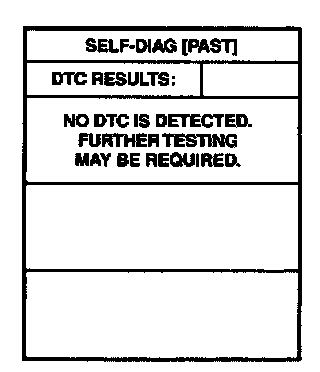

10. Check that no malfunction is detected on "SELF-DIAG [PAST]".

NOTE: Past malfunction for seat belt pre-tensioner system will not be displayed on "SELF-DIAG (PAST]".

11. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.
12. Turn ignition switch OFF, then turn off and disconnect CONSULT-II.
13. Go to "SRS Operation Check" [1][2]Component Tests and General Diagnosticsto check SRS operation by using "AIR BAG" warning lamp with User mode.
