Diagnostic Procedure 2

Inspecting SRS malfunctioning parts by using CONSULT-II - Diagnosis mode




1. Turn ignition switch OFF.

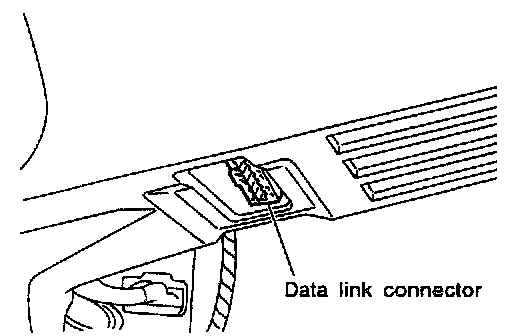

2. Connect "CONSULT-II" to data link connector.




3. Turn ignition switch ON.

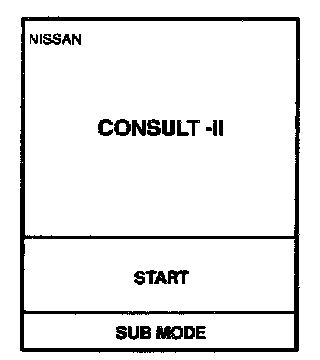

4. Touch "START".




5. Touch "AIRBAG".

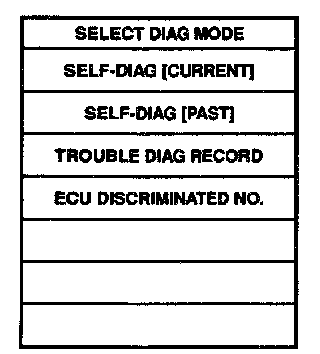

6. Touch "SELF-DIAG [CURRENT]".

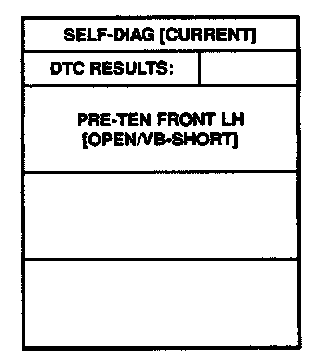

7. Diagnostic codes are displayed on "SELF-DIAG [CURRENT]".

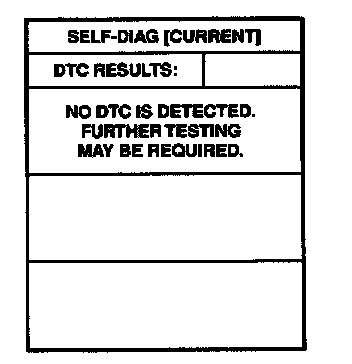

If no malfunction is detected on "SELF-DIAG [CURRENT]" even though malfunction is detected in "SRS Operation Check", check the battery voltage.
If the battery voltage is less than 9V, charge the battery. Then go to DIAGNOSTIC PROCEDURE 3 Diagnostic Procedure 3
If the battery voltage is OK, go to DIAGNOSTIC PROCEDURE 4 Diagnostic Procedure 4, to diagnose the following cases:
- Self-diagnostic result "SELF-DIAG [PAST]" (previously stored in the memory) might not be erased after repair.
- The SRS system malfunctions intermittently.

8. Touch "PRINT".
9. Compare diagnostic codes to "CONSULT-II Diagnostic Code Chart".

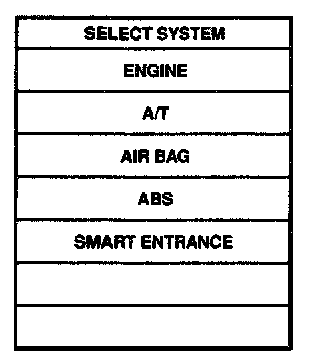

10. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.
11. Turn ignition switch OFF, then turn off and disconnect CONSULT-II, and disconnect both battery cables.

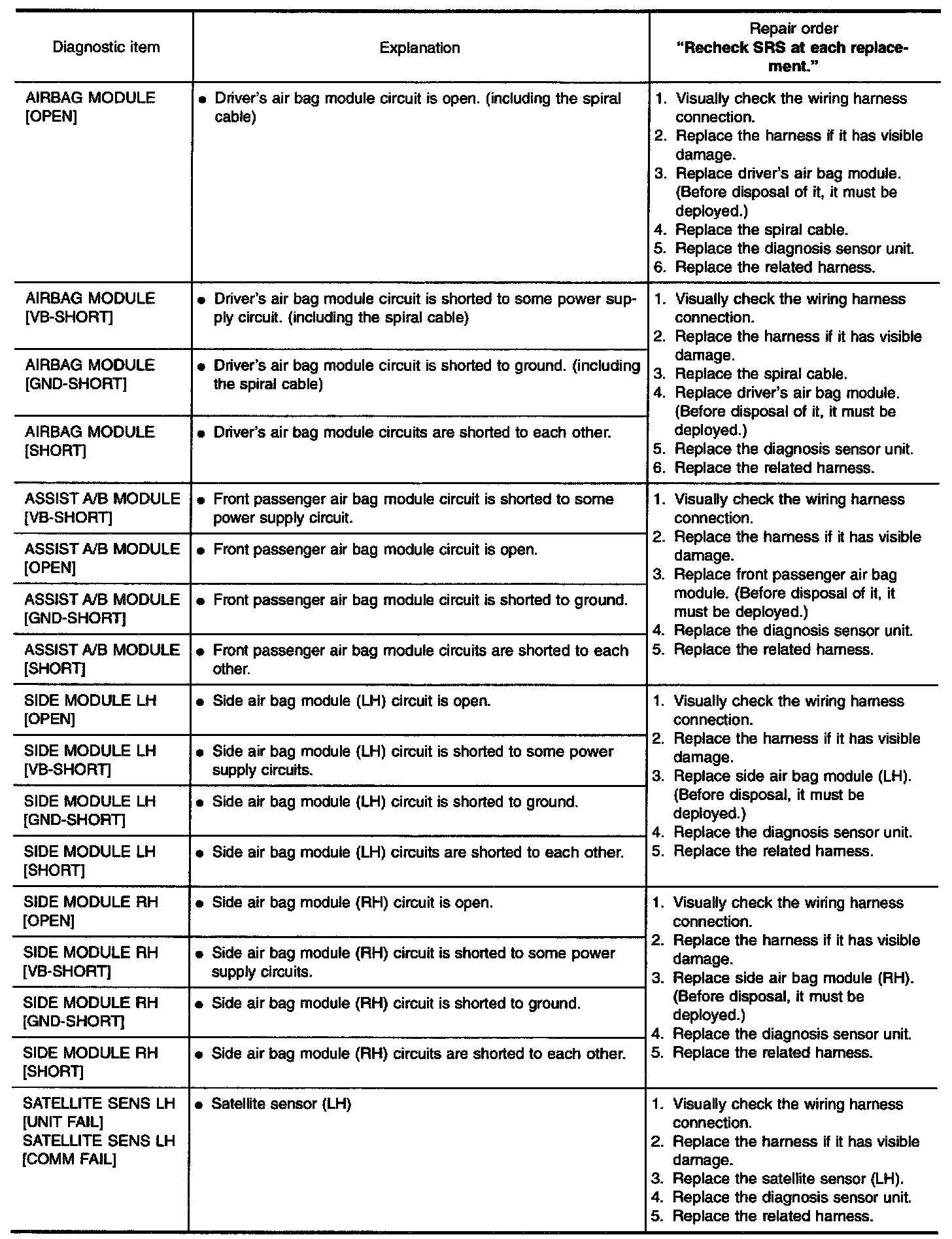

CONSULT-II DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") Part 1 Of 3:

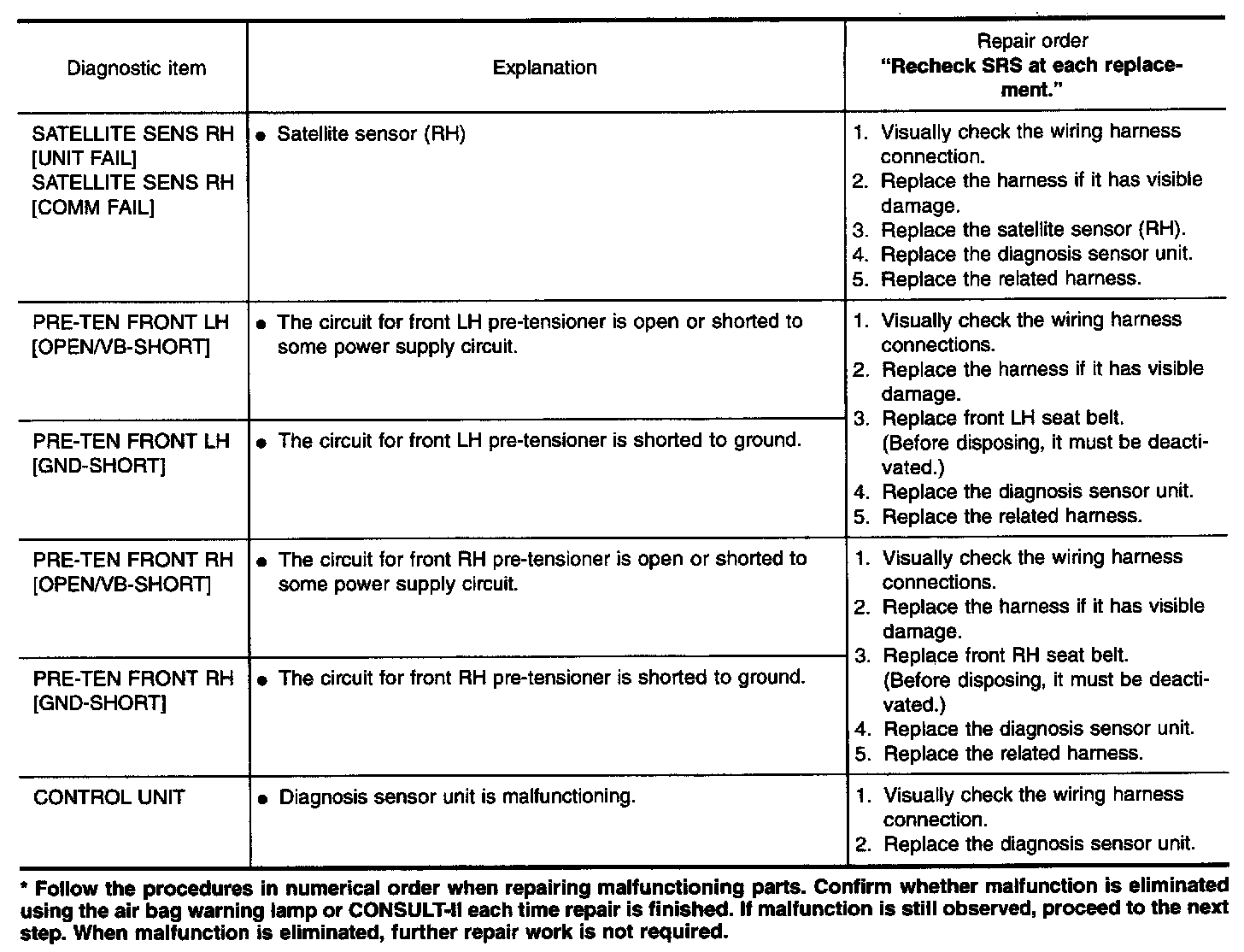

CONSULT-II DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") Part 2 Of 3:

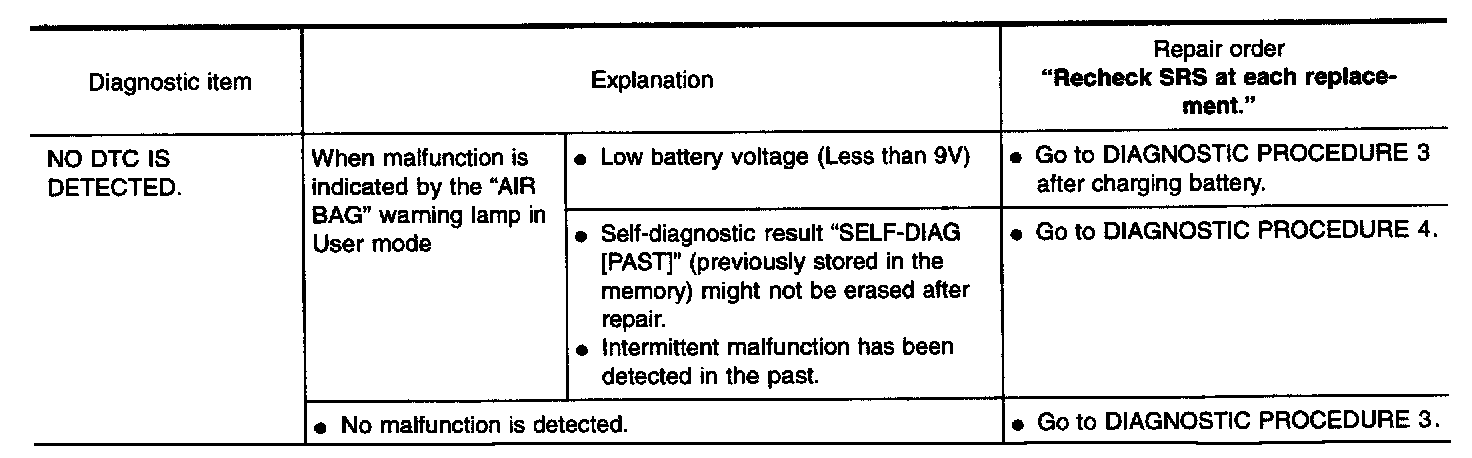

CONSULT-II DIAGNOSTIC CODE CHART ("SELF-DIAG [CURRENT]") Part 3 Of 3:

12. Repair the system as outlined by the "Repair order" in "CONSULT-II Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts.
13. After repairing the system, go to DIAGNOSTIC PROCEDURE 3 Diagnostic Procedure 3 for final checking.
