Diagnostic Procedure 1

Checking Air Bag Operation by Using "AIR BAG" Warning Lamp - User Mode

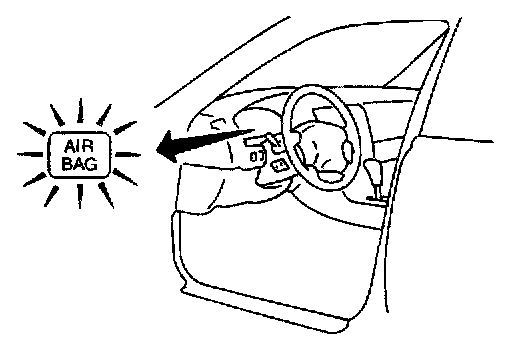

1. After turning ignition switch from OFF to ON, "AIR BAG" warning lamp operates.

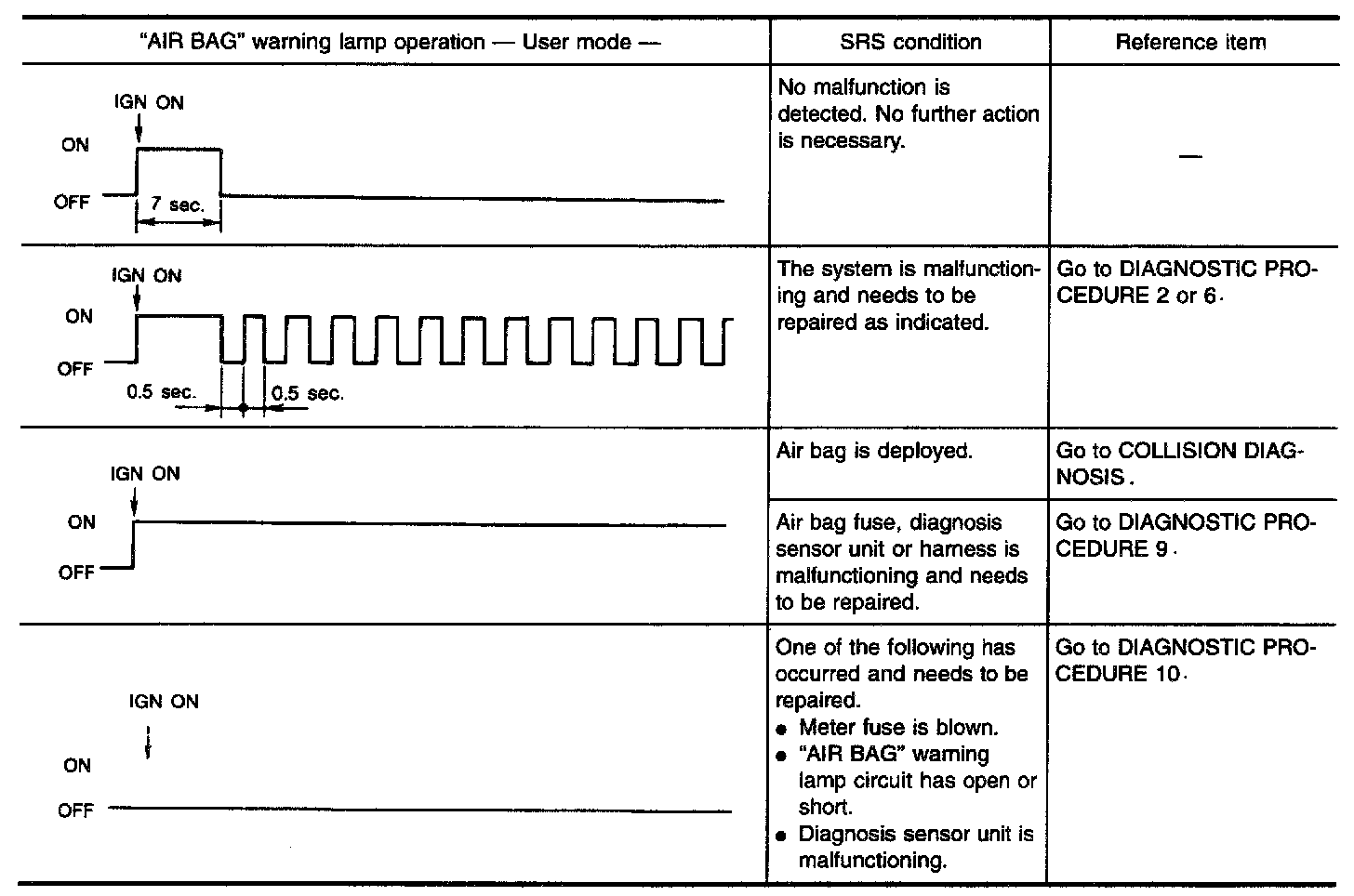

2. Compare "AIR BAG" warning lamp operation to the chart be low.

NOTE: If "AIR BAG" warning lamp operates differently from the operations shown above, refer to "AIR BAG" warning lamp operation - Diagnosis mode -, DIAGNOSTIC PROCEDURE 6 Diagnostic Procedure 6 (step 4)

Checking Seat Belt Pretensioner Operation by Using "SEAT BELT" Warning Lamp - User Mode

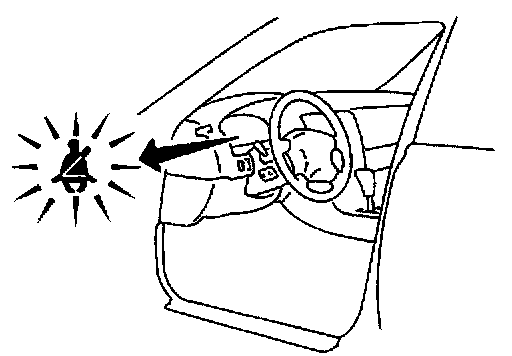

1. After turning ignition switch from OFF to ON, "SEAT BELT" warning lamp operates.

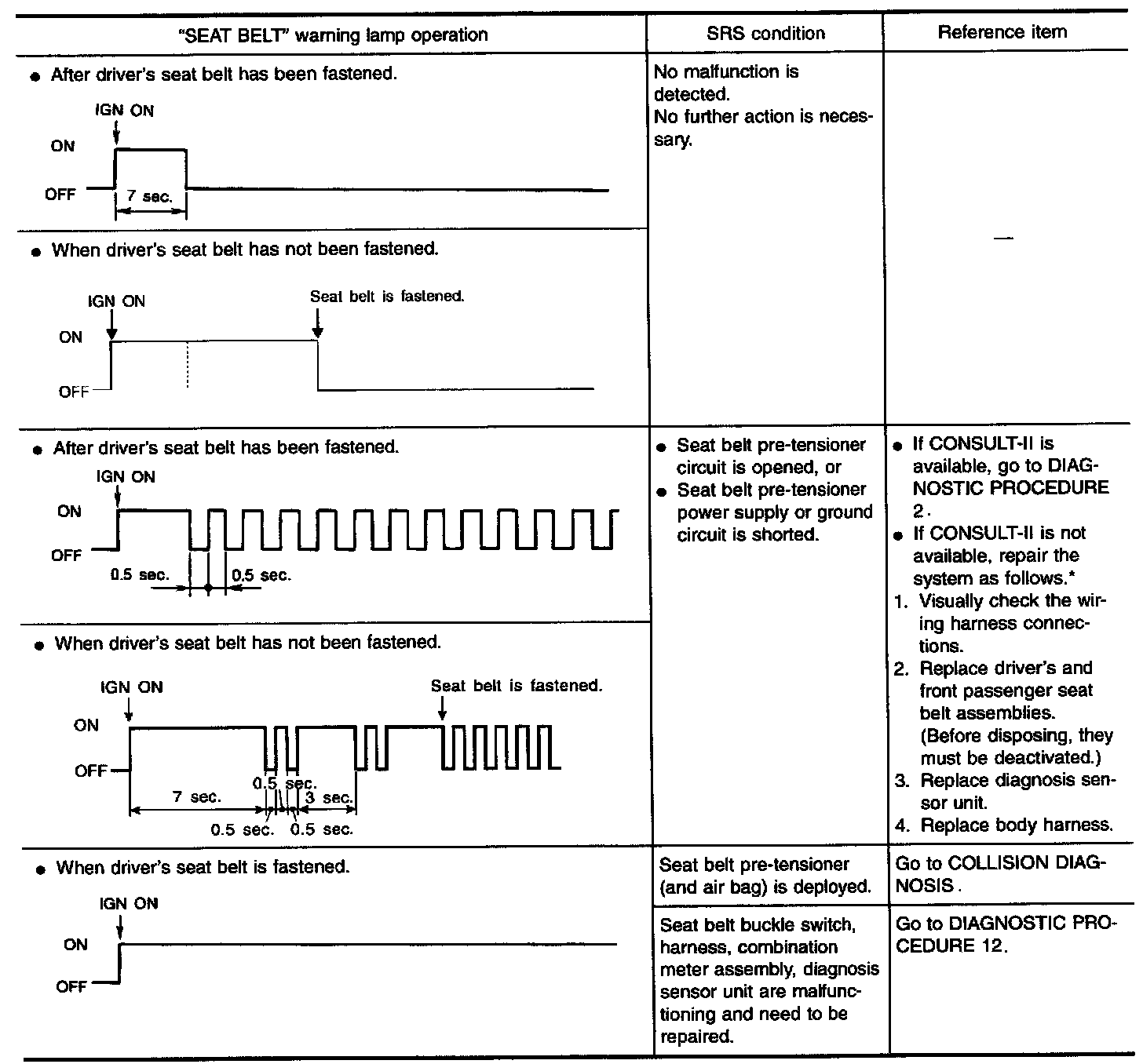

Part 1 Of 2:

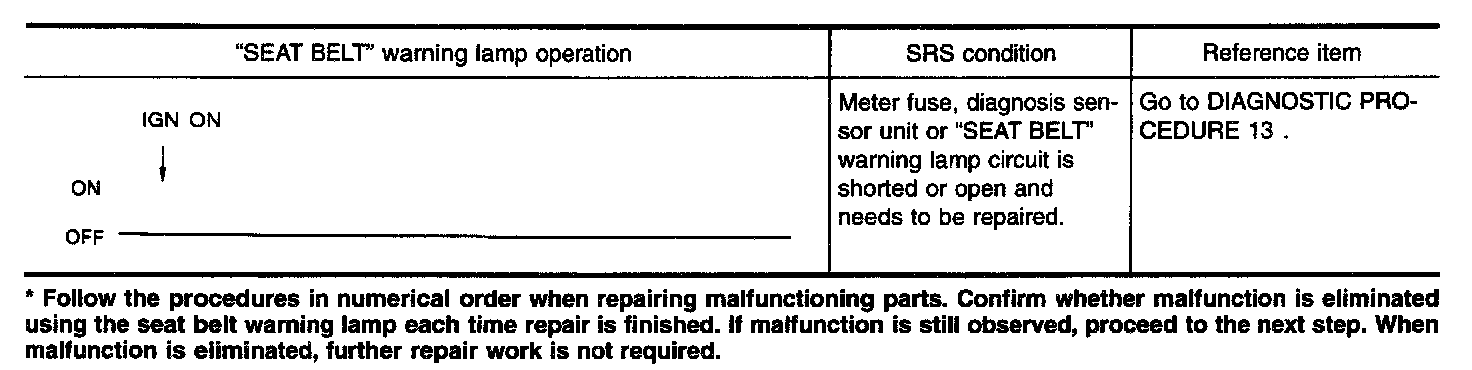

Part 2 Of 2:

2. Compare "SEAT BELT" warning lamp operation to the chart.
