ENG. Speed Does Not Return to Idle (Light Braking D4->D3)

Engine Speed Does Not Return To Idle (Light Braking D4 -> D3)

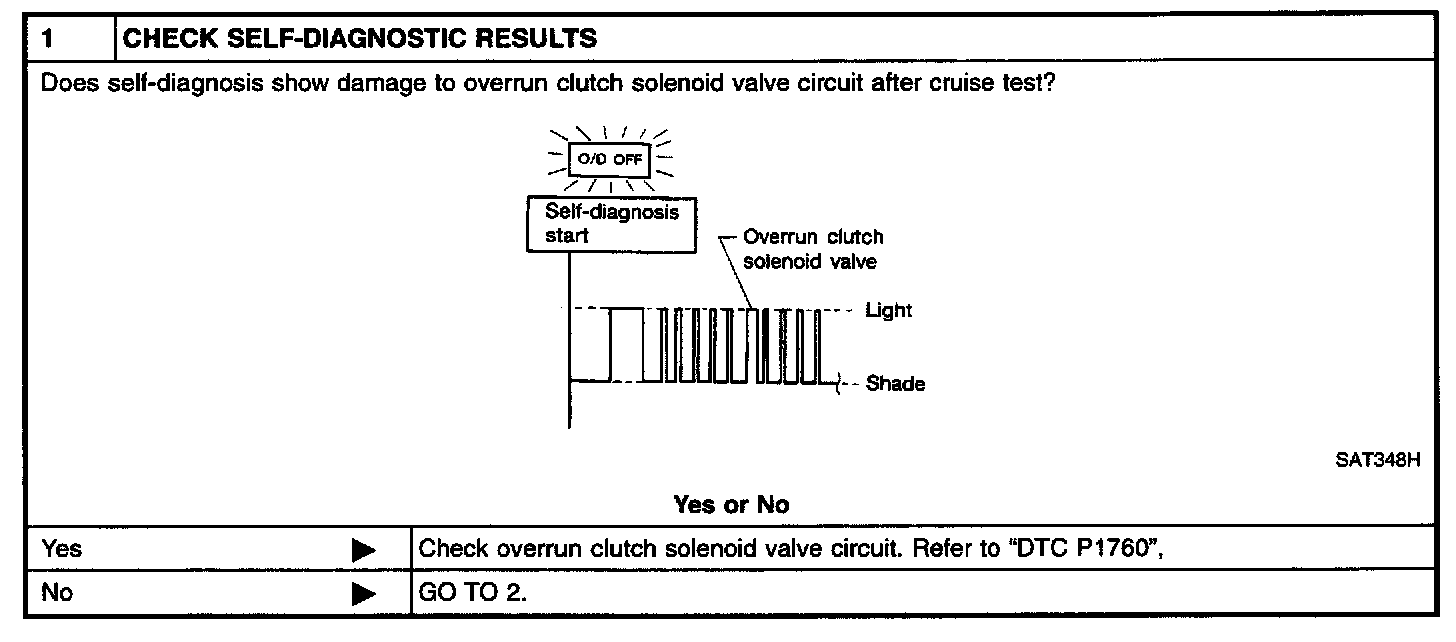

1: CHECK SELF-DIAGNOSTIC RESULTS

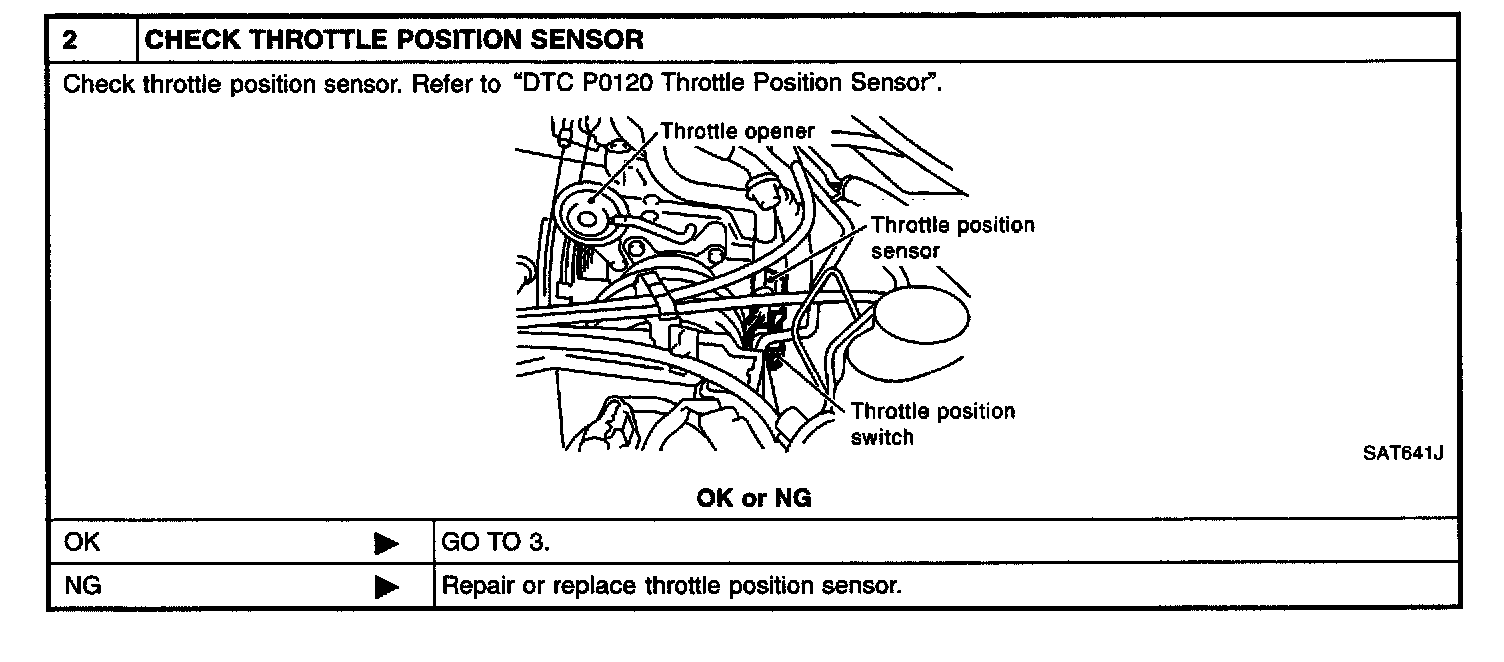

2: CHECK THROTTLE POSITION SENSOR

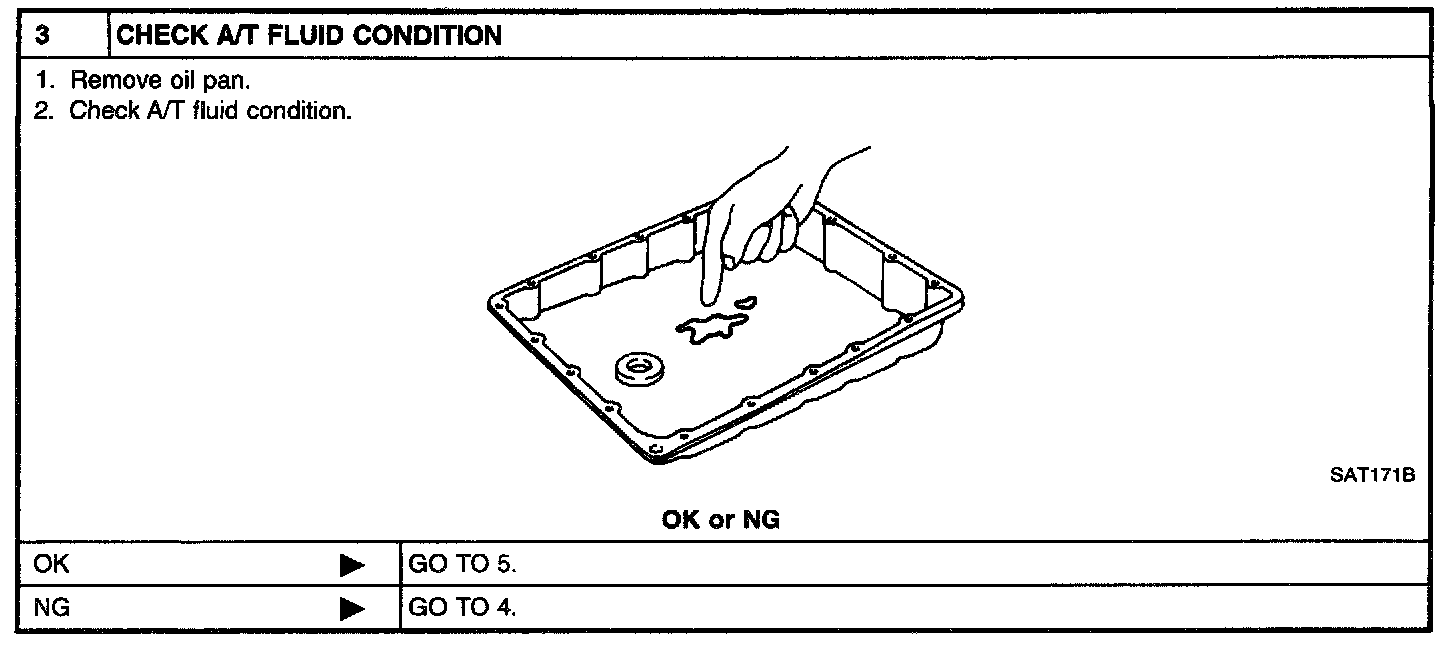

3: CHECK A/T FLUID CONDITION

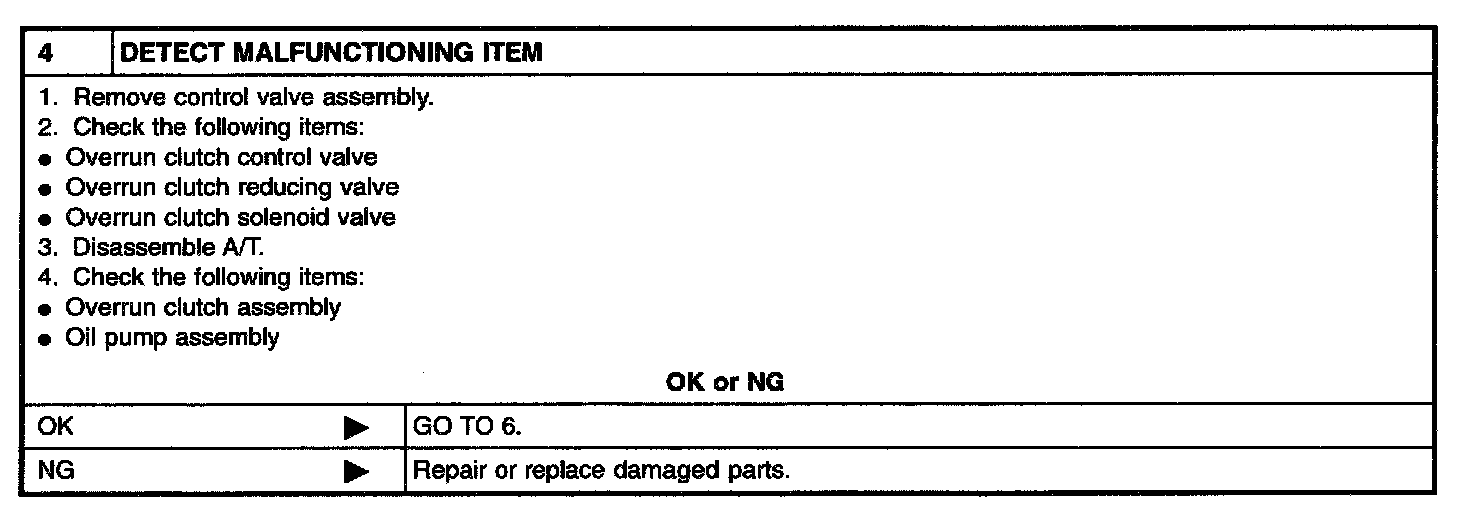

4: DETECT MALFUNCTIONING ITEM

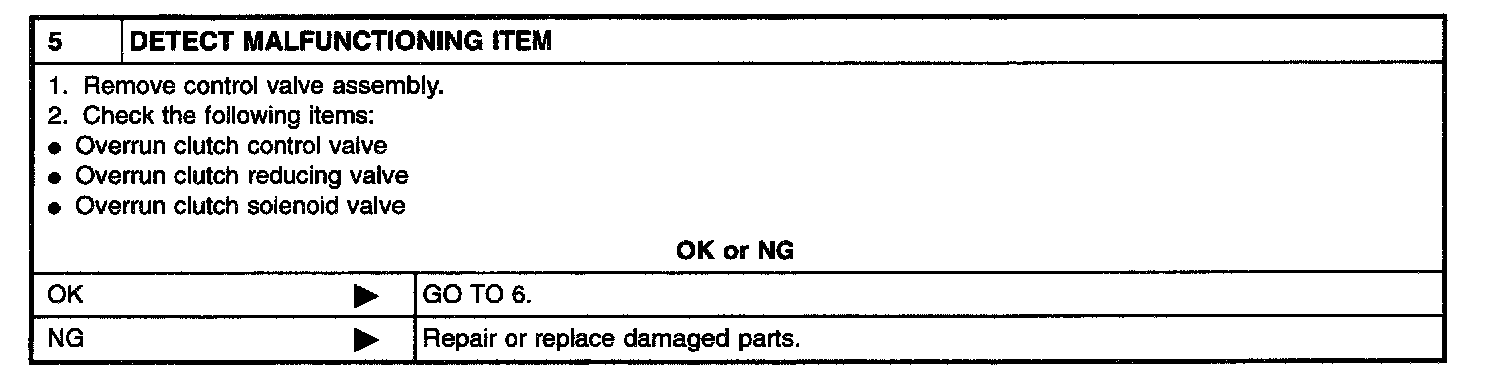

5: DETECT MALFUNCTIONING ITEM

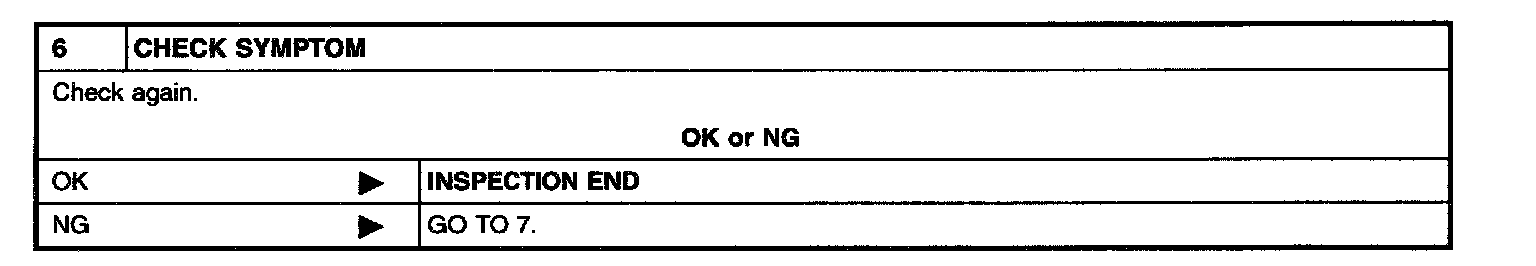

6: CHECK SYMPTOM

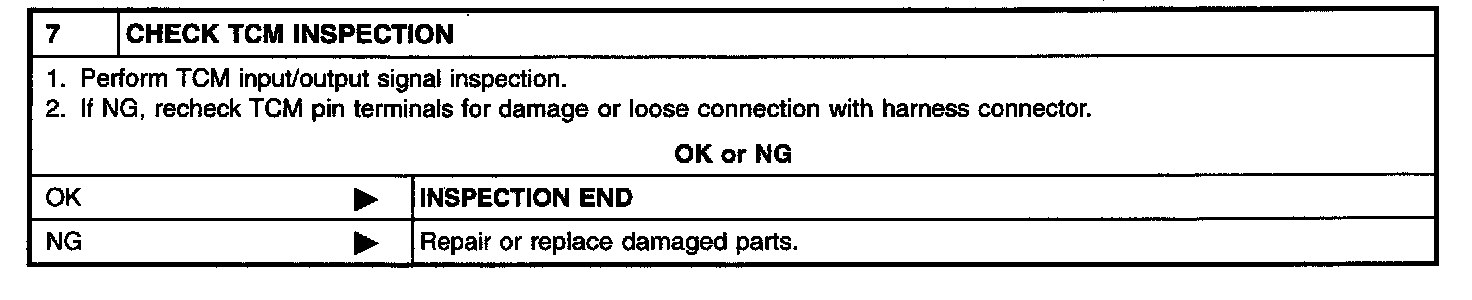

7: CHECK TCM INSPECTION

Symptom:
- Engine speed does not smoothly return to idle when A/T shifts from D4 to D3.
- Vehicle does not decelerate by engine brake when turning overdrive control switch OFF.
- Vehicle does not decelerate by engine brake when shifting A/T from D to 2 position.
