With Consult-II
DESCRIPTION- The purpose of the test is to determine overall performance of A/T and analyze causes of problems.
- The road test consists of the following three parts:
1. Check before engine is started
2. Check at idle
3. Cruise test
- Before road test, familiarize yourself with all test procedures and items to check.
- Conduct tests on all items until specified symptom is found. Troubleshoot items which check out No Good after road test.
1. CHECK BEFORE ENGINE IS STARTED.
Chart 1
Chart 2
2. CHECK AT IDLE.
Chart 1
Chart 2
Chart 3
Chart 4
Chart 5
Chart 6
Chart 7
3. CRUISE TEST
- Check all items listed in Parts 1 through 3.
- Using CONSULT-II, conduct a cruise test and record the result.
- Print the result and ensure that shifts and lock-ups take place as per Shift Schedule.
CONSULT-II Setting Procedure
1. Turn ignition switch OFF.

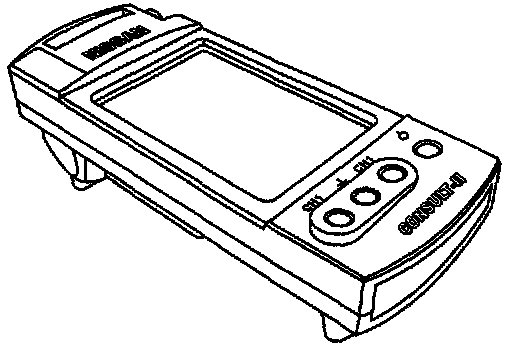

2. Connect CONSULT-II to data link connector, which is located in left side dash panel.
3. Turn ignition switch ON.

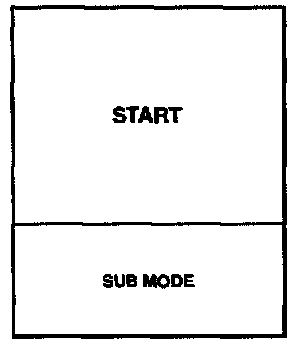

4. Touch "START".

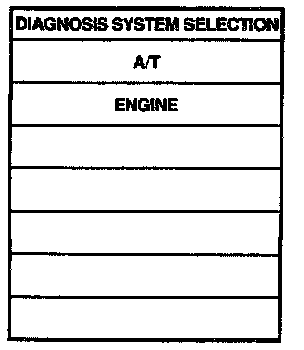

5. Touch "ATF".

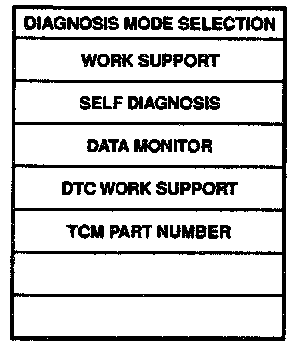

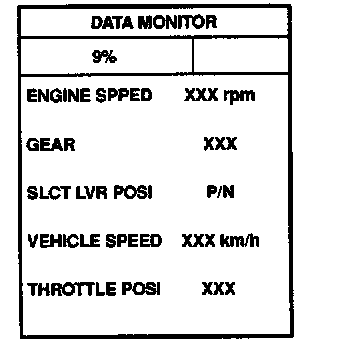

6. Touch "DATA MONITOR".

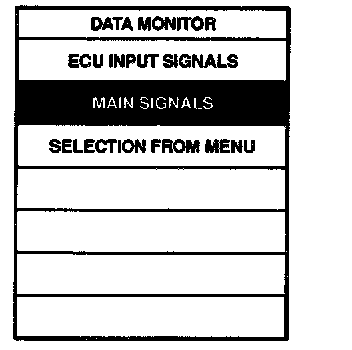

7. Touch "MAIN SIGNALS" to set recording condition.

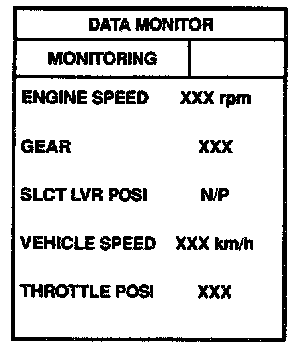

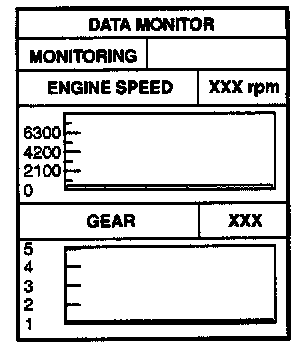

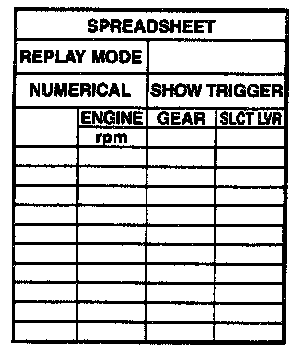

8. See "Numerical Display", "Barchart Display" or "Line Graph Display".
9. Touch "Start".
10. When performing cruise test, touch "Store Data".

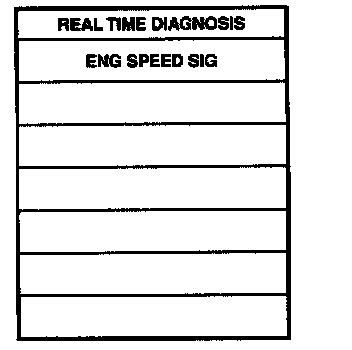

11. After finishing cruise test part 1, touch "STOP".

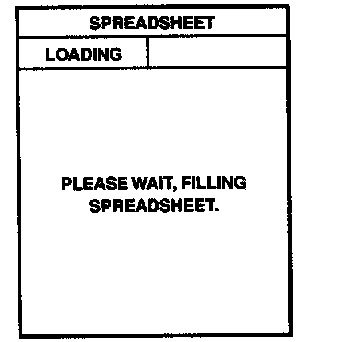

12. Touch "Display Data".

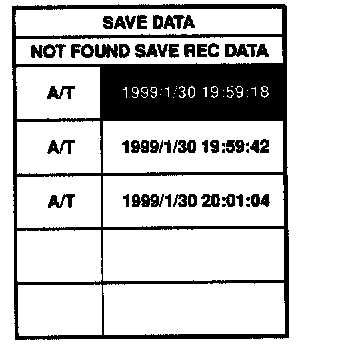

13. Touch "SAVE REC DATA".
14. Touch "PRINT SCREEN".
15. Check the monitor data printed out.
16. Continue cruise test part 2 and 3.
Cruise Test - Part 1
Chart 1
Chart 2
Chart 3
Chart 4
Chart 5
Chart 6
Chart 7
Chart 8
Cruise Test - Part 2
Chart 1
Chart 2
Chart 3
Chart 4
Cruise Test - Part 3
Chart 1
Chart 2
Chart 3
Chart 4
Chart 5
Chart 6
