Fuel Pressure Regulator: Testing and Inspection

Fuel Pressure Regulator Check
1. Stop engine and disconnect fuel pressure regulator vacuum hose from vacuum gallery.

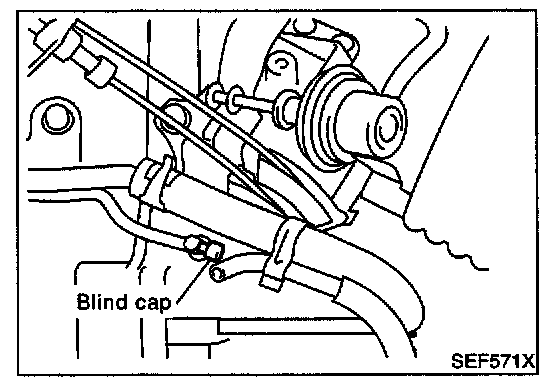

2. Plug vacuum gallery with a blind cap.

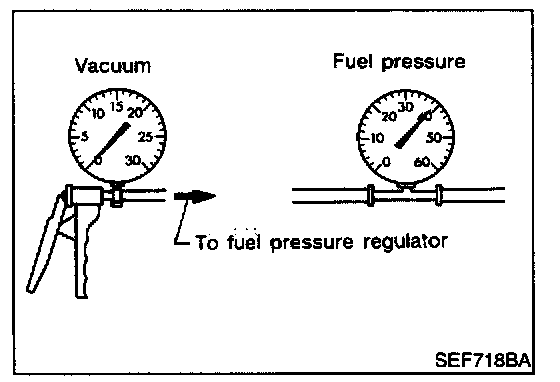

3. Connect variable vacuum source to fuel pressure regulator.
4. Start engine and read indication of fuel pressure gauge as vacuum is changed.
Fuel pressure should decrease as vacuum increases. If results are unsatisfactory, replace fuel pressure regulator.
