Evaporative System Service Port: Description and Operation

Evap Service Port

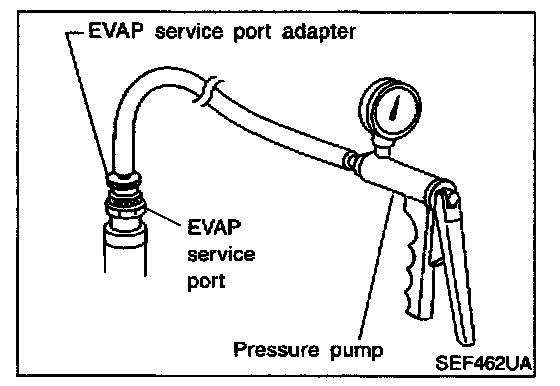

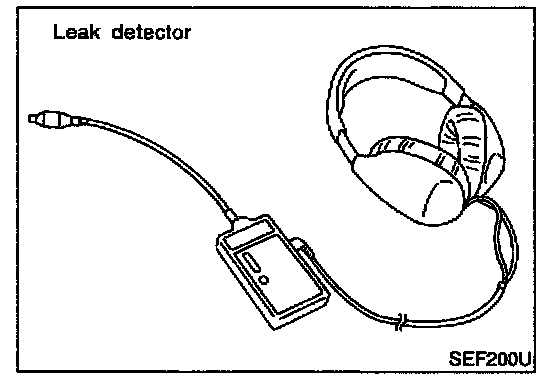

Positive pressure is delivered to the EVAP system through the EVAP service port. If fuel vapor leakage in the EVAP system occurs, use a leak detector to locate the leak.

Evaporative Emission Line Drawing - For California:

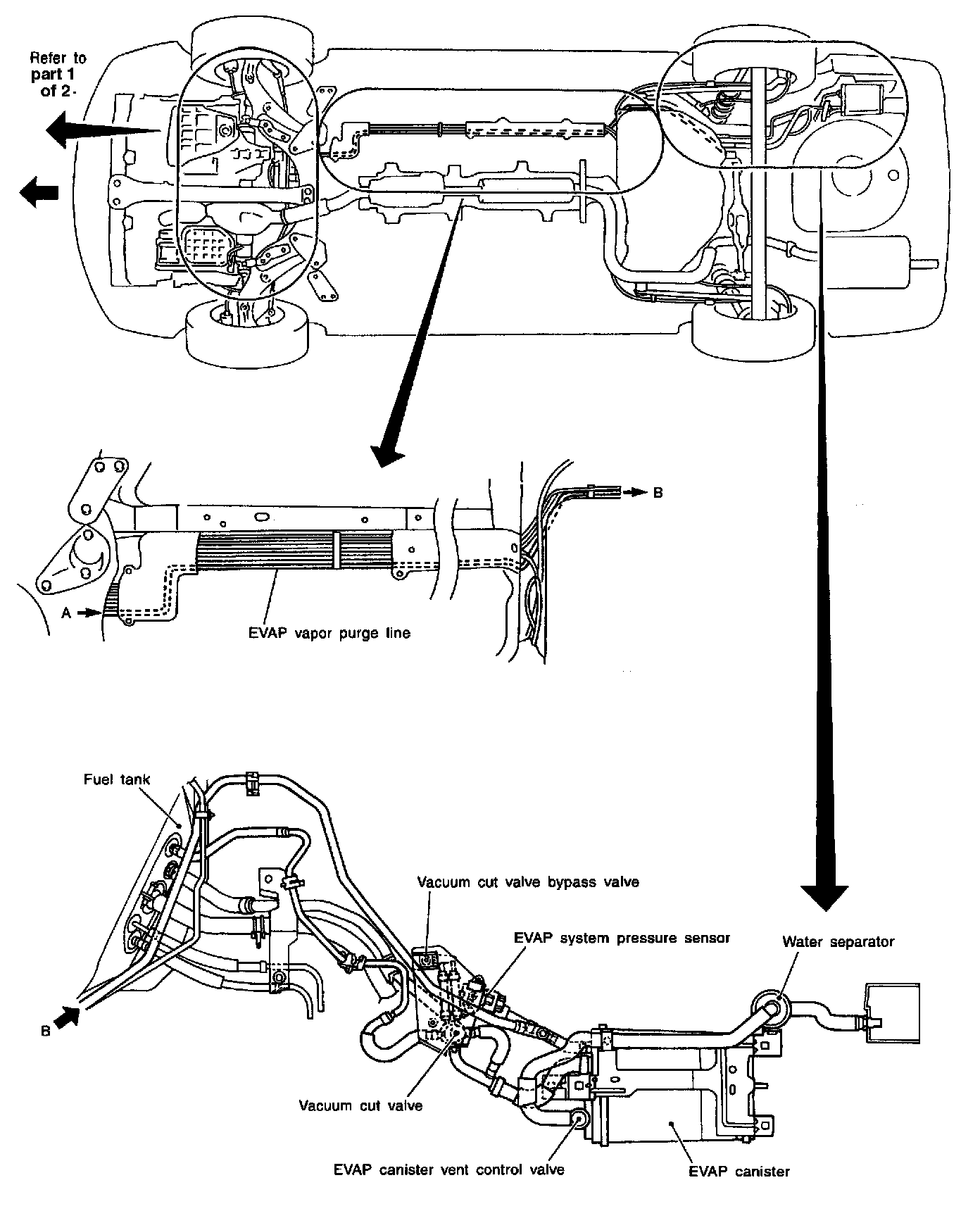

Evaporative Emission Line Drawing - Except for California (Part 1 Of 2):

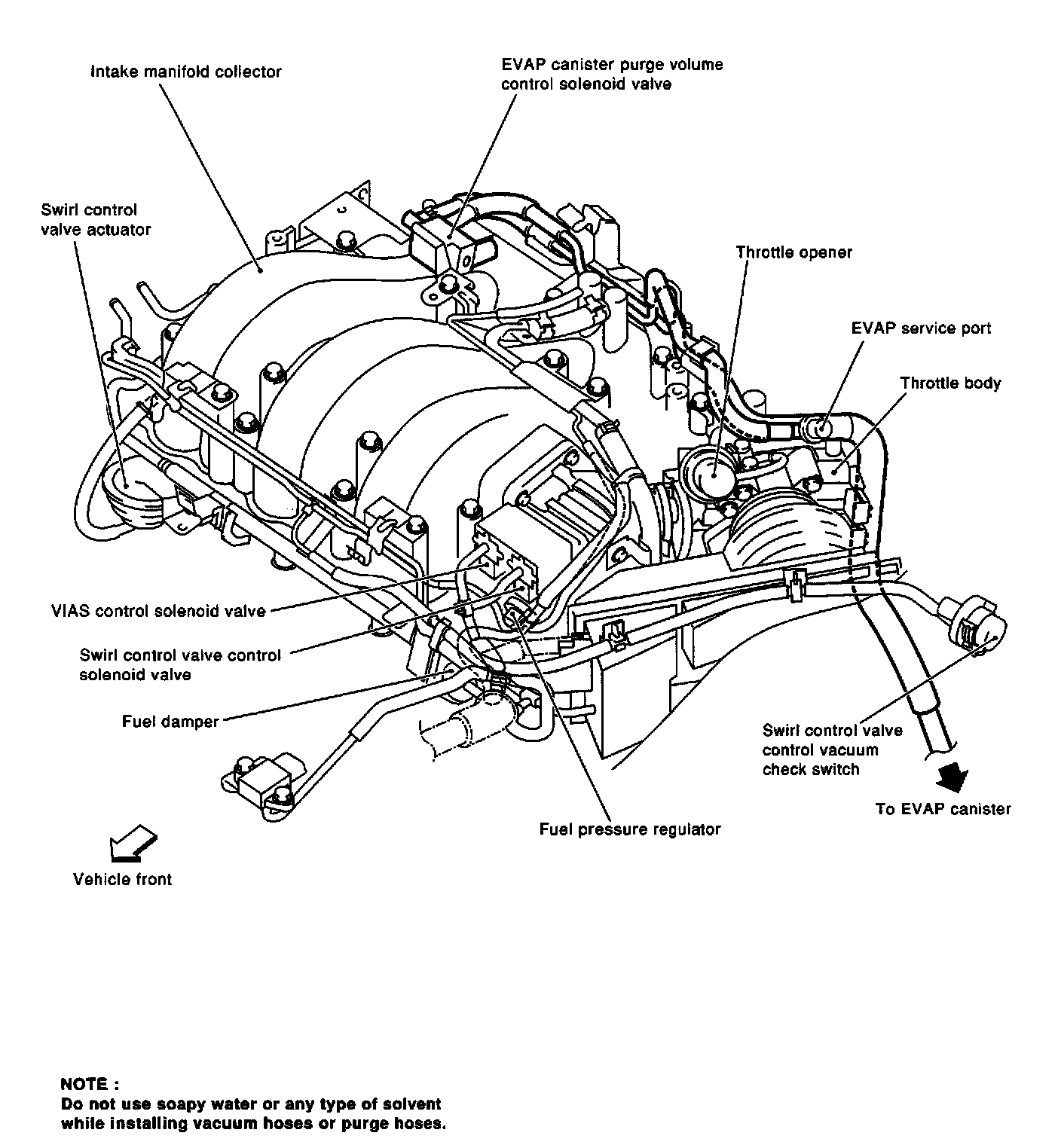

Evaporative Emission Line Drawing (Part 2 Of 2) - Except for California:

EVAPORATIVE EMISSION LINE DRAWING
