Vacuum and Vapor Hose Diagrams
>>
Vacuum Hose Drawing
Vacuum Hose Drawing

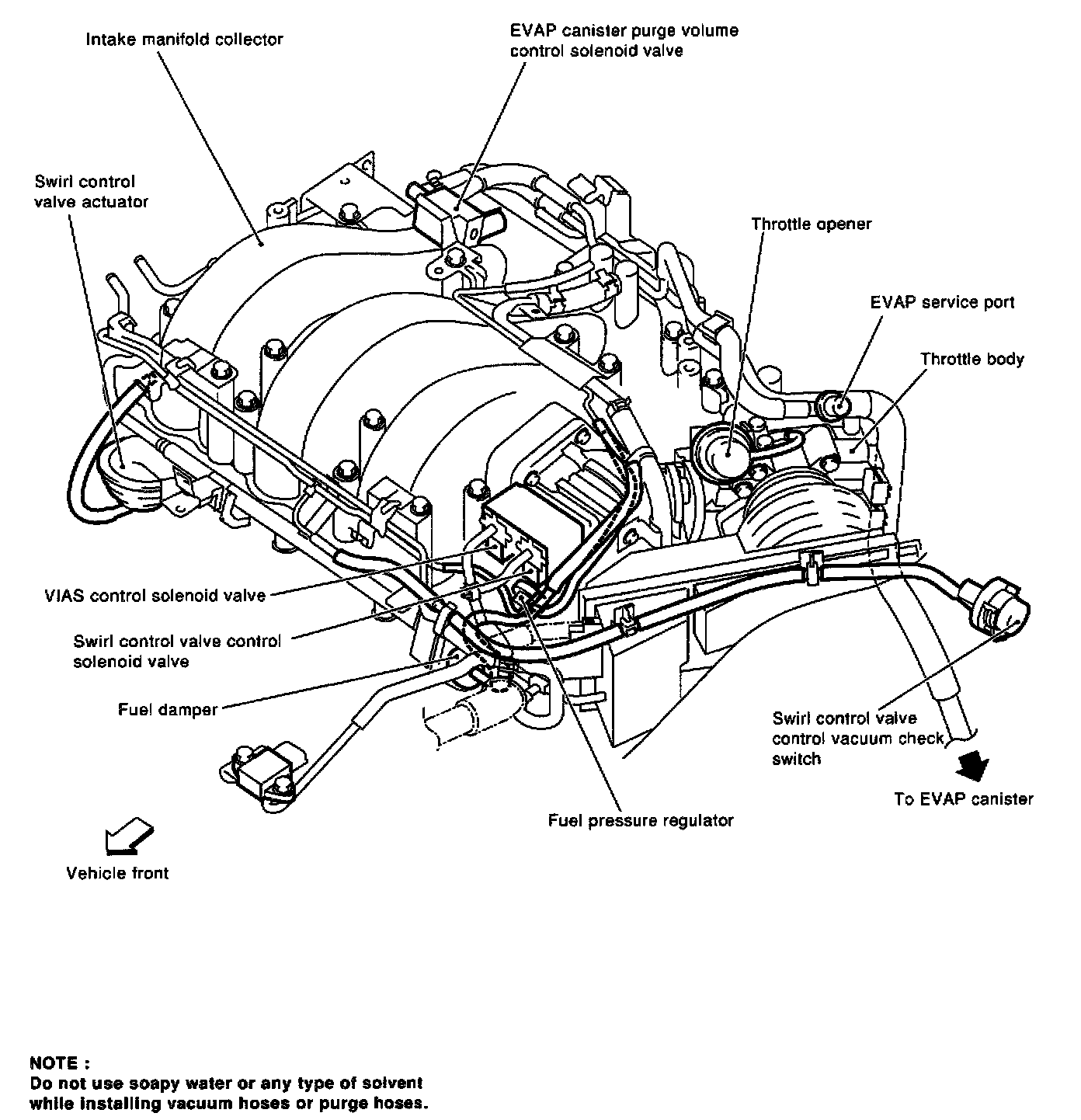

Vacuum Hose Drawing - FOR CALIFORNIA:

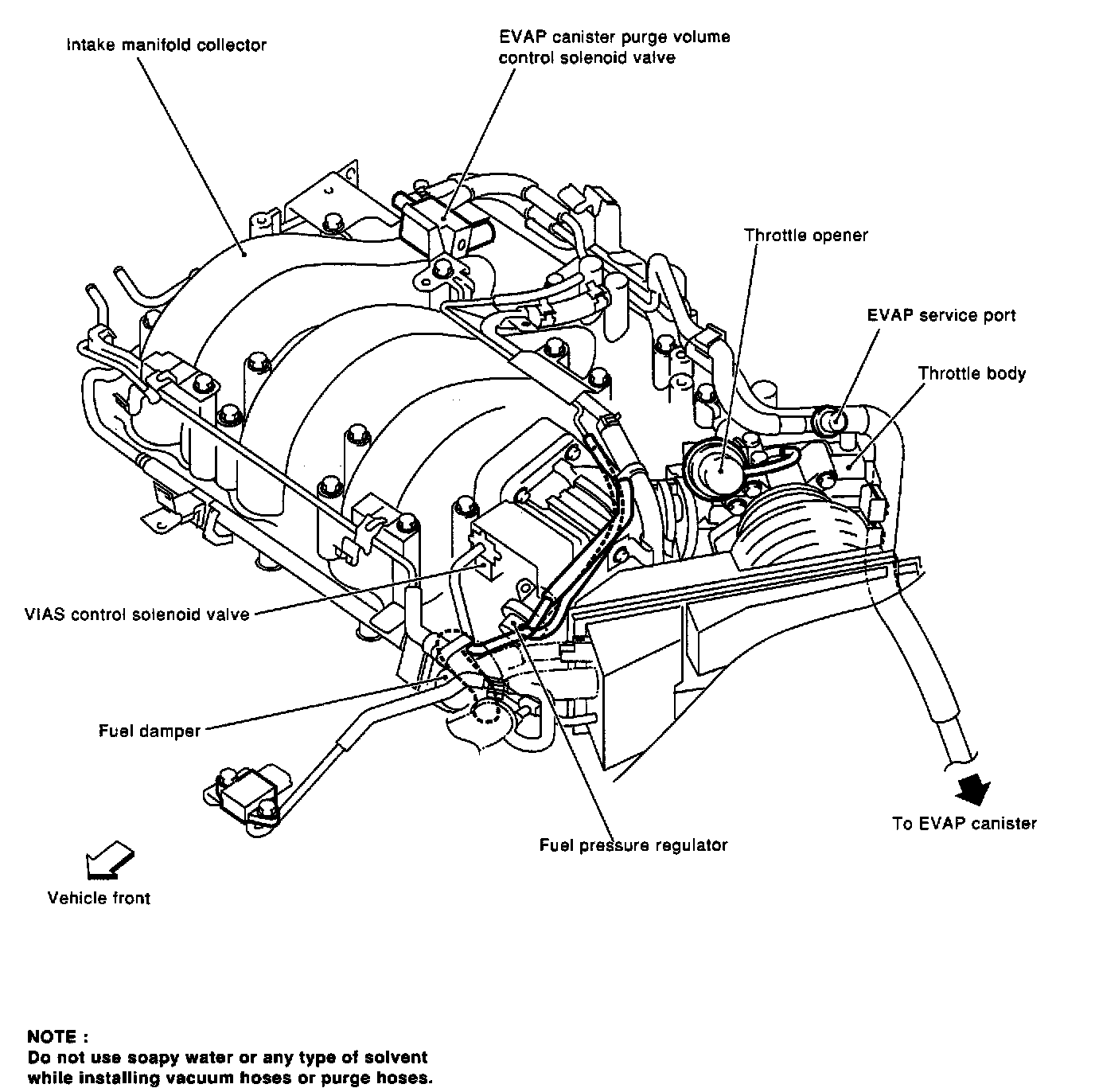

Vacuum Hose Drawing - EXCEPT FOR CALIFORNIA:
Refer to "System Diagram" for Vacuum Control System.
