Start Signal

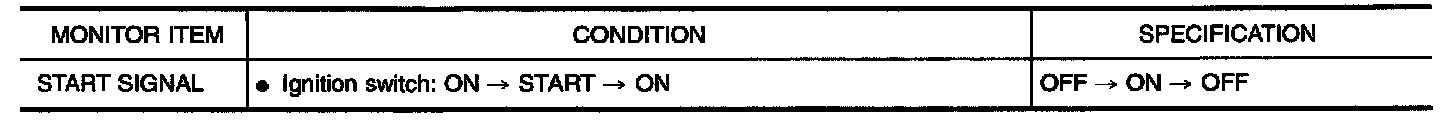

CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

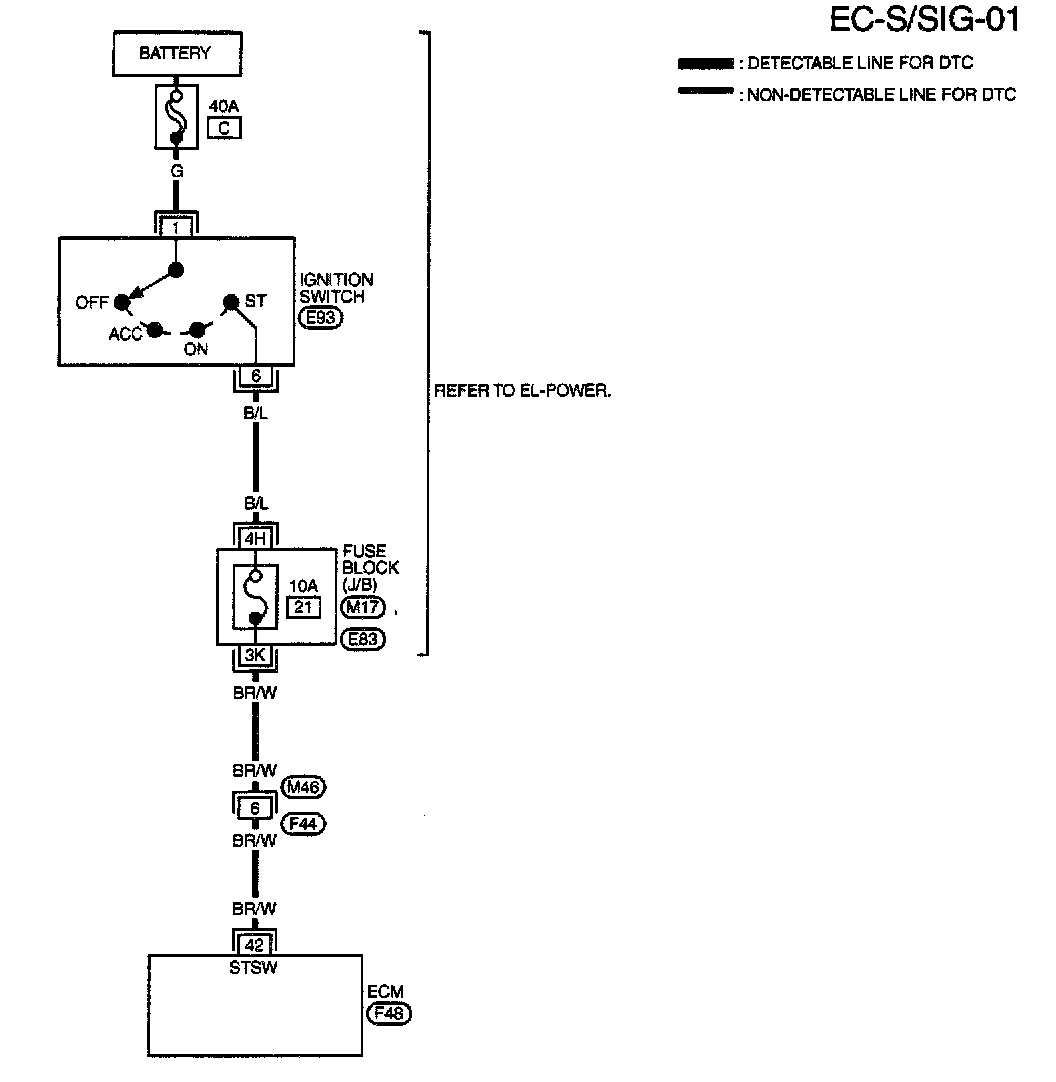

EC-S/SIG-01:

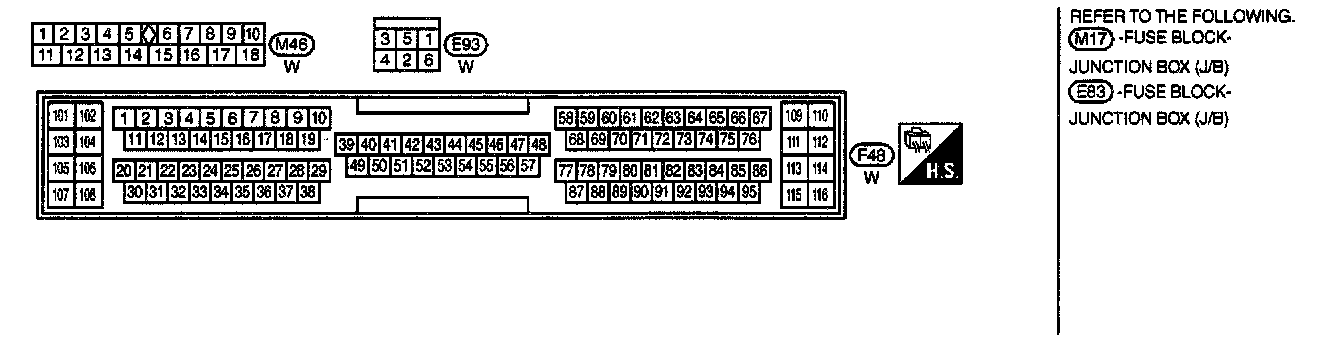

EC-S/SIG-01 - Connector View:

Wiring Diagram

E87, E89, E83, B5, M17, M18, M19 Connector Views:

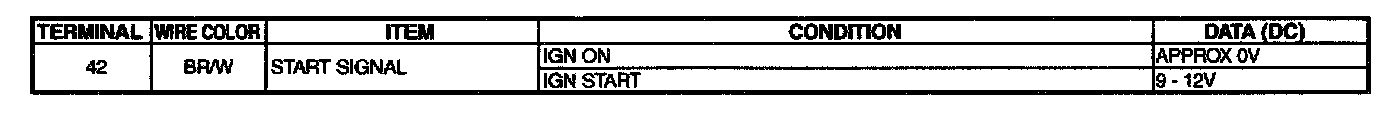

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 48.:

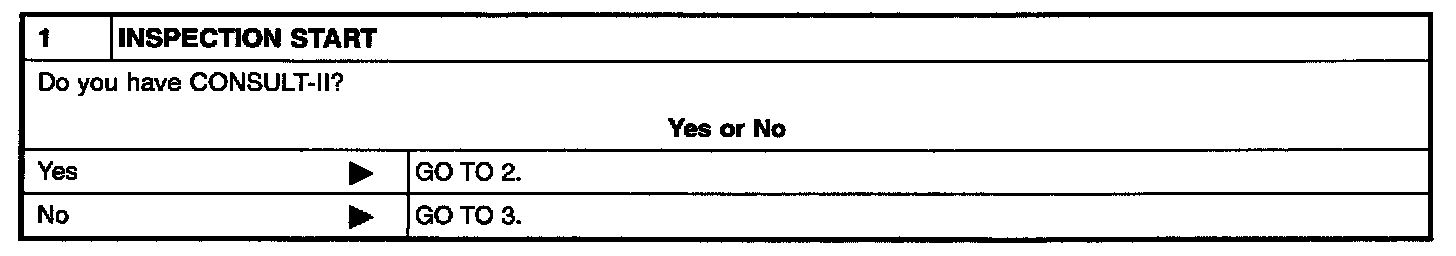

Step 1:

Step 2:

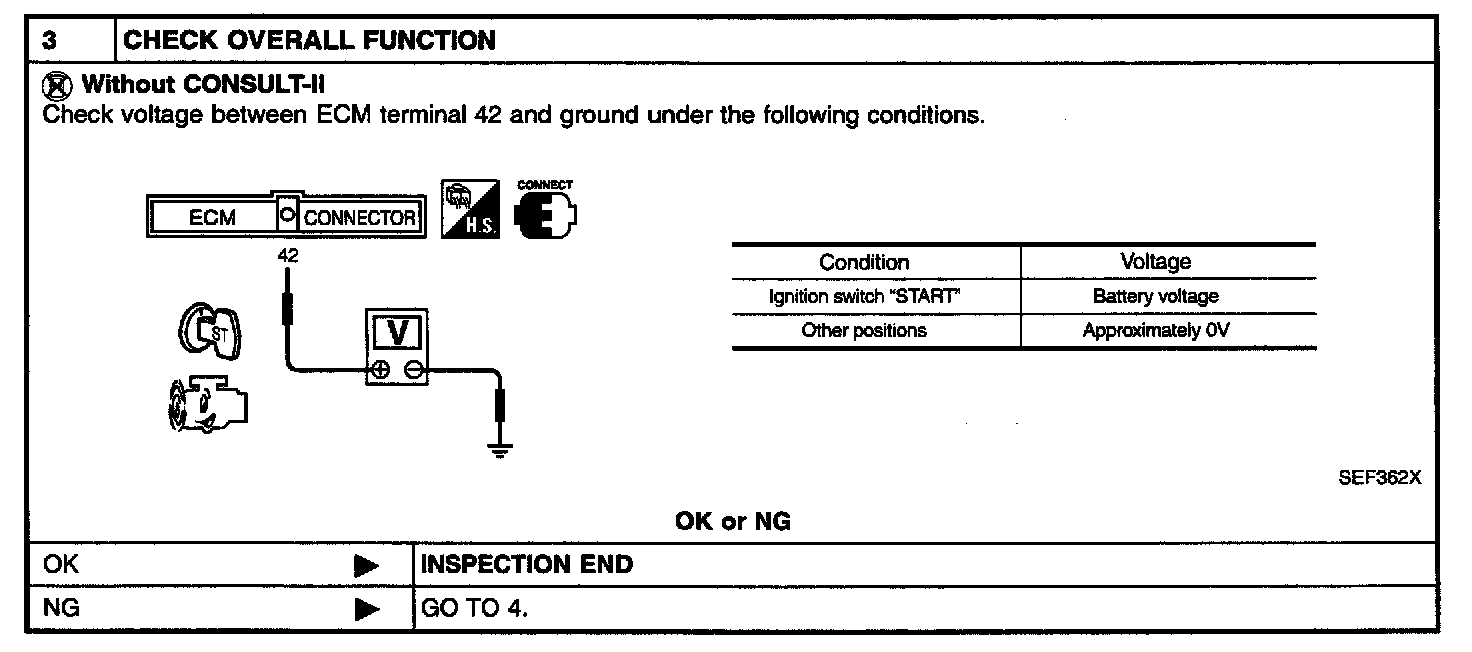

Step 3:

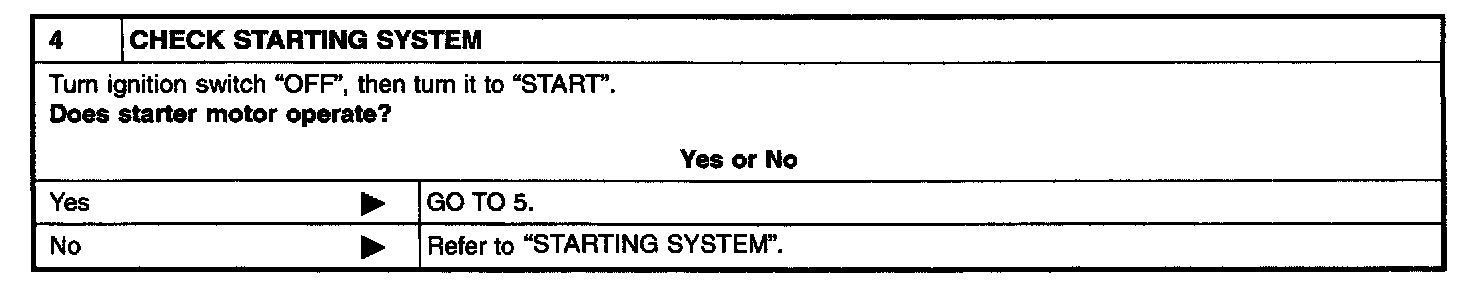

Step 4:

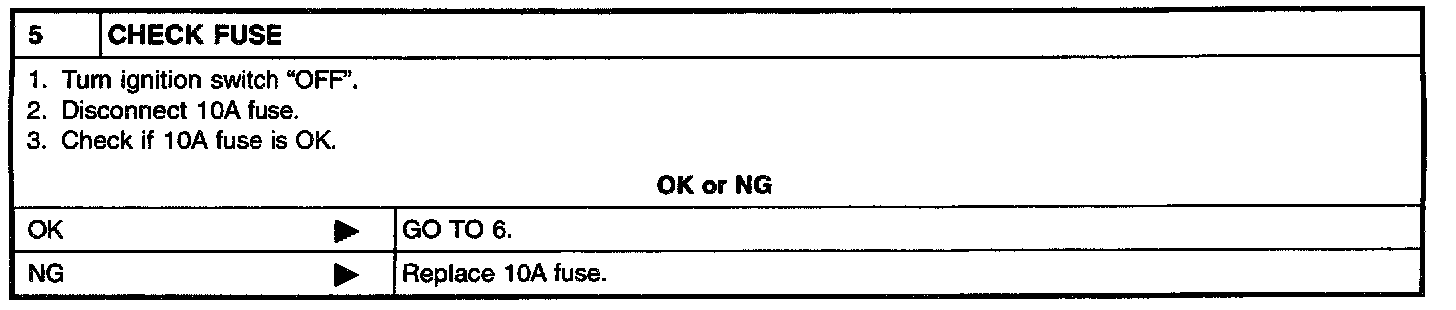

Step 5:

Step 6:

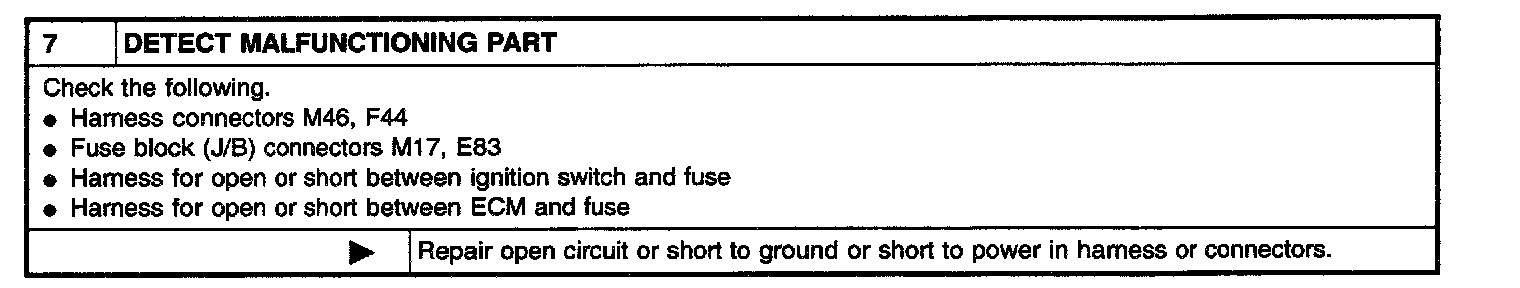

Step 7:

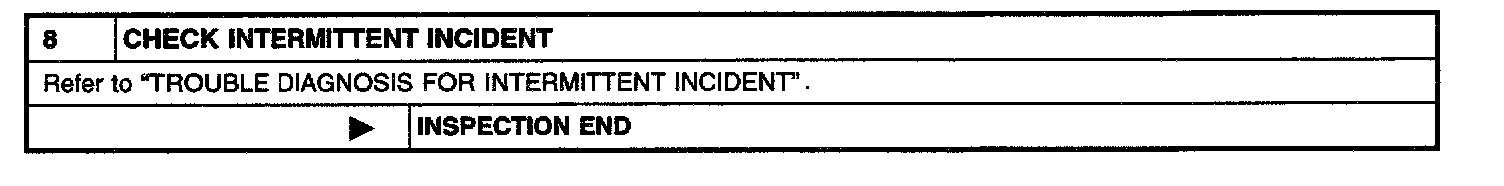

Step 8:

Diagnostic Procedure
