Electronic Controlled Engine Mount

System Description

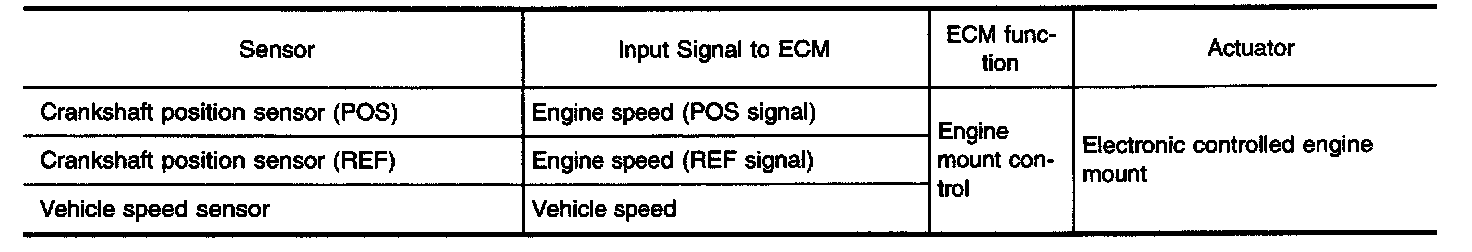

The ECM controls the engine mount operation corresponding to the engine speed and the vehicle speed. The control system has 2-step control [soft/hard].

Vehicle Condition Engine mount control
Idle (with vehicle stopped) Soft
Driving Hard

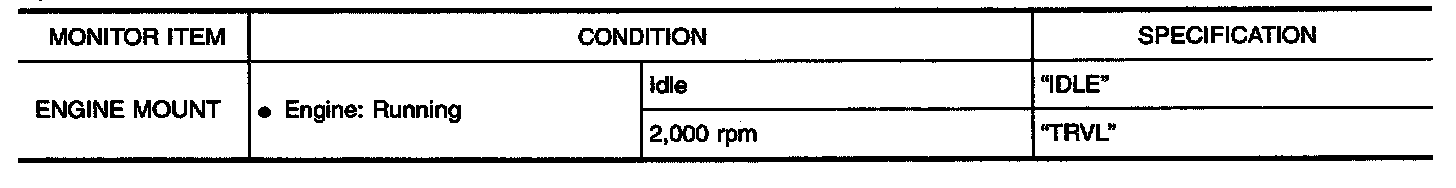

CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

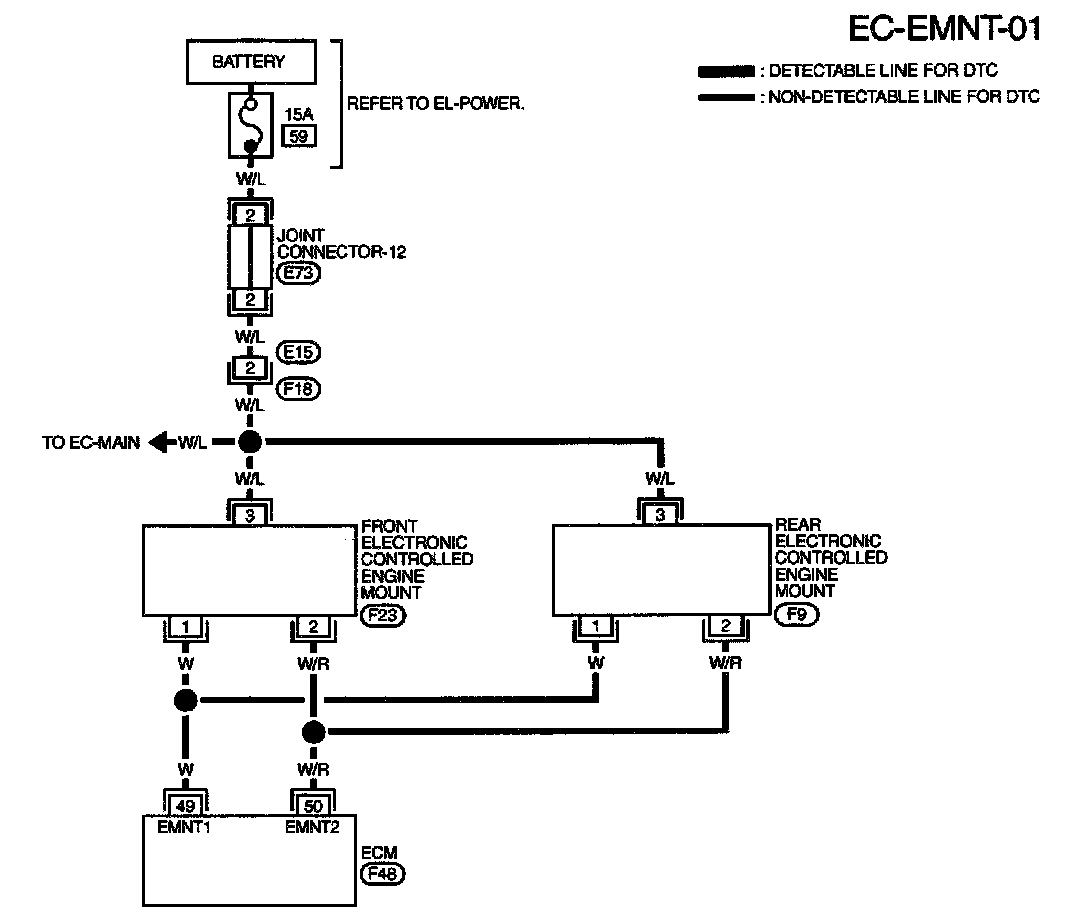

EC-EMNT-01:

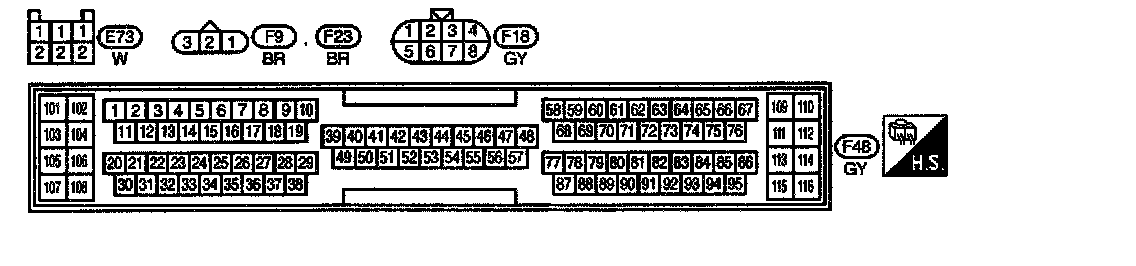

EC-EMNT-01 - Connector View:

Wiring Diagram

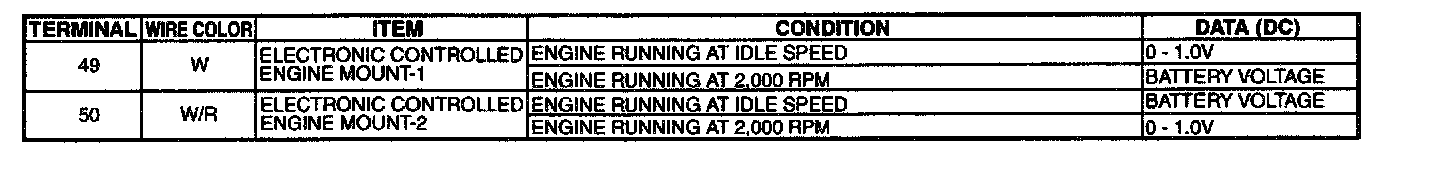

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 48.:

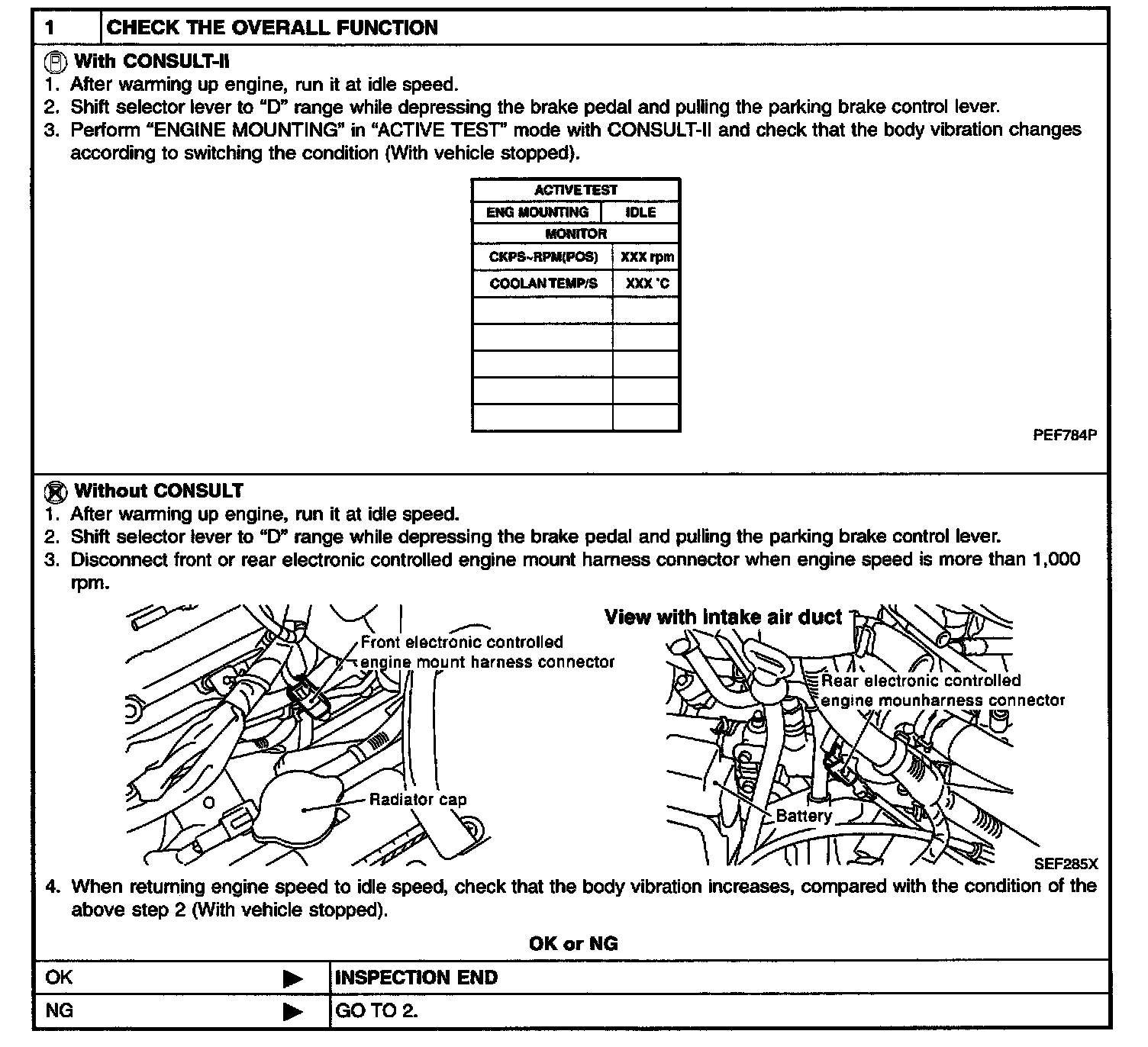

Step 1:

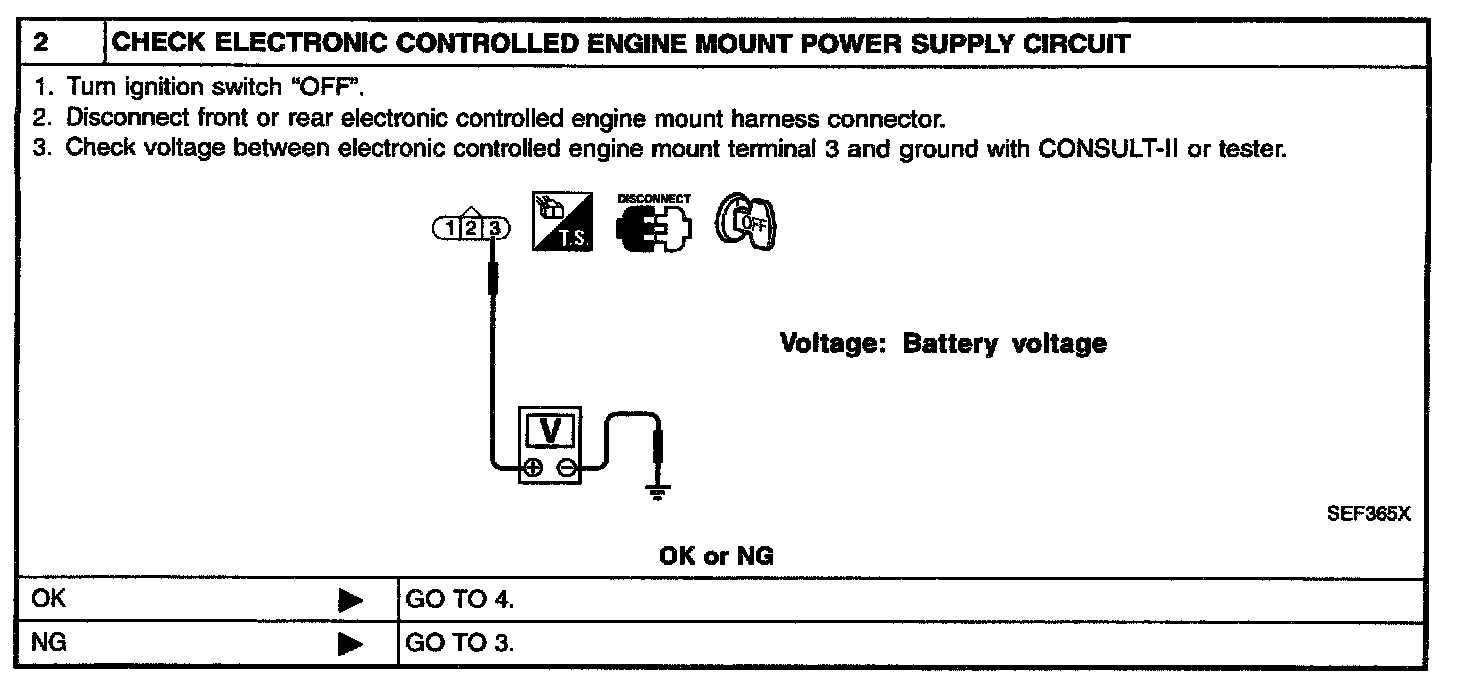

Step 2:

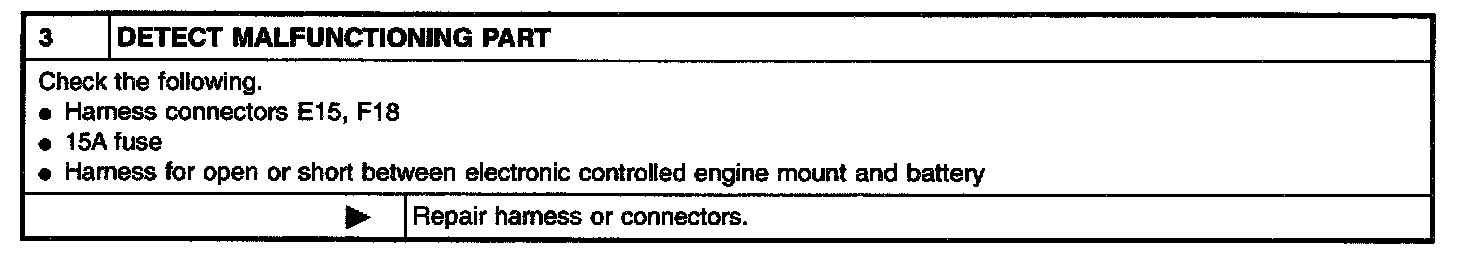

Step 3:

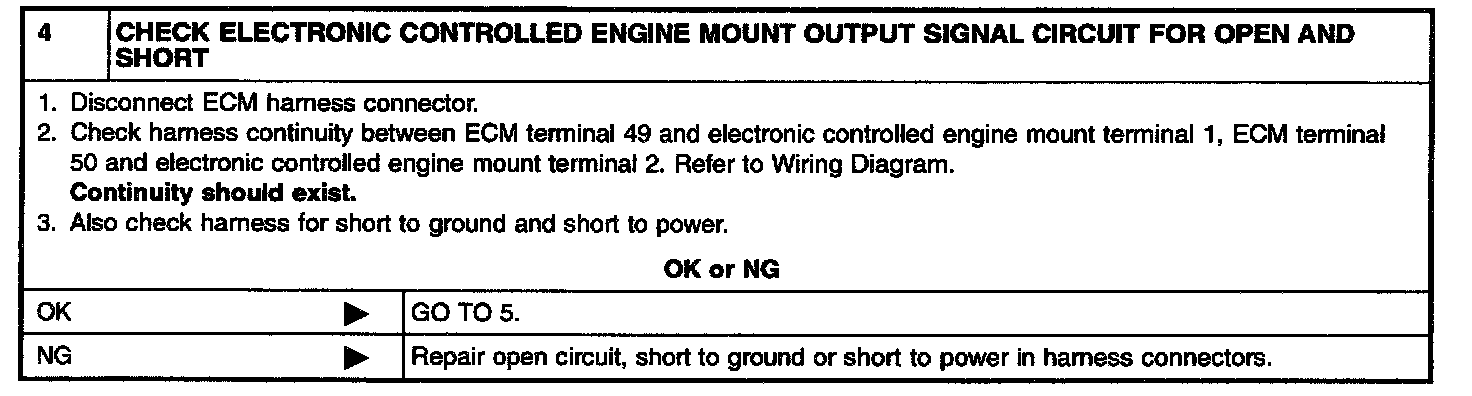

Step 4:

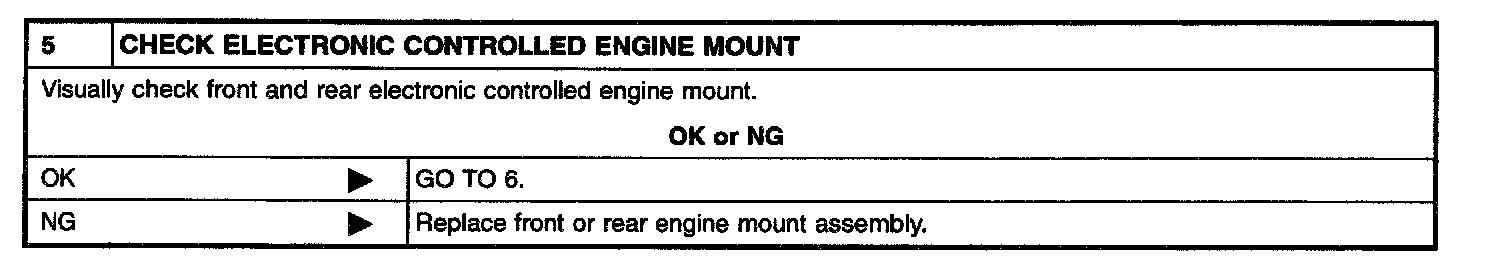

Step 5:

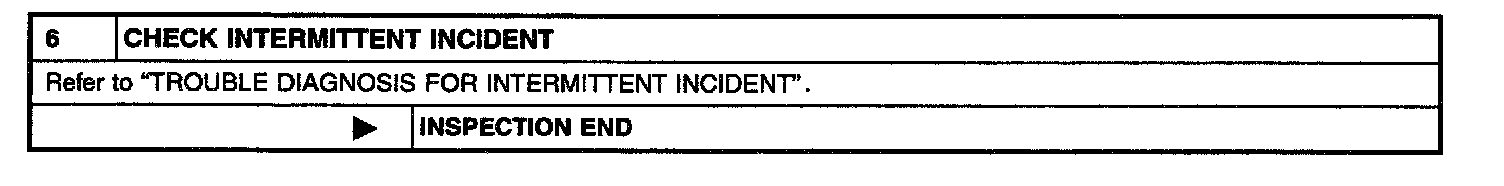

Step 6:

Diagnostic Procedure
