Electrical Load Signal

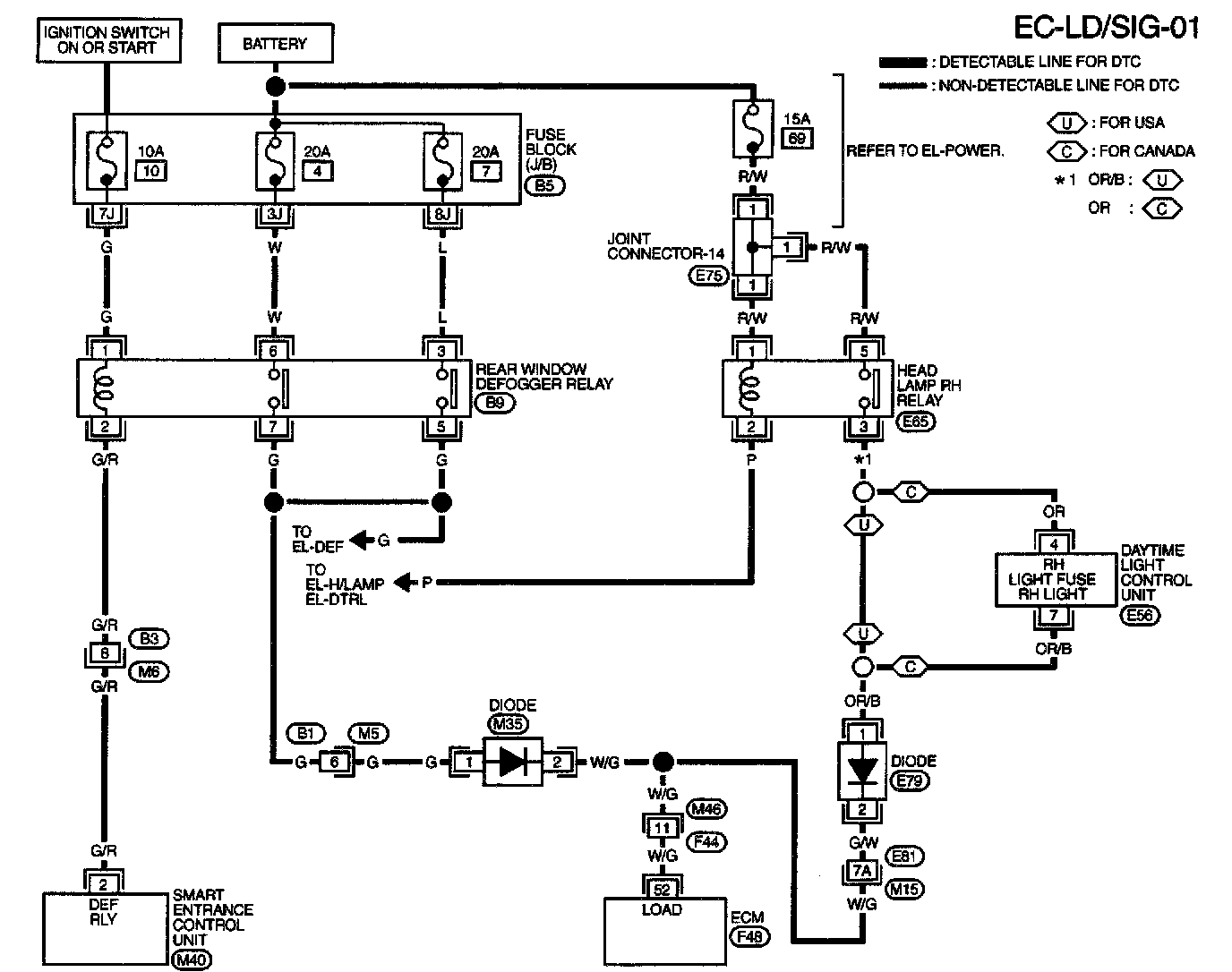

EC-LD/SIG-01:

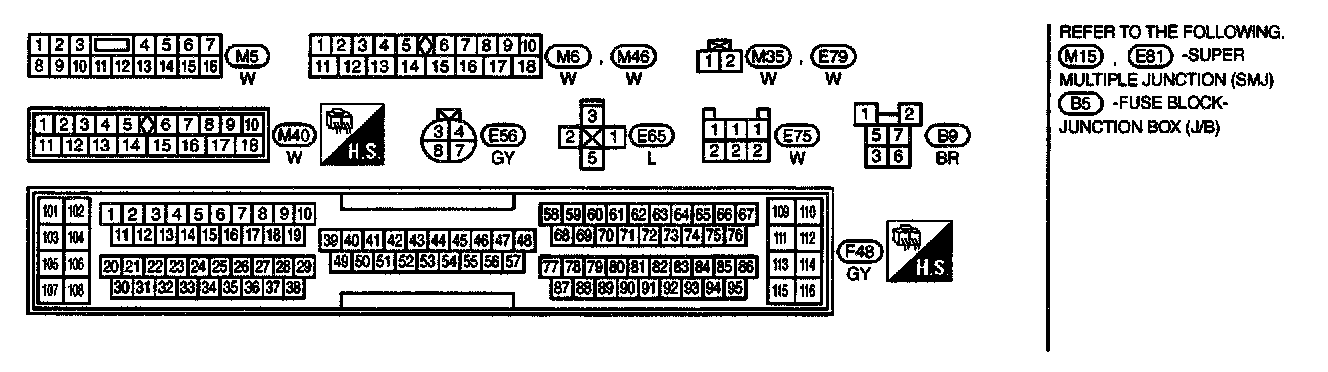

EC-LD/SIG-01 - Connector View:

M15, E81, D1, M4, D31, D61 Connector Views:

E87, E89, E83, B5, M17, M18, M19 Connector Views:

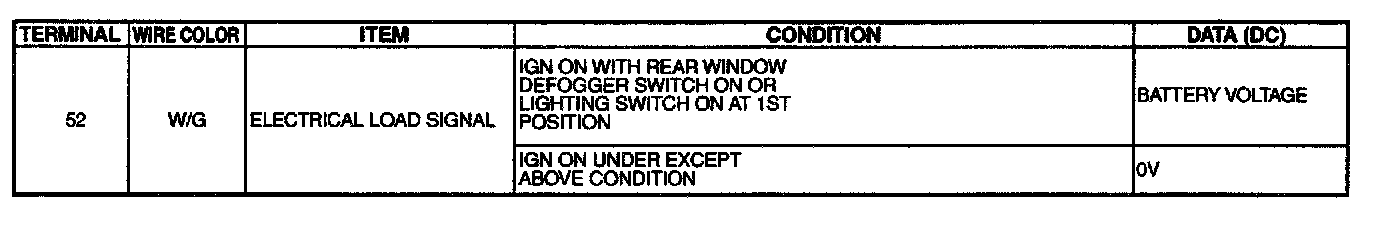

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 48.:

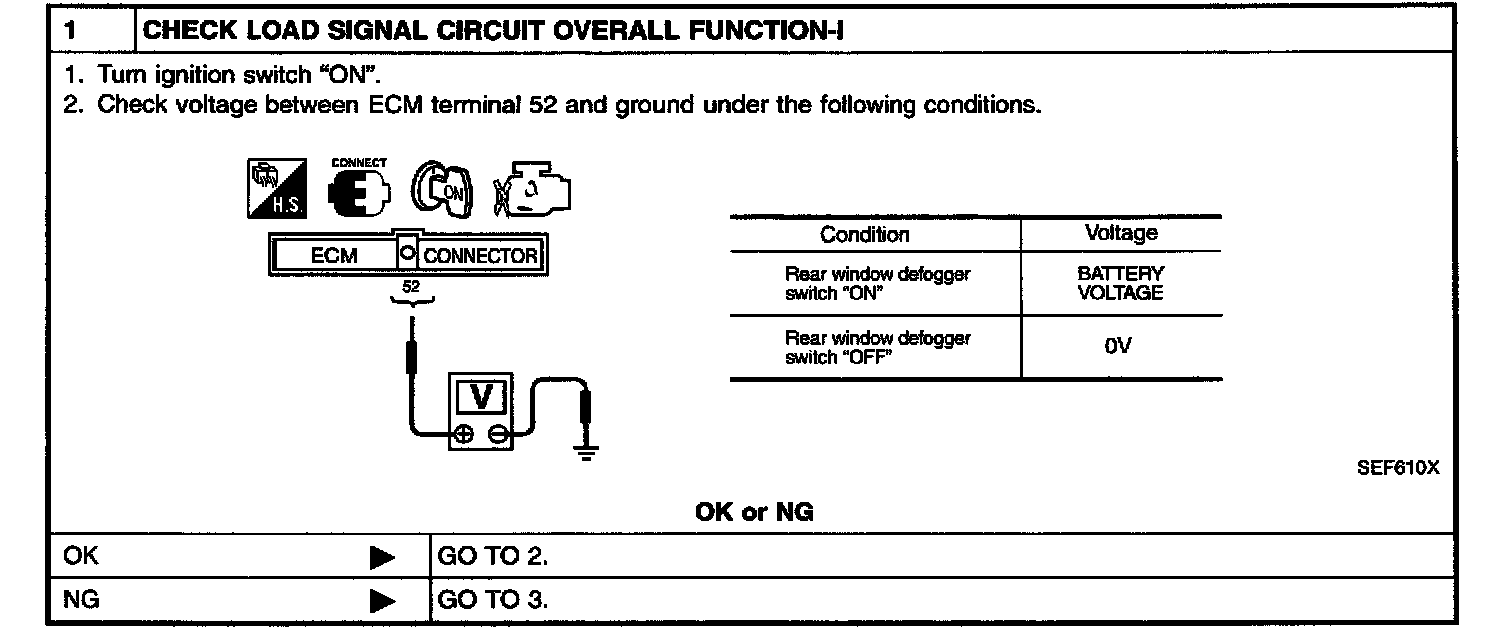

Step 1:

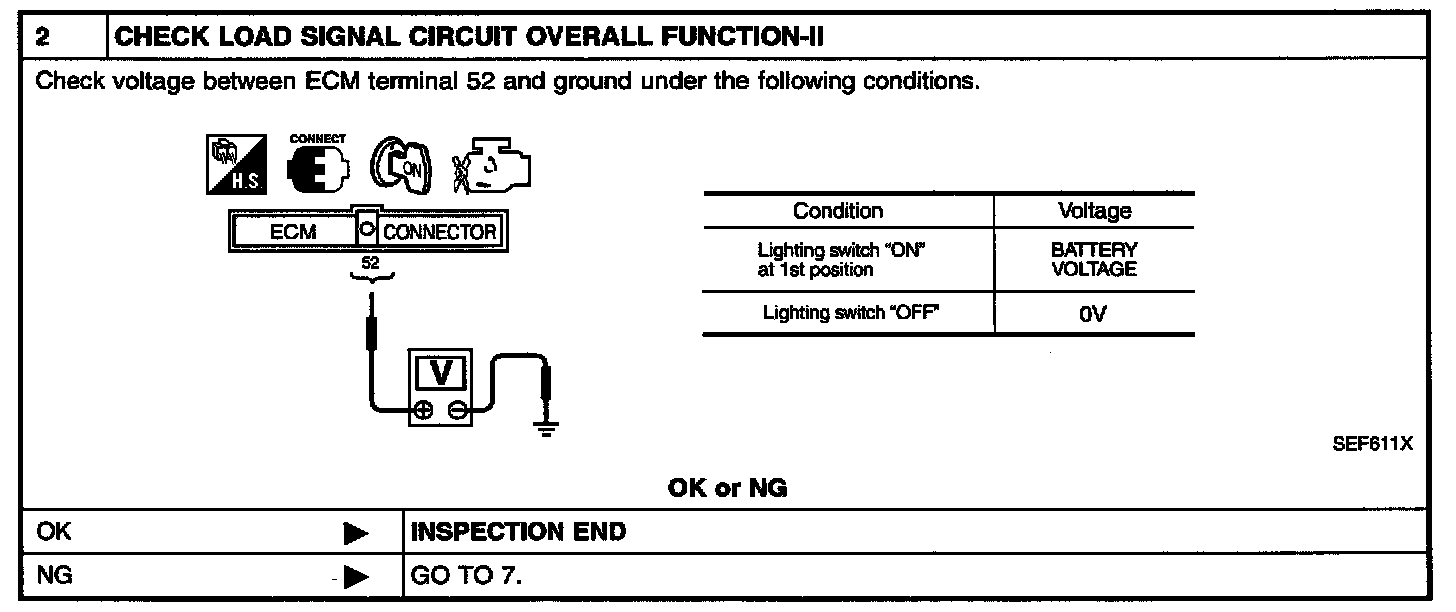

Step 2:

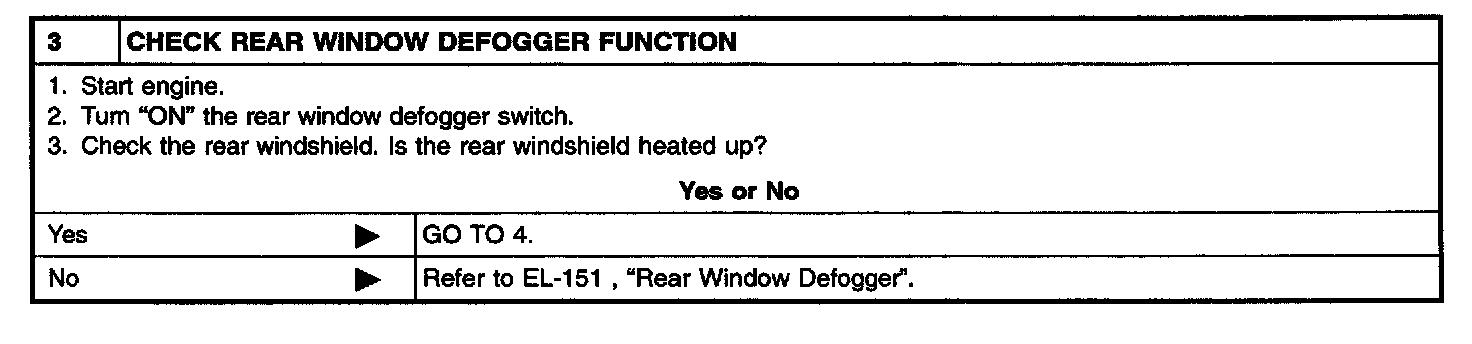

Step 3:

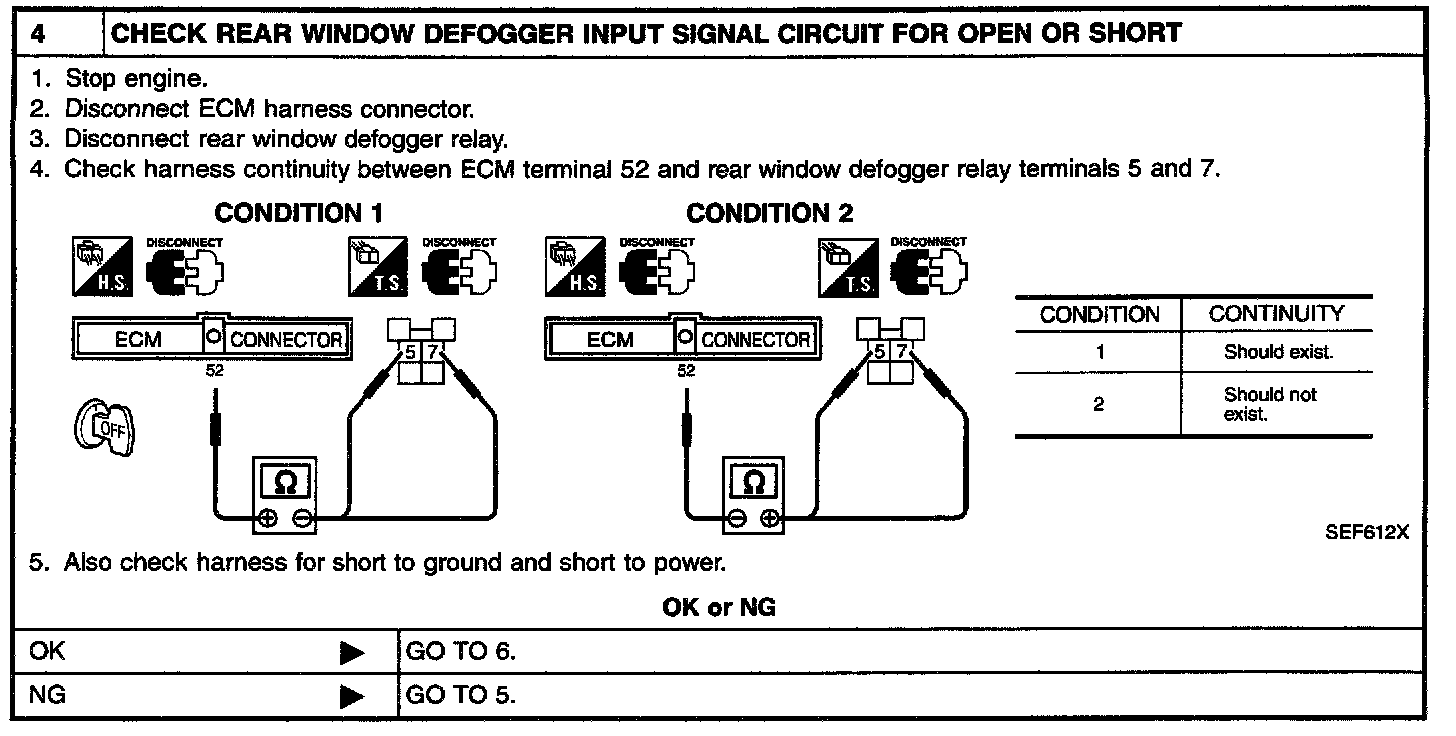

Step 4:

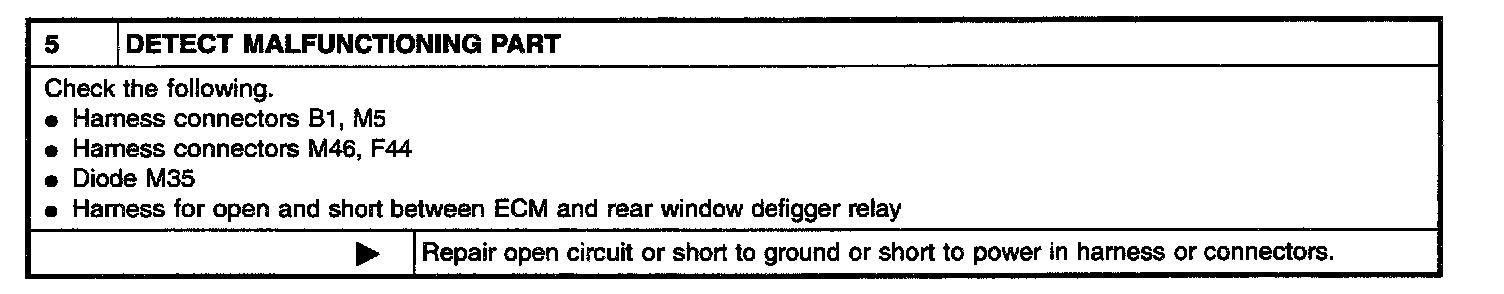

Step 5:

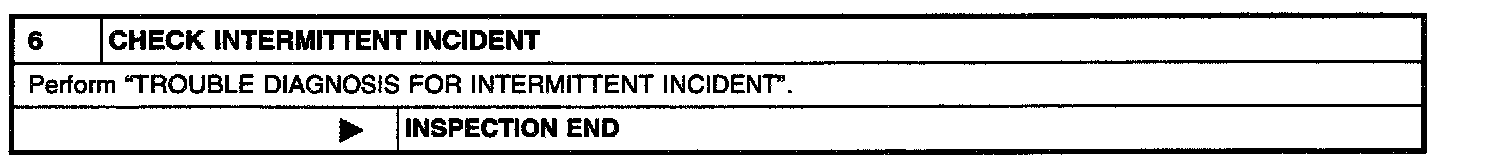

Step 6:

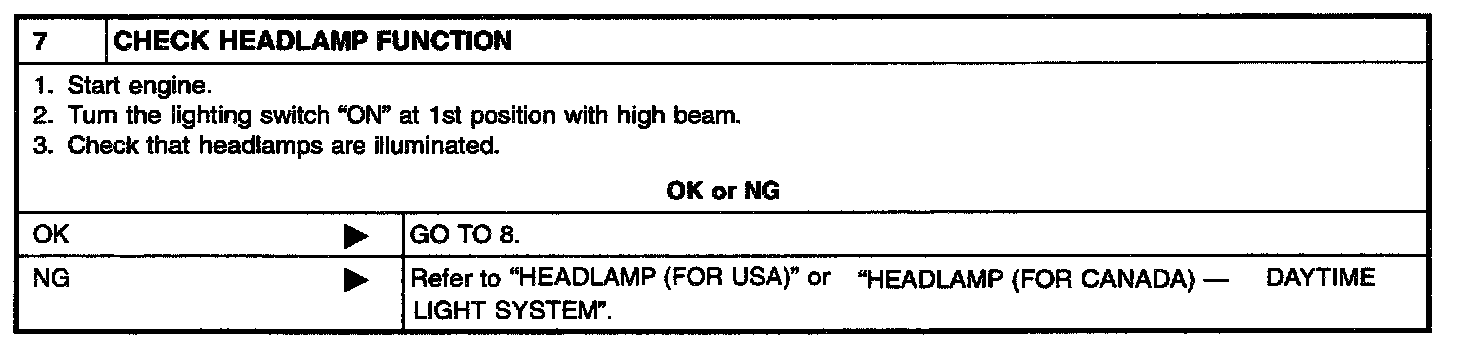

Step 7:

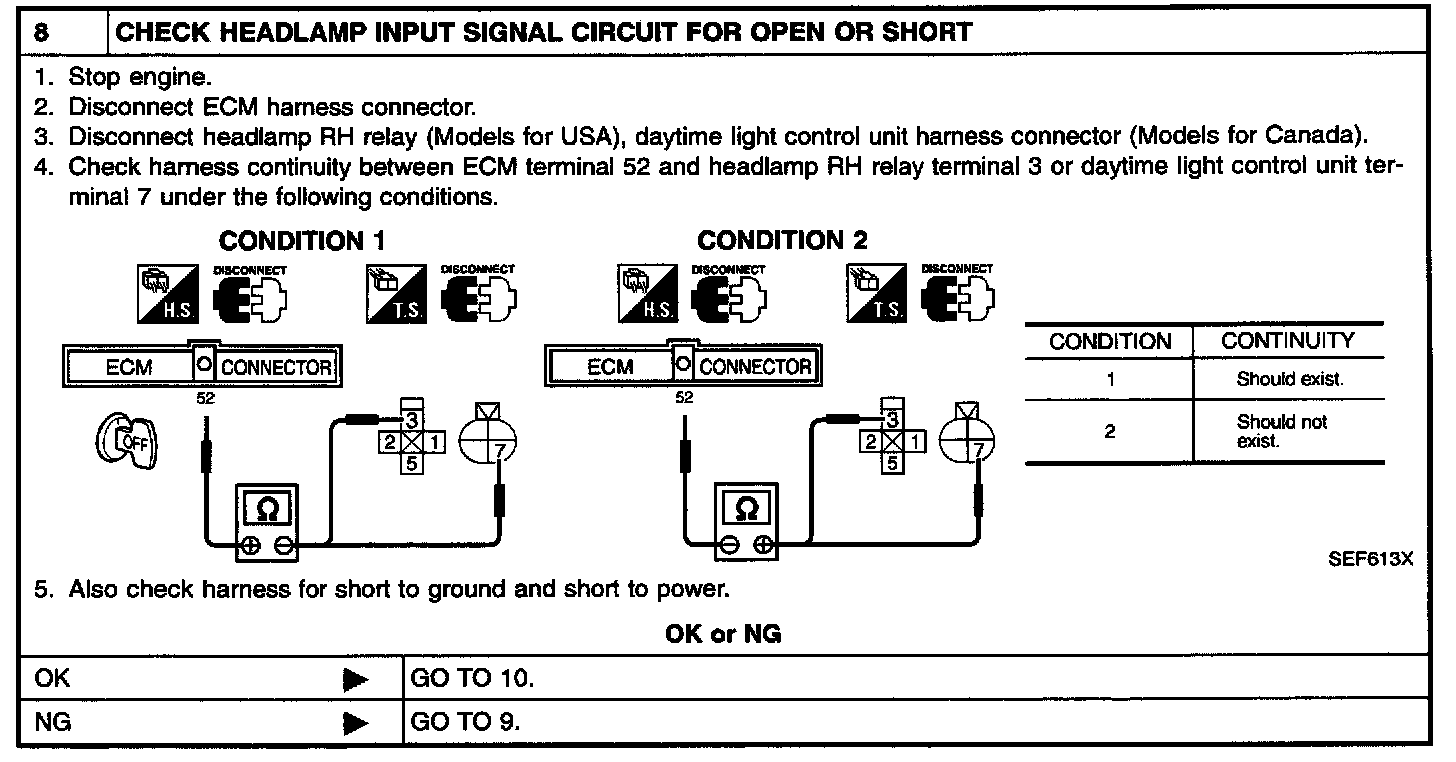

Step 8:

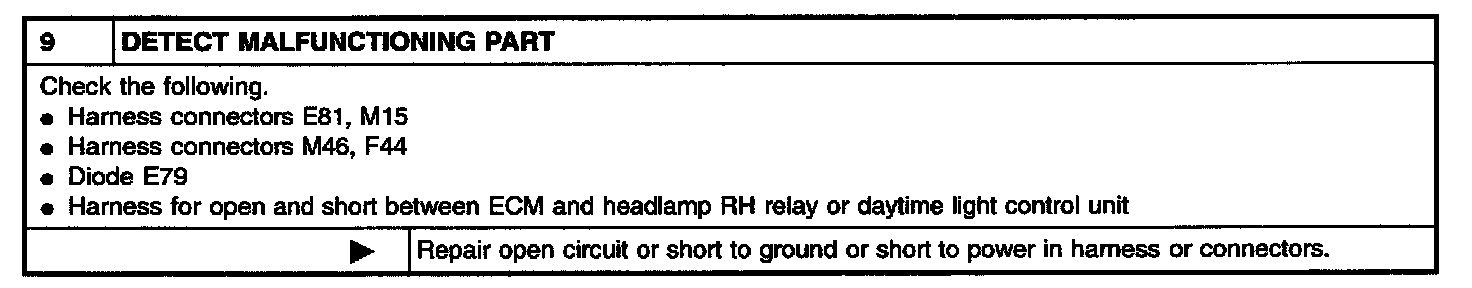

Step 9:

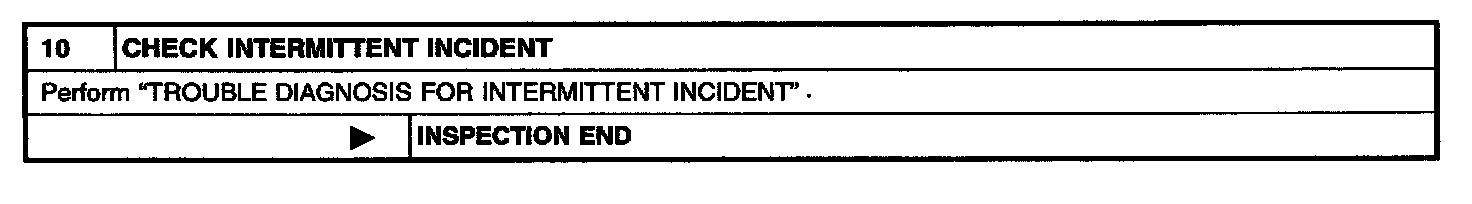

Step 10:
