M/T Revolution Sensor

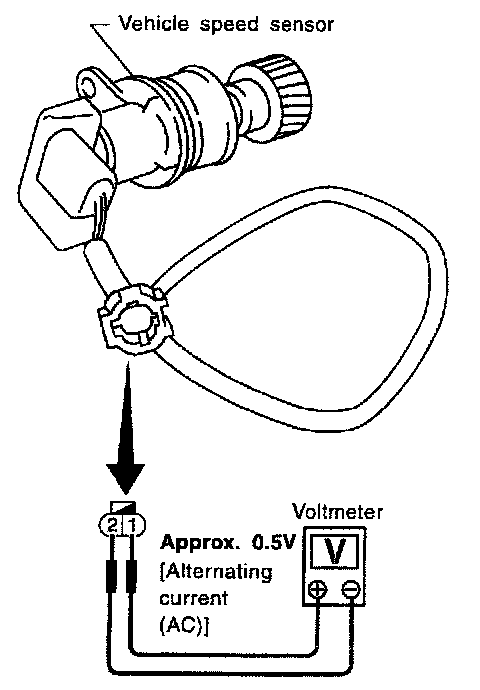

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.

2. Turn vehicle speed sensor pinion quickly and measure voltage across 1 and 2.
