A/T Revolution Sensor

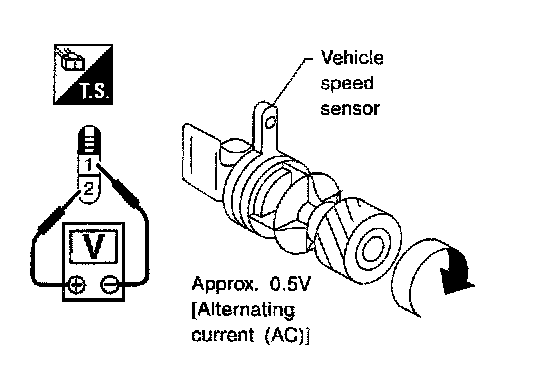

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.

2. Turn vehicle speed sensor pinion quickly and measure voltage across 1 and 2.

For further information regarding the diagnosis of this component and the system that it is a part of, please refer Transmission Control Systems.
