Idle Speed/Throttle Actuator - Electronic: Testing and Inspection

Idle Air Control Vavle (IACV-AAC) Testing

1. Disconnect IACV-AAC valve harness connector.

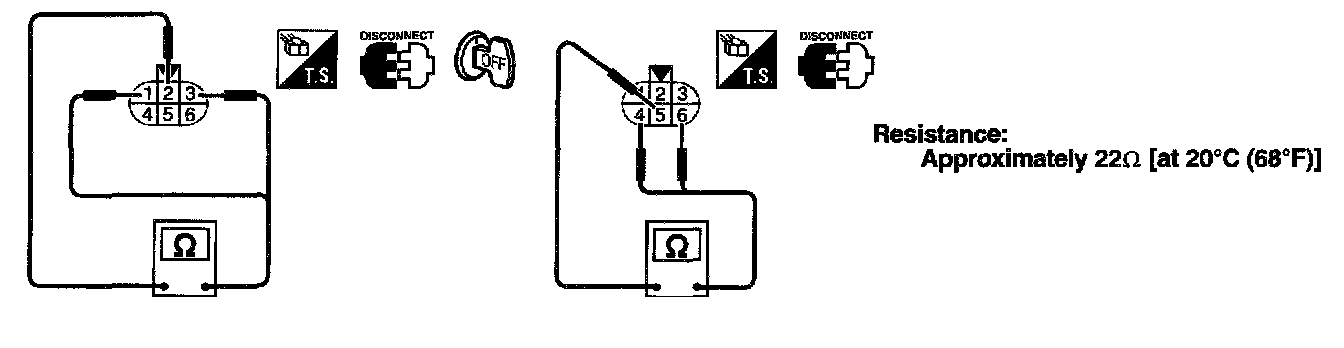

2. Check resistance between IACV-AAC valve terminal 2 and terminals 1, 3, terminal 5 and terminals 4,6.
