Rear

REAR WHEEL BEARING

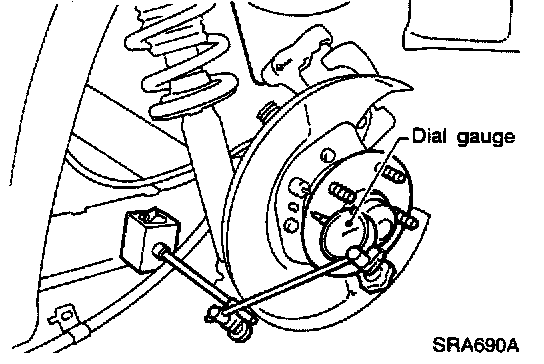

- Check axial end play.
Axial end play: 0.05 mm (0.0020 inch)
- Check that wheel hub bearings operate smoothly.
- Check tightening torque of wheel bearing lock nut.
255 - 333 Nm (26 - 34 kg-m, 188 - 245 ft. lbs.)
- Replace wheel bearing assembly if there is axial end play or wheel bearing does not turn smoothly. Refer to Wheel Hub; Service and Repair.
