Home >> Nissan-Datsun >> 2000 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Maintenance >> Tune-up and Engine Performance Checks >> Valve Clearance >> Specifications >> Available Valve Shims

Available Valve Shims

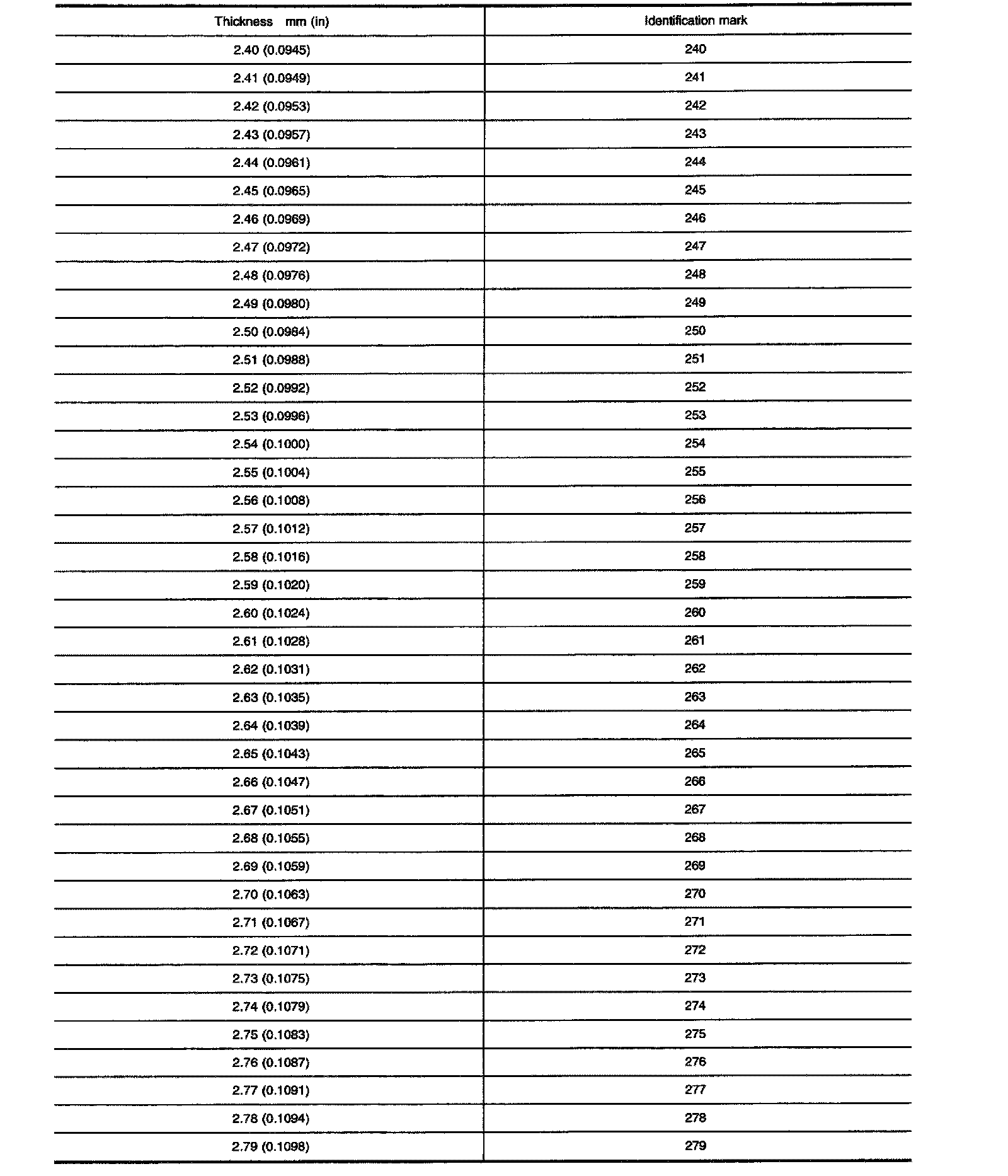

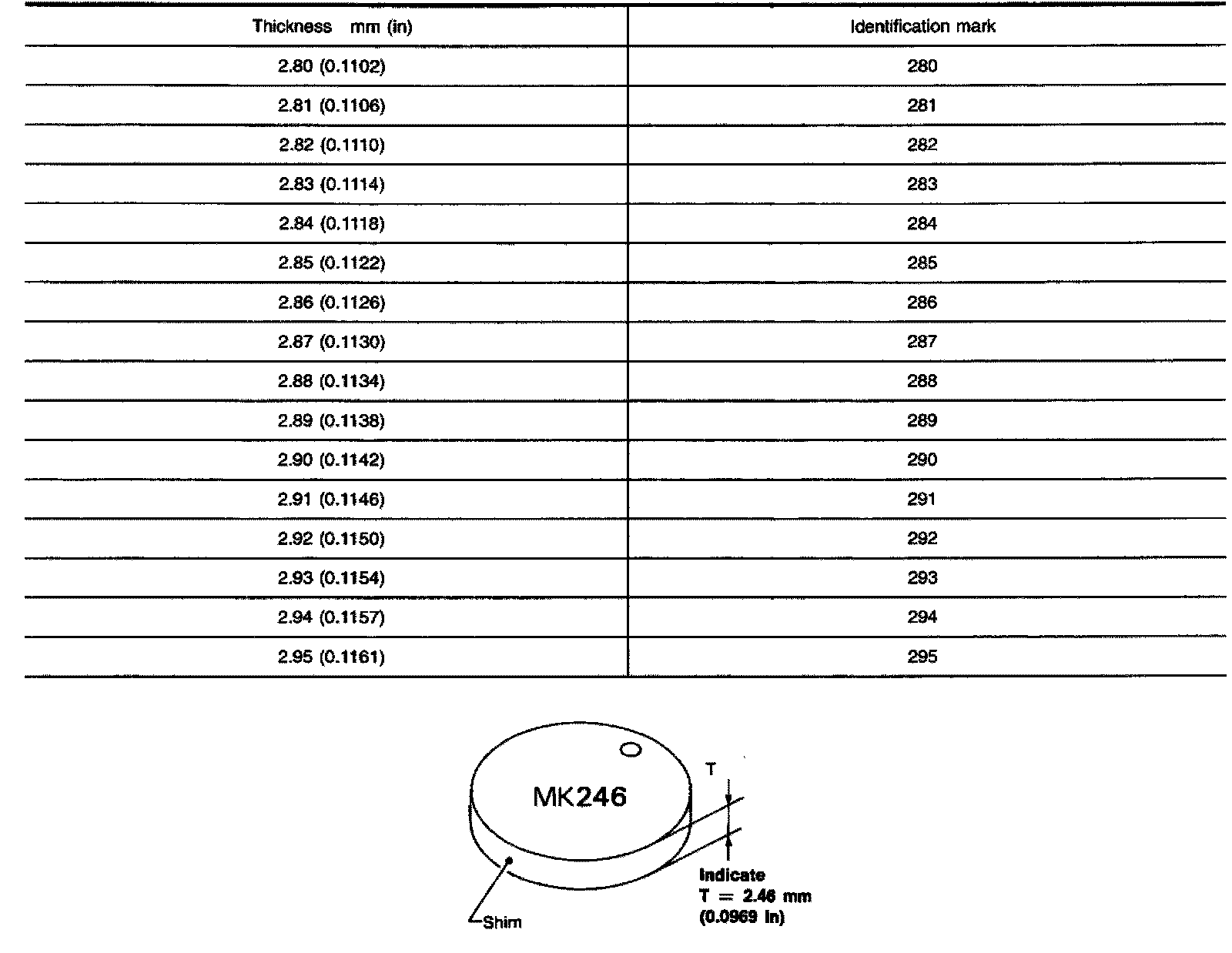

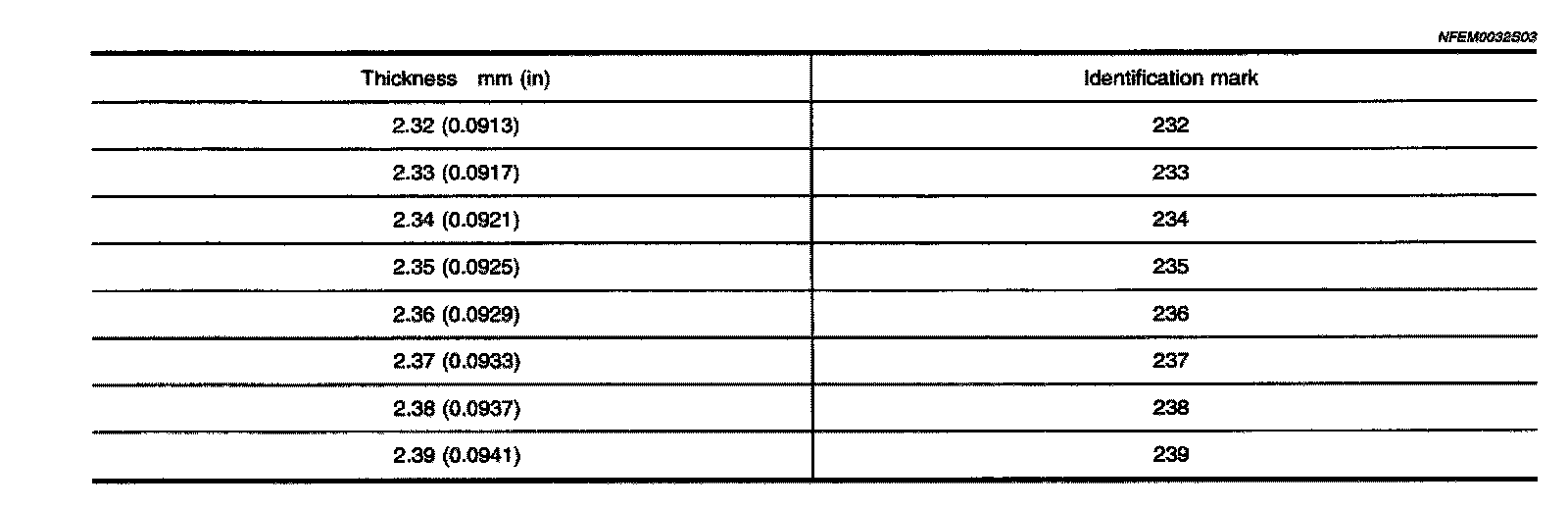

AVAILABLE SHIMS

Part 1 Of 3:





Part 2 Of 3:





Part 3 Of 3:
