Initial Inspection and Diagnostic Overview

CONSULT-II Inspection Procedure
"INT LAMP"/"BATTERY SAVER"




1. Turn ignition switch "OFF".

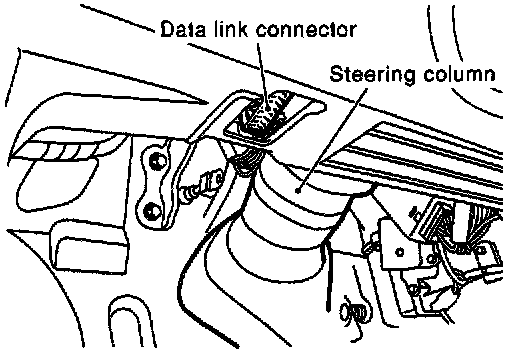

2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".

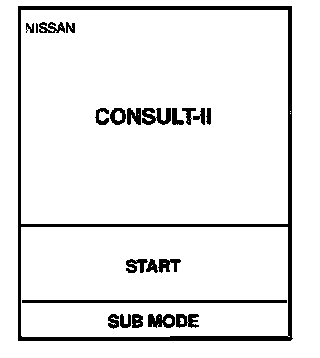

4. Touch "START".

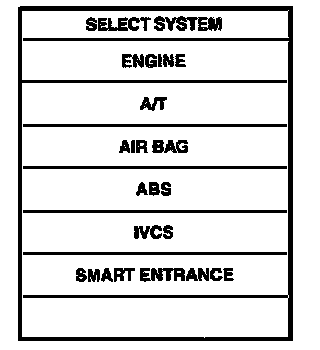

5. Touch "SMART ENTRANCE".

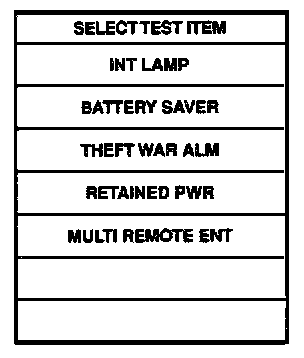

6. Touch "INT LAMP" or "BATTERY SAVER".

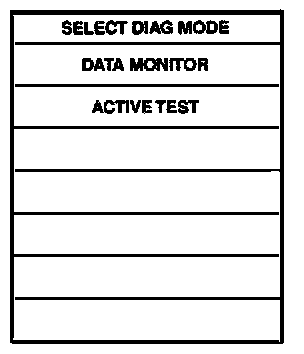

7. Select diagnosis mode.
"DATA MONITOR" and "ACTIVE TEST" are available for "INT LAMP" and "BATTERY SAVER".
