Trouble Diagnosis

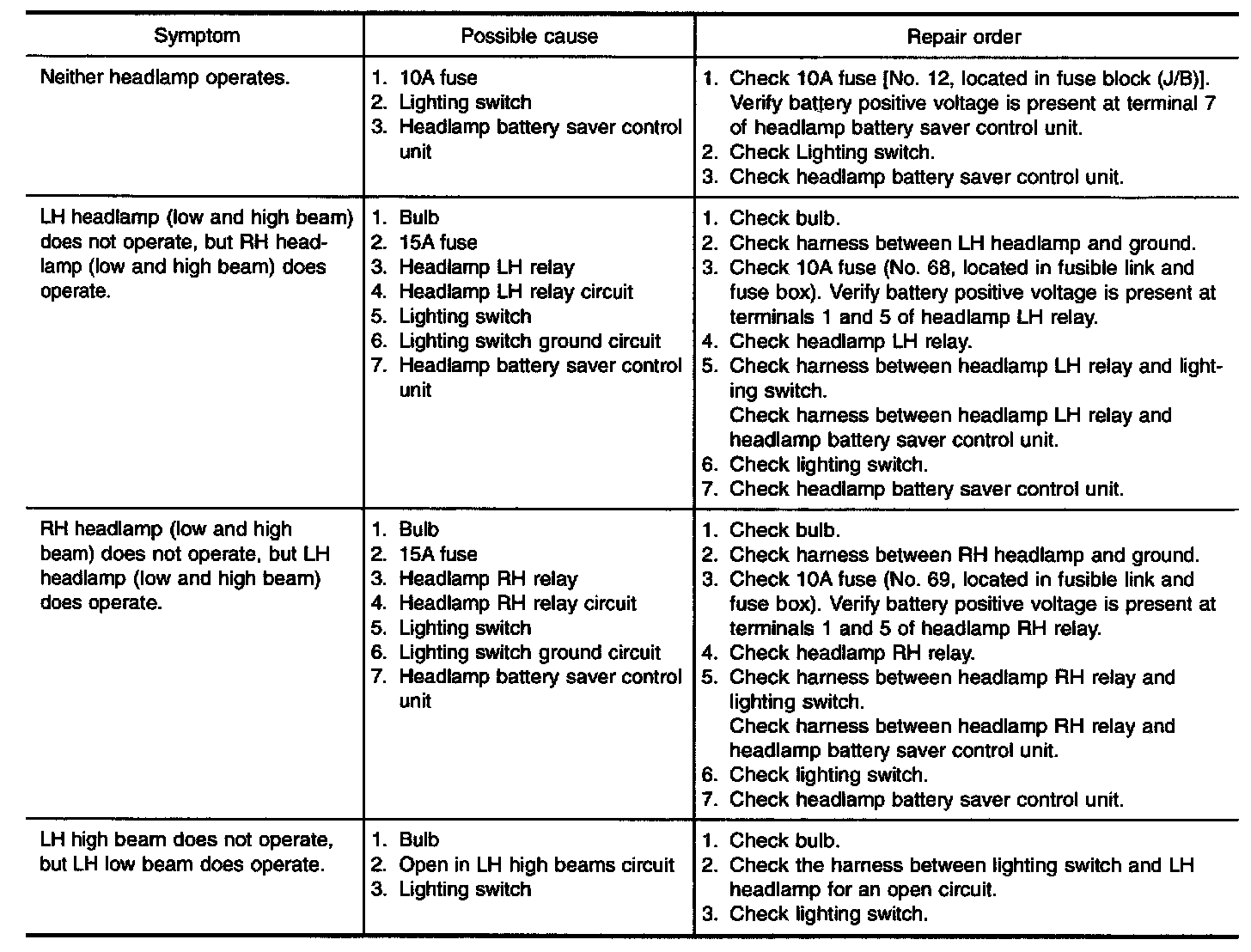

For USA Headlamp Trouble Diagnosis (1 OF 2):

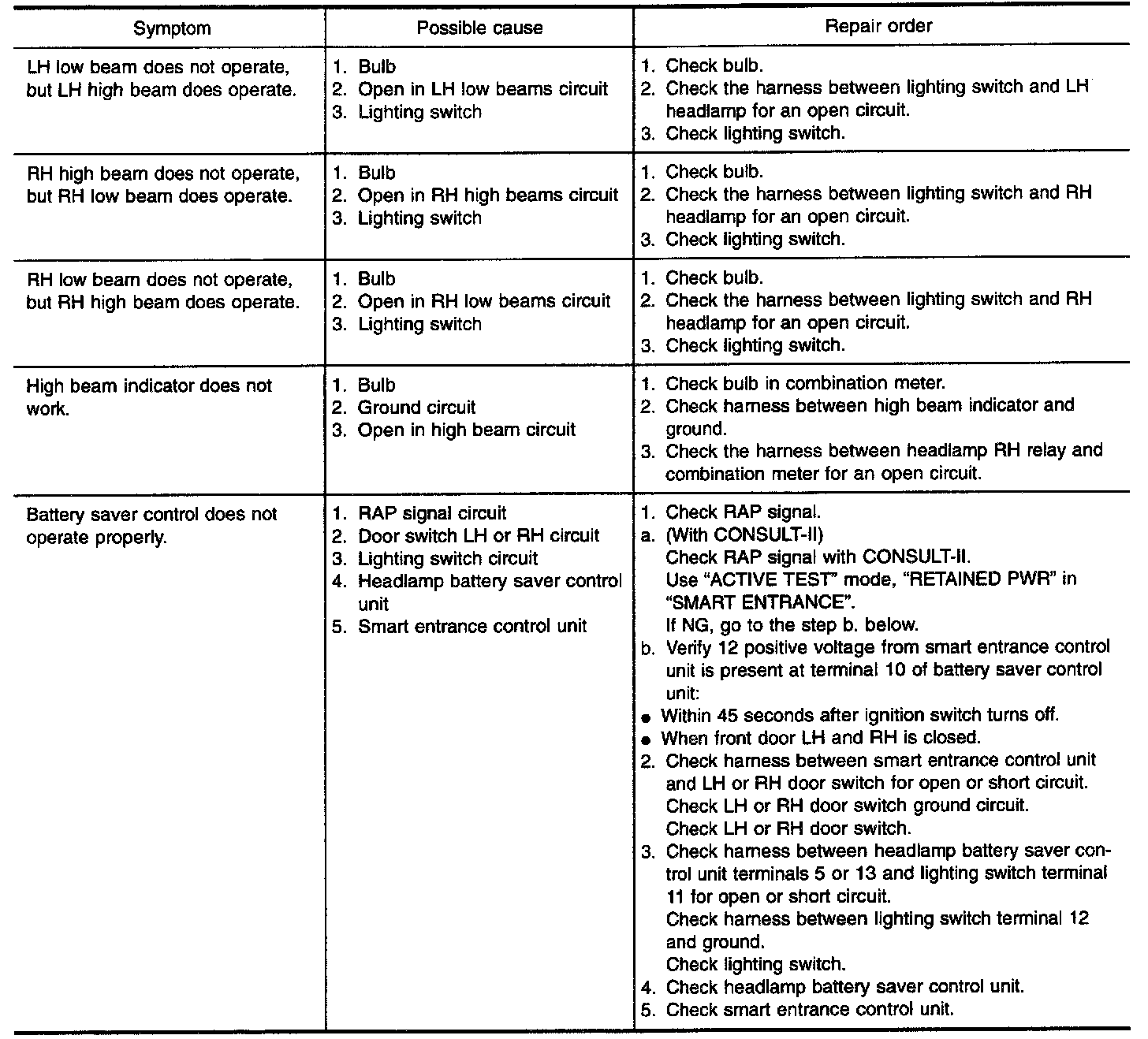

For USA Headlamp Trouble Diagnosis (2 OF 2):
