Scan Tool Testing and Procedures

CONSULT-II Inspection Procedure

"KEY WARN ALM"/"LIGHT WARN ALM"/"SEAT BELT AIM"




1. Turn ignition switch "OFF".
2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".

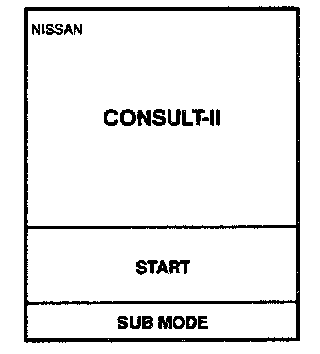

4. Touch "START".

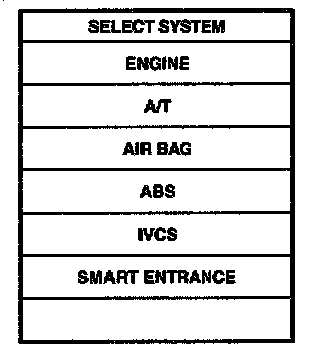

5. Touch "SMART ENTRANCE".

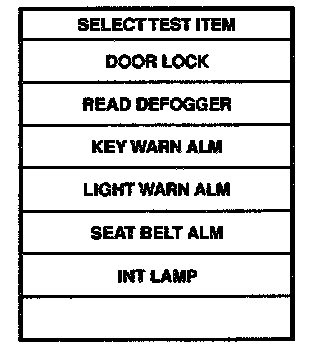

6. Touch "KEY WARN ALM", "LIGHT WARN ALM" or "SEAT BELT ALM".




- DATA MONITOR and ACTIVE TEST are available for the warning chime.
