Insufficient Heating

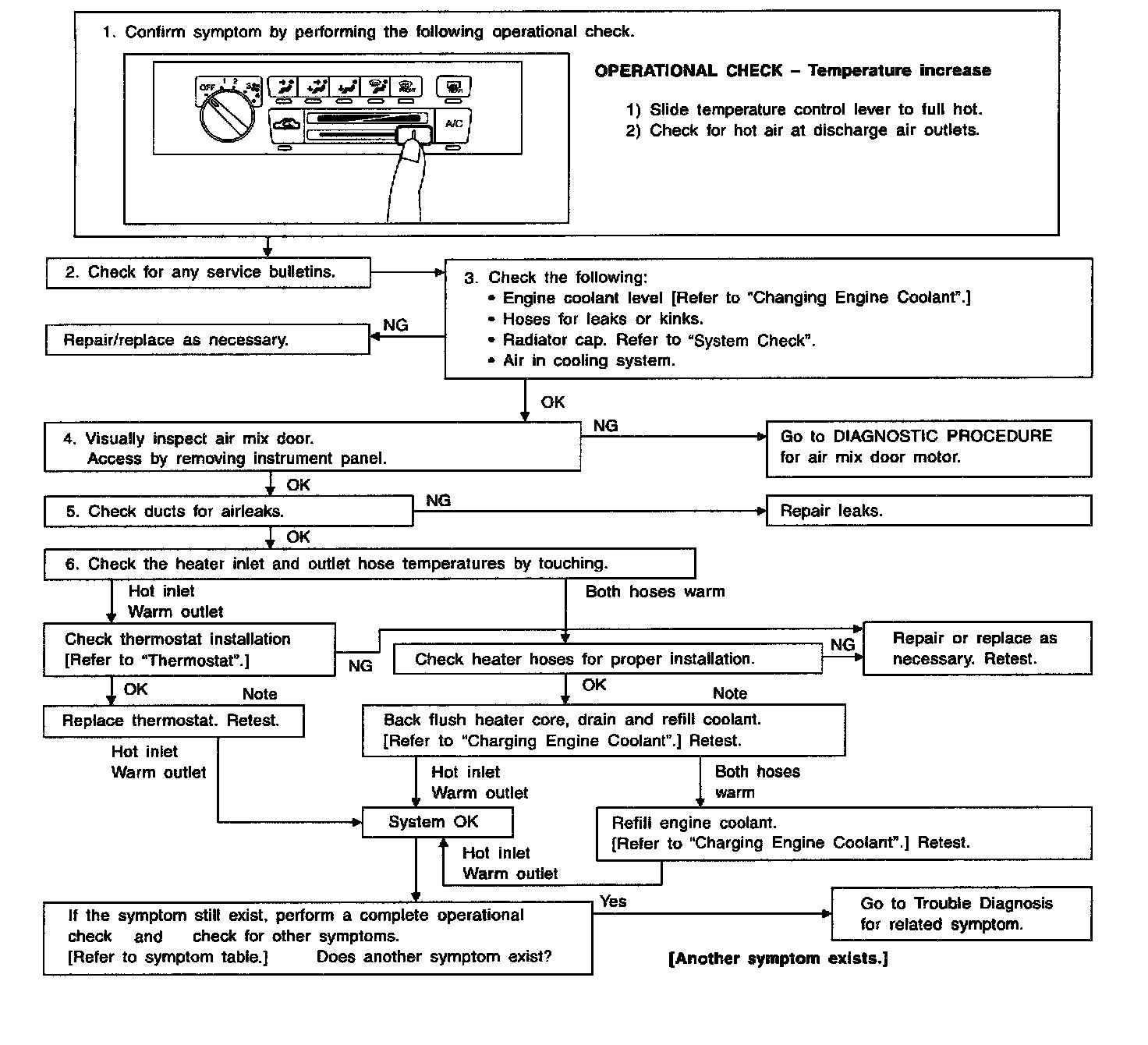

TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT HEATING

Inspection Flow:




Symptom:
- Insufficient Heating.
