Manual Air Conditioning

TROUBLE DIAGNOSIS PROCEDURE FOR A/C SYSTEM

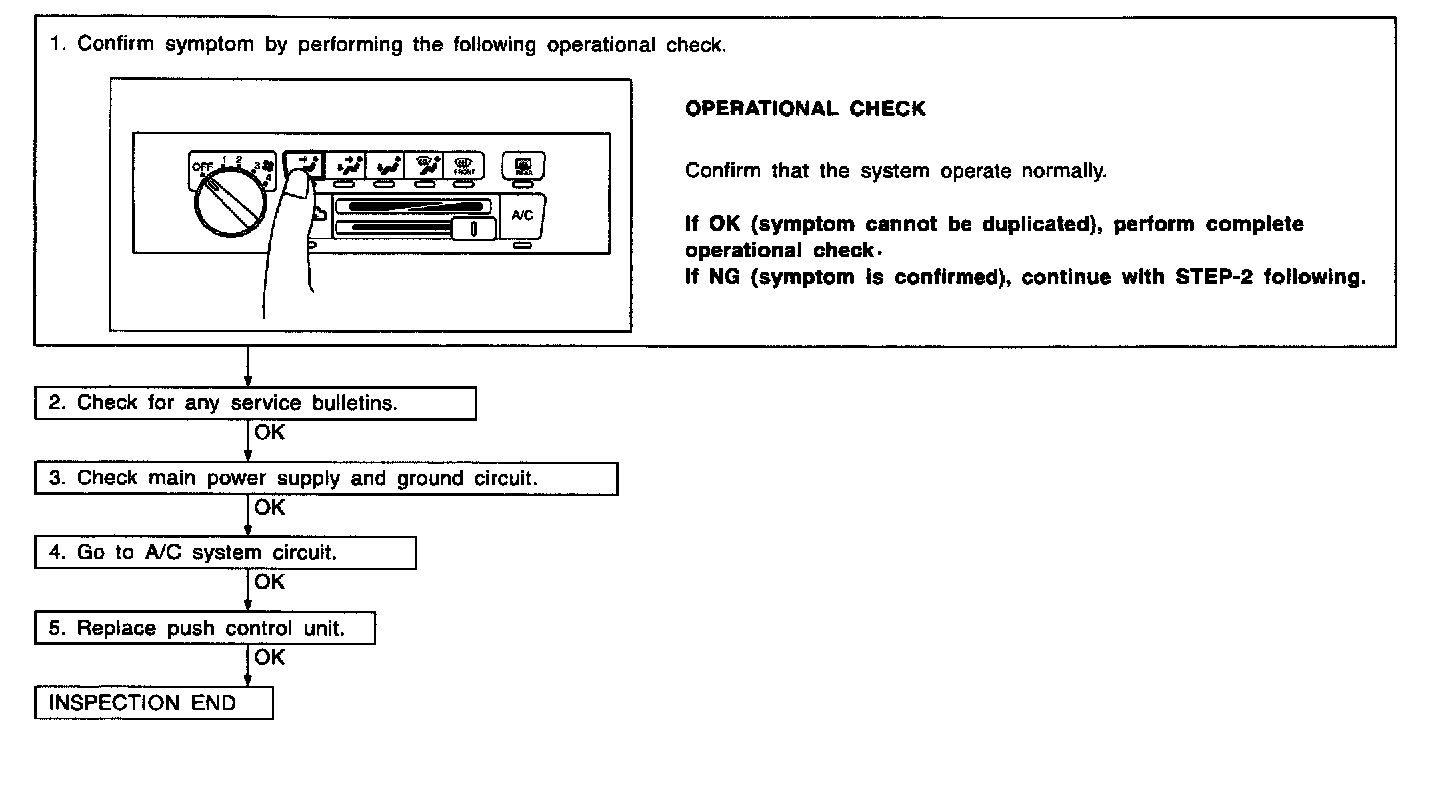

INSPECTION FLOW:

Symptom:
- A/C system does not come on.

MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK

Power Supply Circuit Check
Check power supply circuit for air conditioner system.

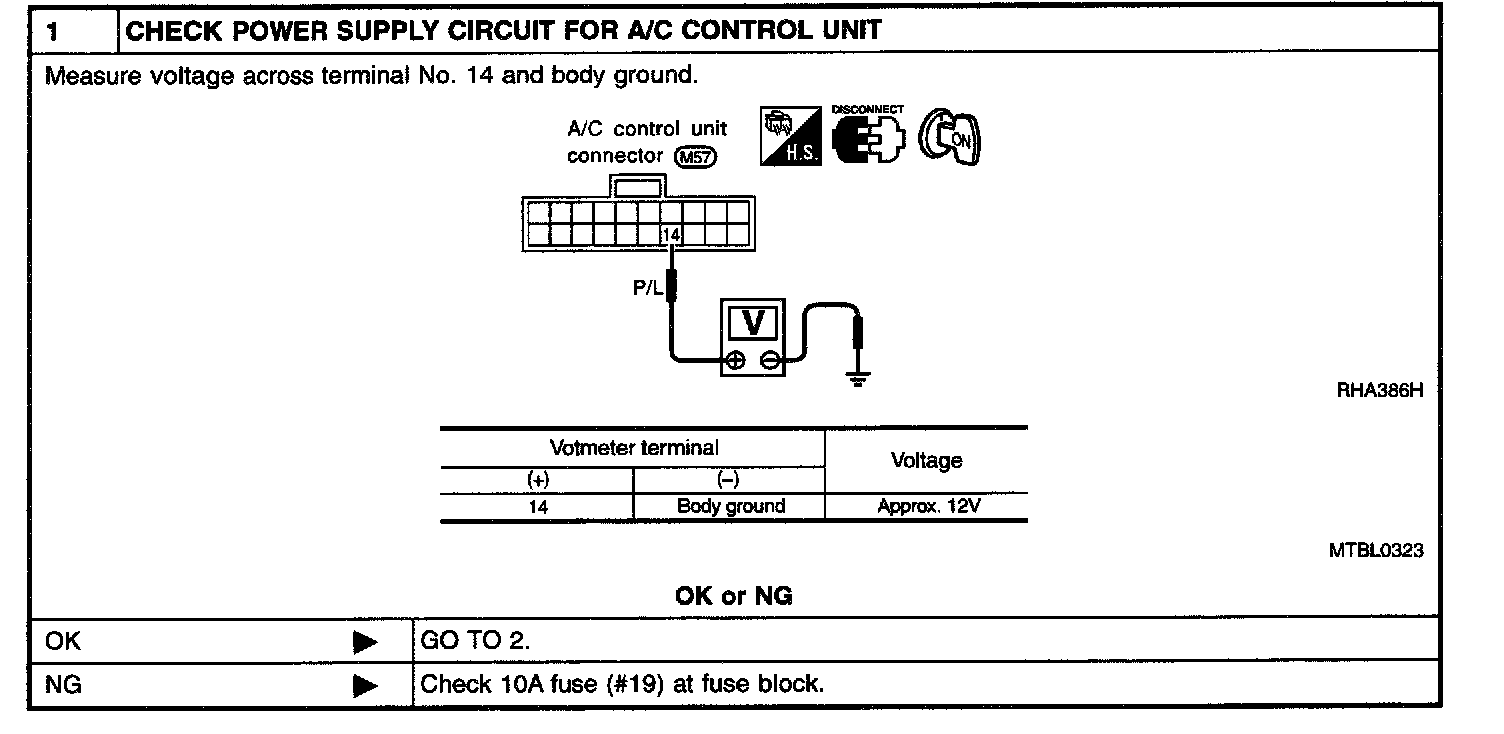

Step 1:

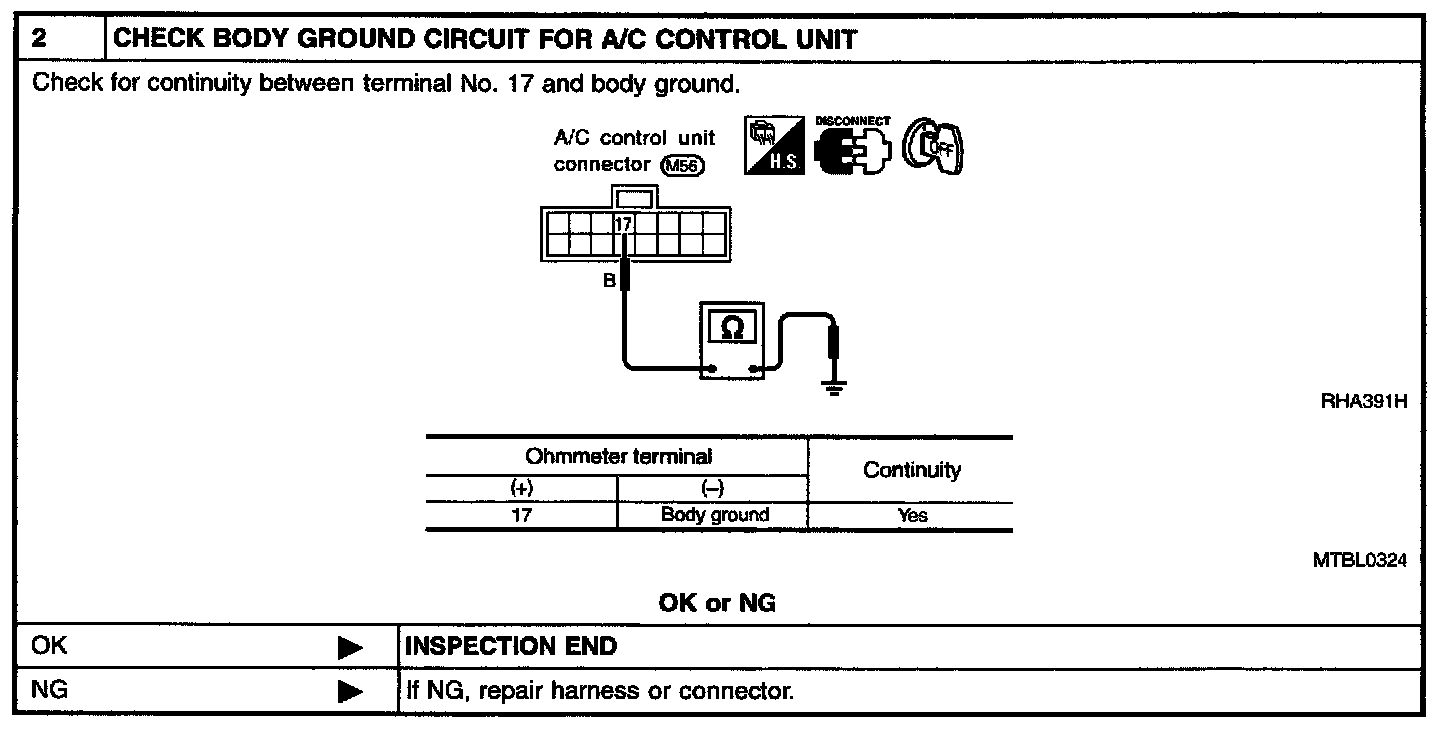

Step 2:

DIAGNOSTIC PROCEDURE

SYMPTOM:
- A/C system does not come on.
