Home >> Nissan-Datsun >> 2000 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Automatic Air Conditioning >> Self-Diagnosis Cannot Be Performed

Self-Diagnosis Cannot Be Performed

TROUBLE DIAGNOSIS PROCEDURE FOR SELF-DIAGNOSIS

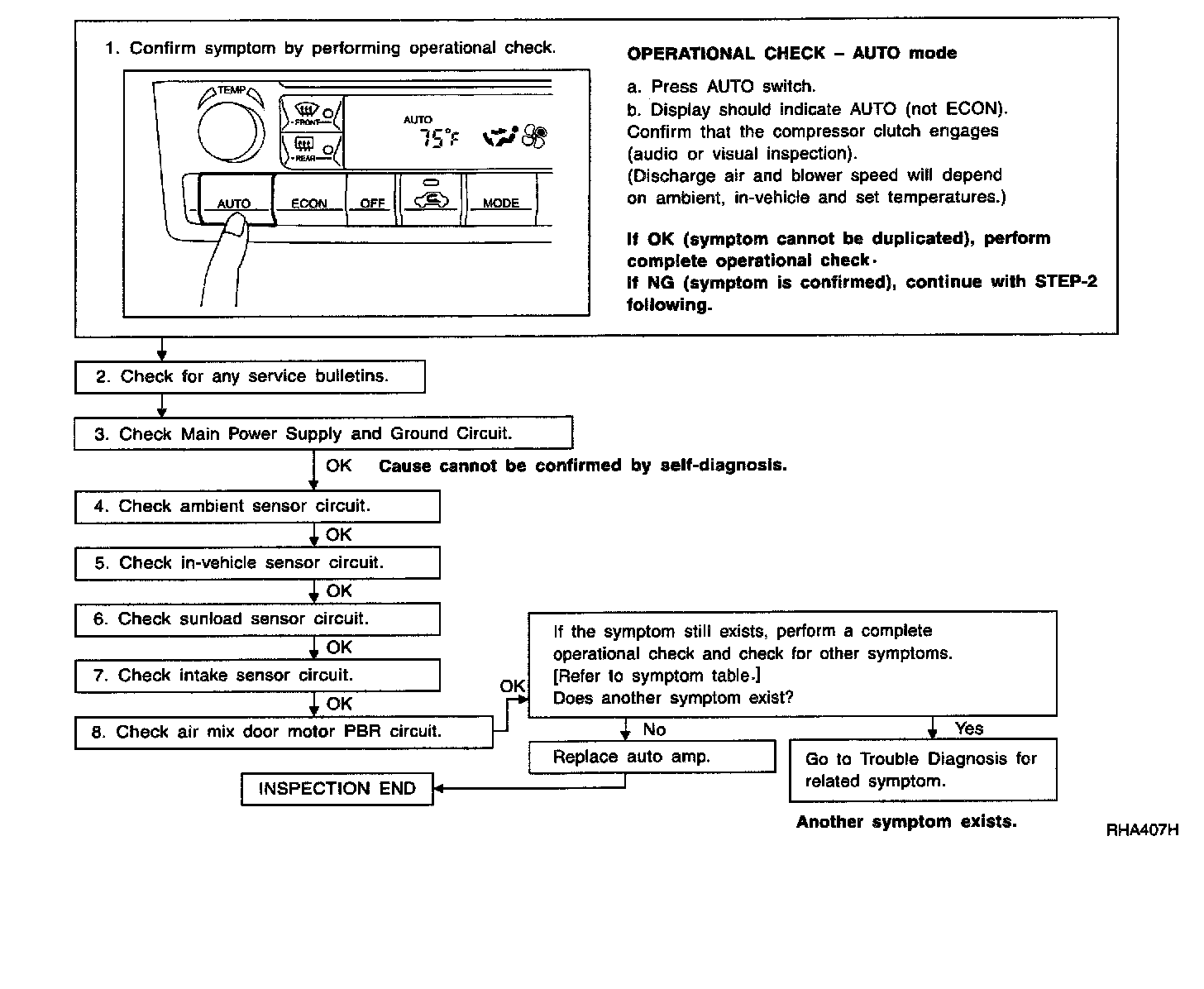

INSPECTION FLOW:




SYMPTOM:
- Self-diagnosis cannot be performed.
