ECON (Economy Mode)

TROUBLE DIAGNOSIS PROCEDURE FOR ECON (ECONOMY) MODE

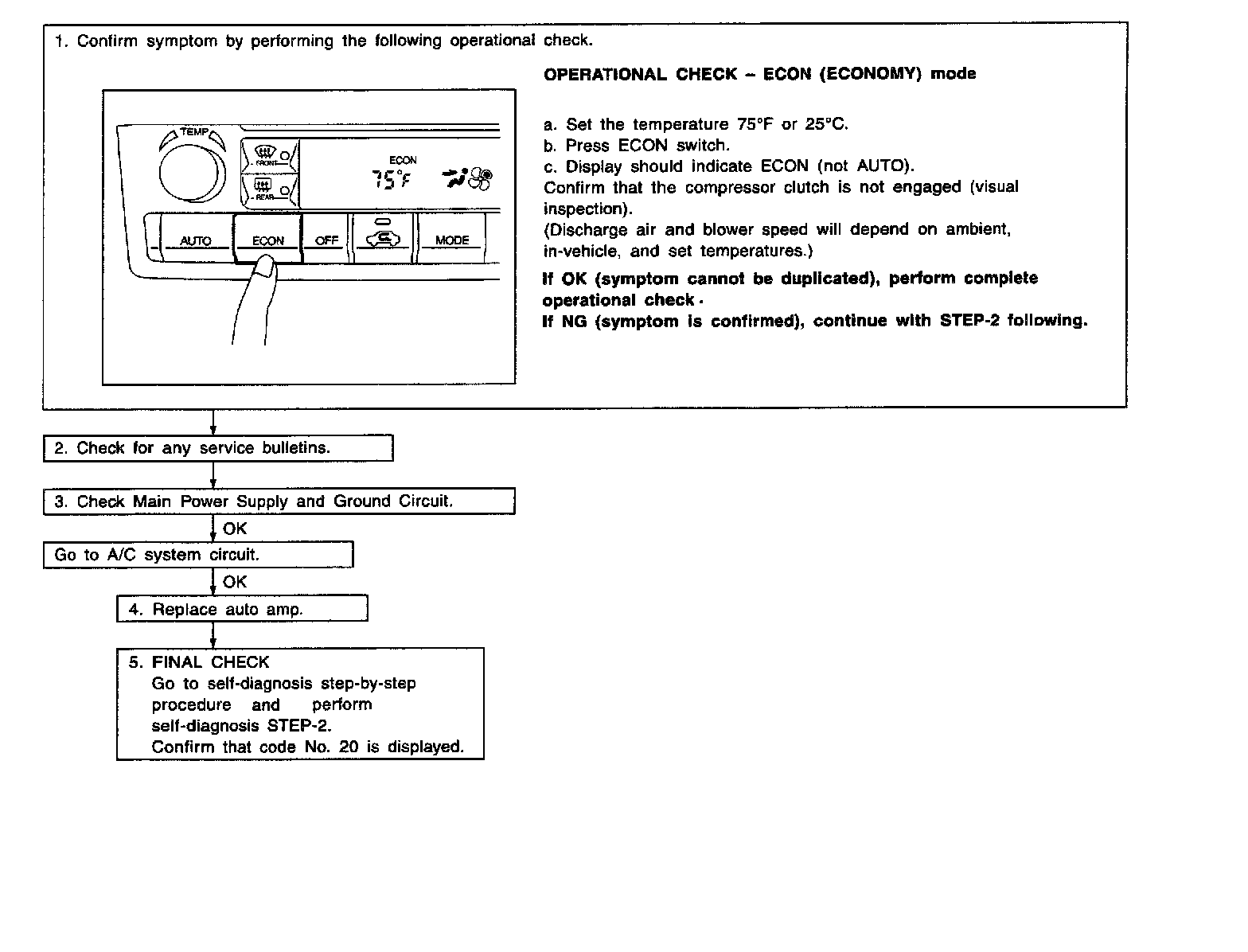

INSPECTION FLOW:




SYMPTOM:
- ECON mode does not operate.
