Heater Core Case: Service and Repair

REMOVAL
1. Drain the cooling system. Refer to "Changing Engine Coolant".
2. Disconnect the two heater hoses from inside the engine compartment.
3. Remove the Blower and cooling unit. Service and Repair
4. Remove the steering member assembly.
5. Remove the heater unit.

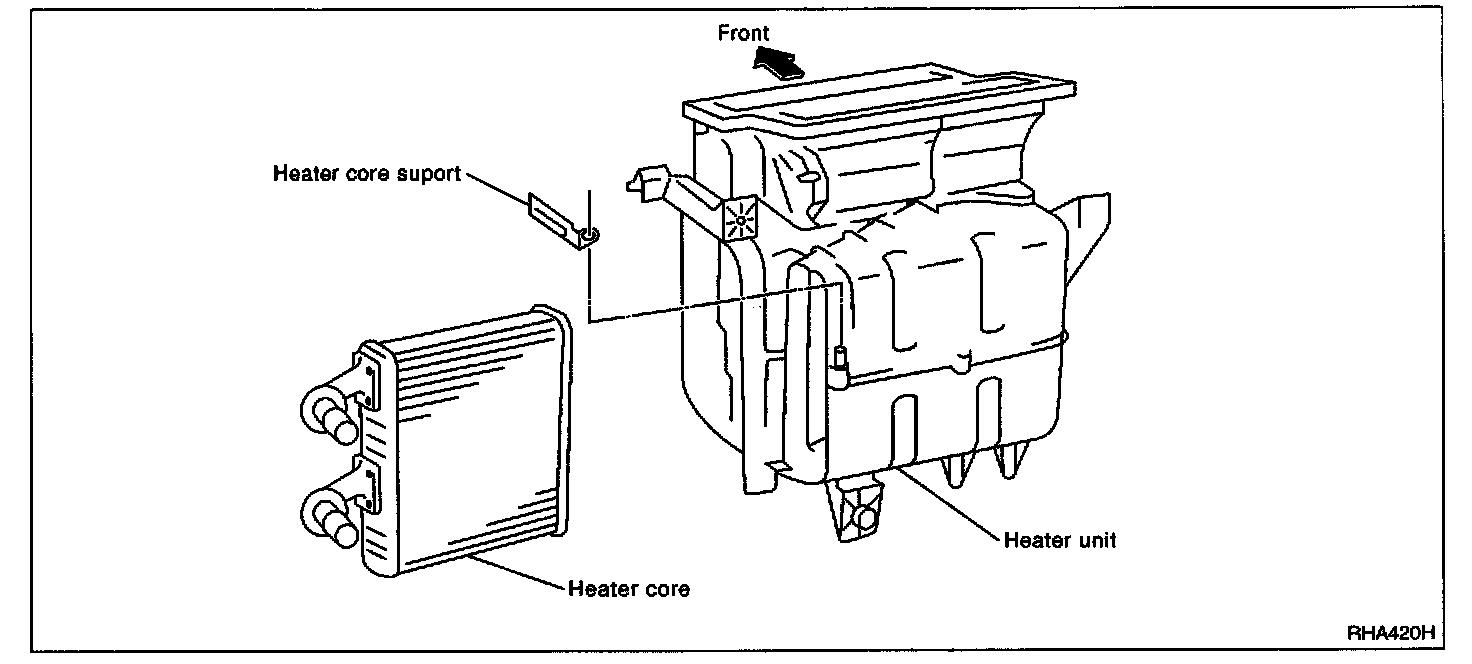

6. Remove the heater core.

INSTALLATION
Installation is basically the reverse order of removal.
When filling radiator with coolant, refer to "changing Engine Coolant".
