With Manual Climate Control

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH

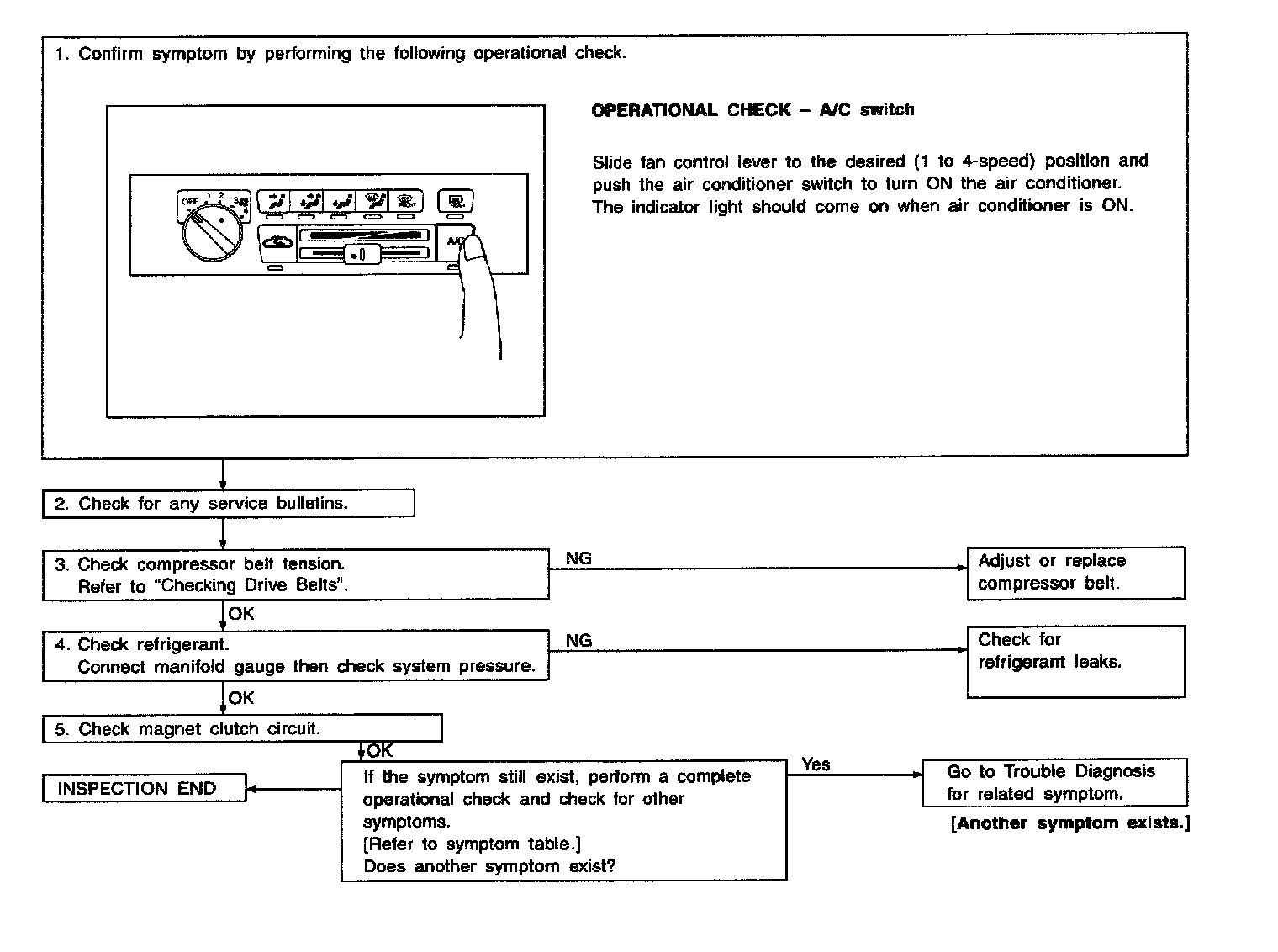

Inspection Flow:

Symptom:
- Magnet clutch does not operate when A/C switch and fan switch are ON.

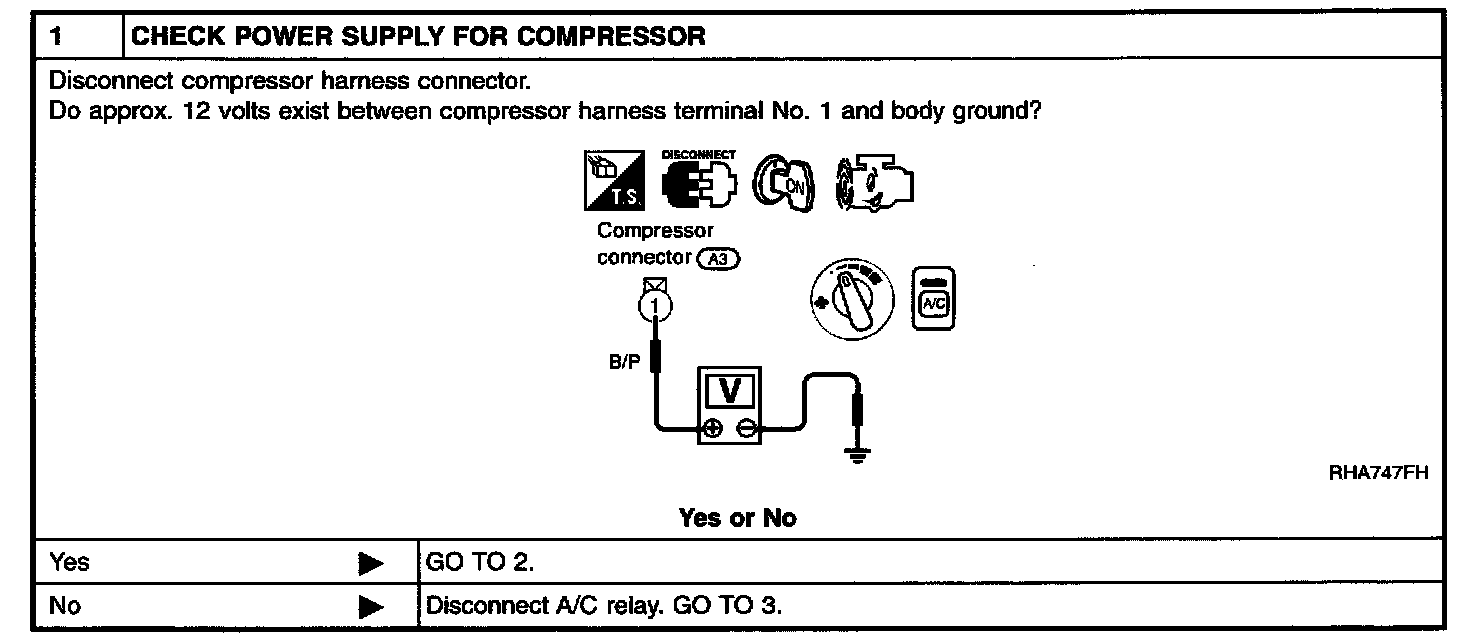

Step 1:

Step 2:

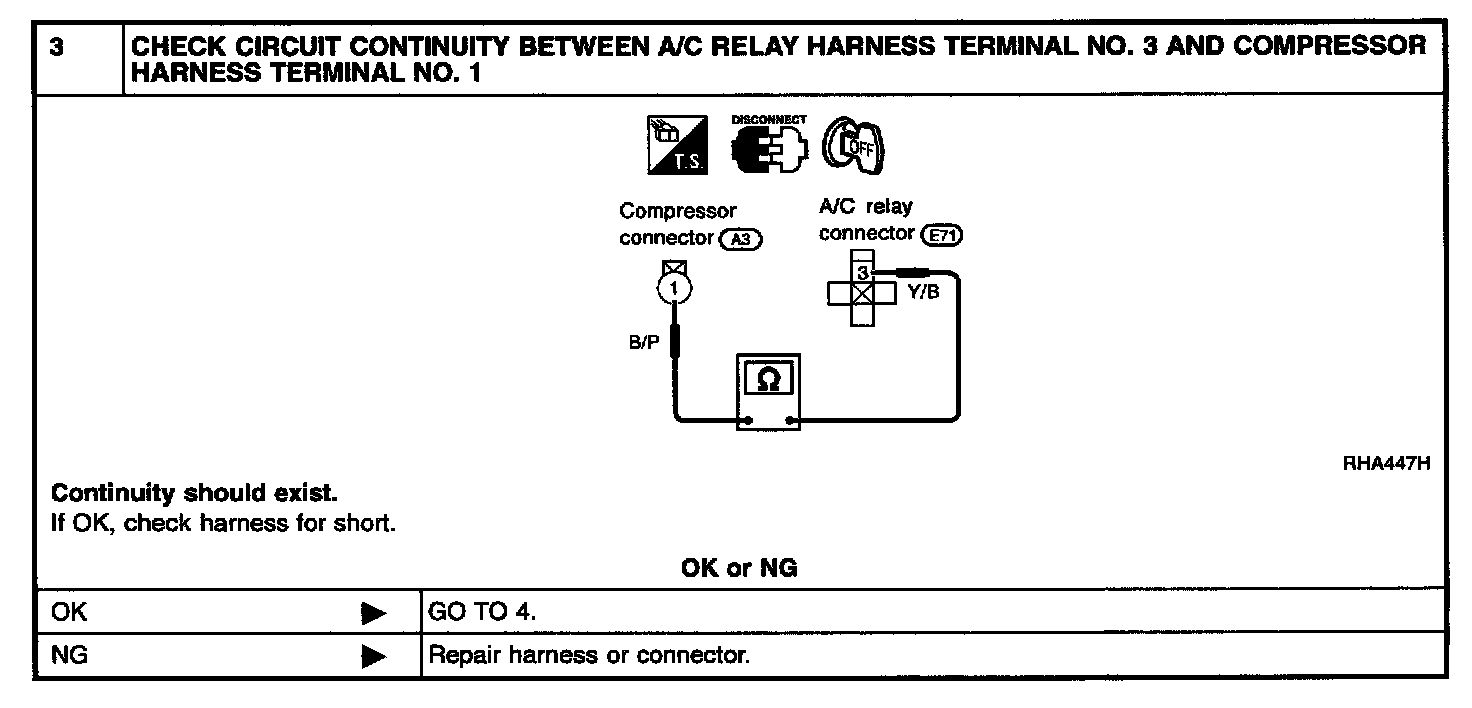

Step 3:

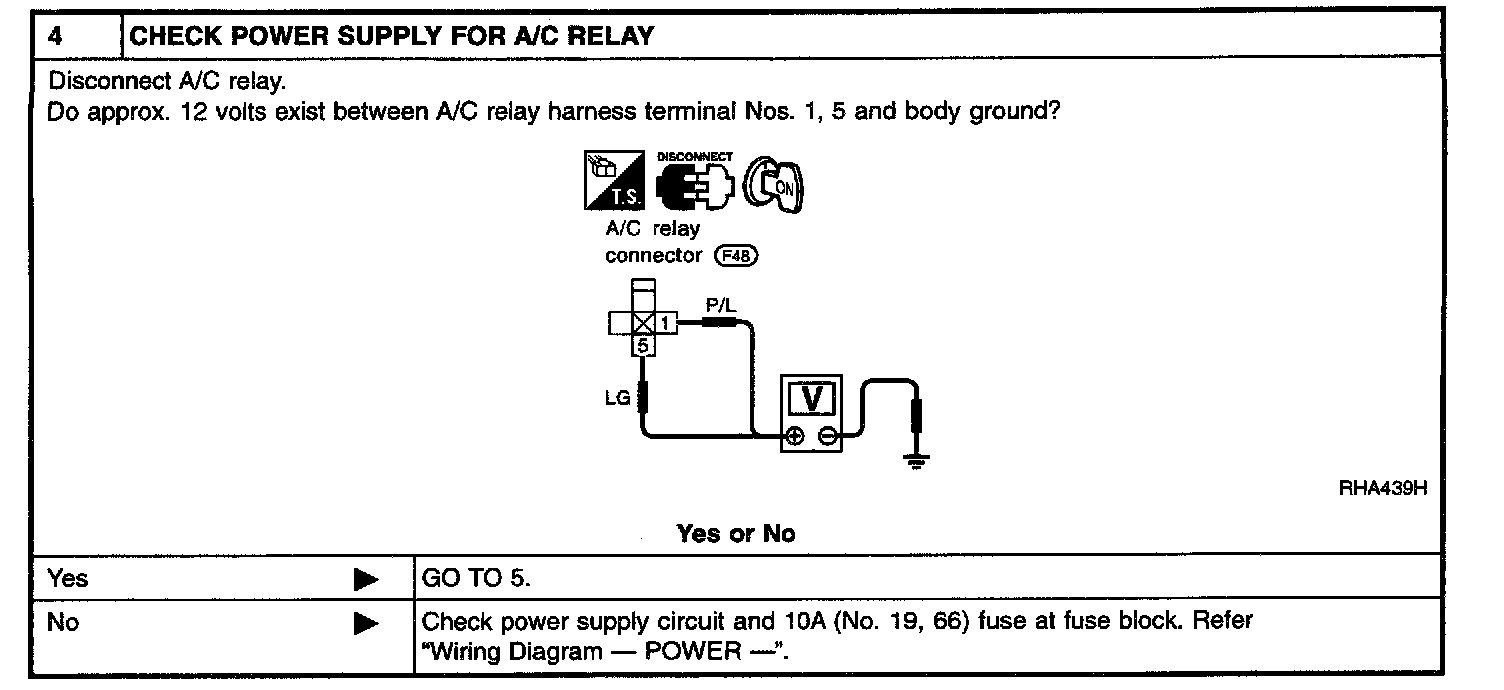

Step 4:

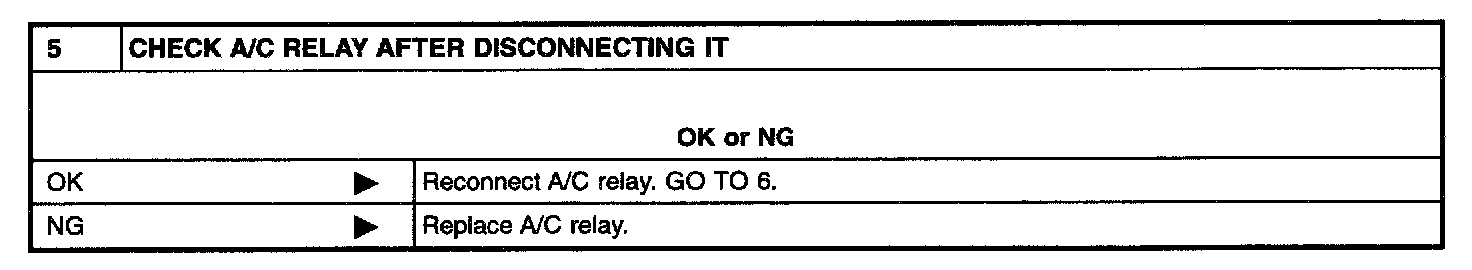

Step 5:

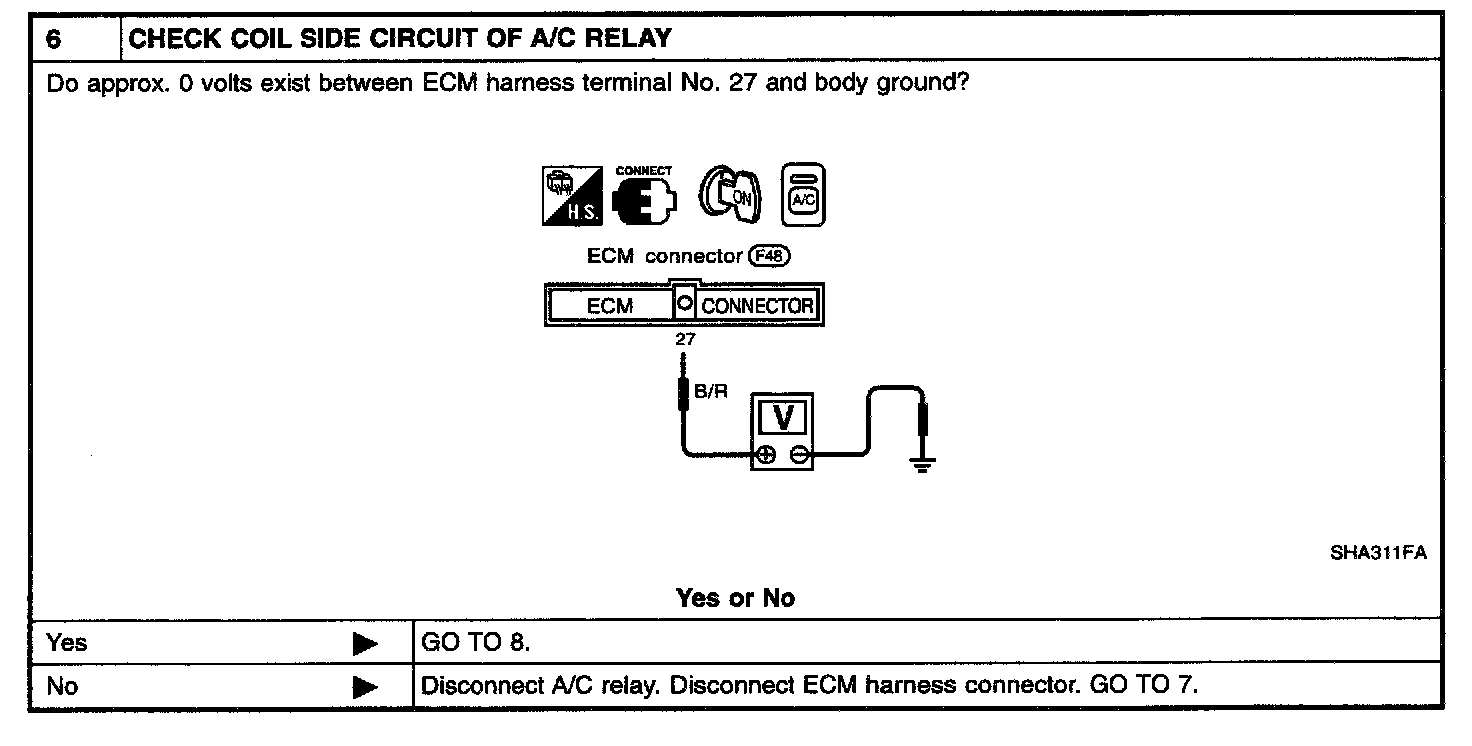

Step 6:

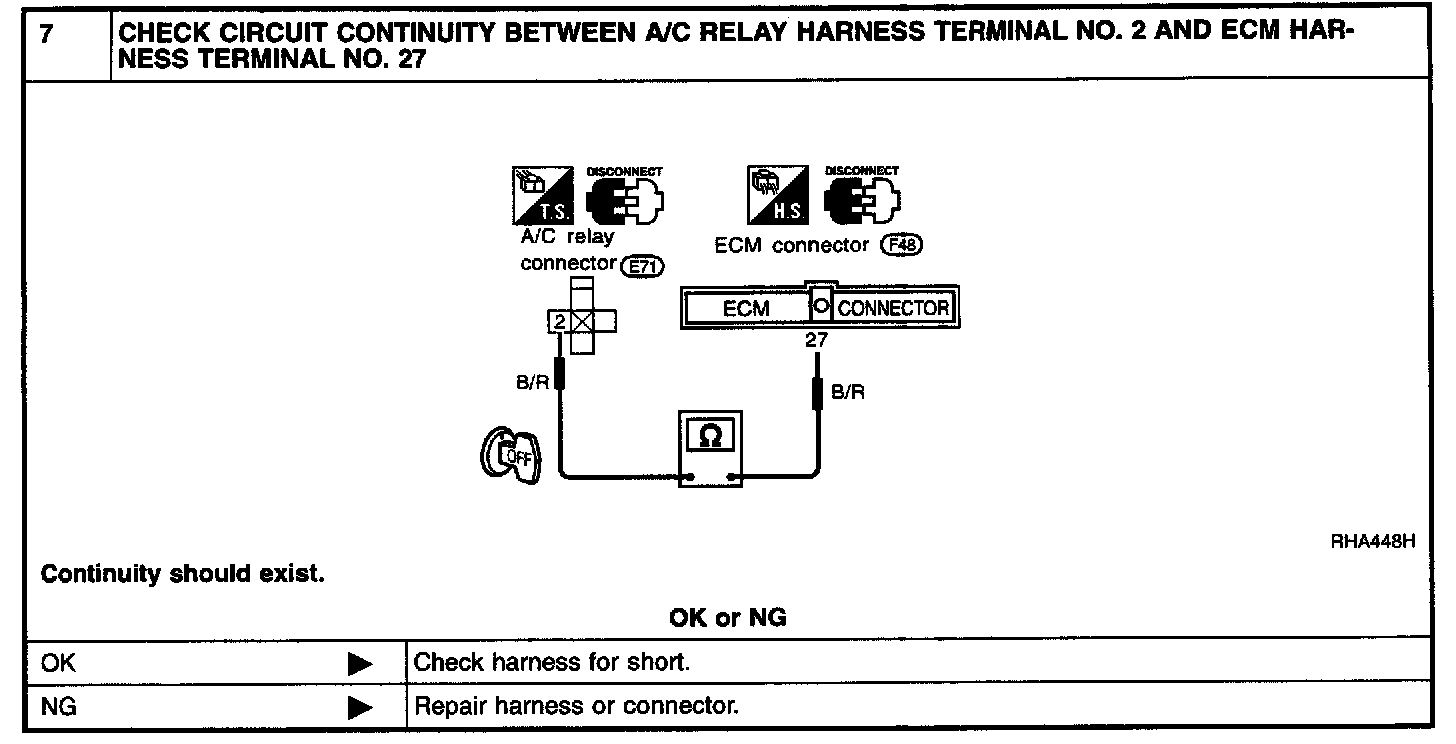

Step 7:

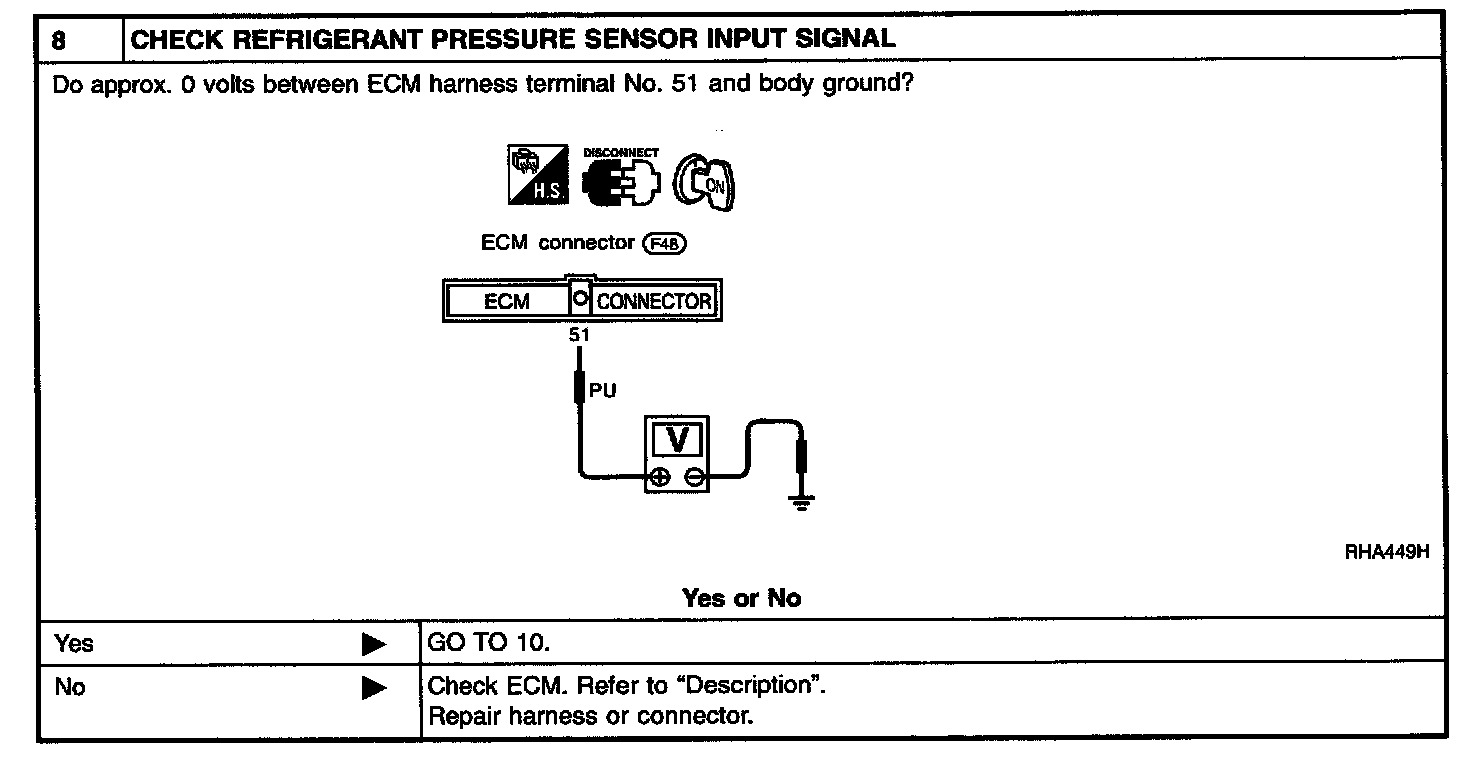

Step 8:

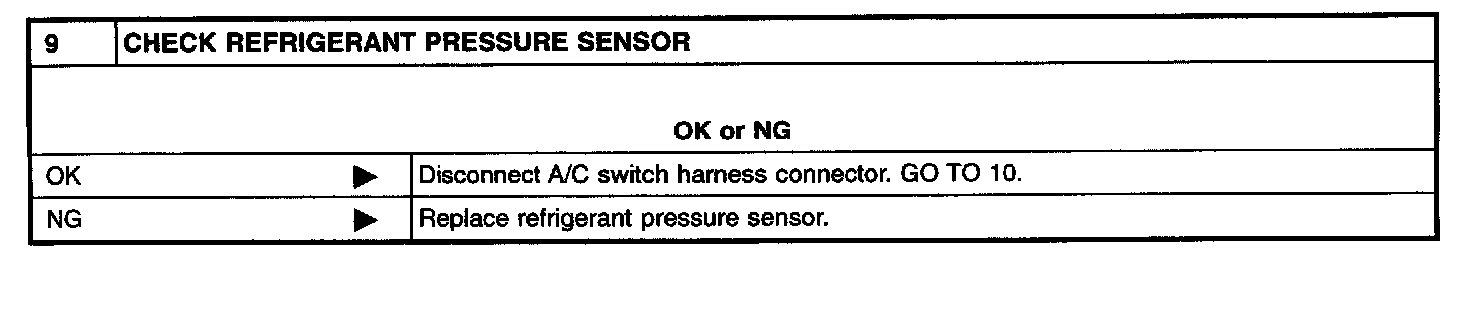

Step 9:

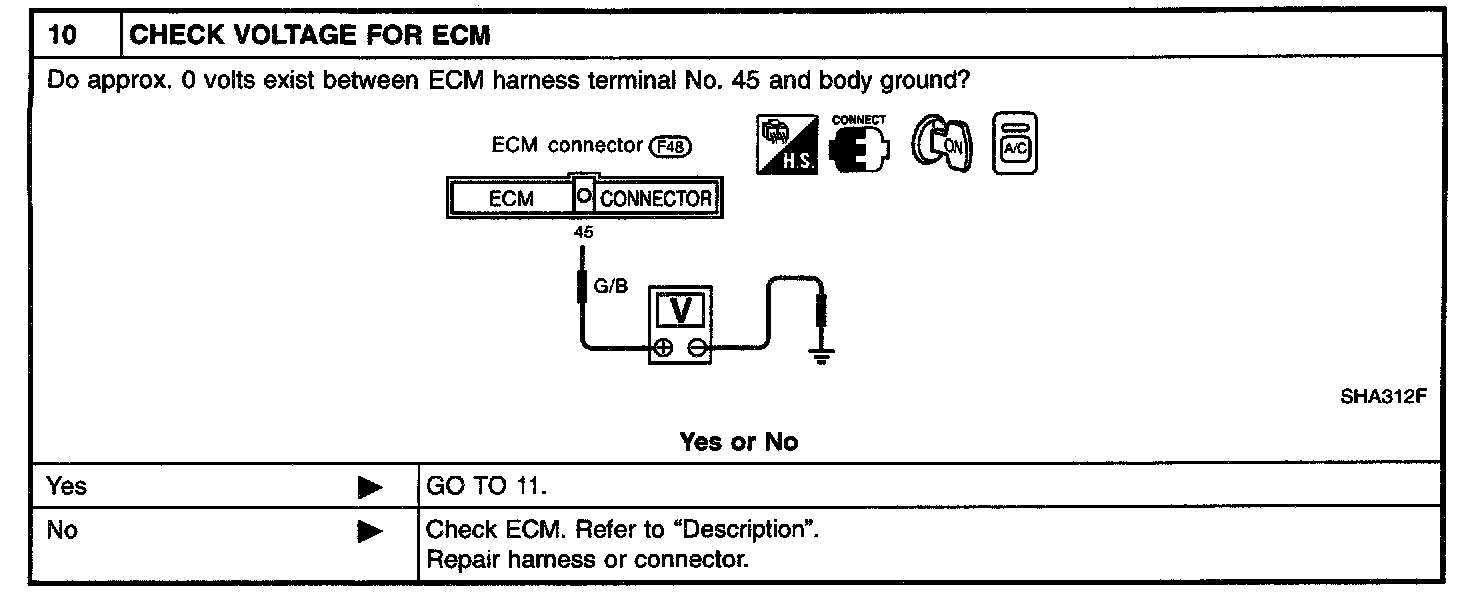

Step 10:

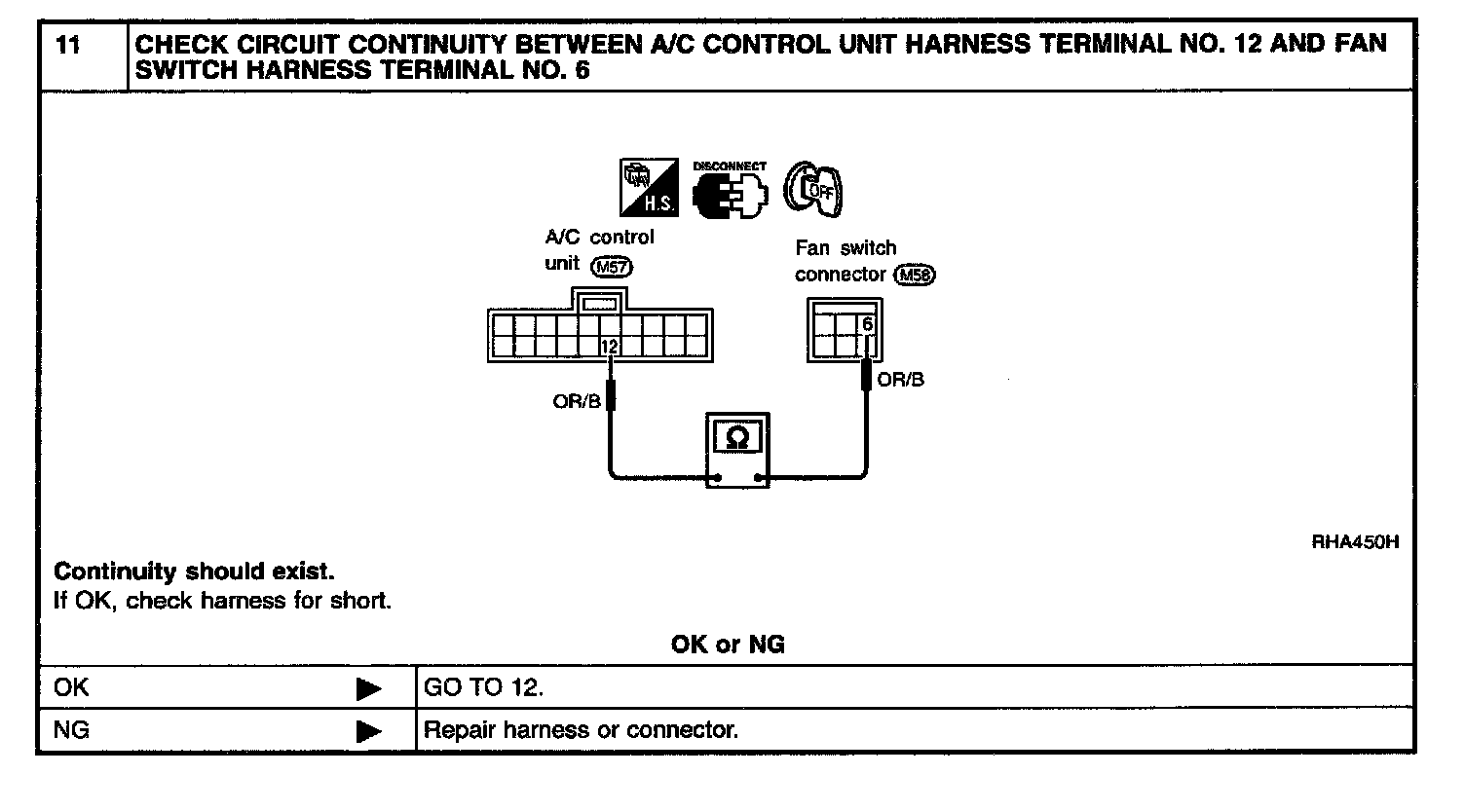

Step 11:

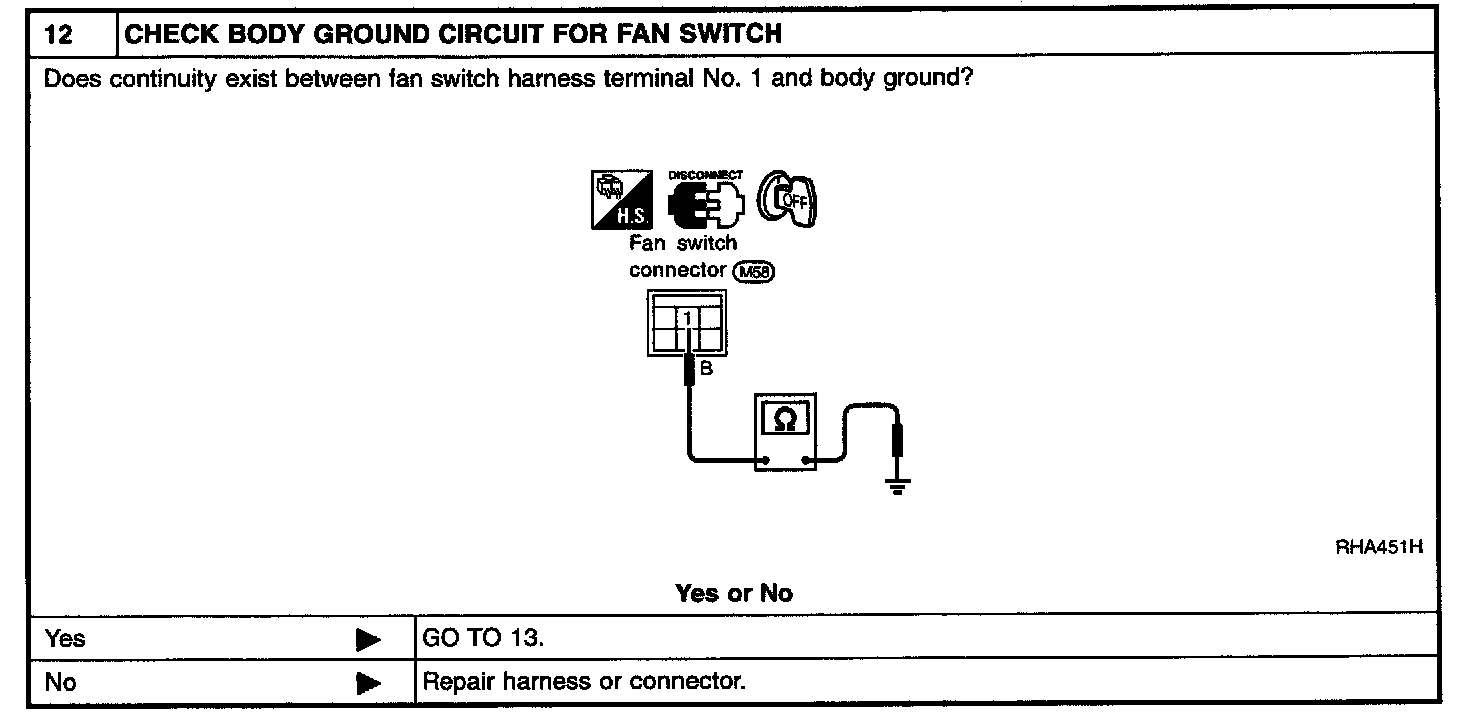

Step 12:

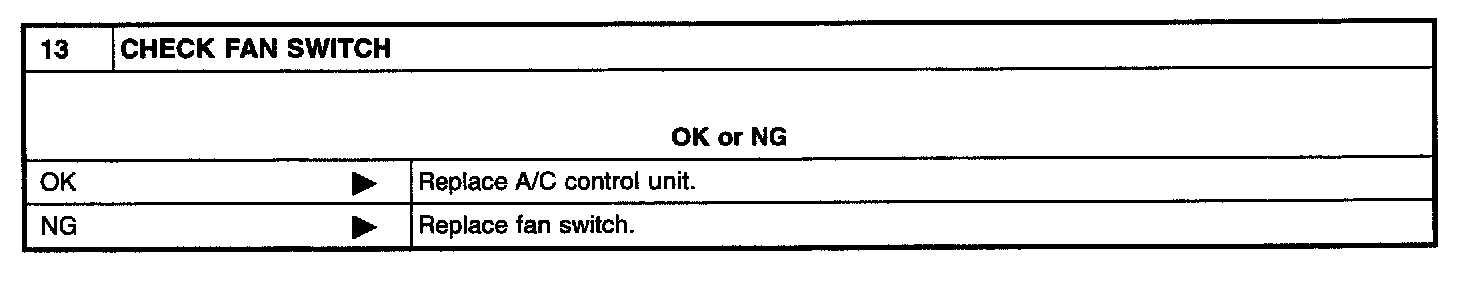

Step 13:

DIAGNOSTIC PROCEDURE

SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

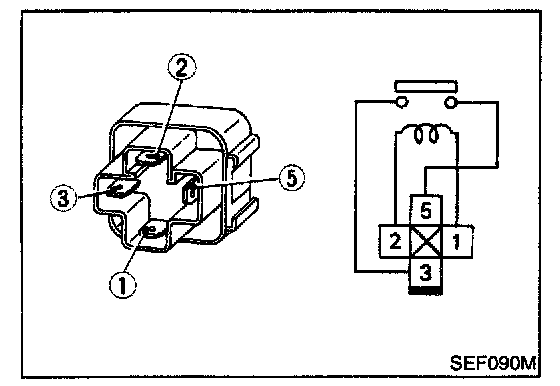

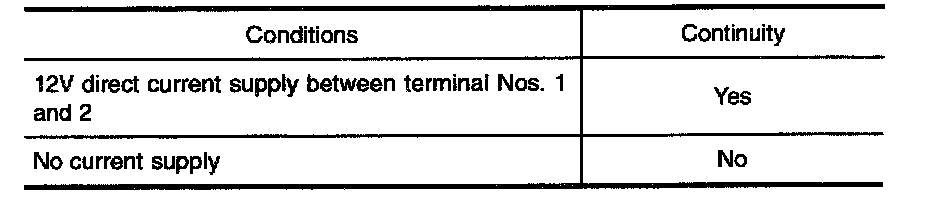

A/C Relay
Check continuity between terminal Nos. 3 and 5.
If NG, replace relay.

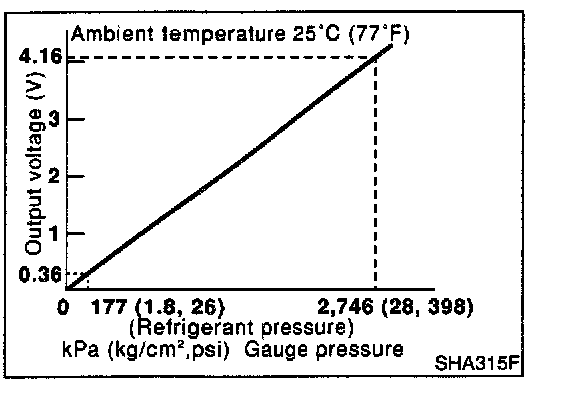

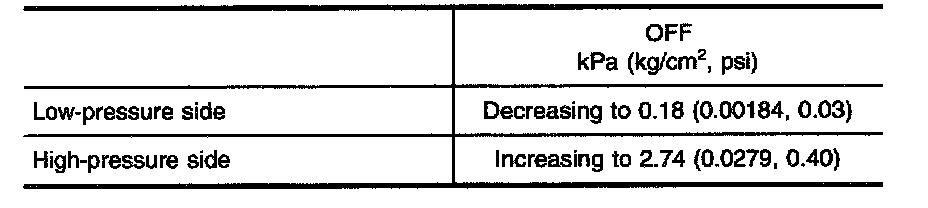

Refrigerant Pressure Sensor
Make sure that higher A/C refrigerant pressure results in higher refrigerant-pressure sensor output voltage.
