With Manual Climate Control

TROUBLE DIAGNOSIS PROCEDURE FOR BLOWER MOTOR

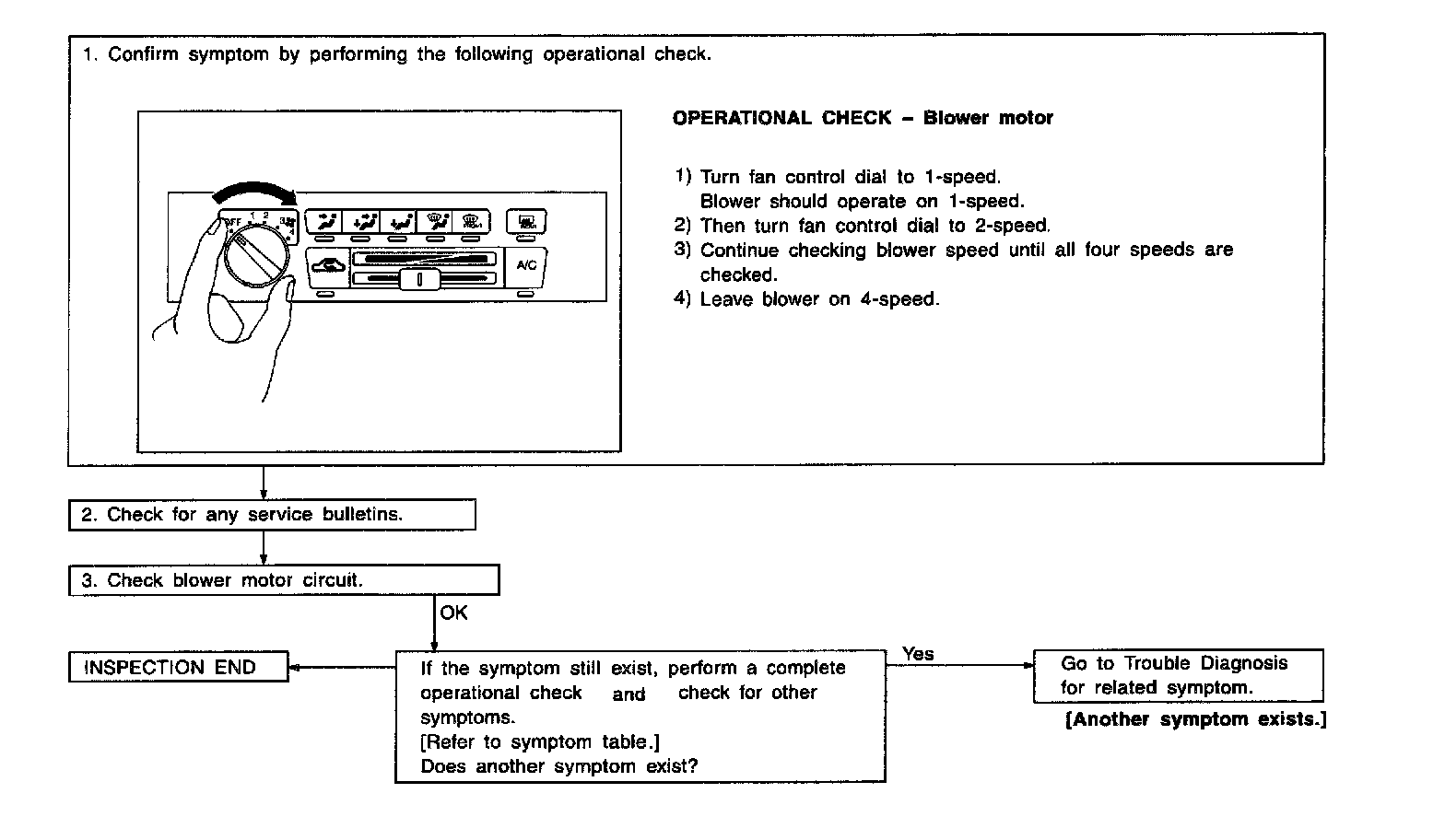

Inspection Flow:

Symptom:
- Blower motor does not rotate at all.

ELECTRICAL COMPONENTS INSPECTION

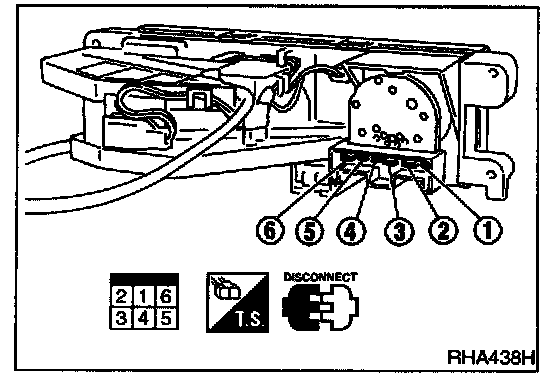

Fan Switch

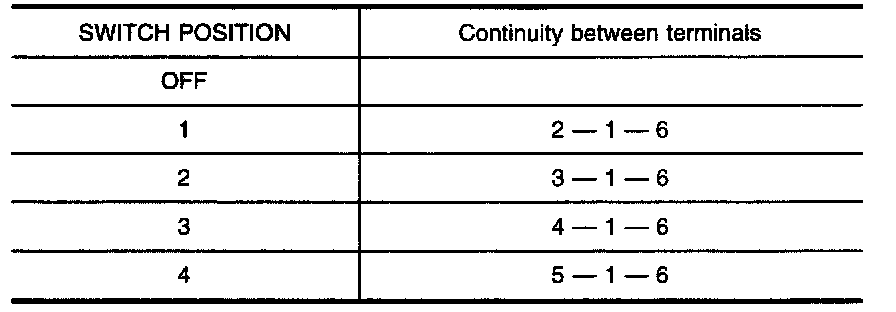

Check continuity between terminals at each switch position.

Blower Motor
Confirm smooth rotation of the blower motor.
- Ensure that there are no foreign particles inside the intake unit.

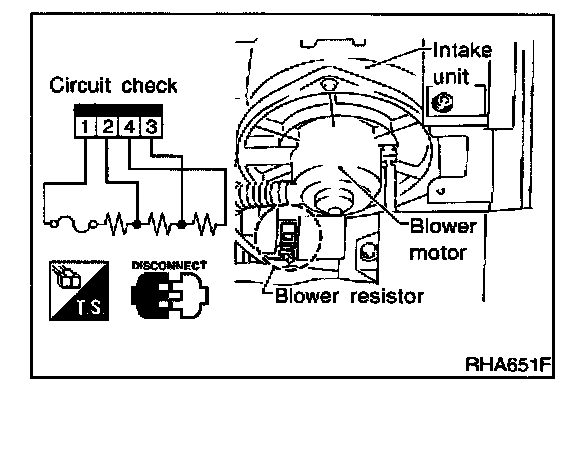

Blower Resistor

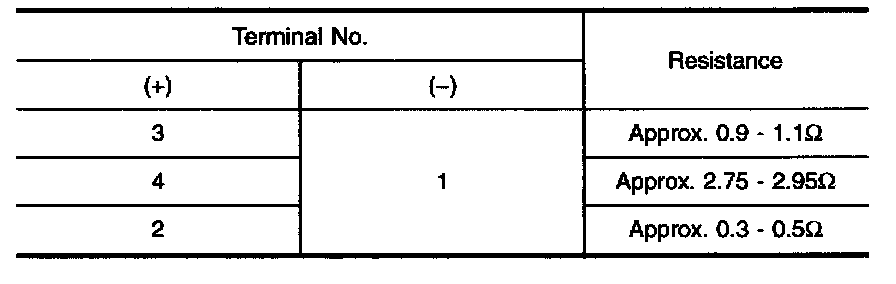

Check resistance between terminals.

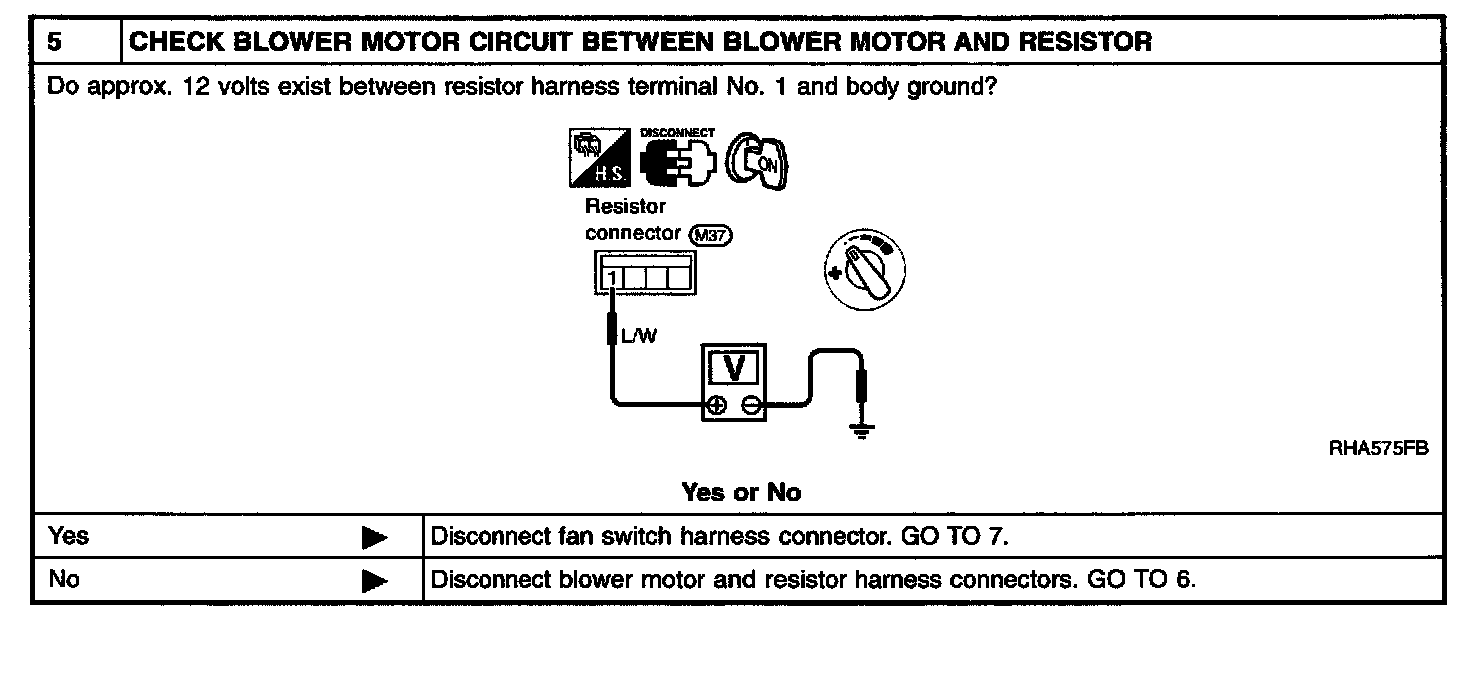

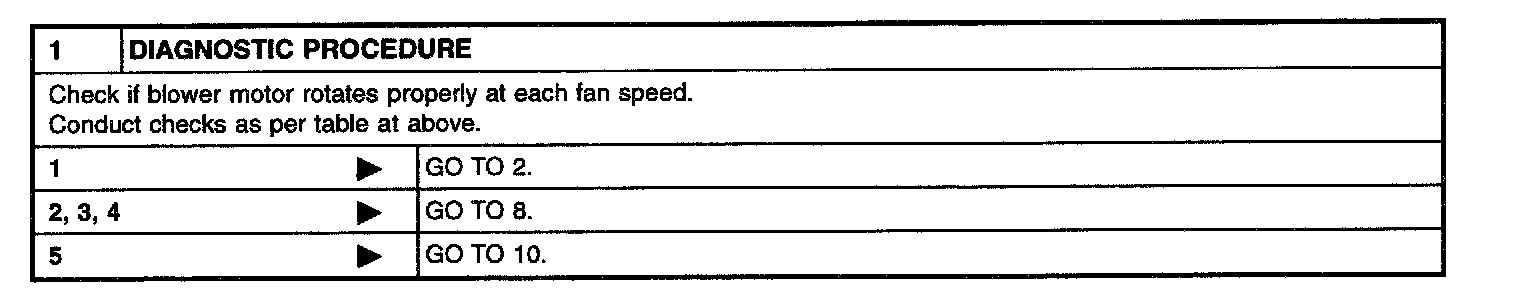

Step 1:

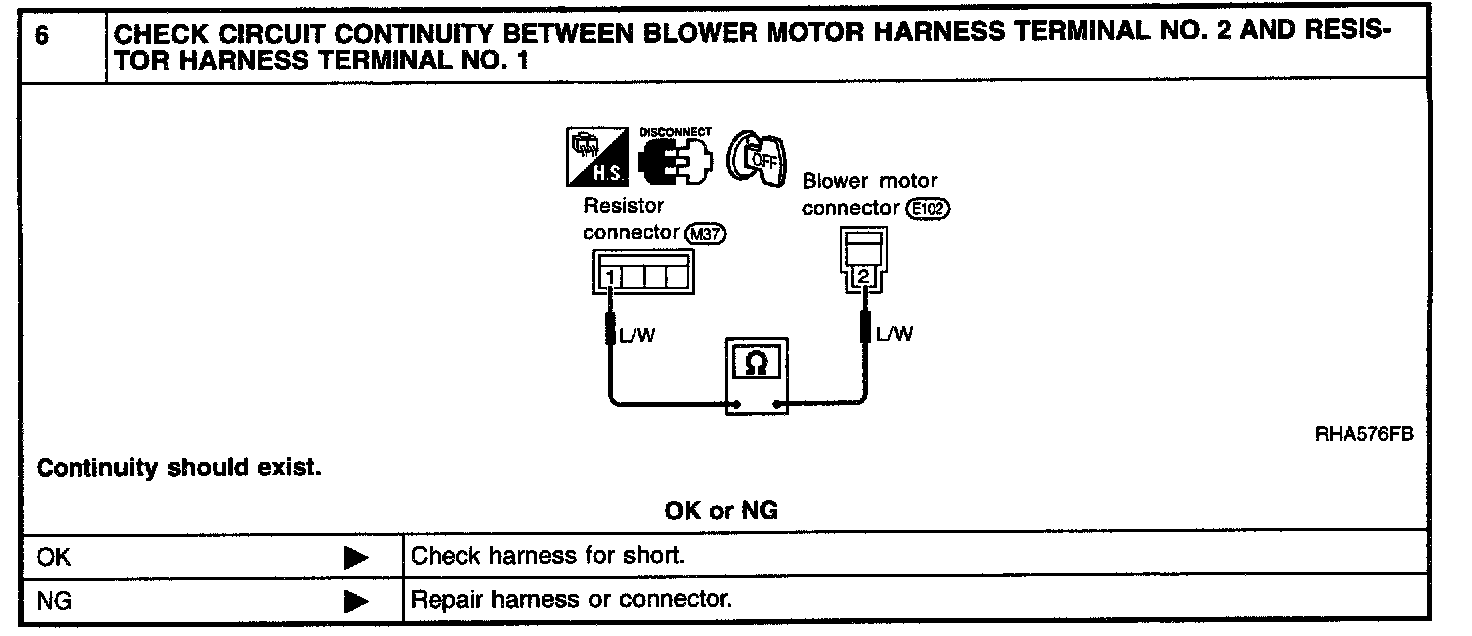

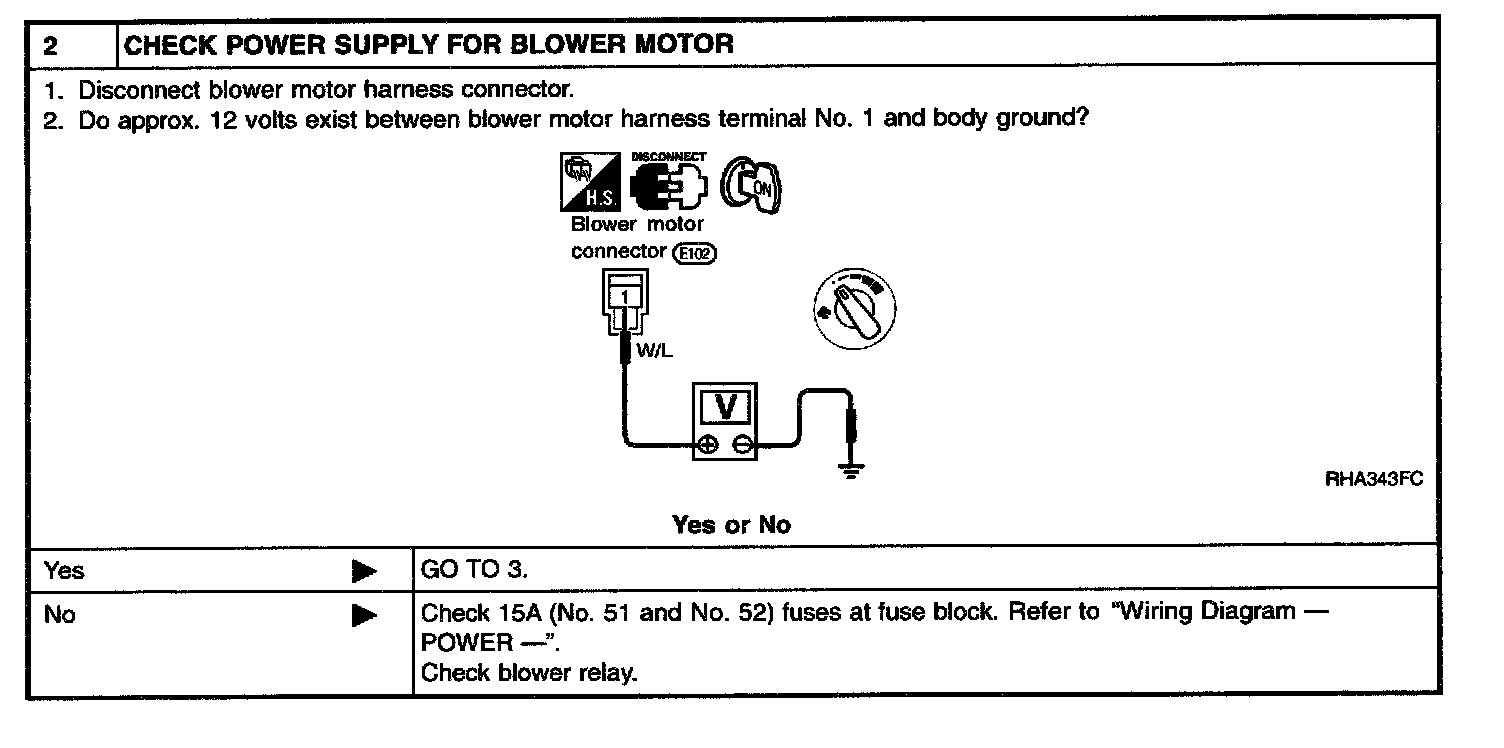

Step 2:

Step 3:

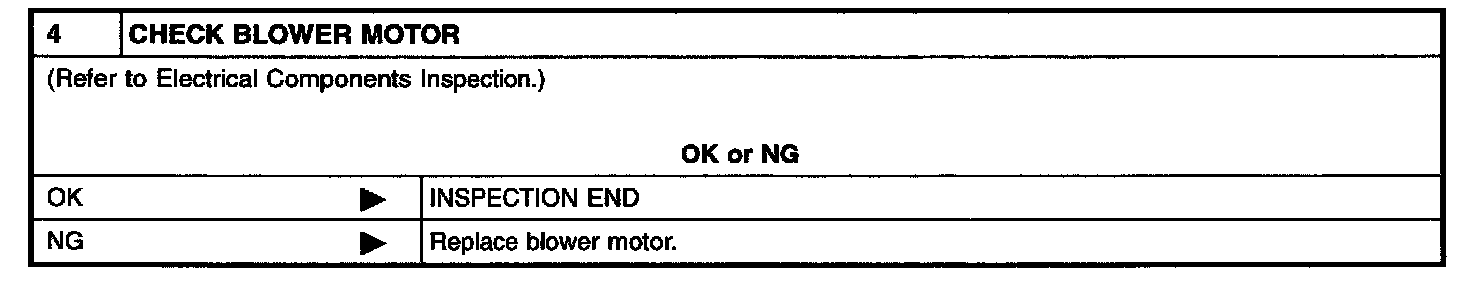

Step 4:

Step 5:

Step 6:

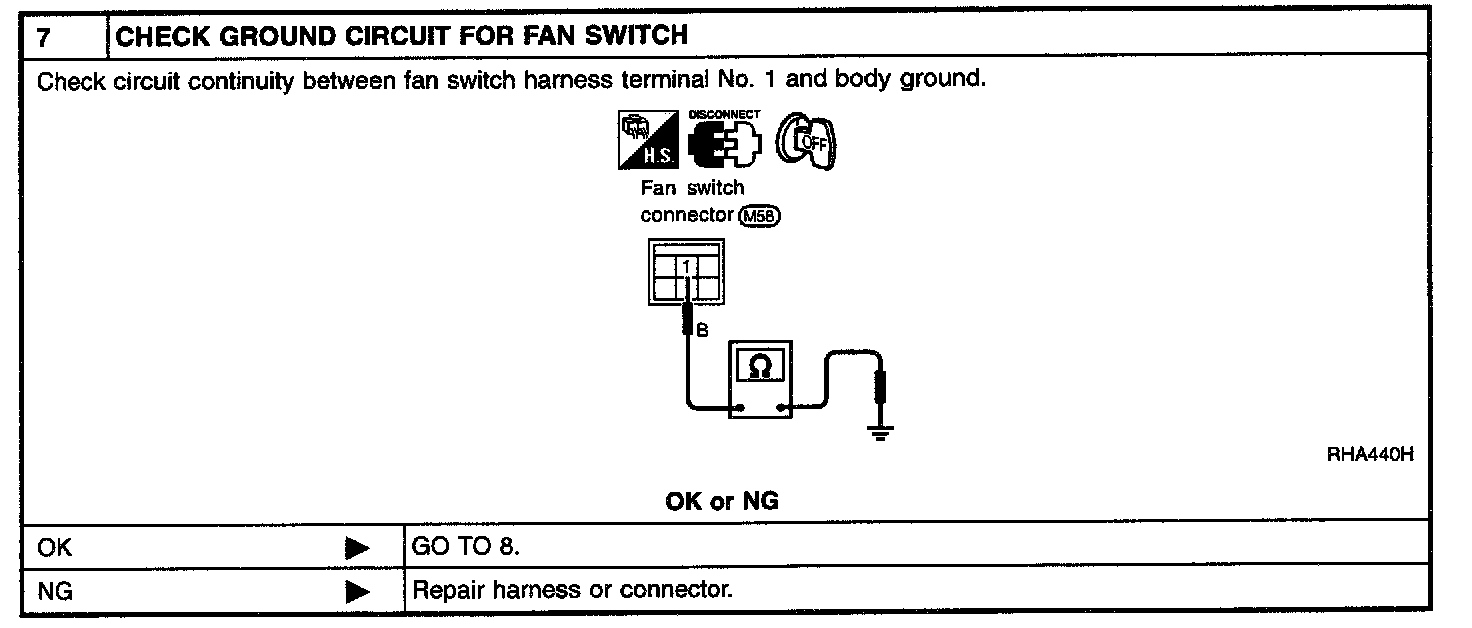

Step 7:

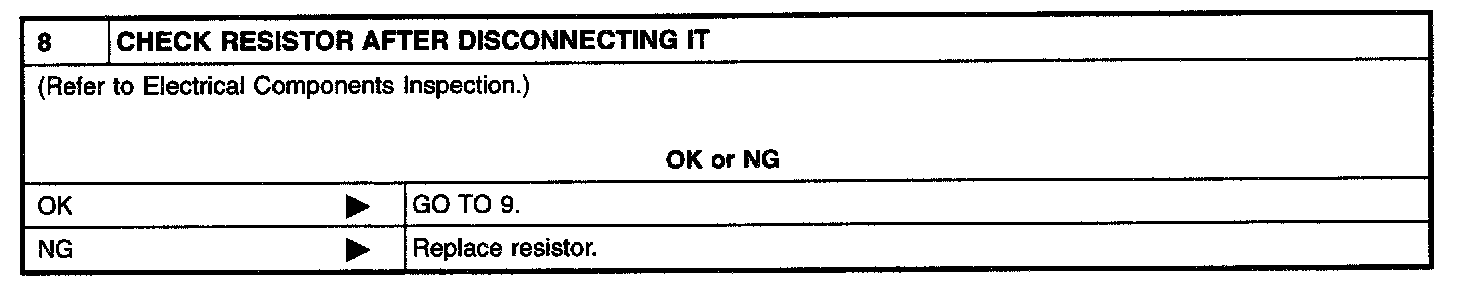

Step 8:

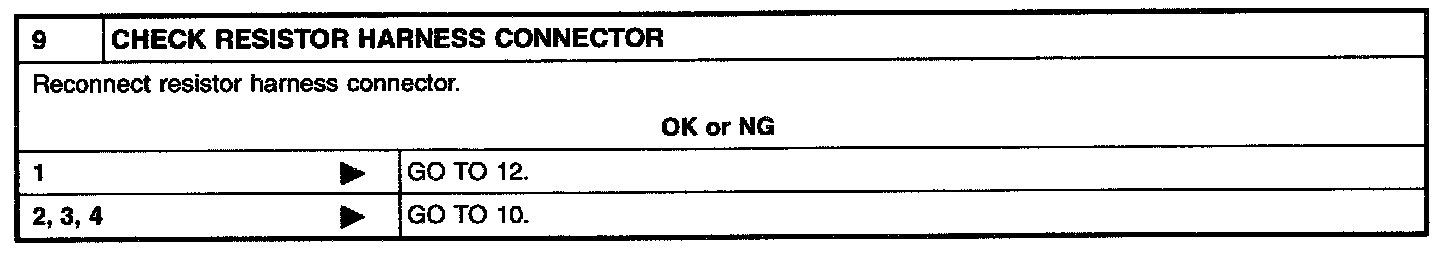

Step 9:

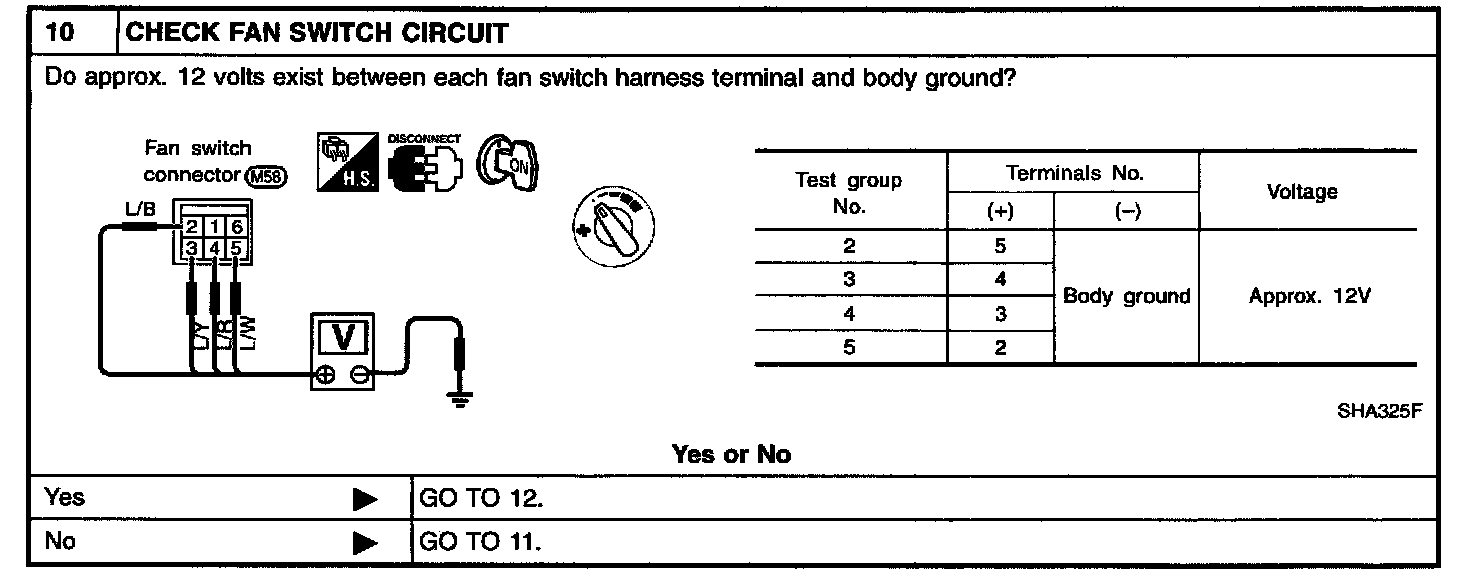

Step 10:

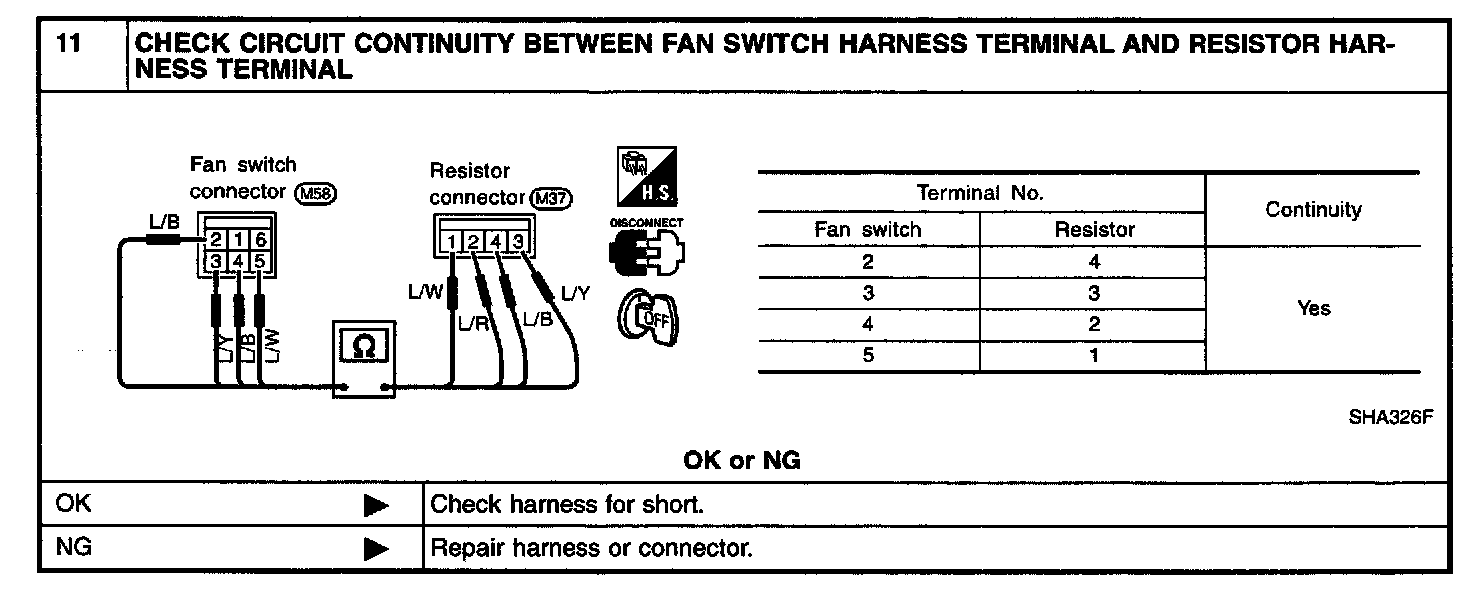

Step 11:

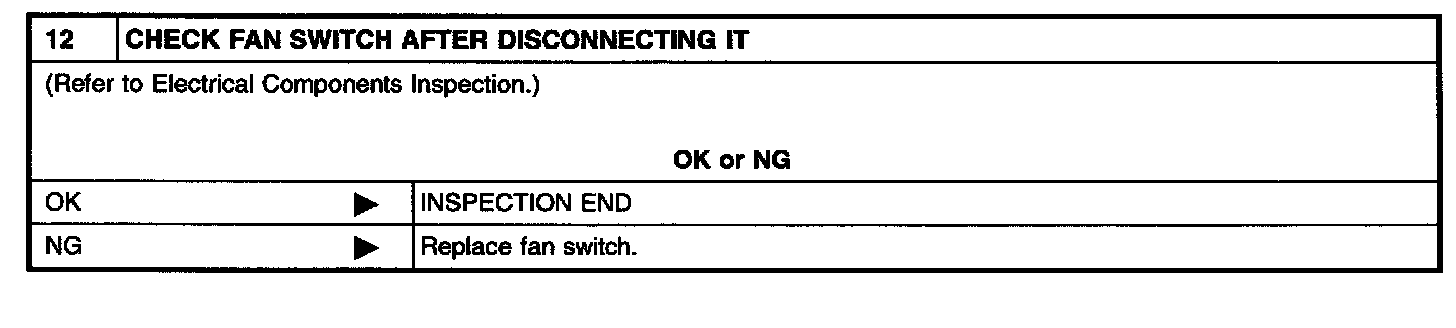

Step 12:

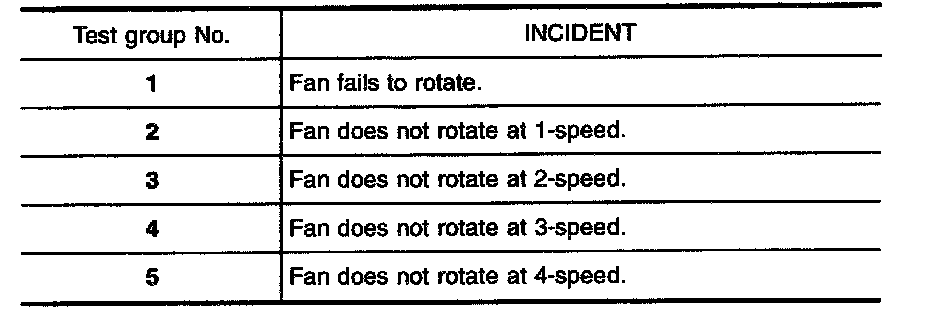

DIAGNOSTIC PROCEDURE

SYMPTOM:
- Blower motor does not rotate.
