With Manual Climate Control

TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR

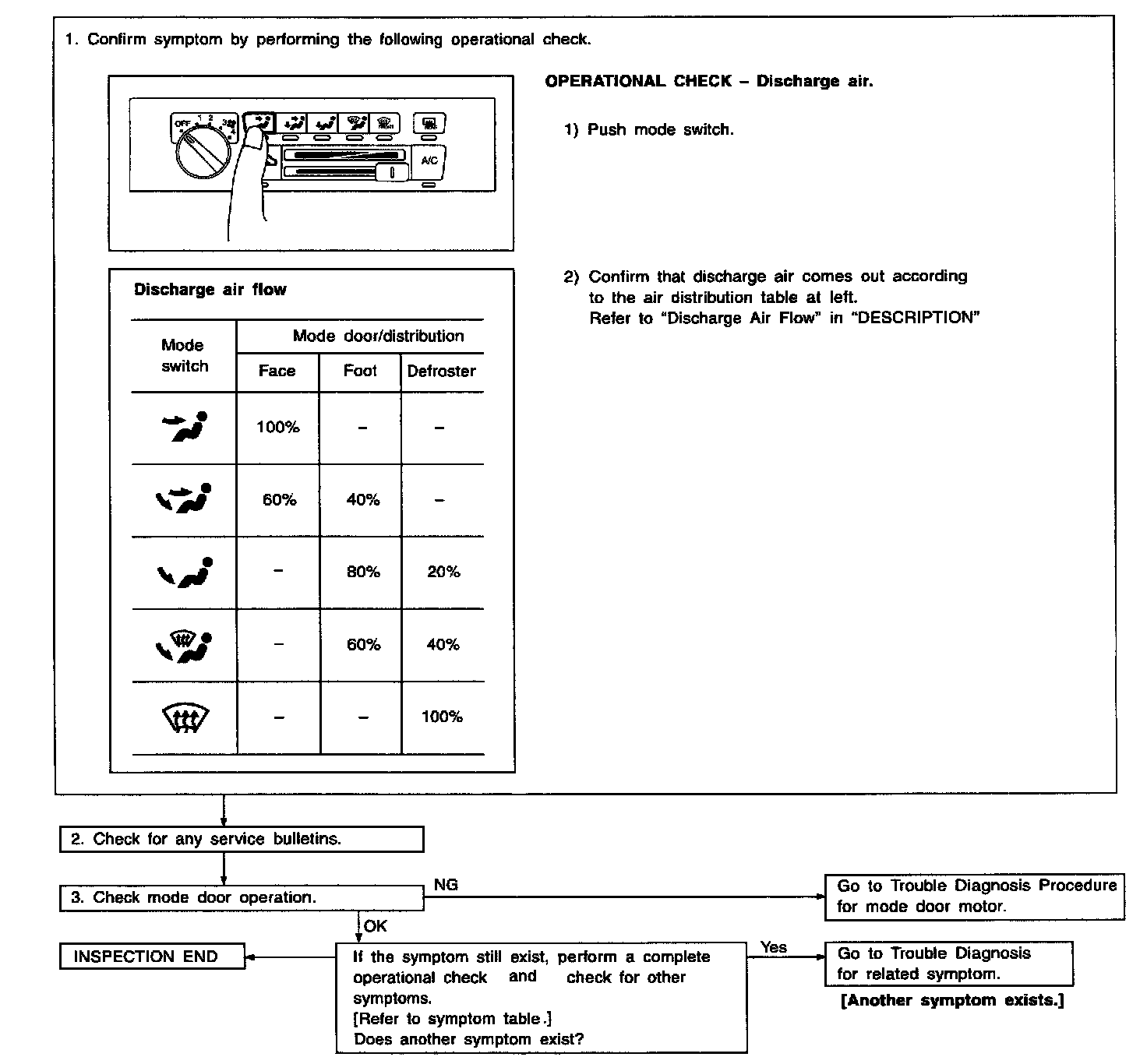

Inspection Flow:

Symptom:
- Air outlet does not change.

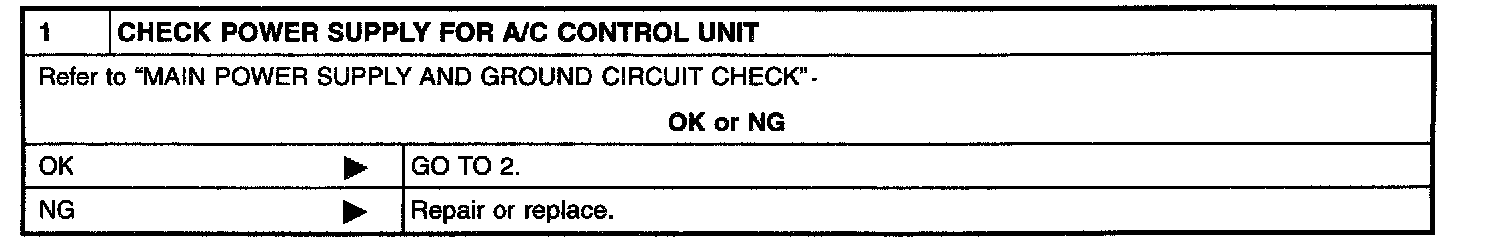

Step 1:

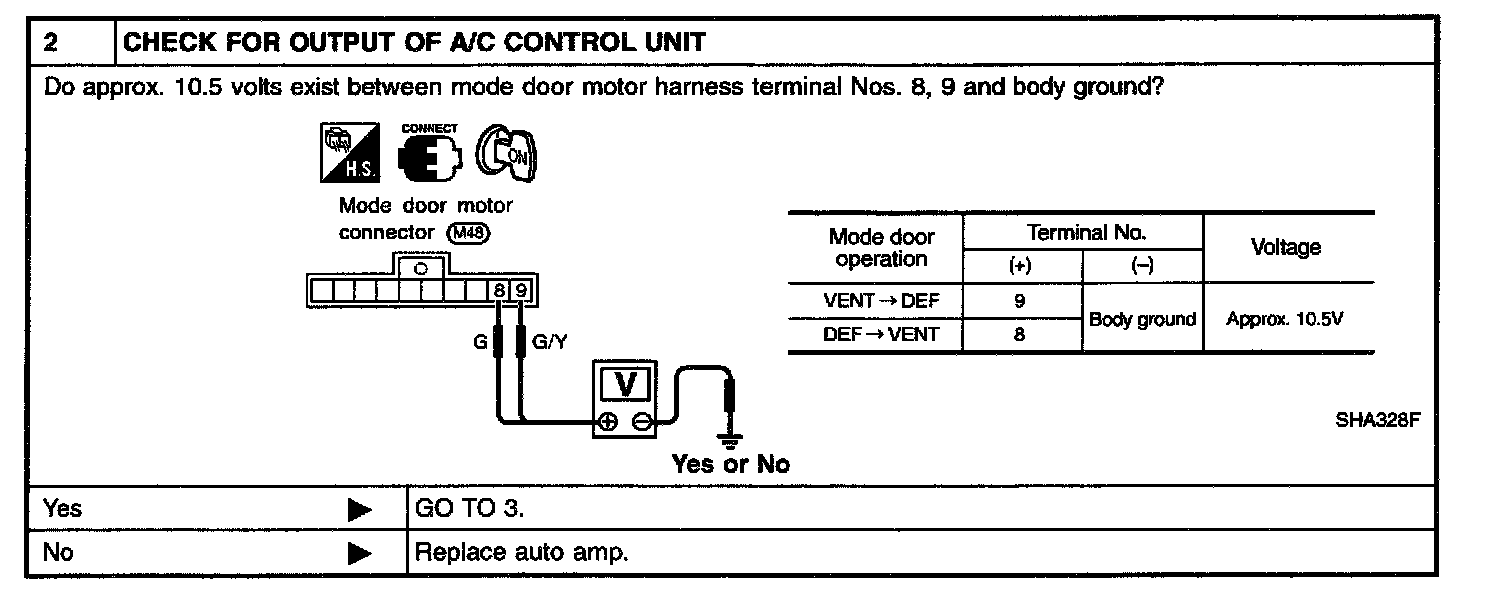

Step 2:

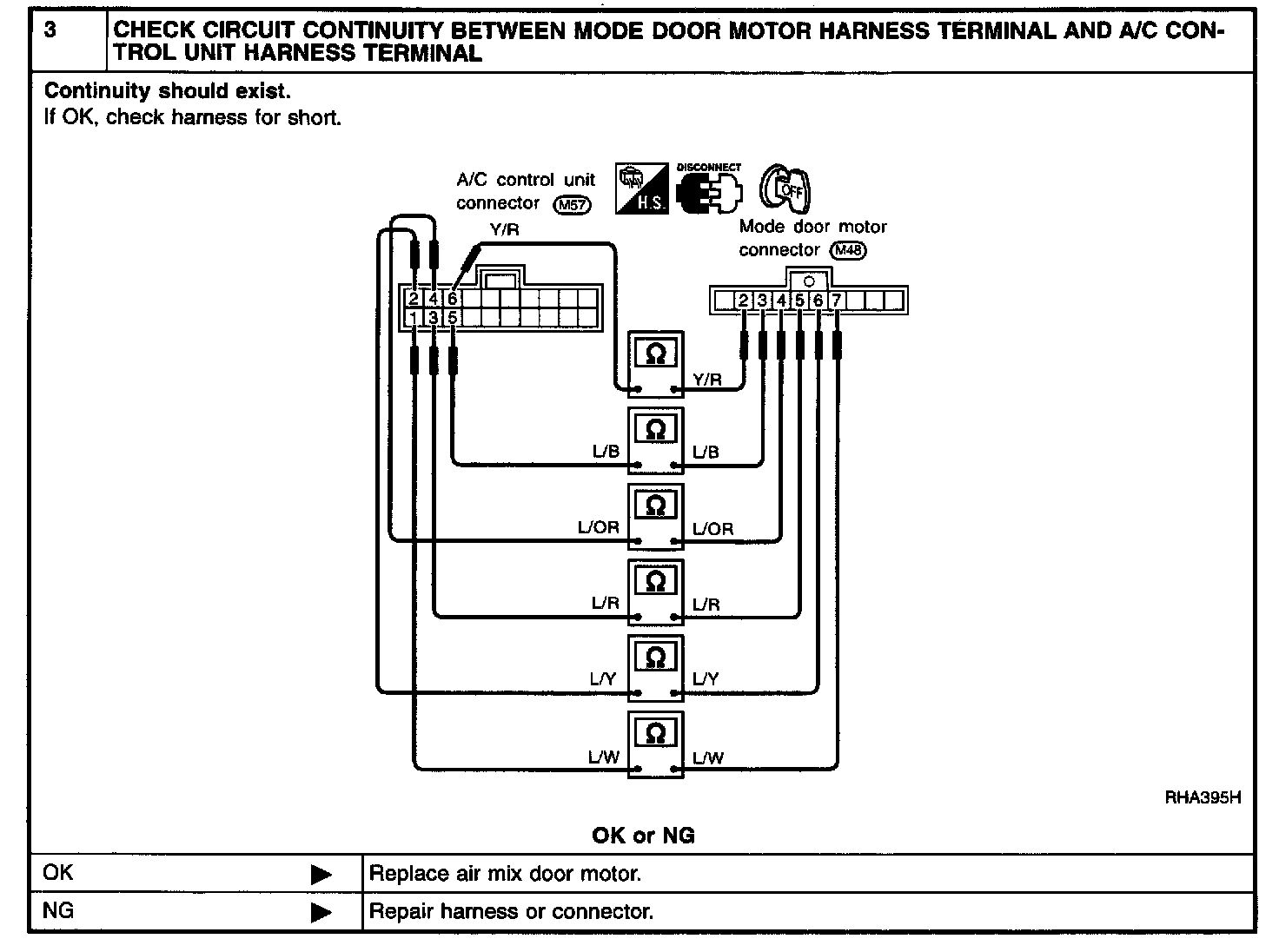

Step 3:

DIAGNOSTIC PROCEDURE

SYMPTOM:
- Mode door motor does not operate normally.

CONTROL LINKAGE ADJUSTMENT

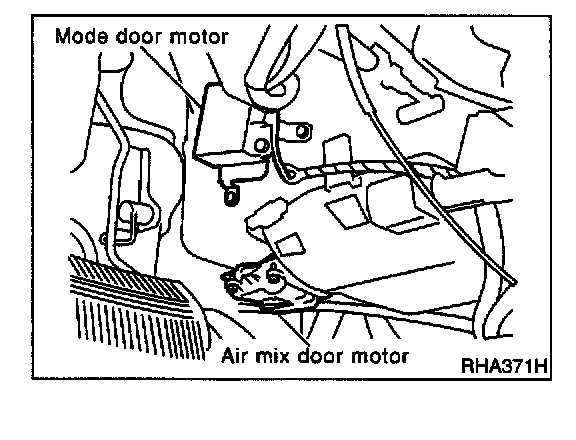

Mode Door
1. Install mode door motor on heater unit and connect it to main harness.
Make sure lever of mode door motor is fitted into the slit of mode door link.
2. Turn ignition switch to ON.
3. Turn VENT switch ON.
4. Turn DEF switch ON. Check that slide link operates at the full-open position.
Also turn DEF switch ON to check that slide link operates at the fully-open position.
