Fuel Pressure Gauge Connection For 1999-2001 Quest

1. Release the fuel pressure from the fuel system. Refer to the "Fuel Pressure Release Procedure".

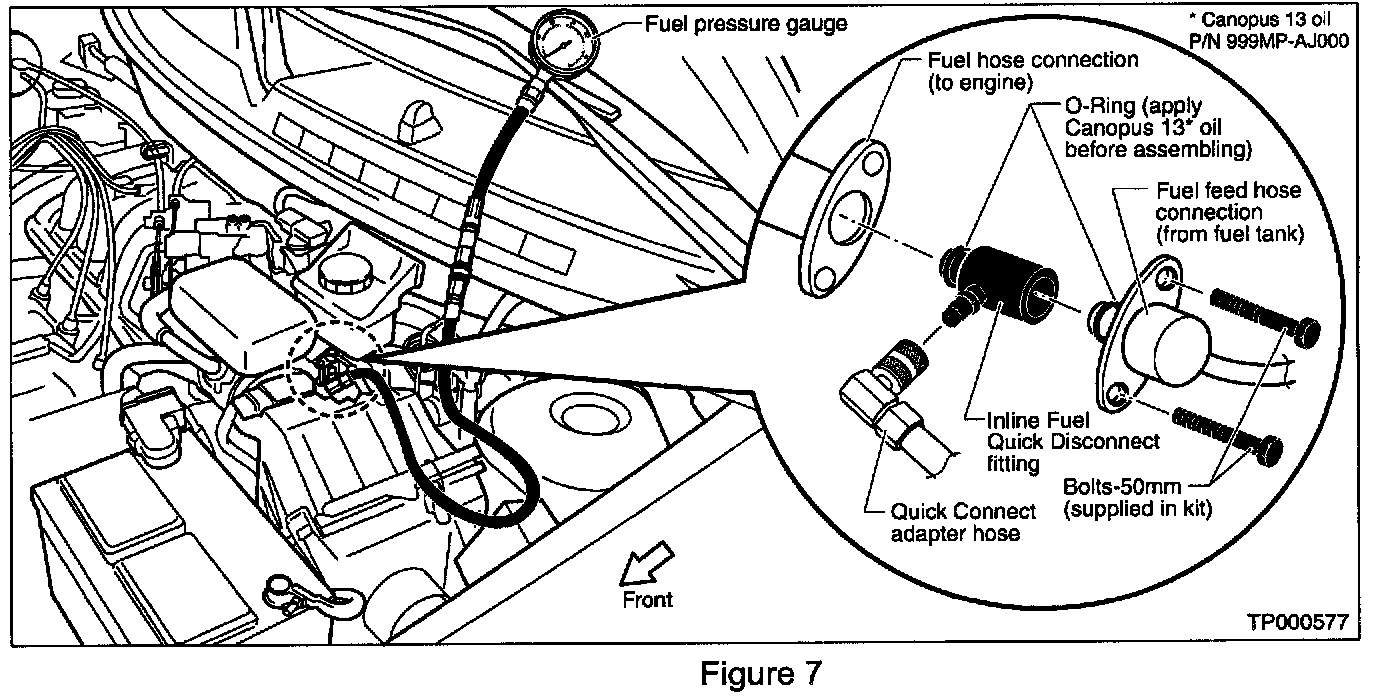

2. Install the Inline Fuel Quick Disconnect fitting between the connection of the fuel feed hose (from tank) and the fuel hose (to engine). See Figure 7.

CAUTION:
Do not over tighten the bolts when installing the Inline Fuel Quick Disconnect fitting.

NOTE:
Apply Canopus 13 oil (P/N 999MP-AJ000) to the 0-ring on the Quick Disconnect fitting and the fuel hose (to the engine) before installation (see Figure 7).

3. Connect the fuel pressure test gauge (Quick Connect adapter hose) to the Quick Disconnect fitting (see Figure 7).

4. Perform the fuel pressure test.

5. Release the fuel pressure from the fuel system. Refer to the "Fuel Pressure Release Procedure".

6. Remove the Quick Disconnect fitting.

7. Again, apply Canopus 13 oil to the fuel feed hose fitting 0-ring.

8. Re-install the fuel hose (from engine) to the fuel feed hose (from tank).

9. Operate the fuel system and confirm there are NO fuel leaks.
