Ignition System

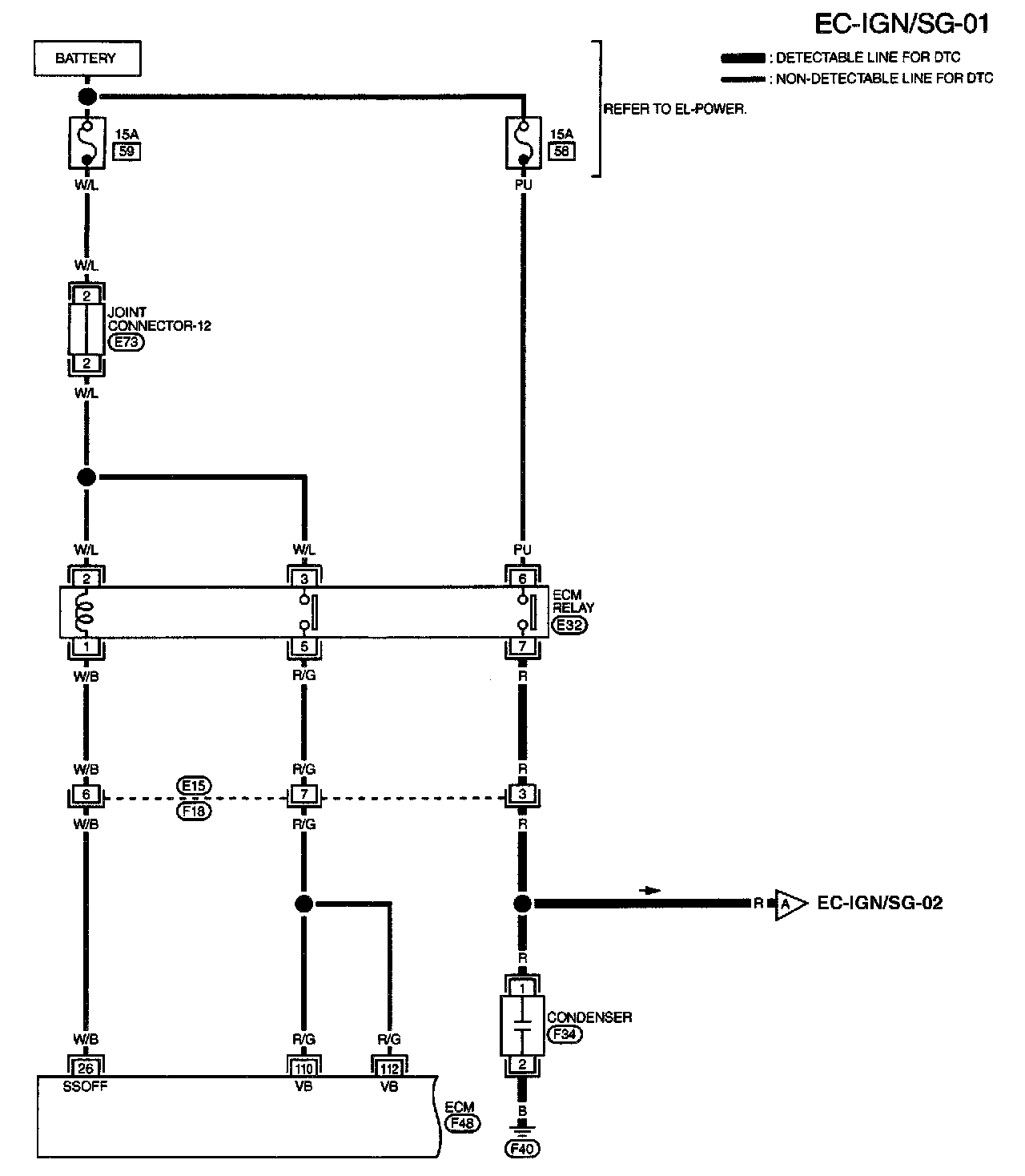

EC-IGN/SG-01:
EC-IGN/SG-01 - Connector View:

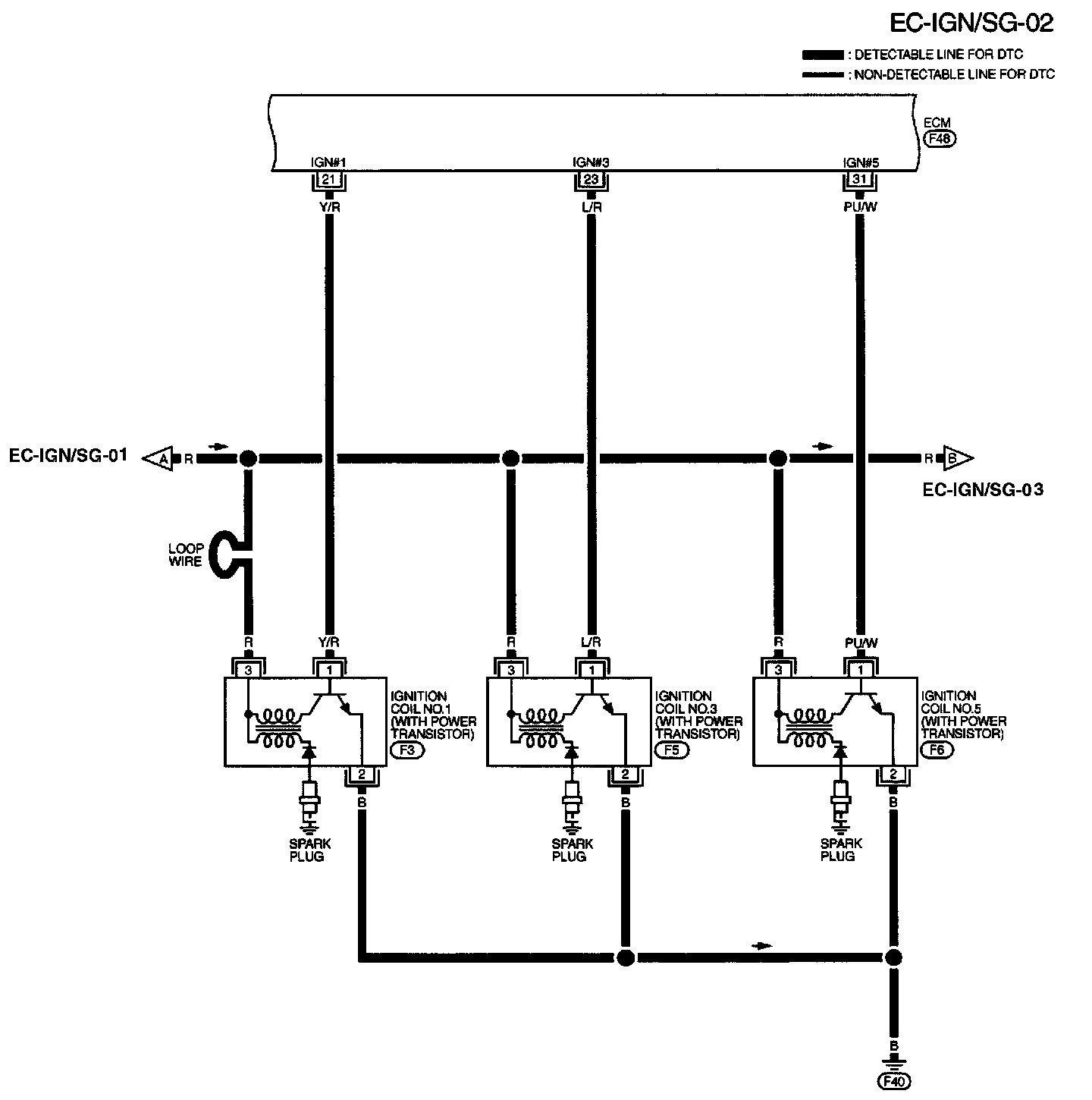

EC-IGN/SG-01:
EC-IGN/SG-02 - Connector View:

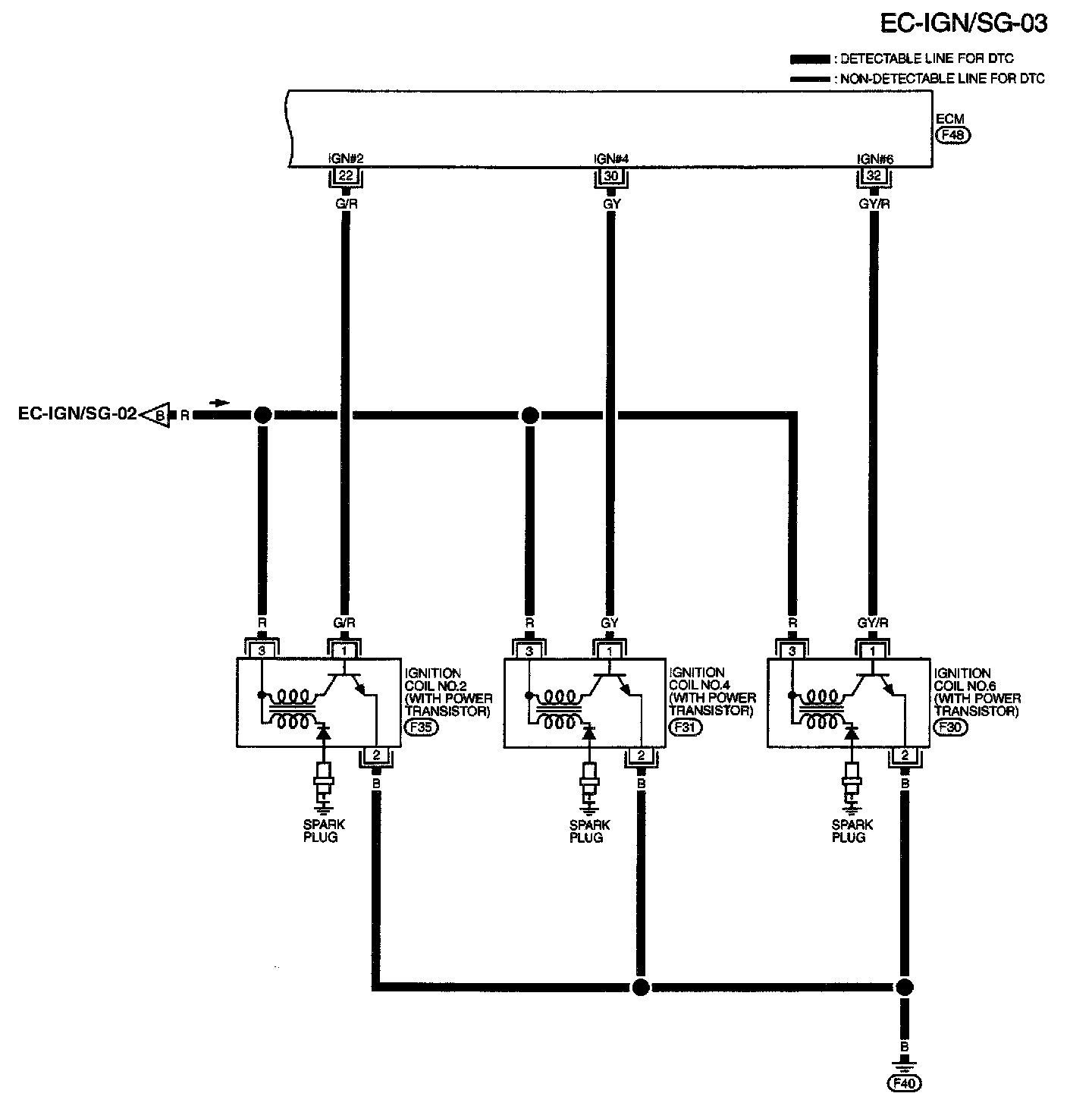

EC-IGN/SG-01:
EC-IGN/SG-03 - Connector View:
