EL-W/ANT
EL-W/ANT

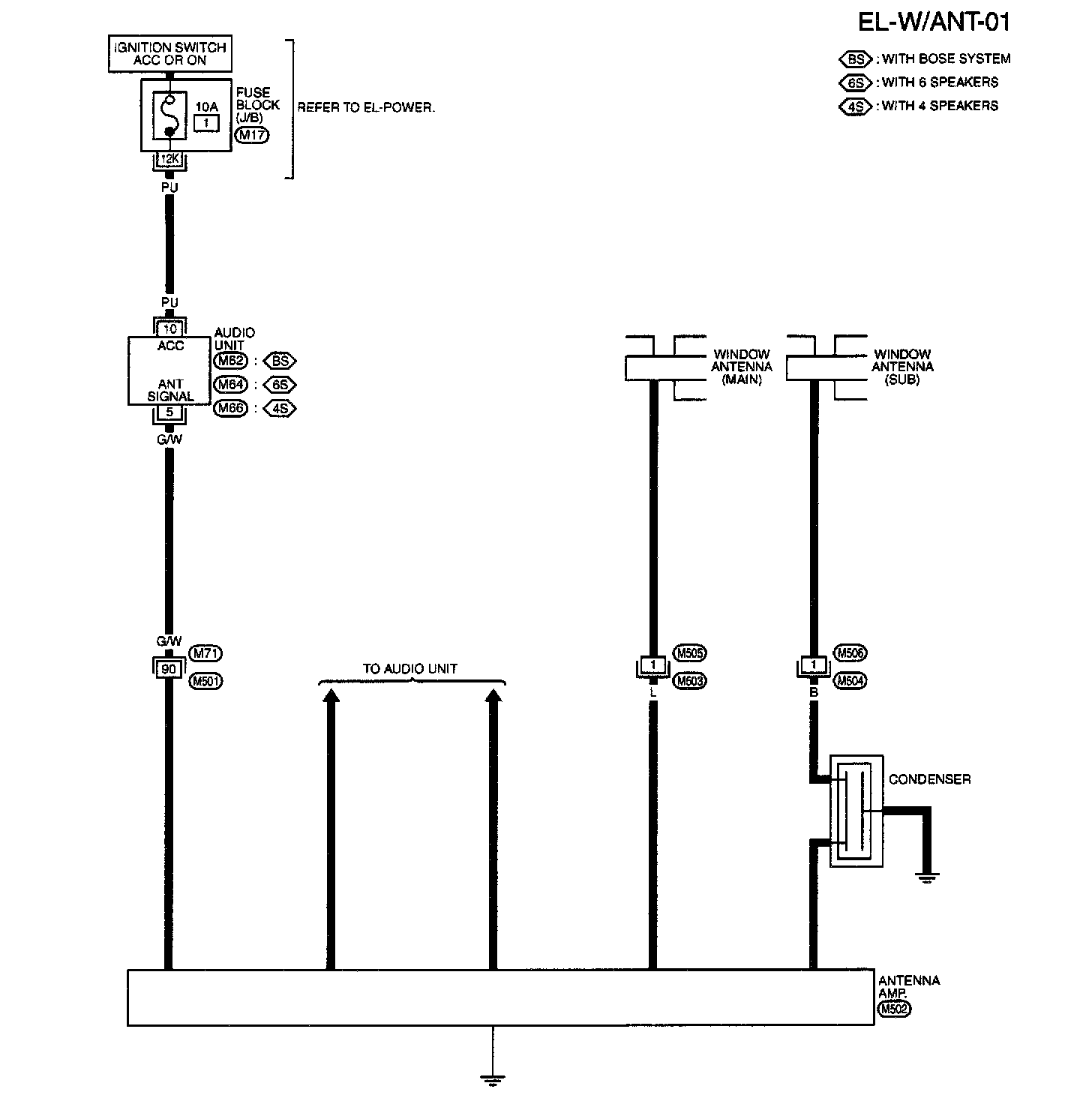

EL-W/ANT-01:
EL-W/ANT-01

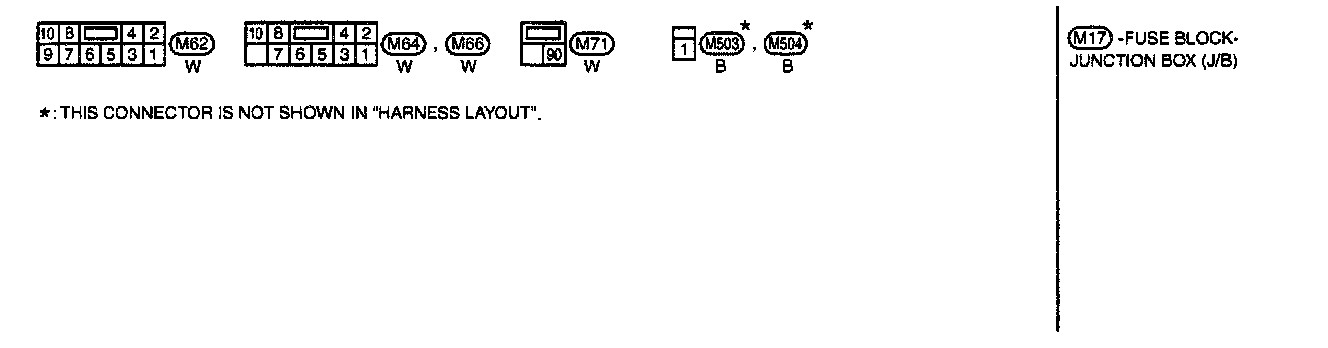

Circuit Connectors
E87, E89, E83, B5, M17, M18, M19 Connector Views:
M17
Fuse Block
Junction Box (J/B) Terminal Arrangement
