Nissan-Datsun
>>
2000
>>
Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse and Fusible Link Box
Fuse and Fusible Link Box

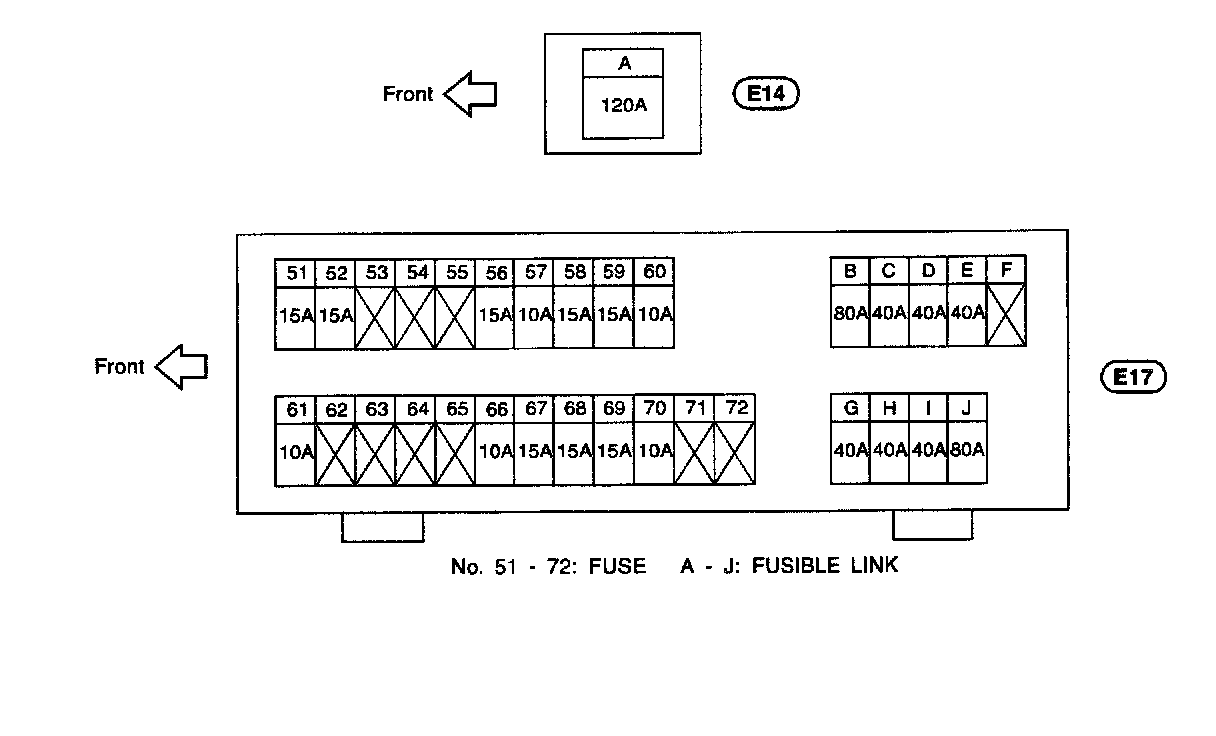

E14, E17 Fuse and
Fusible Link
Box Terminal Arrangement
