Electrical Component Inspection

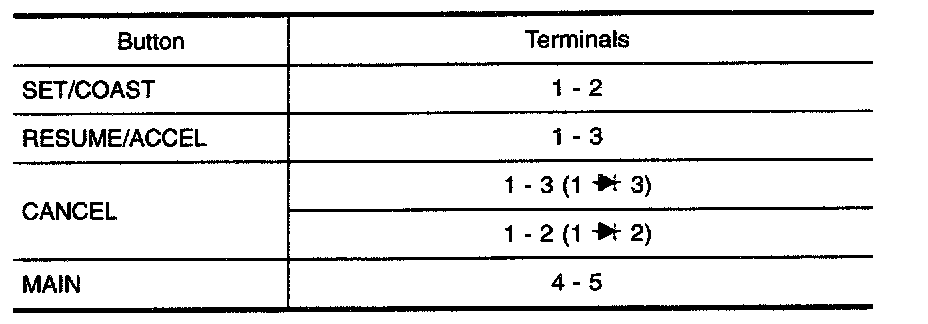

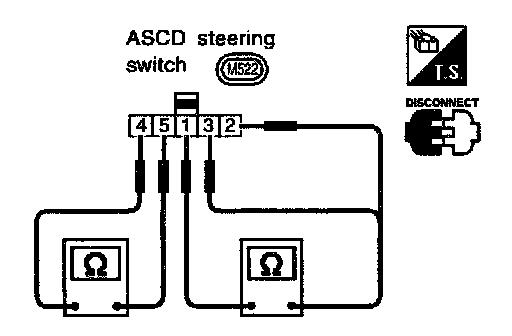

ASCD STEERING SWITCH
Check continuity between terminals by pushing each button.

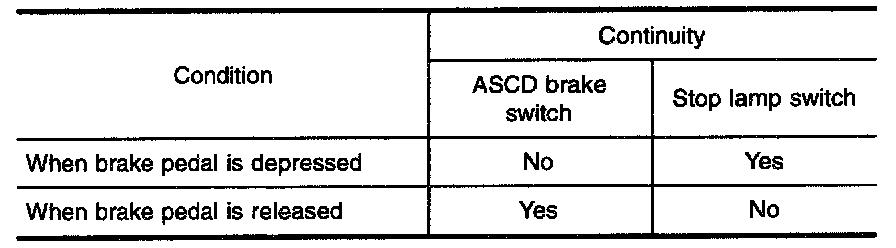

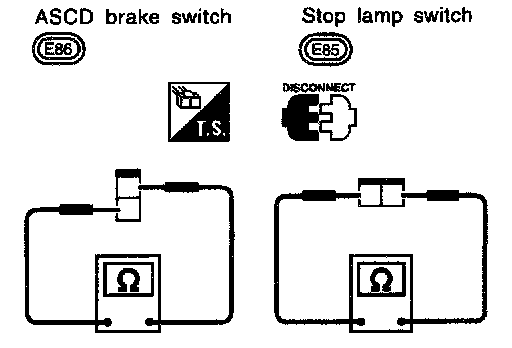

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.

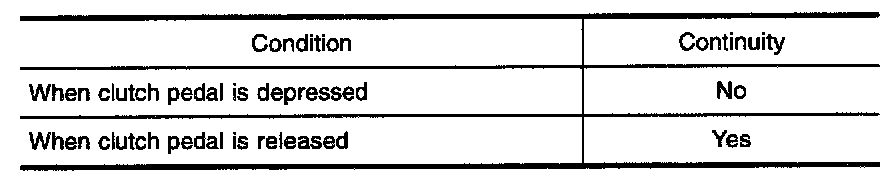

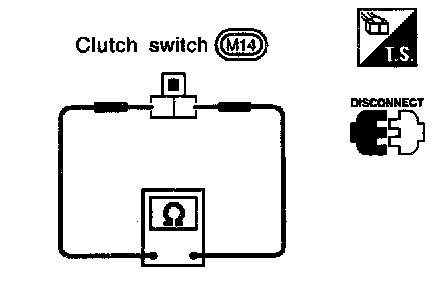

ASCD CLUTCH SWITCH (FOR M/T MODELS)







PARK / NEUTRAL POSITION SWITCH (FOR A/T MODELS)
