Consult-II Inspection Procedure

CONSULT-II Inspection Procedure




1. Turn ignition switch OFF.

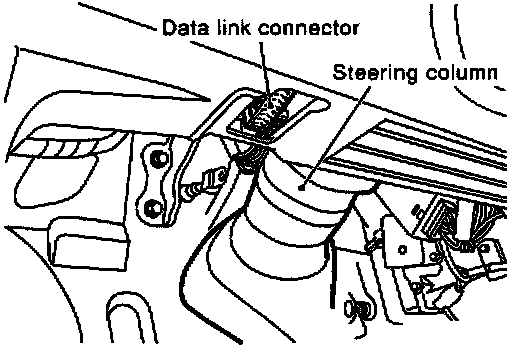

2. Connect "CONSULT-II" to data link connector.




3. Turn ignition switch N.
4. Turn ASCD main switch ON.
5. Touch START (on CONSULT-II display).

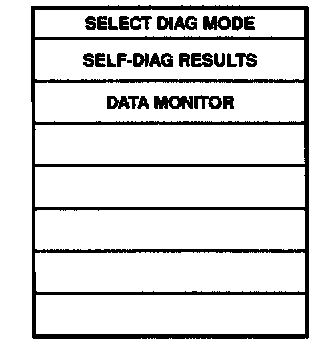

6. Touch ASCD.

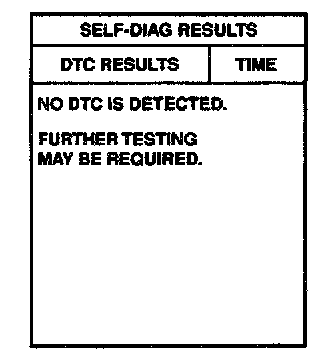

7. Touch SELF-DIAG RESULTS.




- Self-diagnostic results are shown on display. Refer to table on the next page.

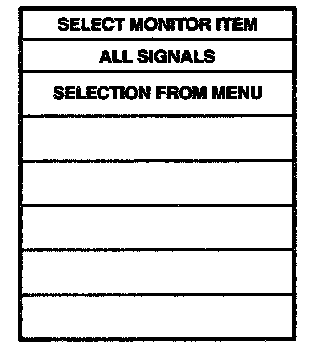

8. Touch DATA MONITOR.




- Touch START

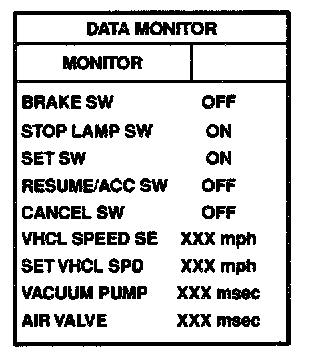

- Data monitor results are shown on display. Refer to table given below.
For further information, read the CONSULT-II Operation Manual.

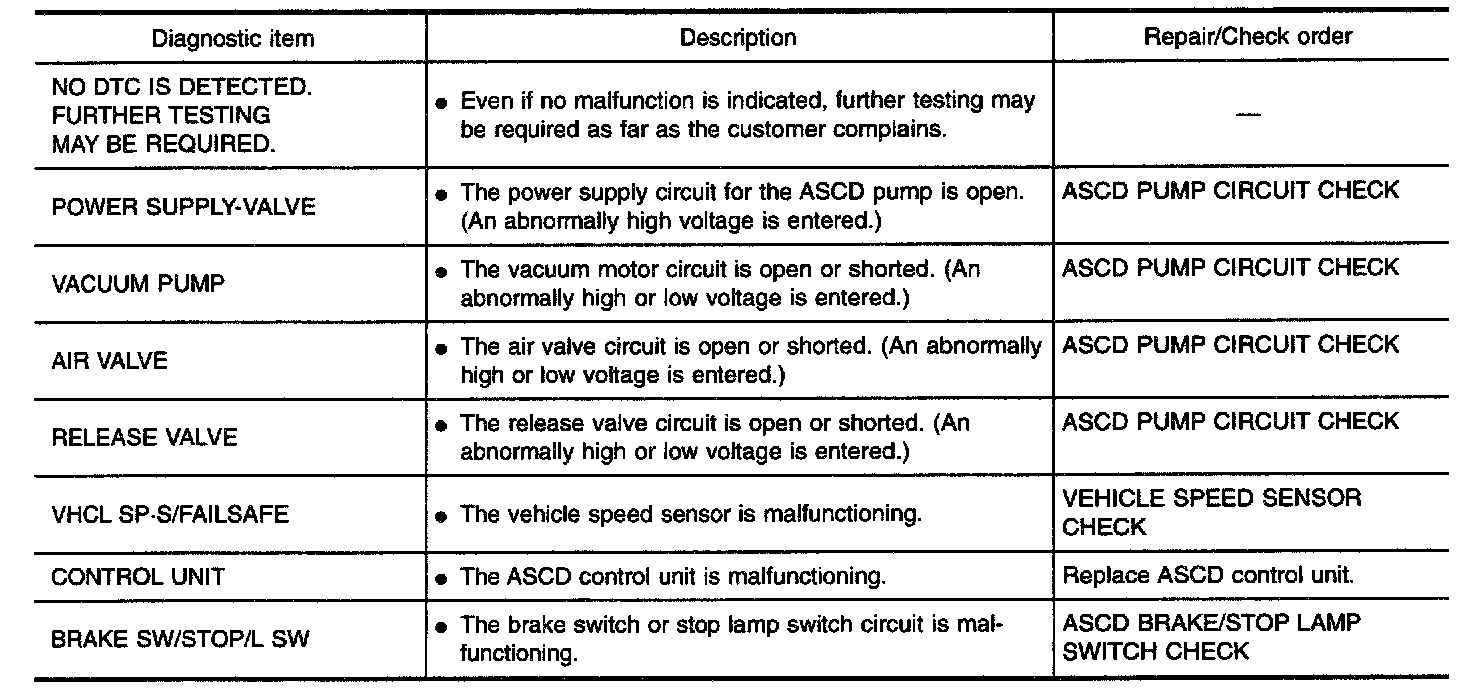

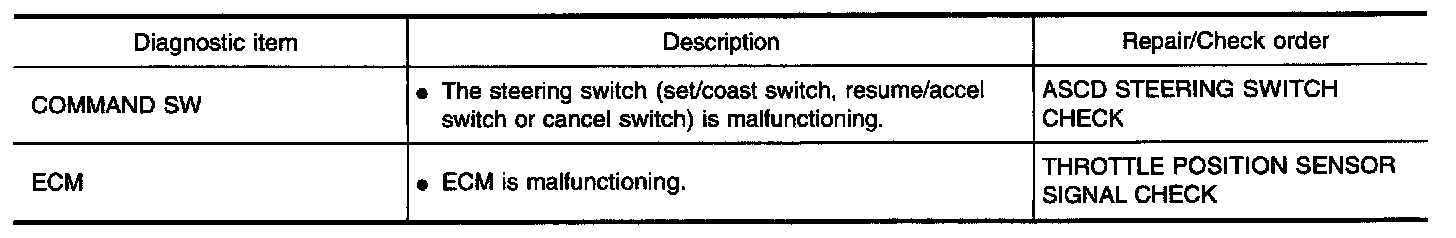

CONSULT-II Self-diagnostic Results

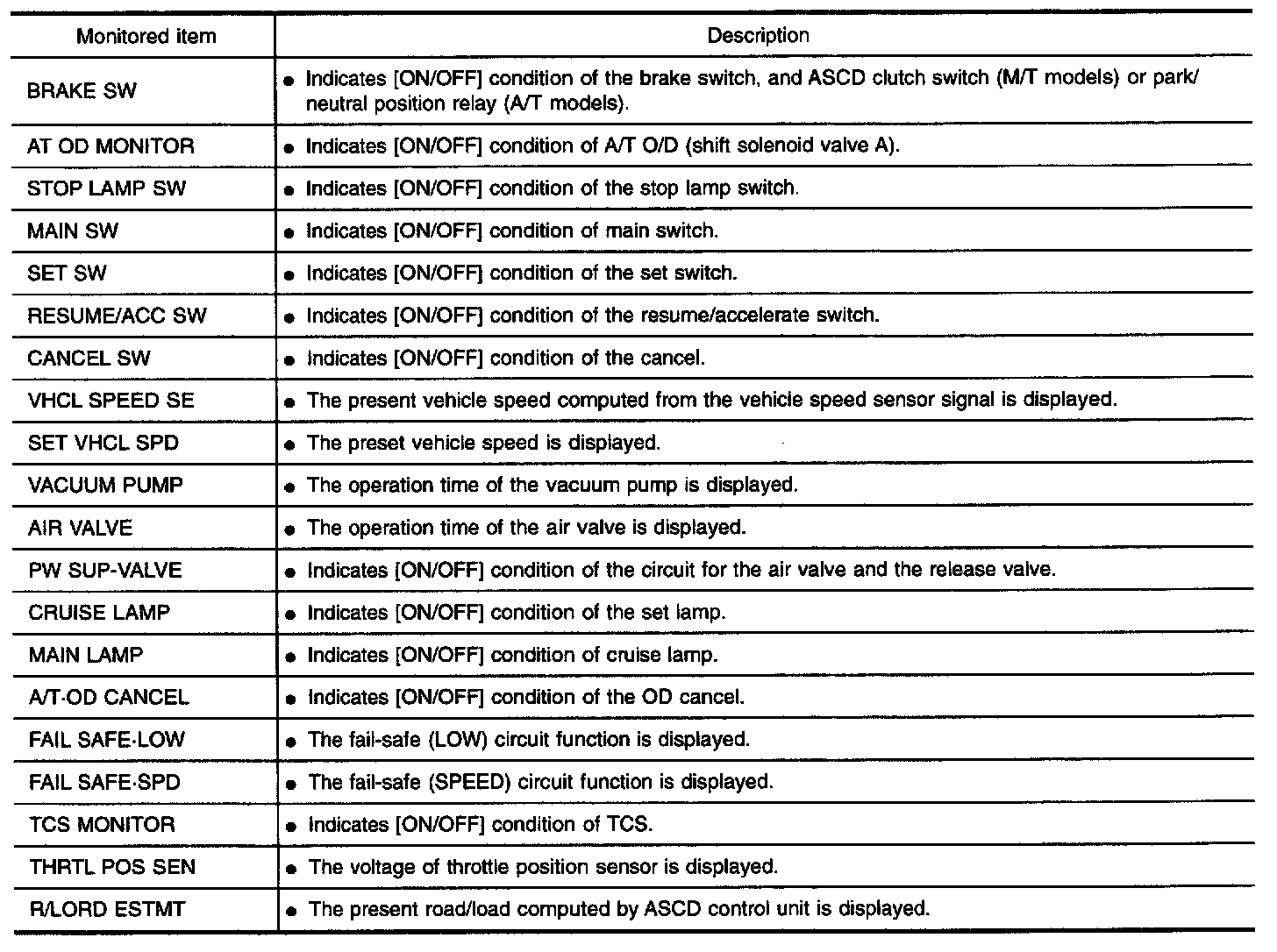

CONSULT-II Data Monitor
