Tokico

Disassembly

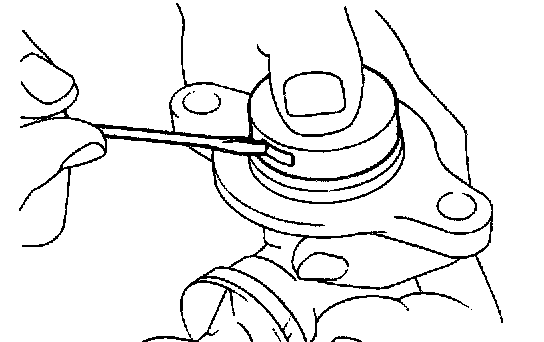

1. Bend claws of stopper cap outward and remove stopper cap.

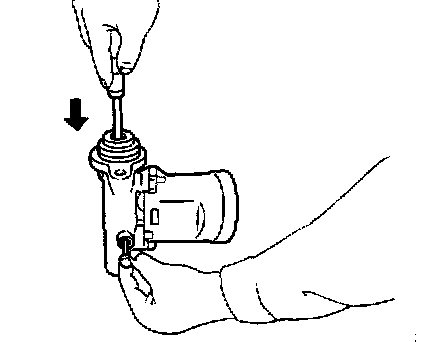

2. Remove valve stopper while piston is pushed into cylinder.
3. Remove piston assemblies. If it is difficult to remove secondary piston assembly, gradually apply compressed air through fluid outlet.
4. Draw out reservoir tank.

Inspection
Check for the following items. Replace any part if damaged.
Master cylinder:
^ Pin holes or scratches on inner wall.
Piston:
^ Deformation of or scratches on piston cups.

Assembly

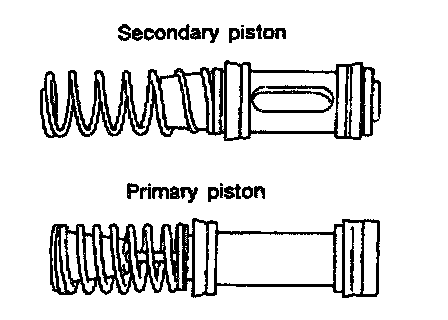

1. Insert secondary piston assembly. Then insert primary piston assembly.
^ Pay attention to alignment of secondary piston slit with valve stopper mounting hole of cylinder body.

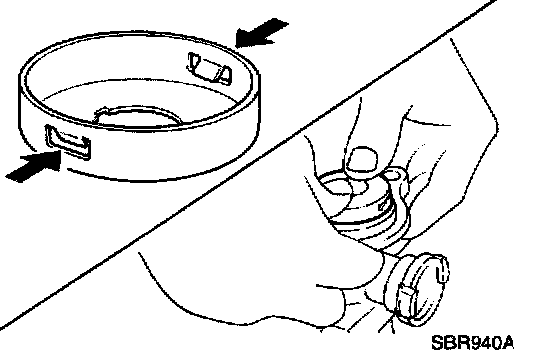

2. Install stopper cap. Before installing stopper cap, ensure that claws are bent inward.
3. Push reservoir tank seals into cylinder body.
4. Push reservoir tank into cylinder body.





5. Install valve stopper while piston is pushed into cylinder.
