Ground Circuit Check

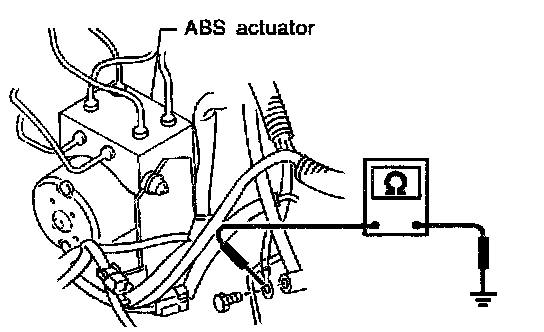

ACTUATOR MOTOR GROUND





- Check resistance between actuator motor ground terminal and body ground.
Resistance: 0 ohms

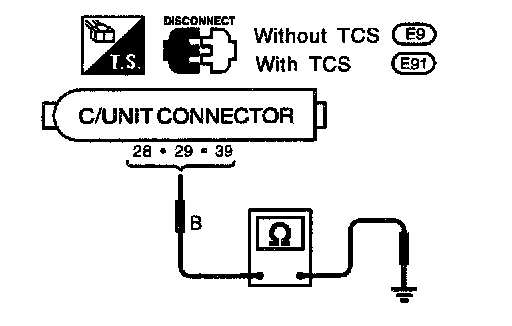

CONTROL UNIT GROUND





- Check resistance between the terminals and ground.
Resistance: 0 ohms

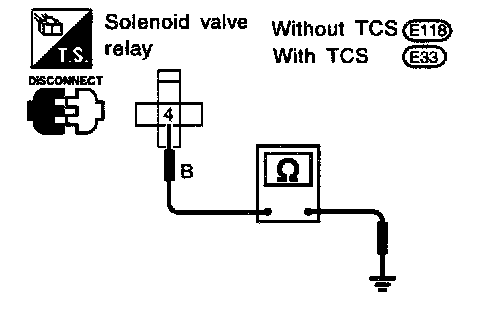

ABS SOLENOID VALVE RELAY GROUND





- Check resistance between solenoid valve relay terminal 4 and ground.
Resistance: 0 ohms
