Seat Temperature Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

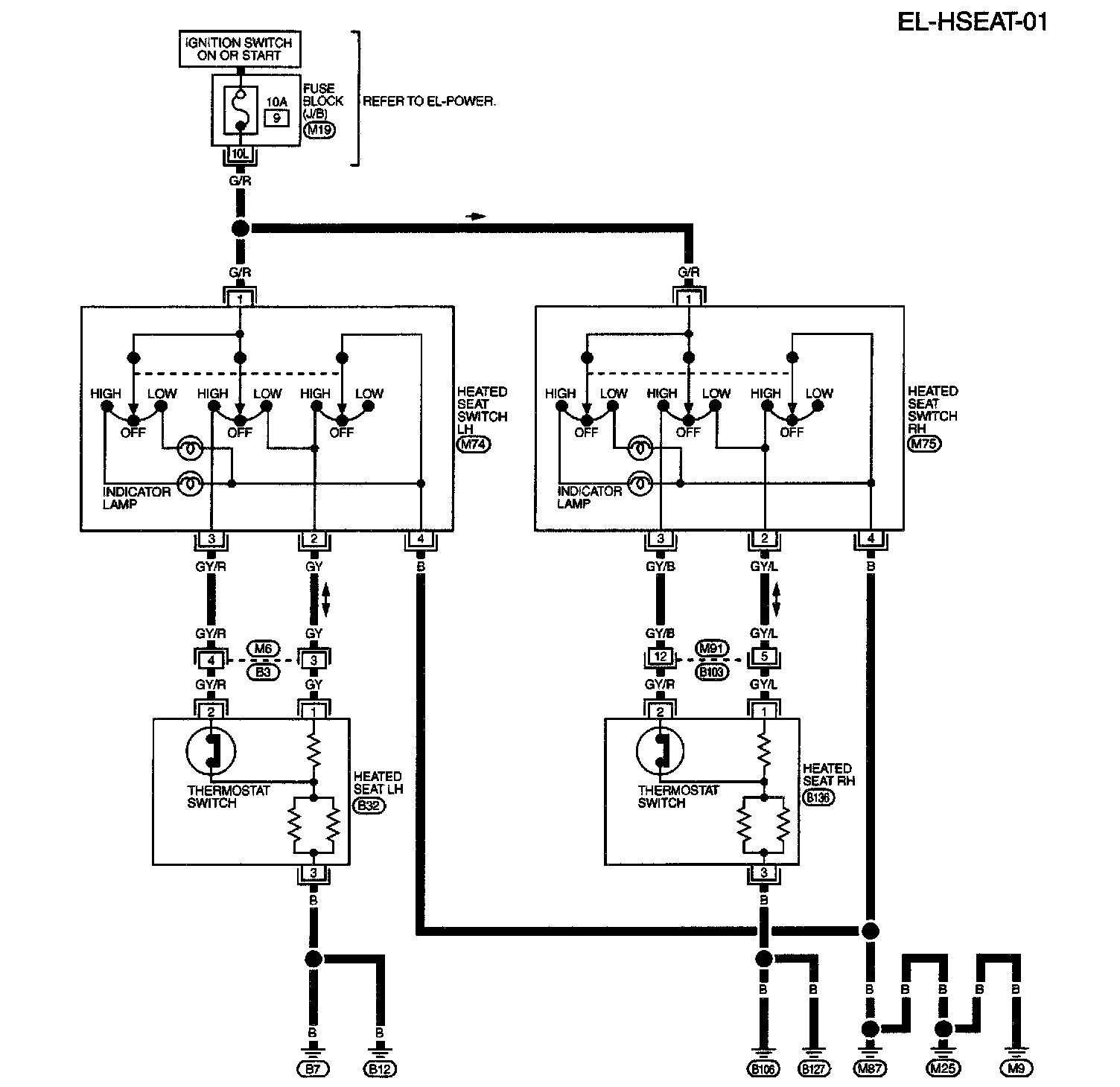

EL-HSEAT-01:
Circuit Diagrams
Circuit Connectors

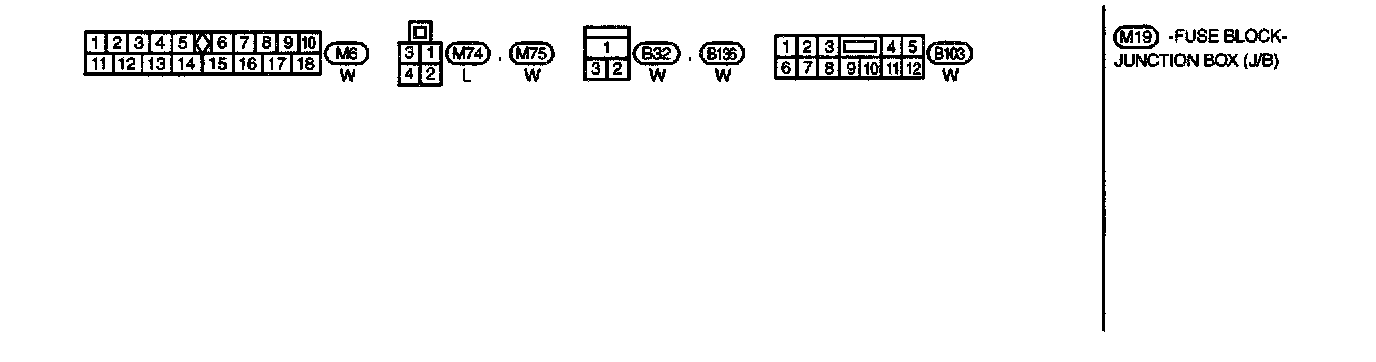

E87, E89, E83, B5, M17, M18, M19 Connector Views:
M19 Fuse Block-Junction Box (J/B)
