Home >> Nissan-Datsun >> 2000 >> Maxima GXE V6-3.0L (VQ30DE) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnostic Table

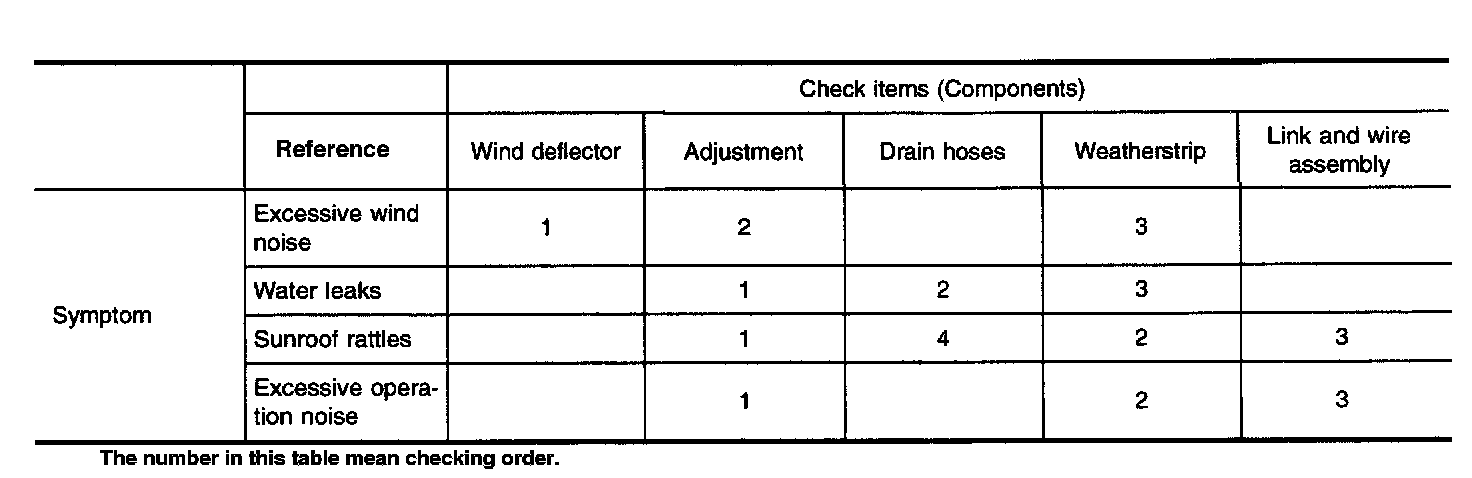

Diagnostic Table






NOTE: For diagnosing electric problem, refer to "ELECTRIC SUNROOF".
