Sunroof / Moonroof Windguard: Testing and Inspection




1. Open lid.
2. Check visually for proper installation.

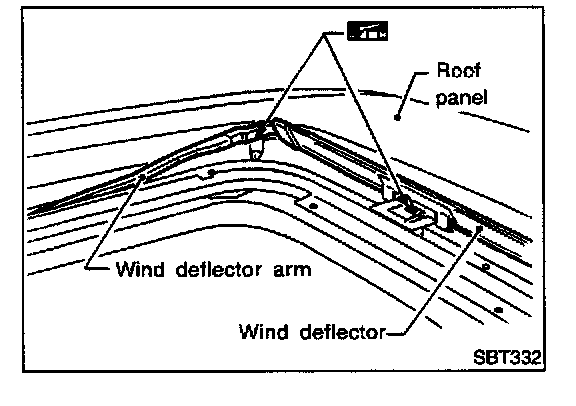

3. Check to ensure a proper amount of petroleum jelly has been applied to wind deflector connection points; apply if necessary.

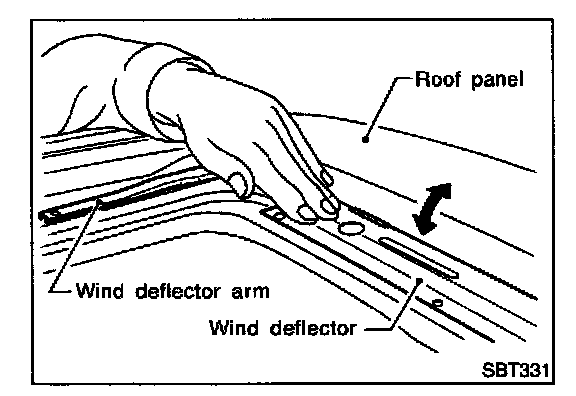

4. Check that wind deflector is properly retracted by hand. If it is not, remove and visually check condition. (Refer to removal procedures .) If wind deflector is damaged, replace with new one. If wind deflector is not damaged, re-install properly.
