Side and Floor Trim

CAUTION:

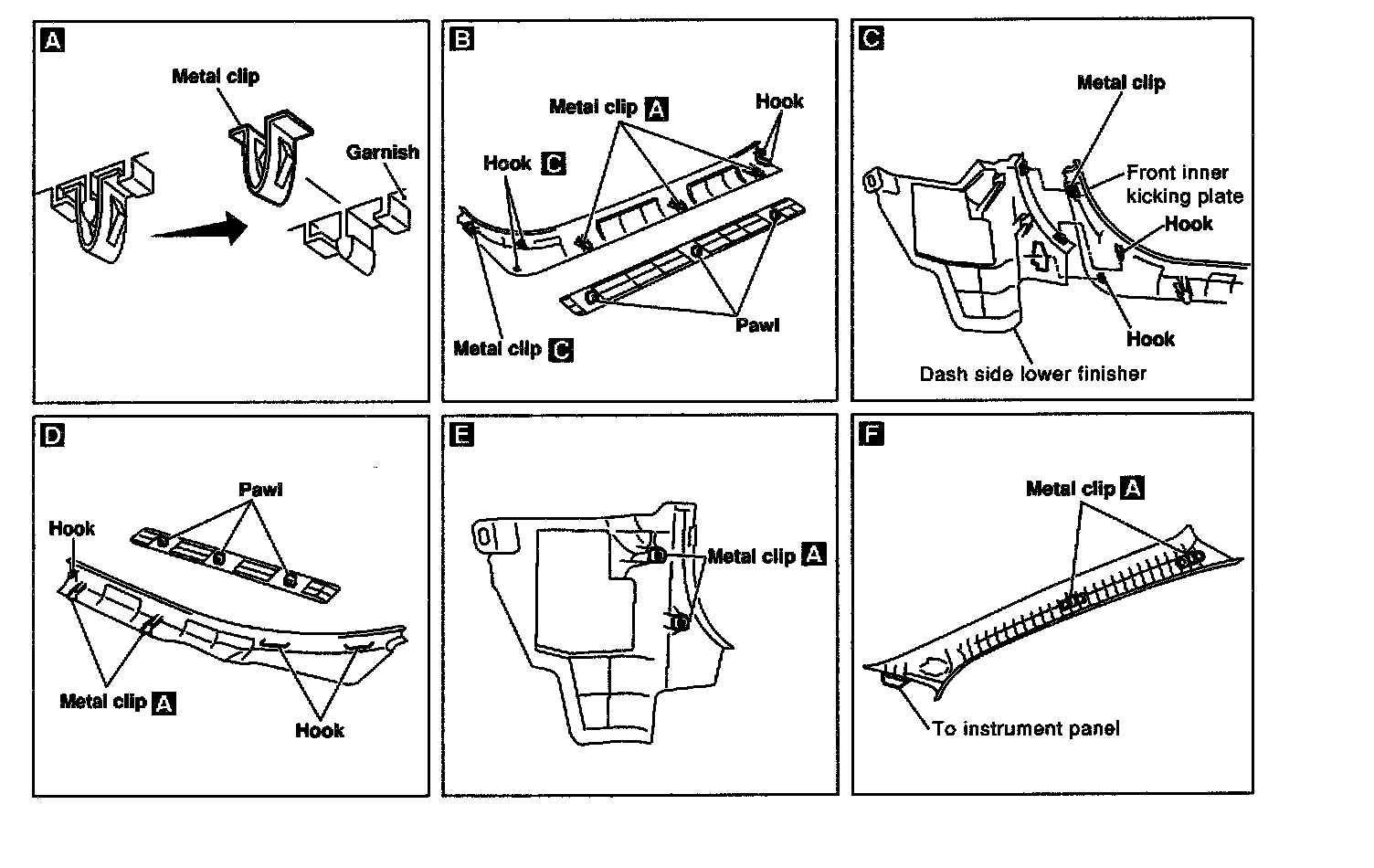

- Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
- When removing or installing body side welts, do not allow butyl seal to come in contact with pillar garnish.

1. Remove front and rear seats.
2. Remove front and rear seat belts.
3. Remove front and rear outer kicking plates. [B] [D]
4. Remove front and rear inner kicking plates. [B] [D]
5. Remove dash side lower finisher. [E]
6. Remove front and rear body side welts.
7. Remove front pillar garnishes. [F]

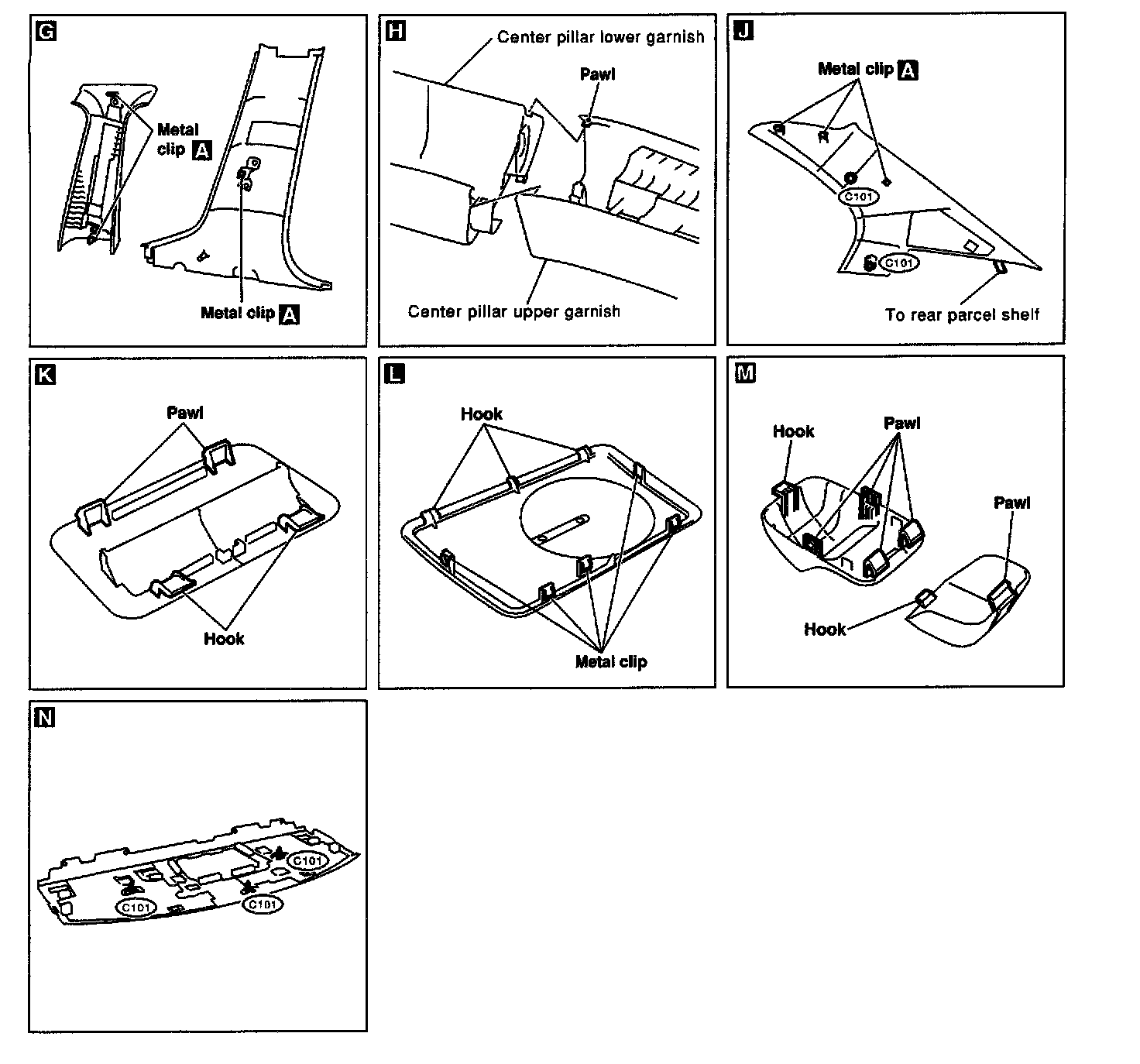

8. Remove center pillar lower garnishes. [G]
9. Remove center pillar upper garnishes. [G]
10. Remove rear pillar garnishes. [J]

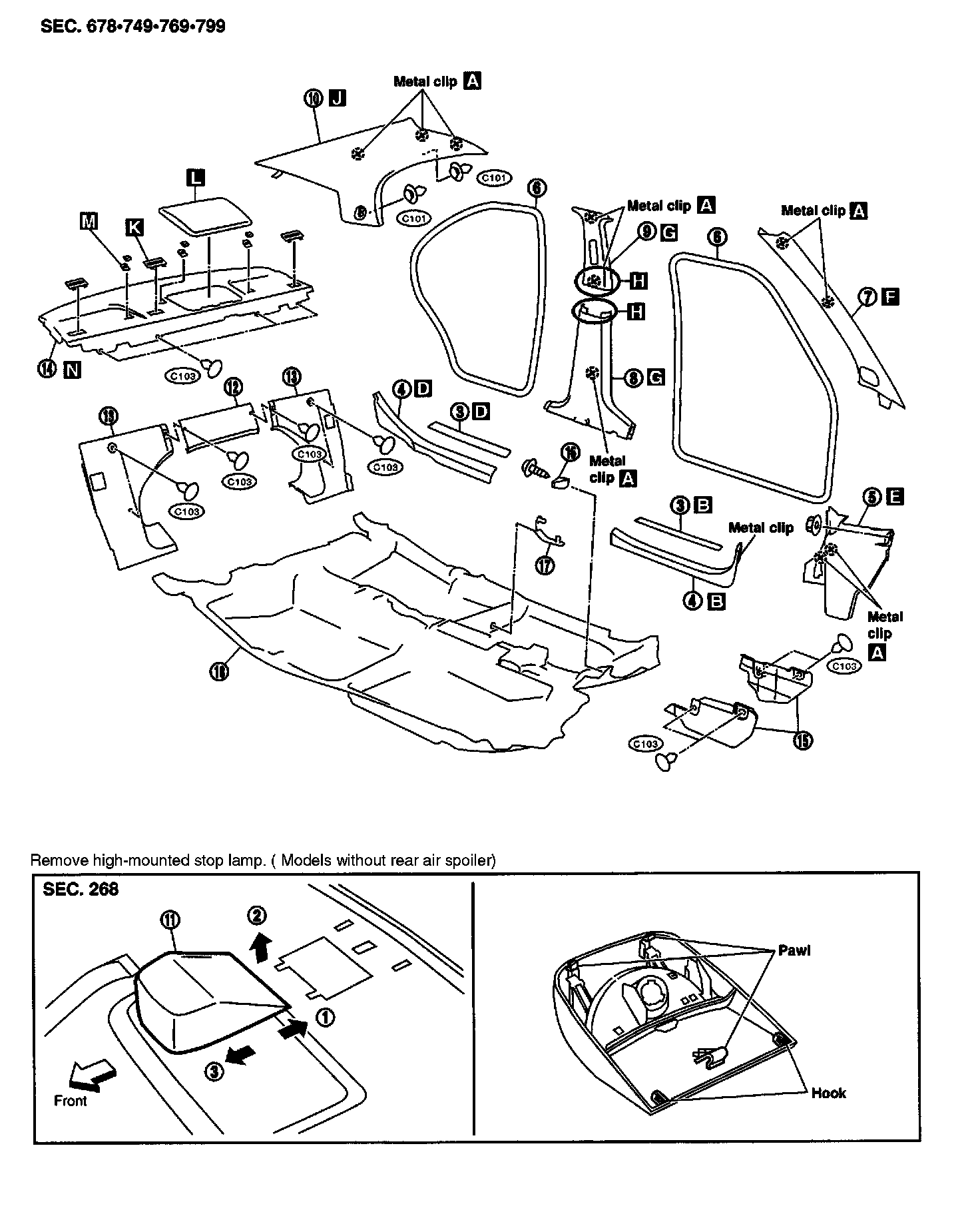

11. Remove high-mounted stop lamp. (Model without rear air spoiler)
12. Remove seatback center finisher.
13. Remove seatback side finishers.
14. Remove rear parcel shelf finisher. [K] [L] [M] [N]
15. Remove instrument lower covers.
16. Remove accelerator pedal stopper.
17. Remove carpet hook.
18. Remove floor carpet.
