Front Door Window Glass: Service and Repair

Front Door Glass
- Make sure that door glass is positioned in glass run groove.
- Make sure that there is no abnormality when door glass is raised or lowered.

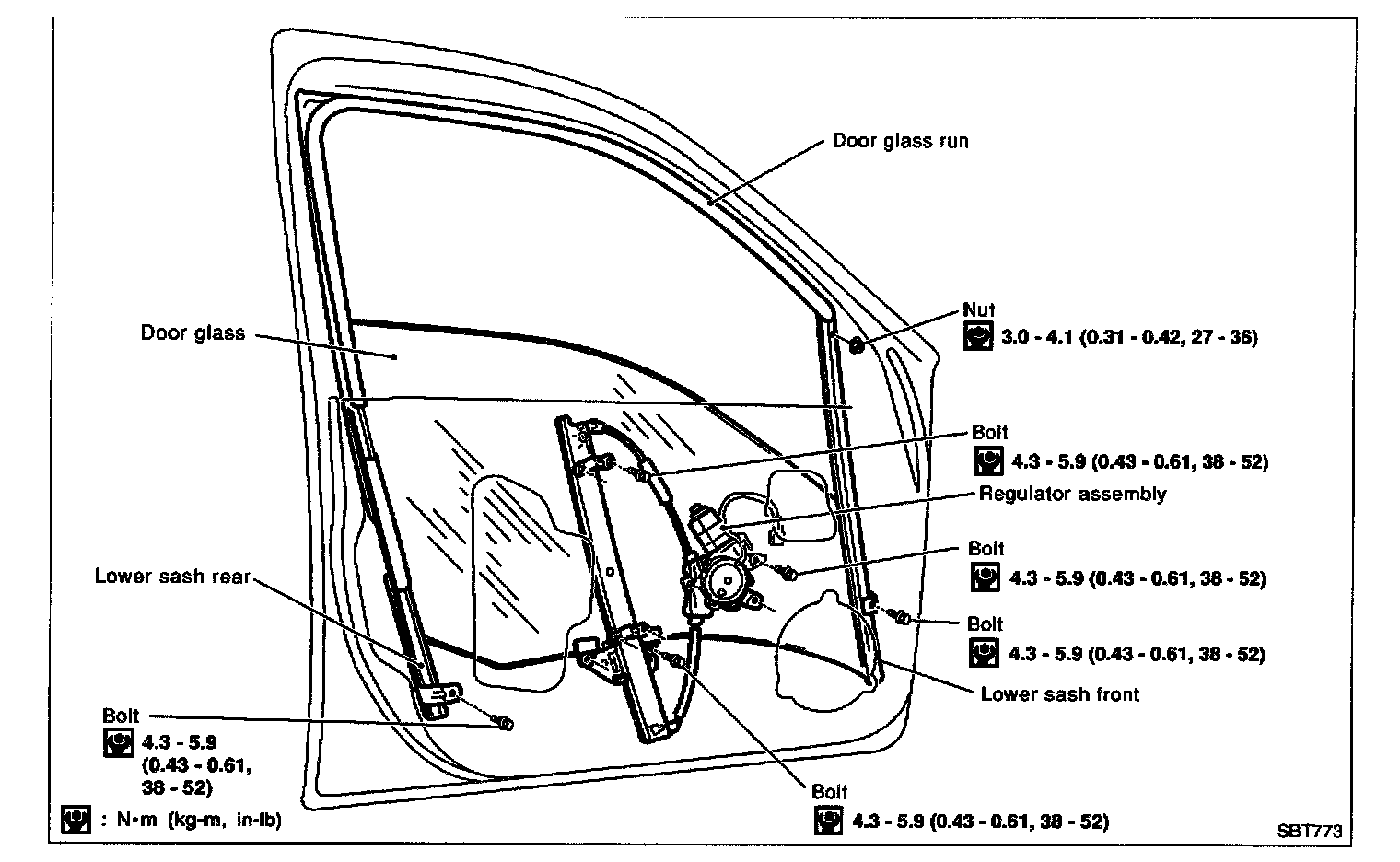

FRONT DOOR GLASS AND REGULATOR
- For removal of front door trim, refer to "DOOR TRIM".
- For removal of door mirror, refer to "DOOR MIRROR".
- For removal of door outside molding, refer to "EXTERIOR".
- Remove sealing screen.




1. Using power window main switch, raise or lower door glass until carrier plate securing bolts are visible.

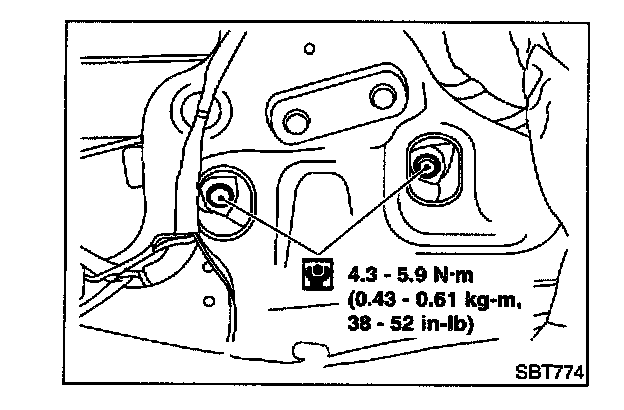

2. Remove bolts securing carrier plate.

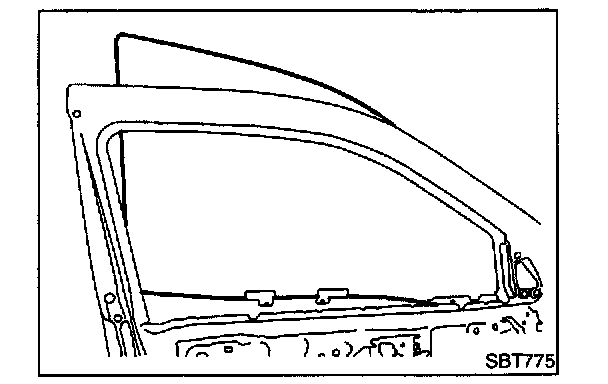

3. Hold door glass with both hands. While raising rear end of door glass, remove door glass from sash and away from outside the door.




4. Disconnect regulator assembly connector.

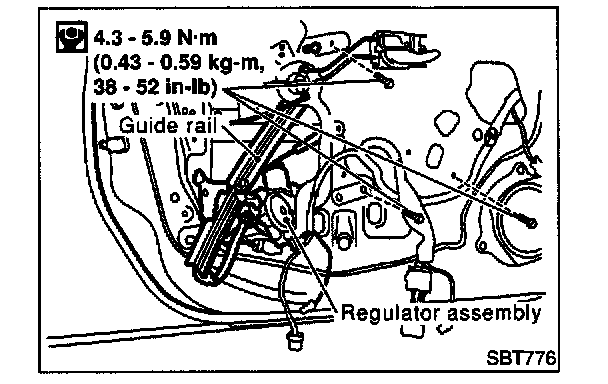

5. Remove bolts securing regulator assembly and guide rail, then remove regulator assembly and guide rail.




Inspection

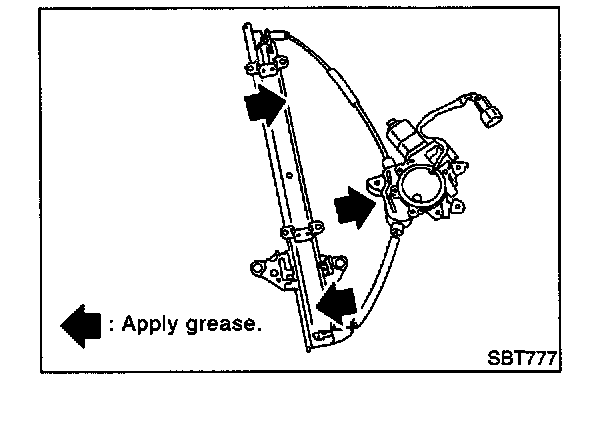

Check regulator assembly for the following parts. Replace faulty parts with new ones.
- Wire for wear
- Regulator for deformation
- Sliding parts for lubrication
