Garage Door Opener Transmitter: Testing and Inspection

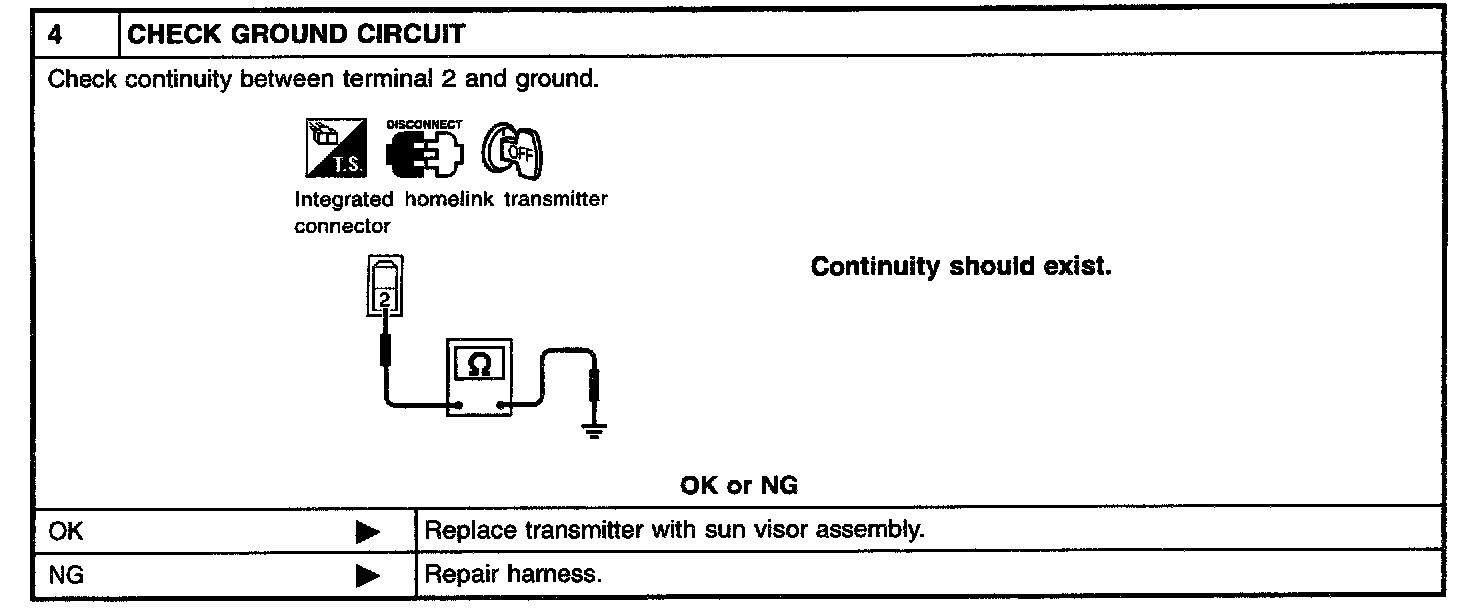

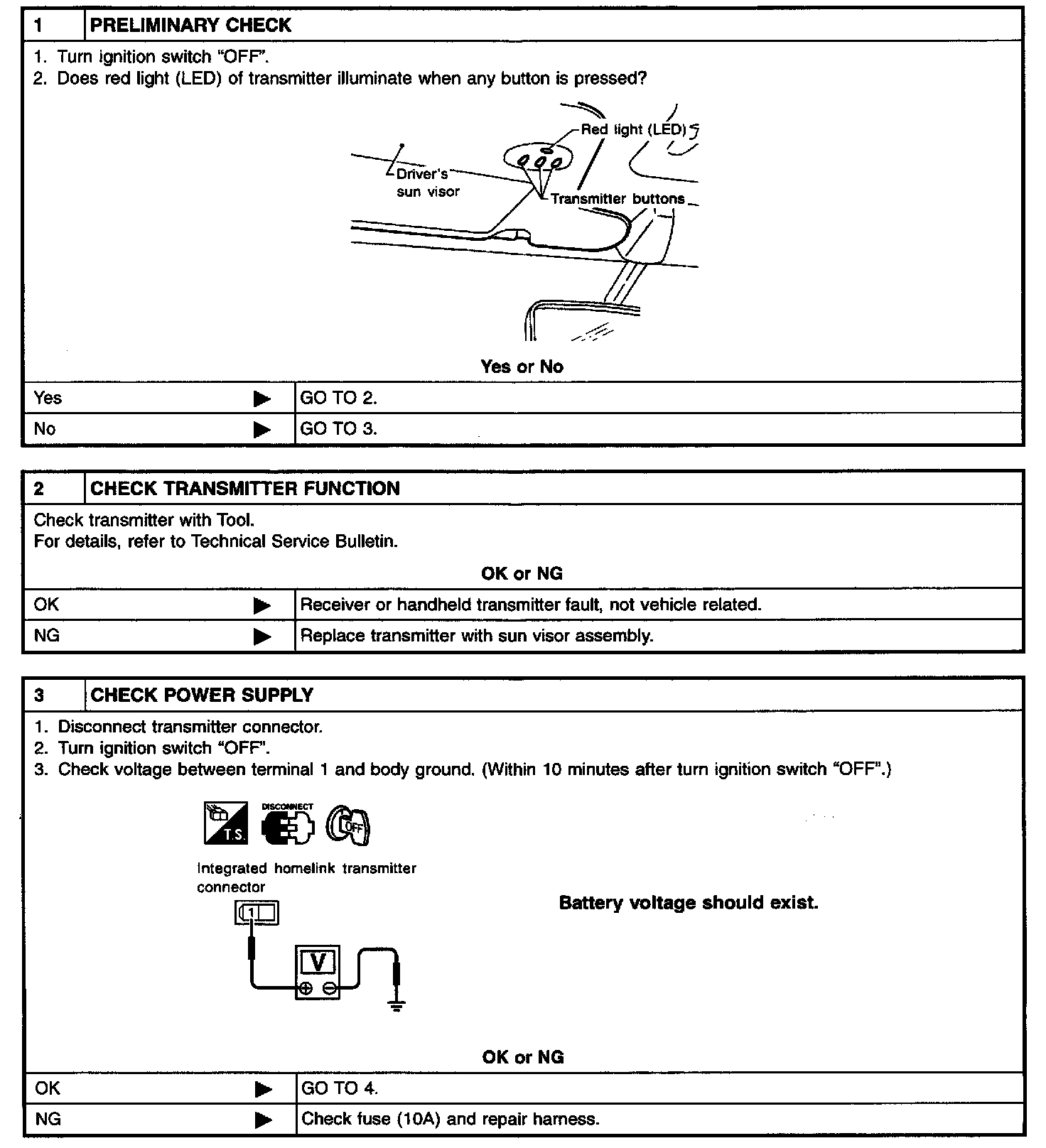

DIAGNOSTIC PROCEDURE







SYMPTOM: Transmitter does not activate receiver.

Before conducting the procedure given, make sure that system receiver (garage door opener, etc.) operates with original, hand-held transmitter. If NG, receiver or hand-held transmitter is at fault, not vehicle related.
