Non-Trouble Code Procedures

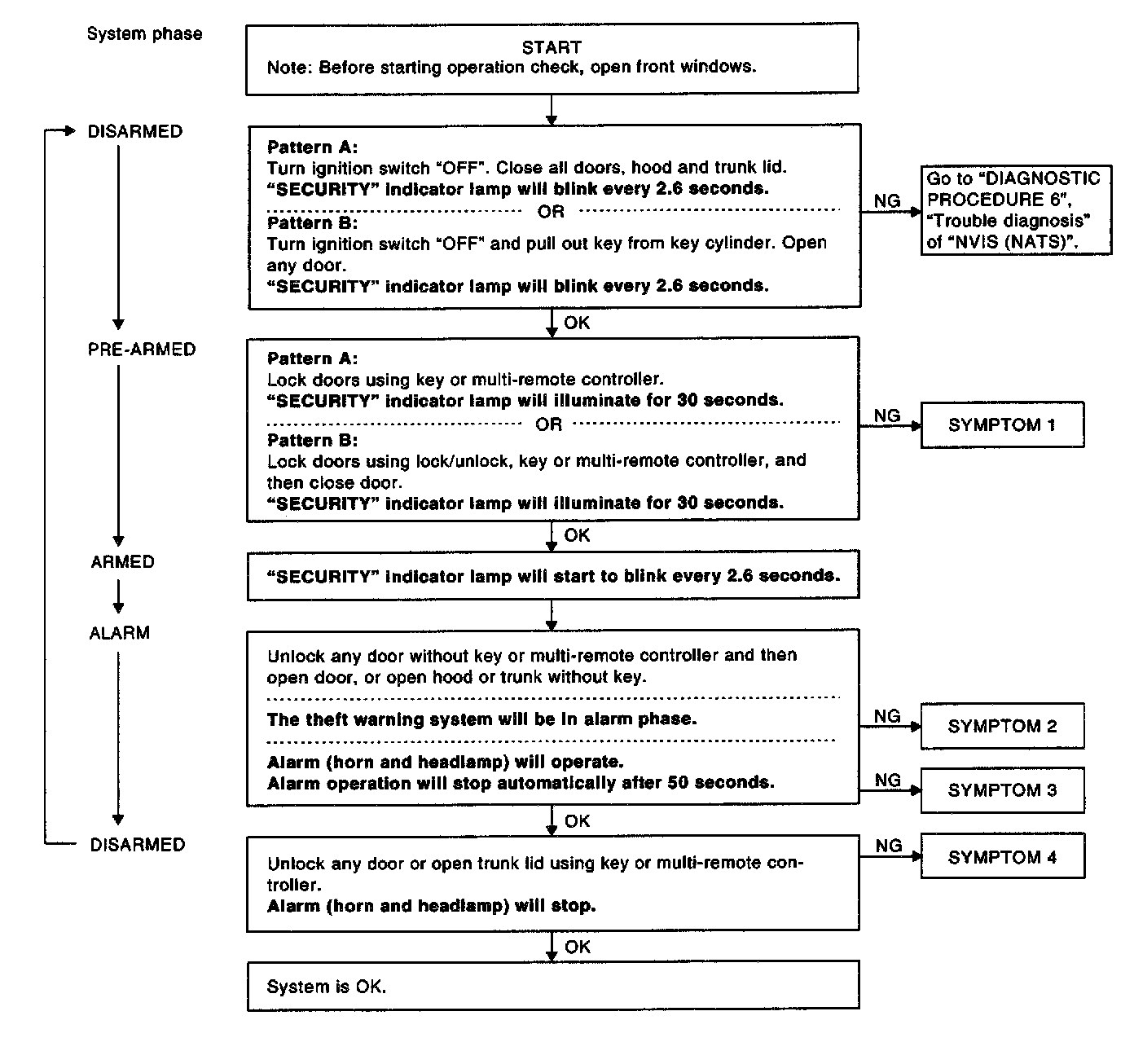

PRELIMINARY CHECK
The system operation is canceled by turning ignition switch to "ACC" at any step between START and ARMED in the following flow chart.
For details of "Pattern A" and "Pattern B" about theft warning system selling.
After performing preliminary check, go to symptom chart.

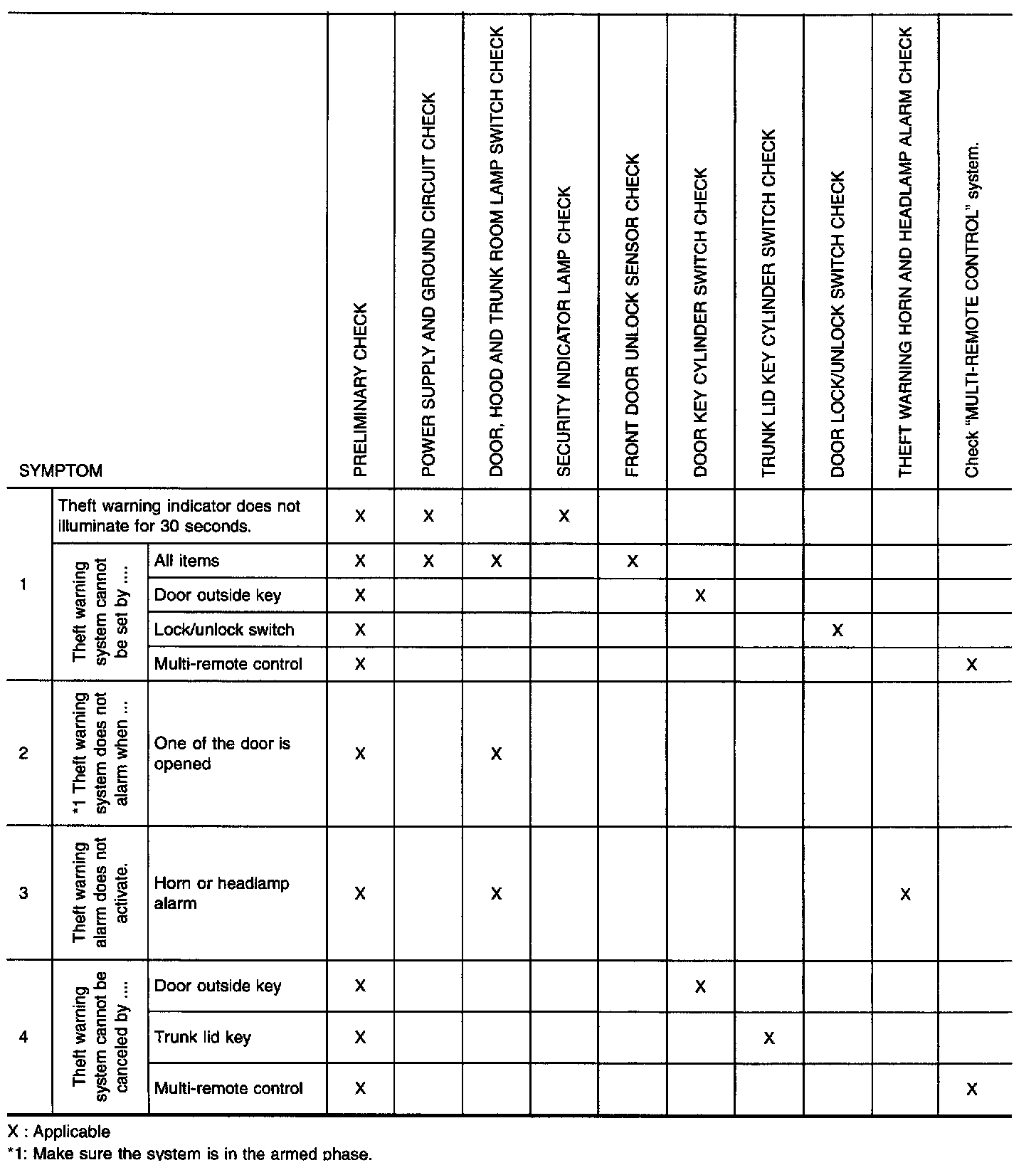

SYMPTOM CHART
Before starting trouble diagnoses above, perform preliminary check.
Symptom numbers in the symptom chart correspond with those of preliminary check.

POWER SUPPLY AND GROUND CIRCUIT CHECK




Power Supply Circuit Check

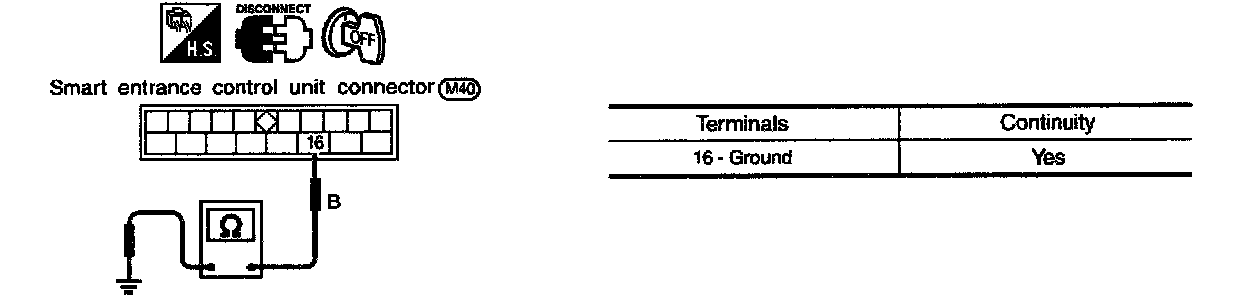

Ground Circuit Check

DOOR, HOOD AND TRUNK ROOM LAMP SWITCH CHECK

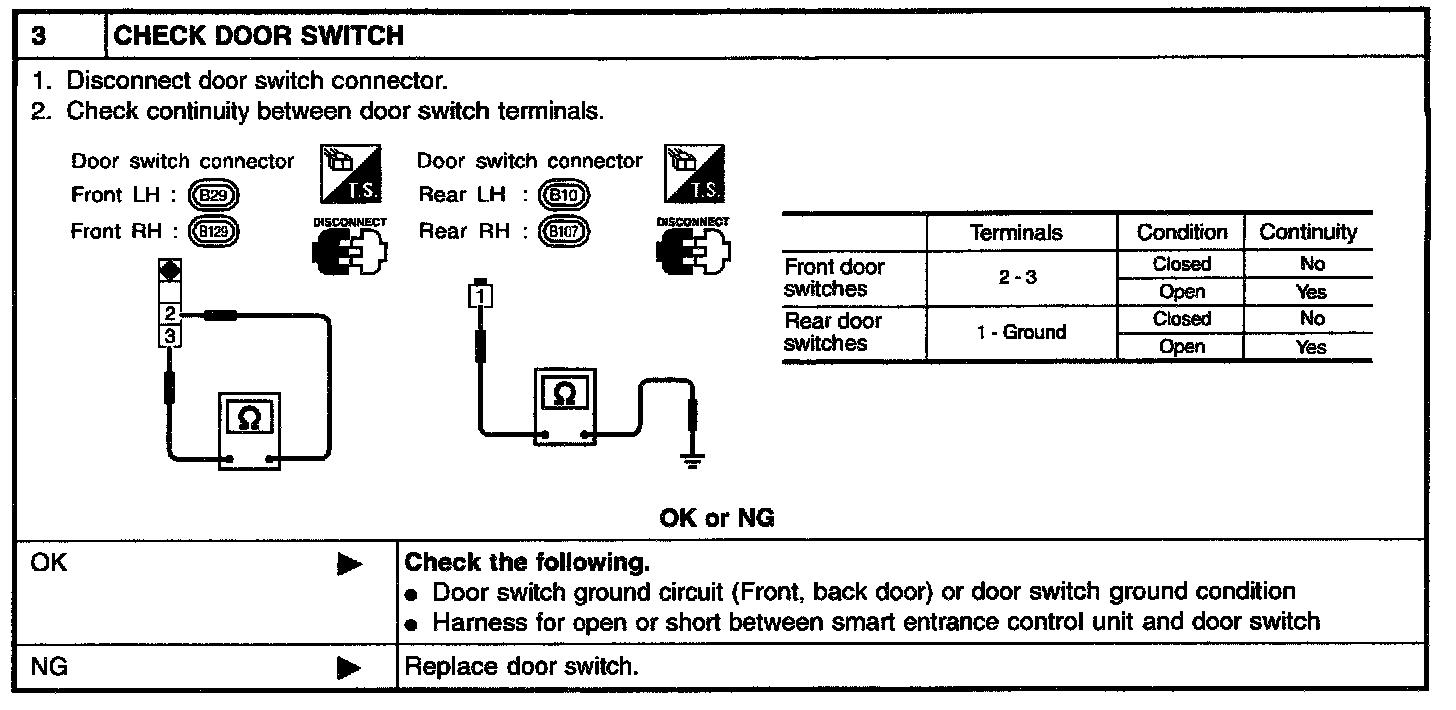

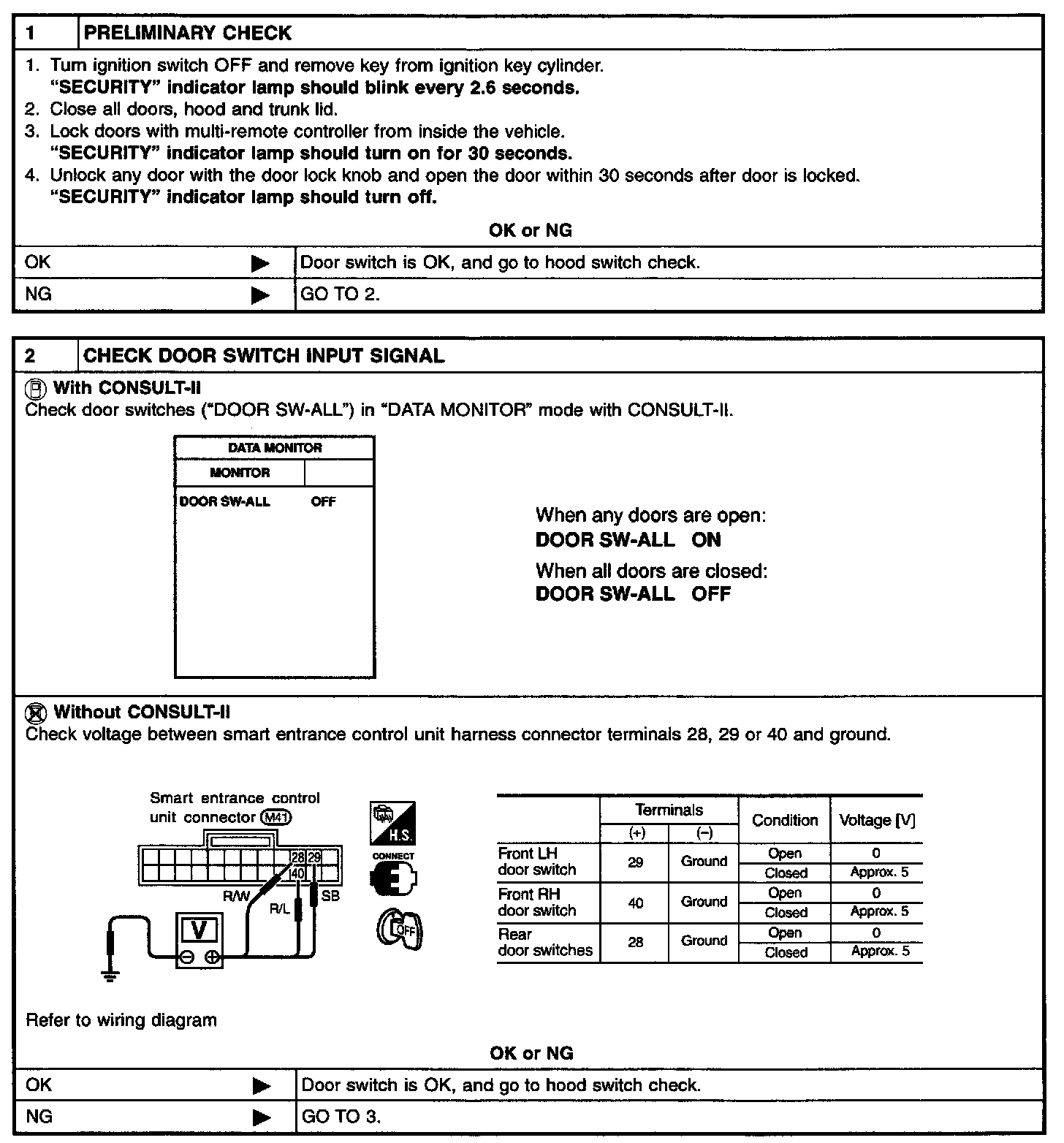

Door Switch Check

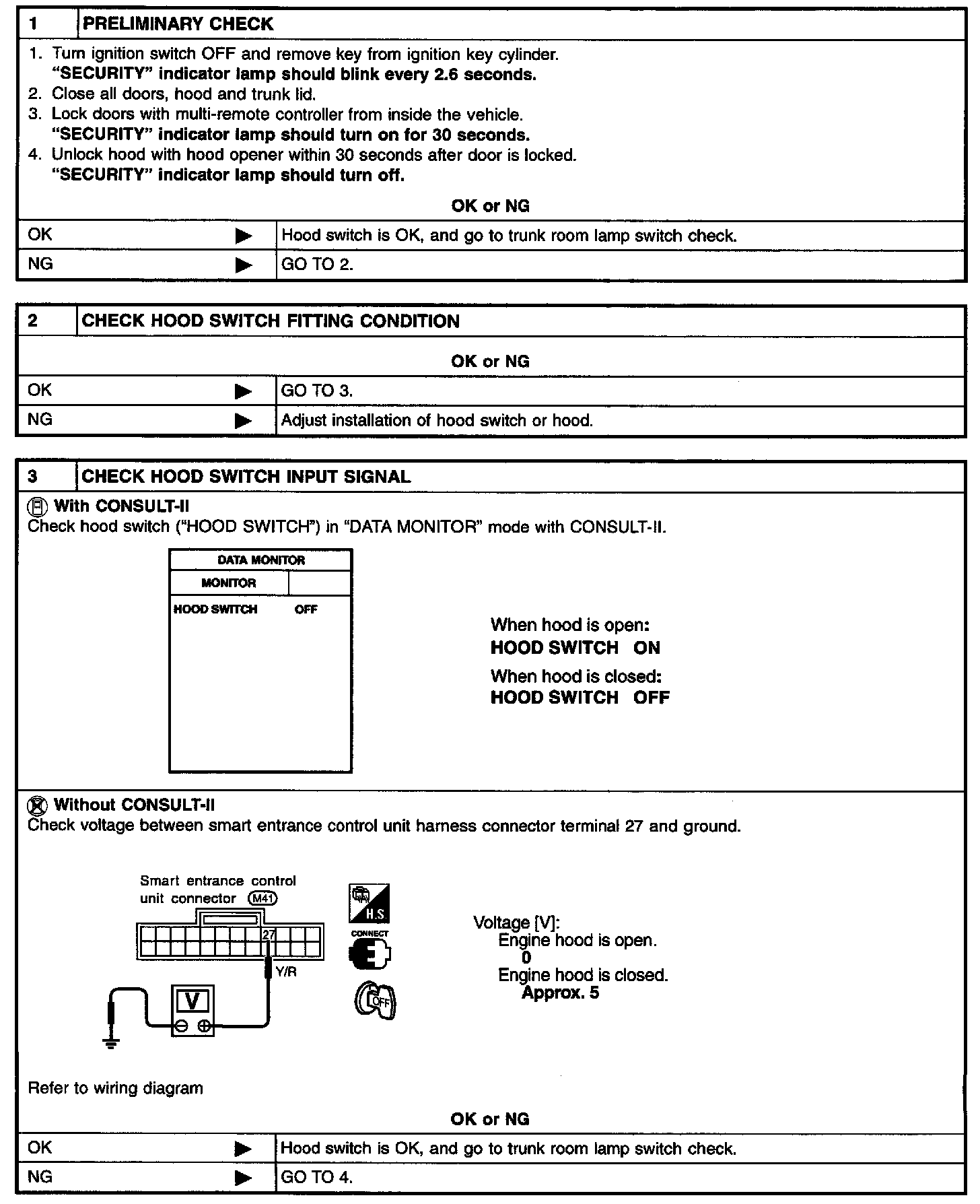

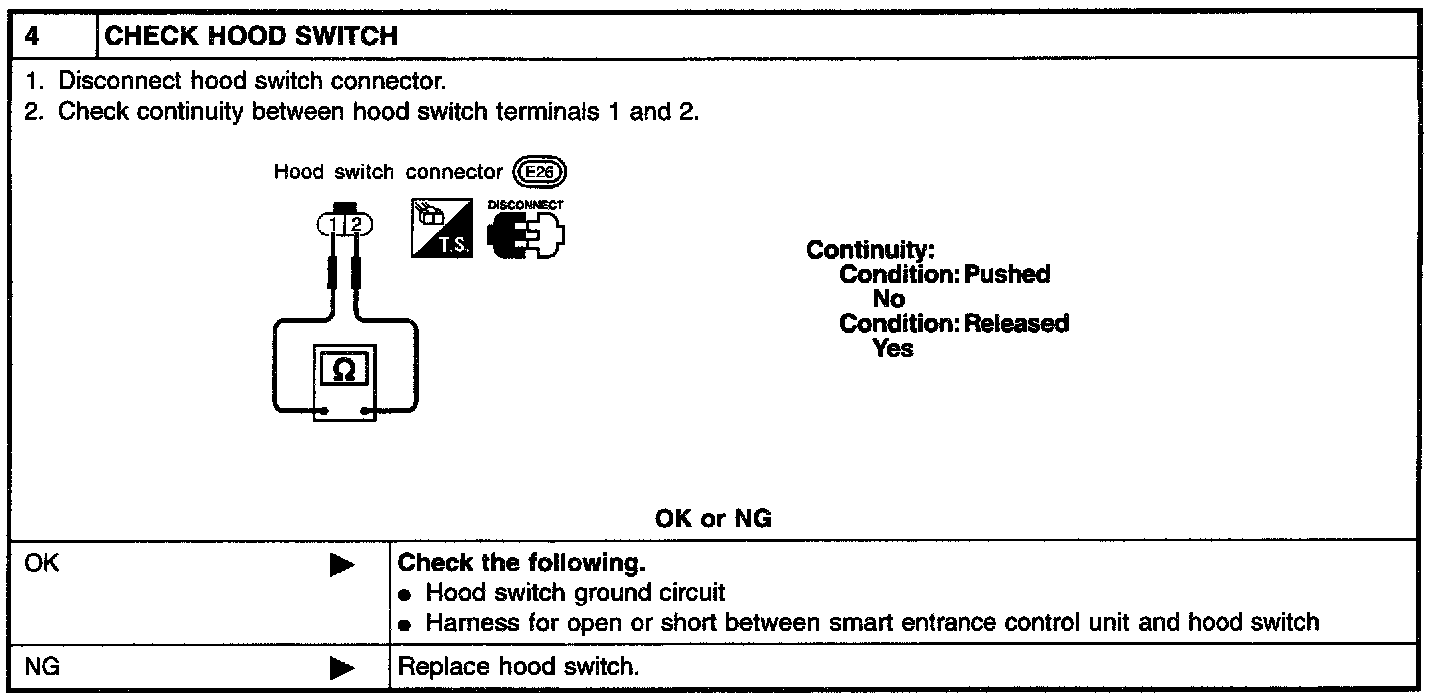

Hood Switch Check

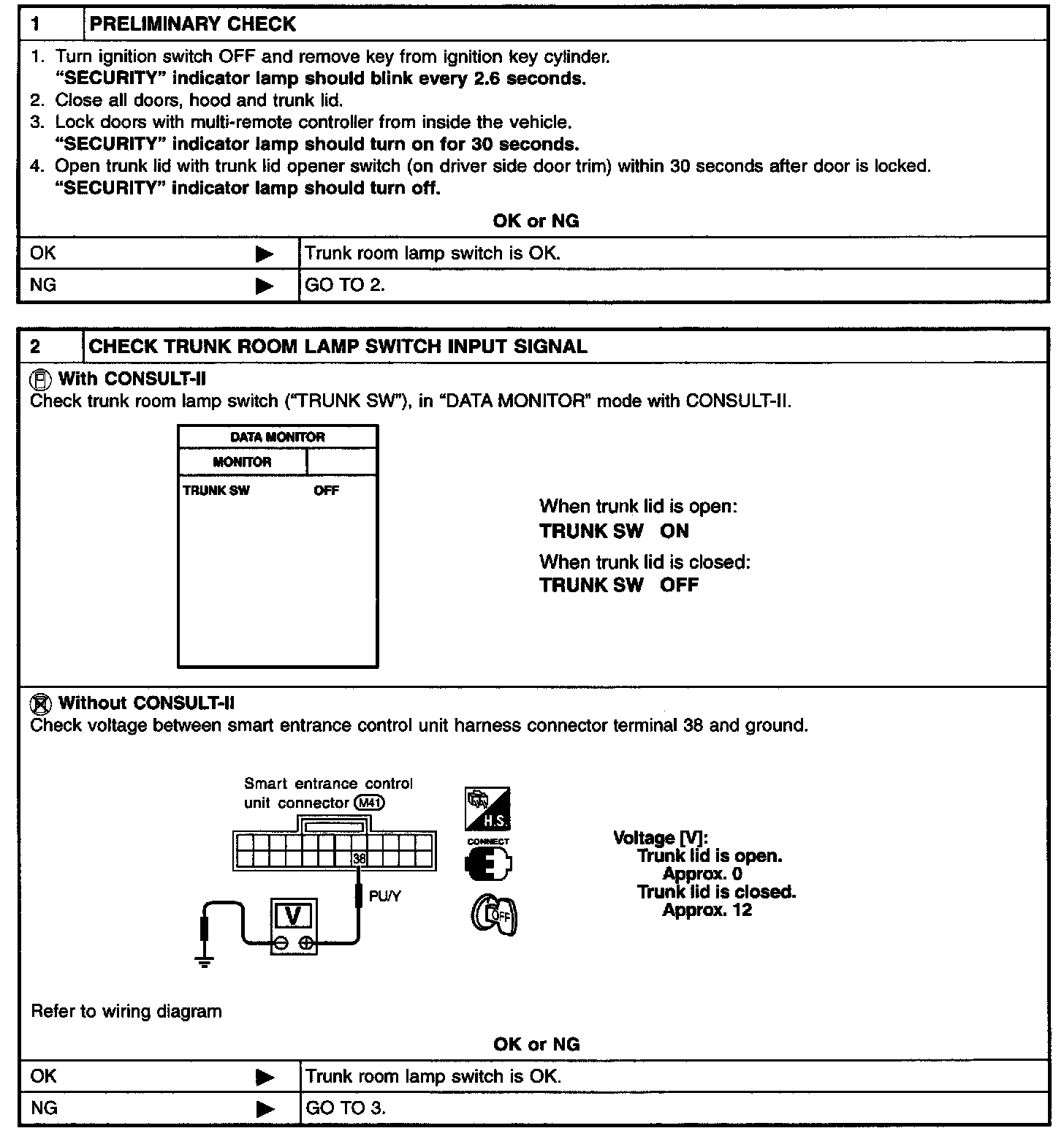

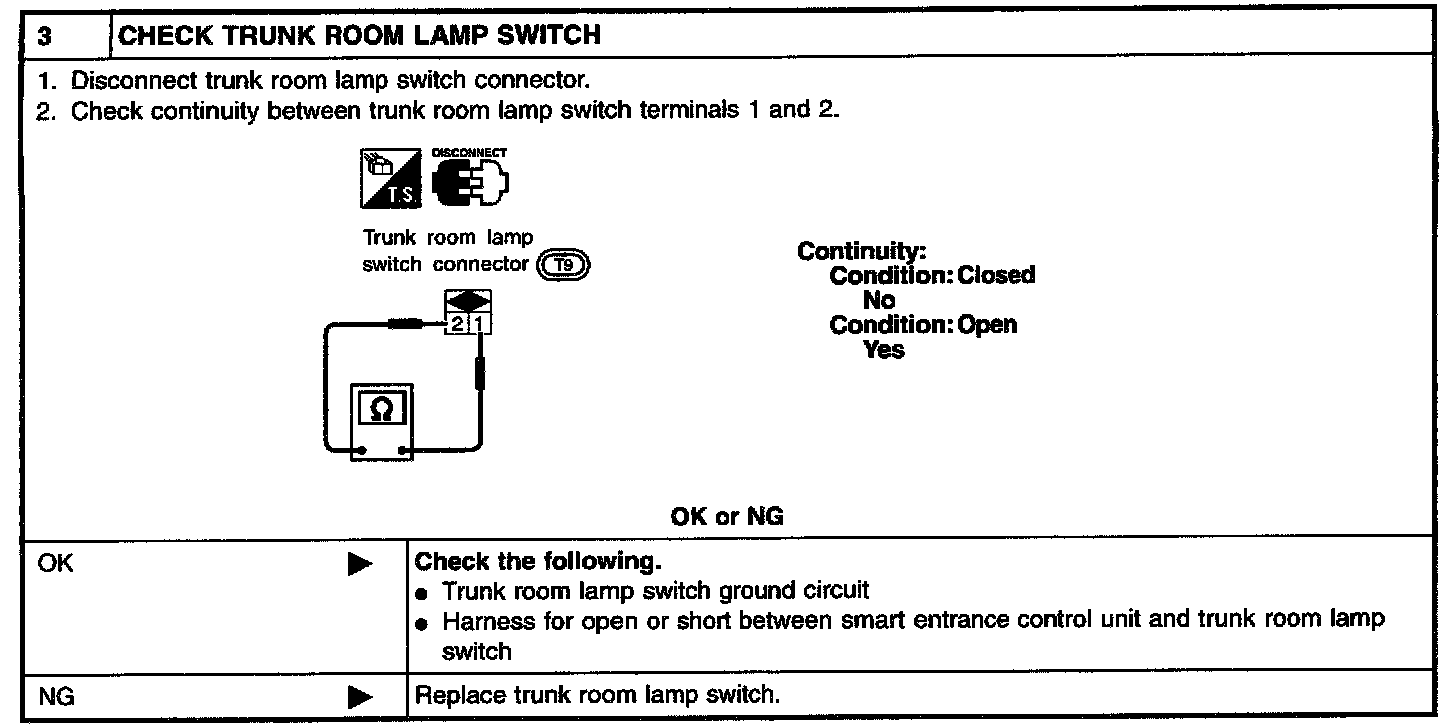

Trunk Room Lamp Switch Check

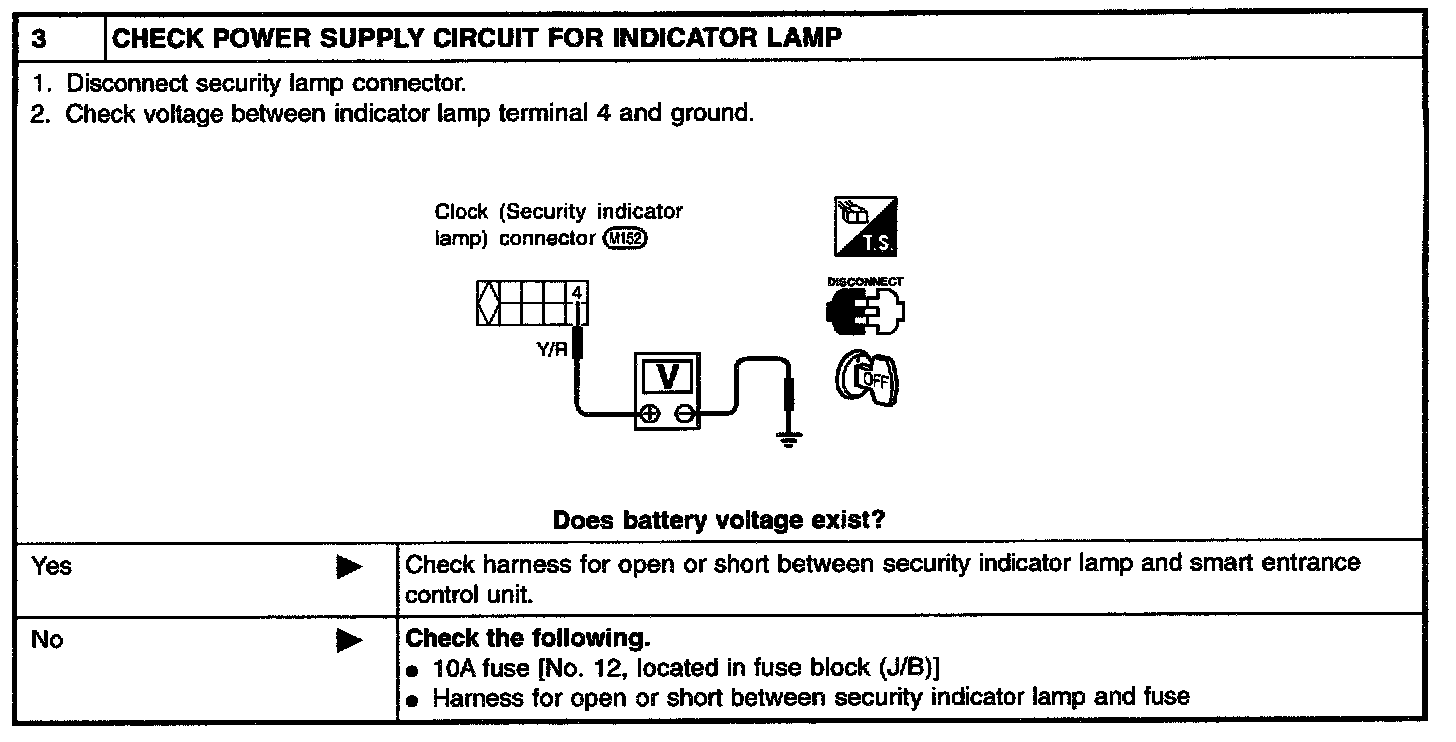

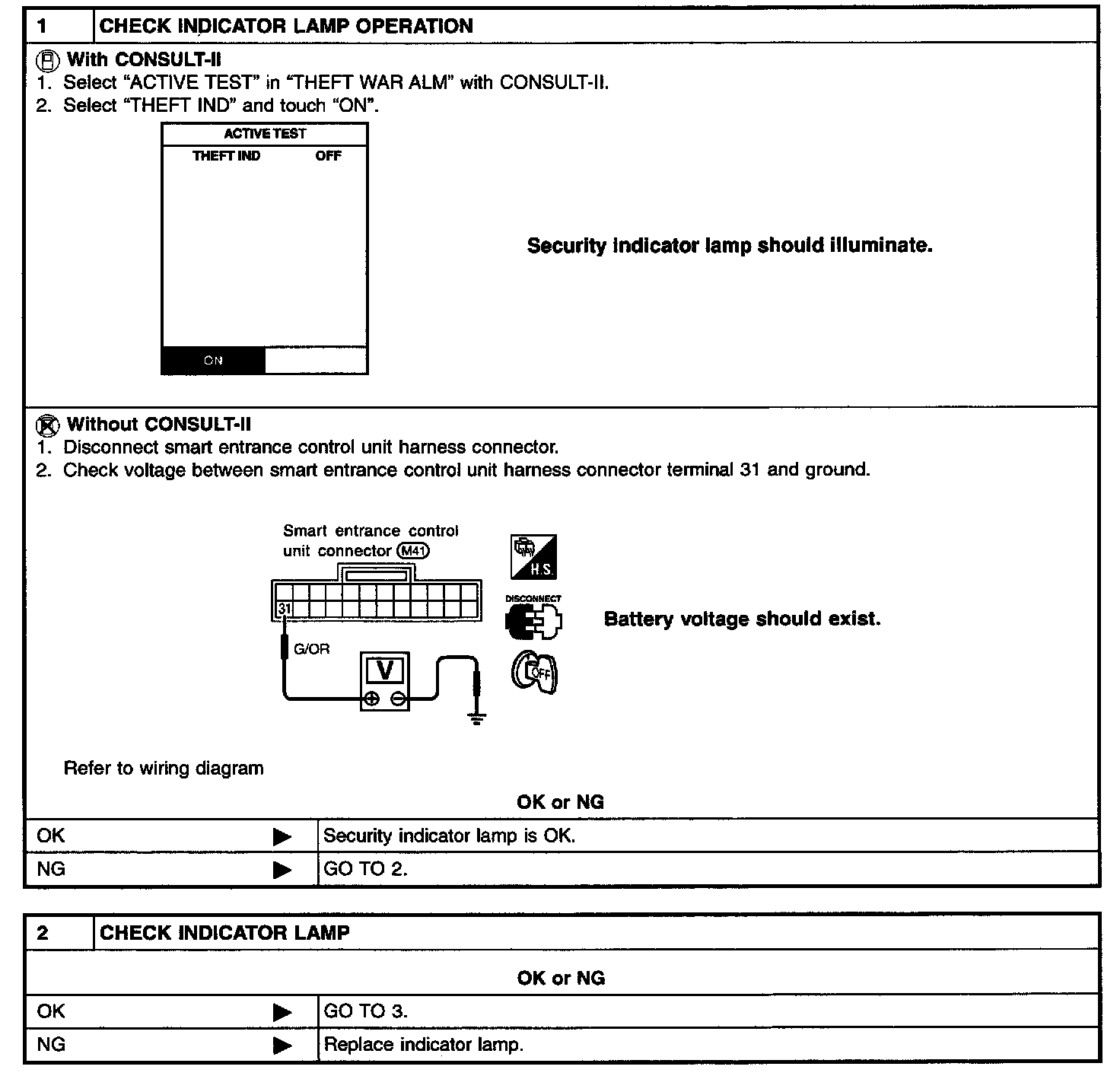

SECURITY INDICATOR LAMP CHECK




FRONT DOOR UNLOCK SENSOR CHECK

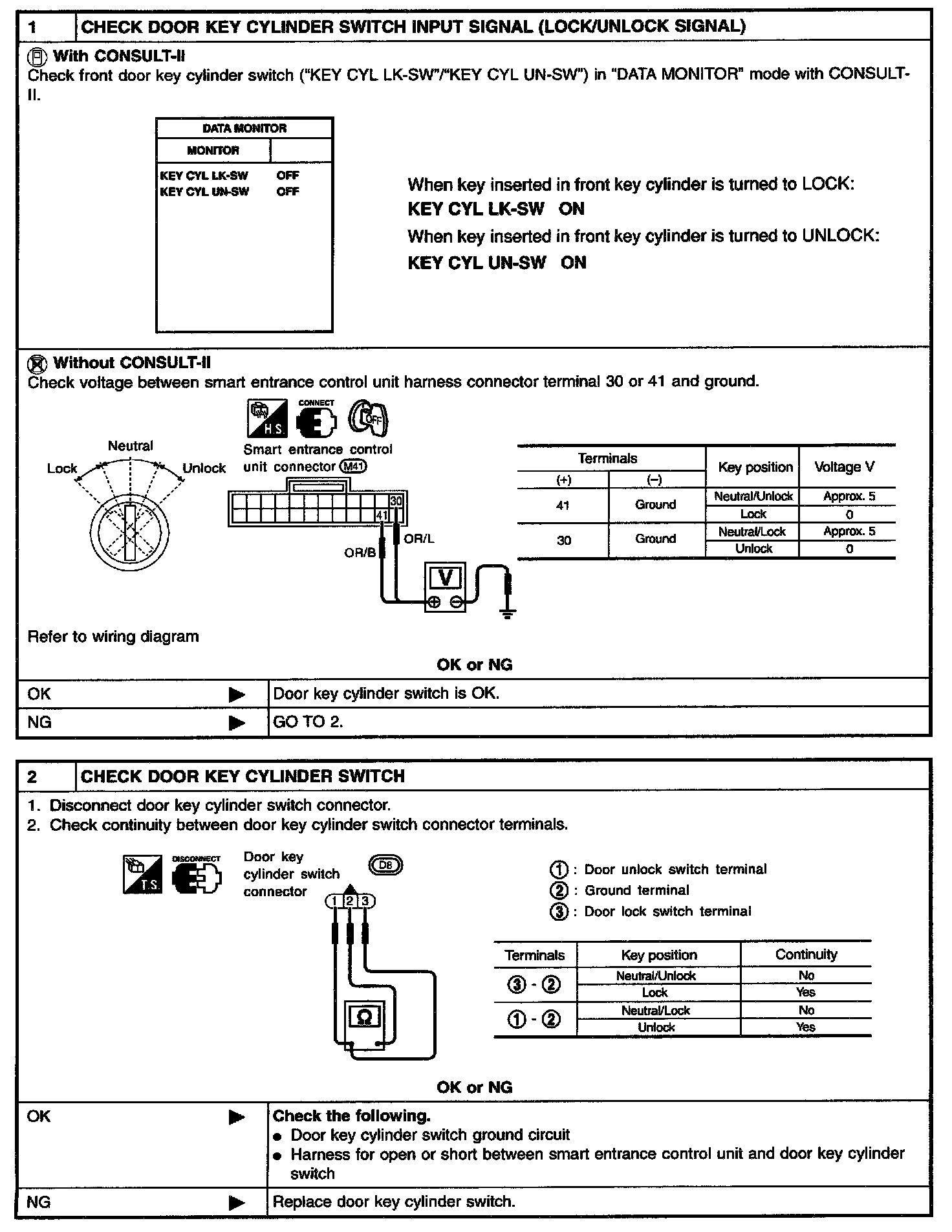

DOOR KEY CYLINDER SWITCH CHECK

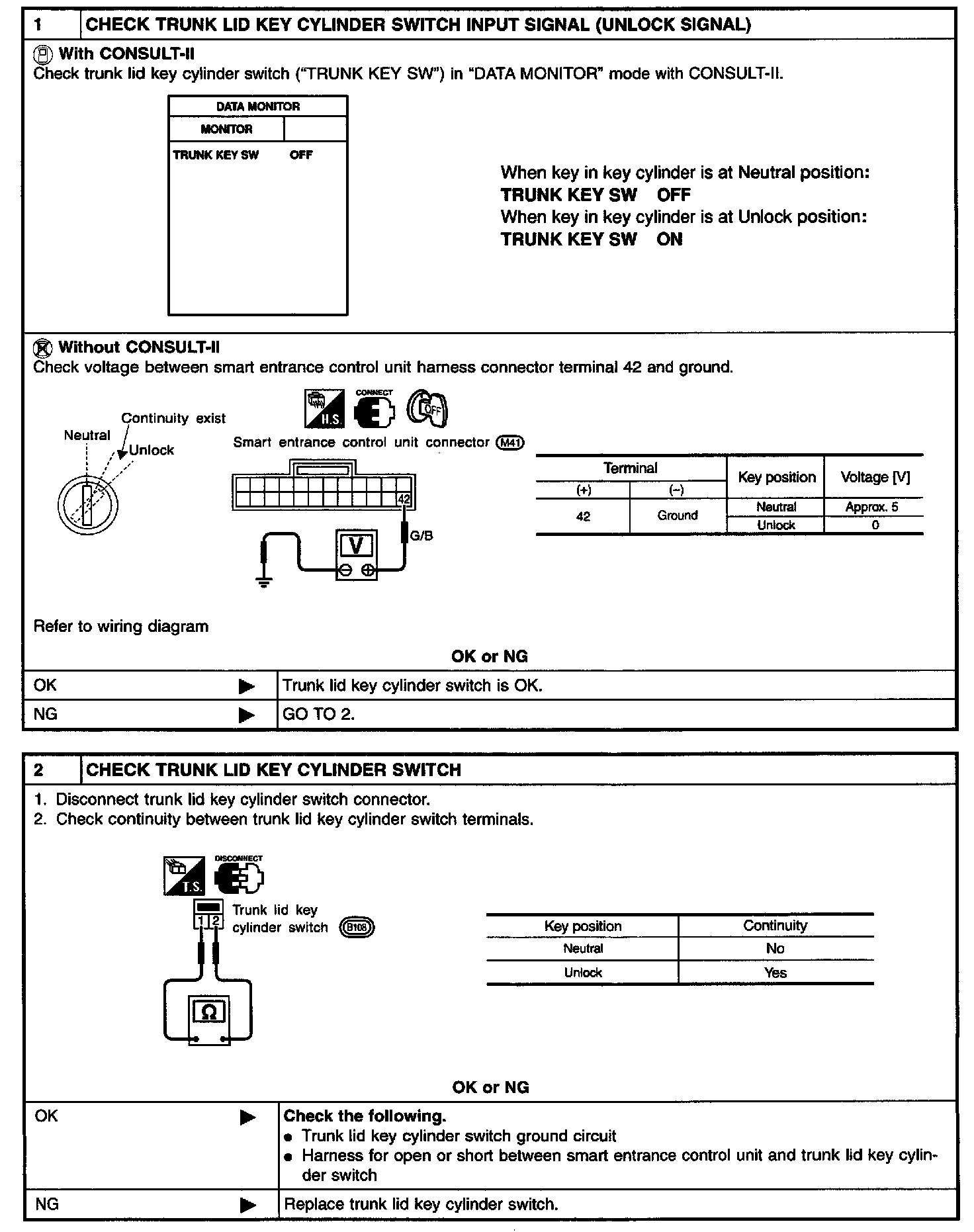

TRUNK LID KEY CYLINDER SWITCH CHECK

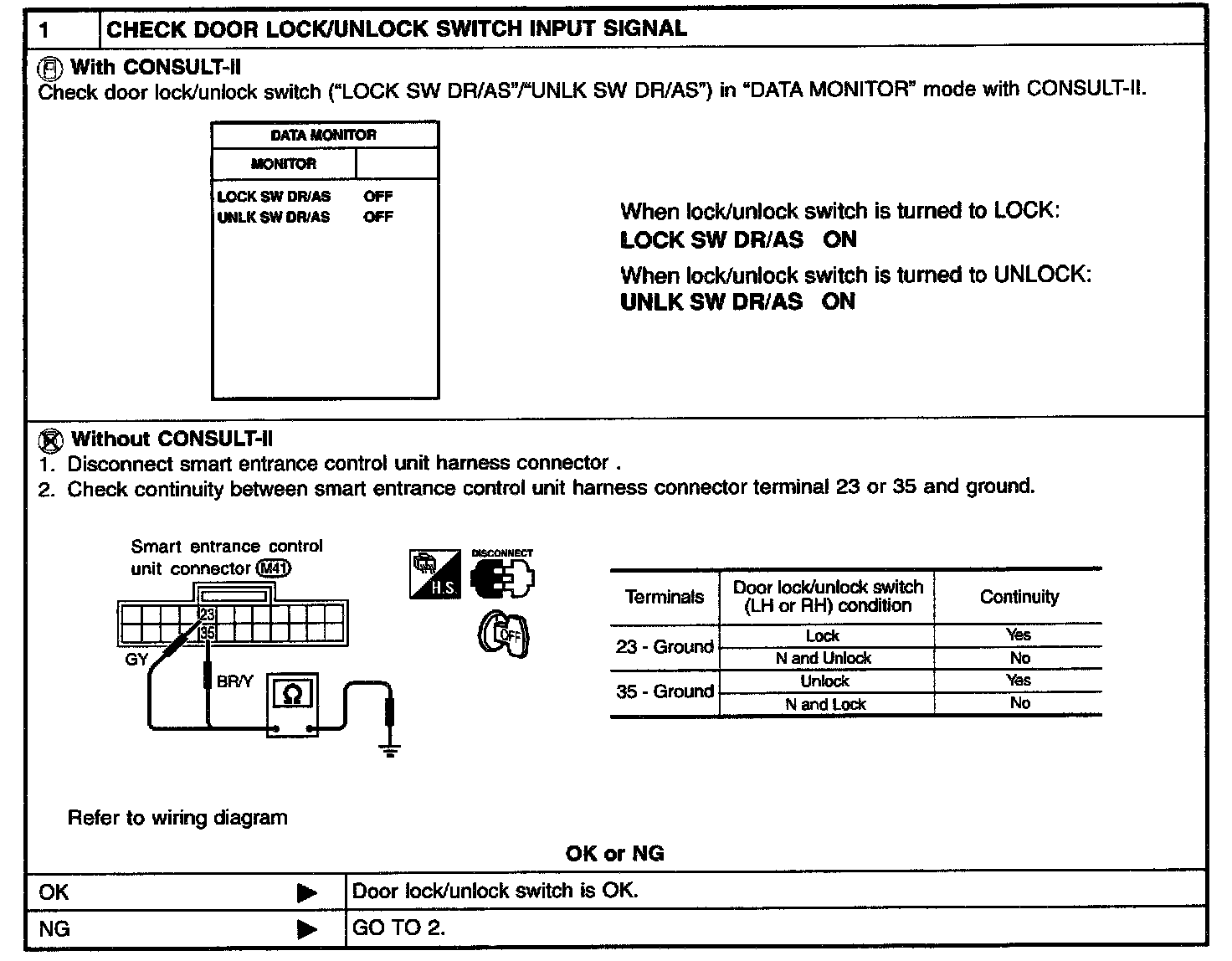

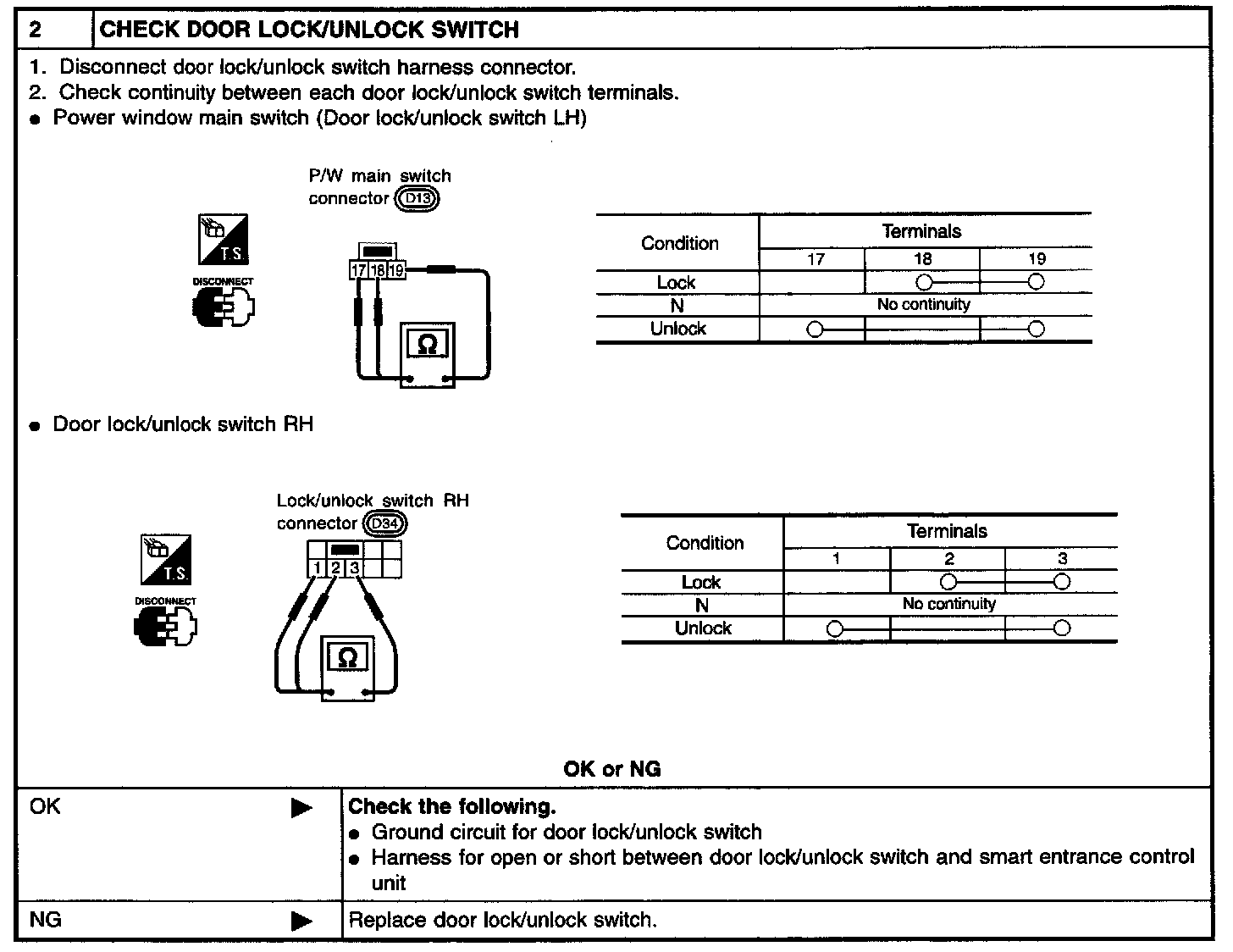

DOOR LOCK/UNLOCK SWITCH CHECK

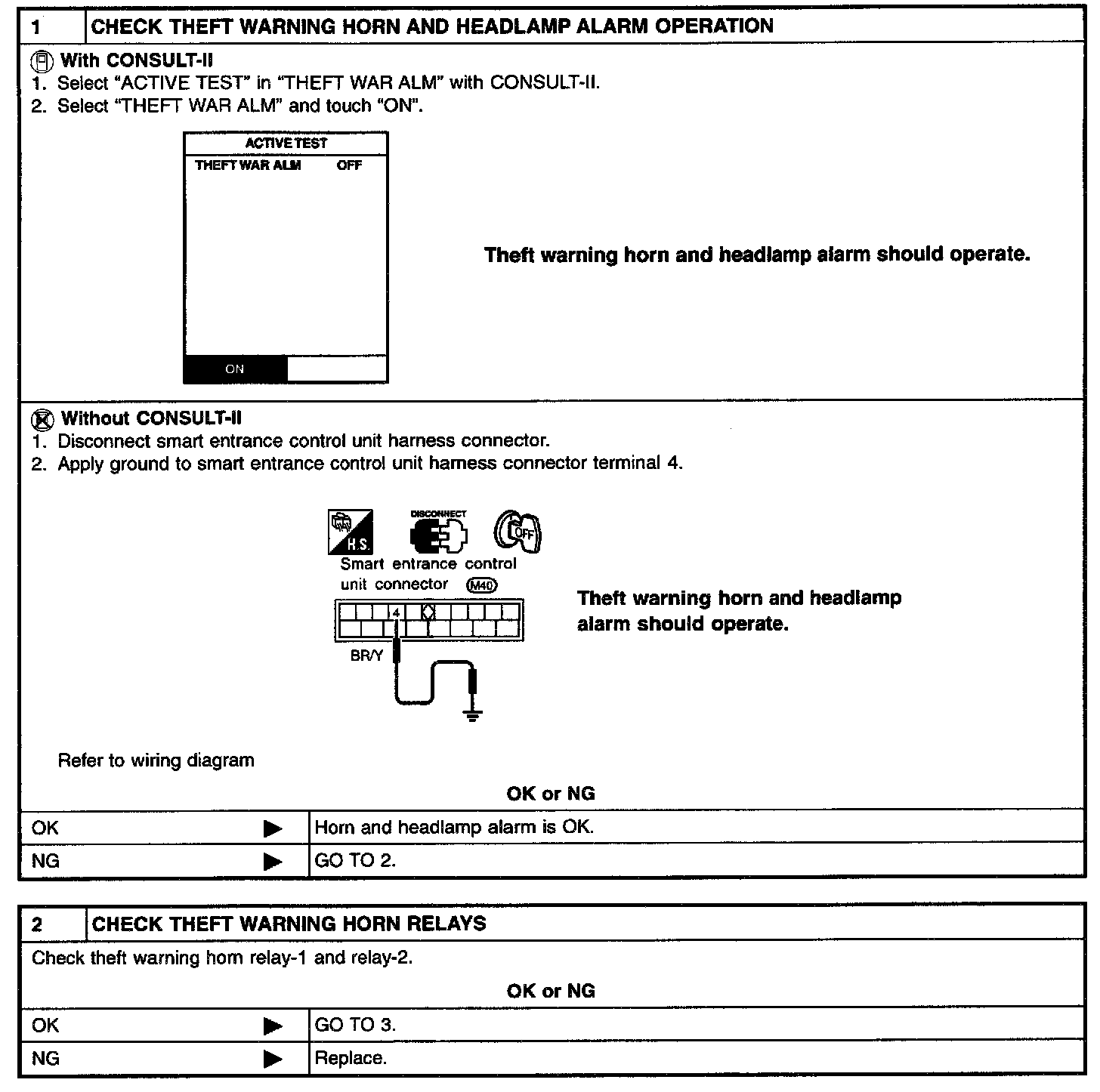

THEFT WARNING HORN AND HEADLAMP ALARM CHECK
