Displaying & Reading Trouble Codes

CONSULT-II Inspection Procedure

"THEFT WAR ALM"




1. Turn ignition switch "OFF".

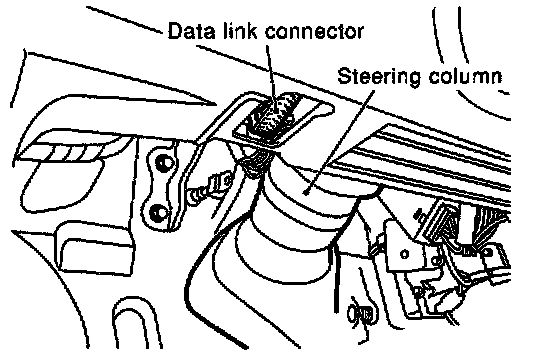

2. Connect "CONSULT-II" to the data link connector.




3. Turn ignition switch "ON".

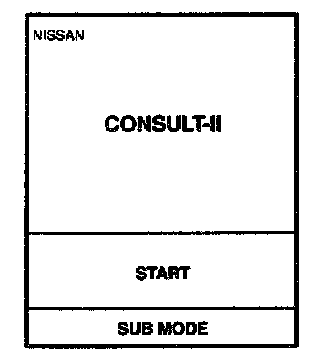

4. Touch "START".

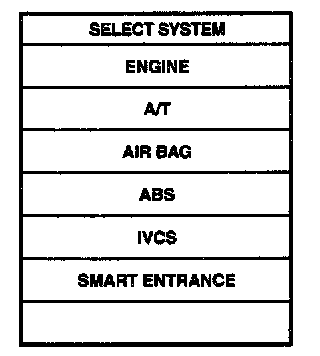

5. Touch "SMART ENTRANCE".

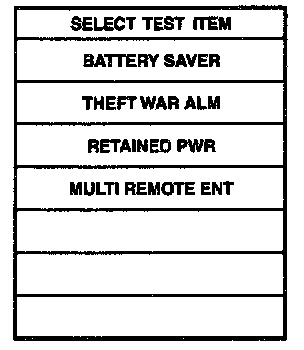

6. Touch "THEFT WAR ALM".

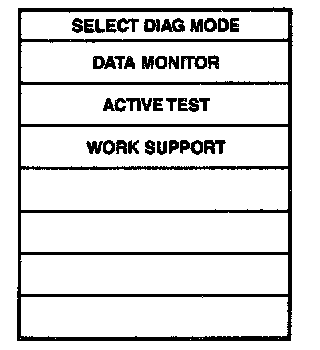

7. Select diagnosis mode.
"DATA MONITOR", "ACTIVE TEST" and "WORK SUPPORT" are available.
