NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Displaying & Reading Trouble Codes
>>
How to Read Self-Diagnostic Results
How to Read Self-Diagnostic Results

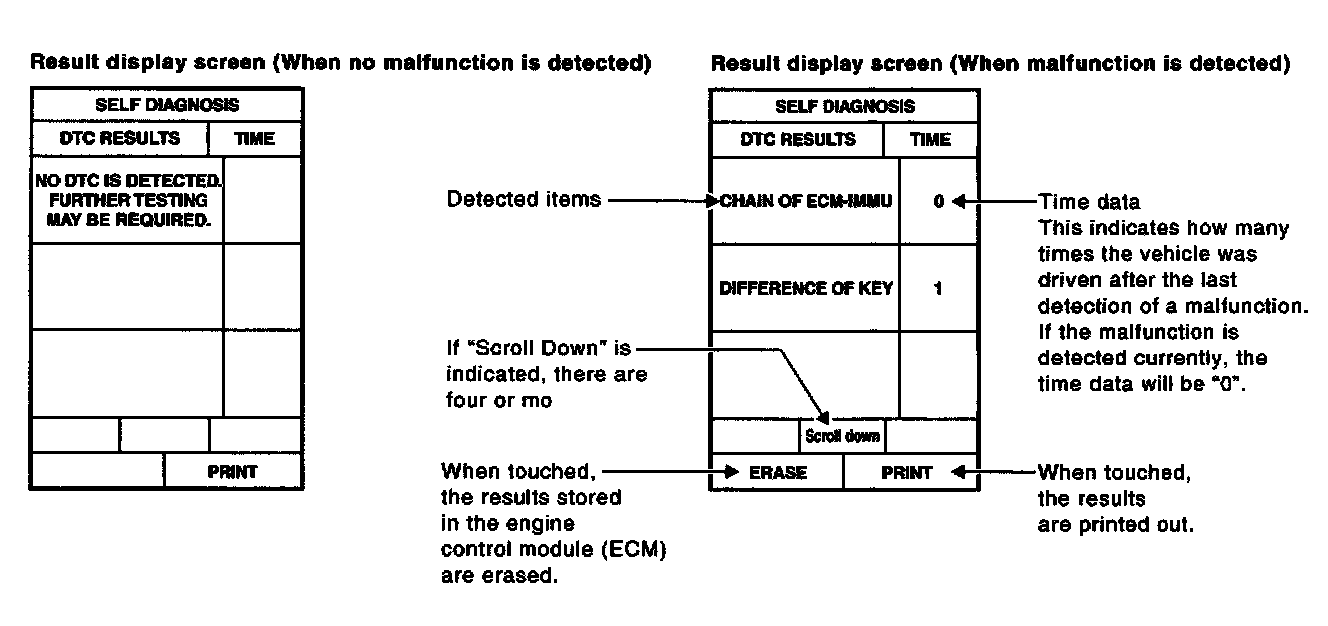

HOW TO READ SELF-DIAGNOSTIC RESULTS

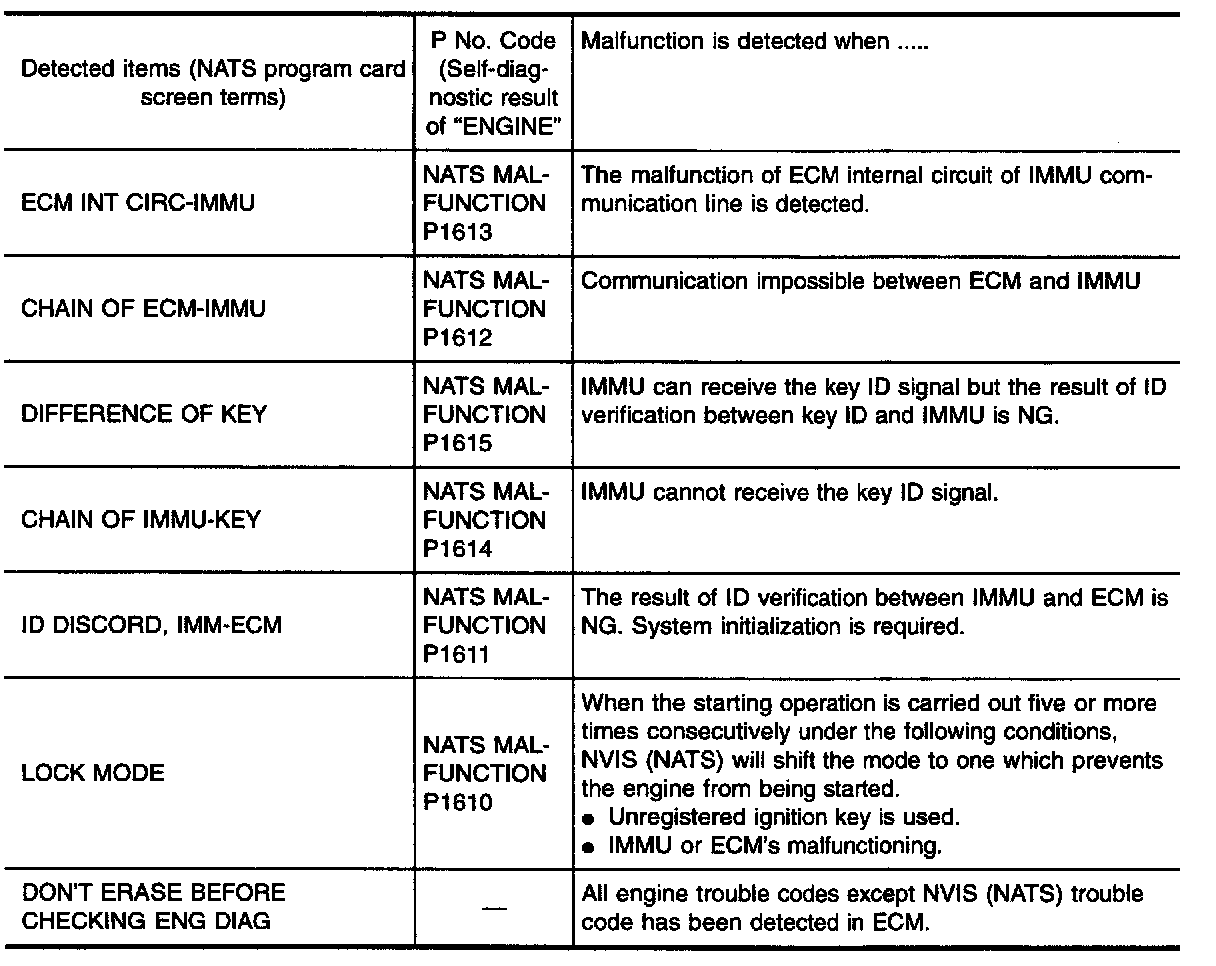

NVIS (NATS) SELF-DIAGNOSTIC RESULTS ITEM CHART
