Consult-II Inspection Procedure

CONSULT-II INSPECTION PROCEDURE




1. Turn ignition switch OFF

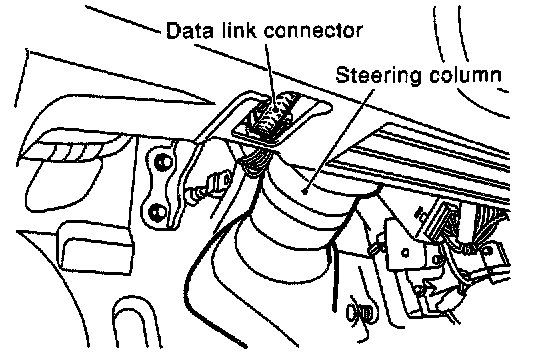

2. Connect "CONSULT-II" to Data link connector.




3. Insert NVIS (NATS) program card into CONSULT-II.
<-: Program card
NATS
4. Turn ignition switch ON.

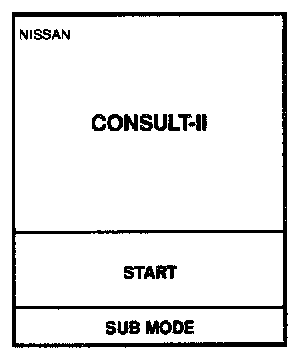

5. Touch "START".

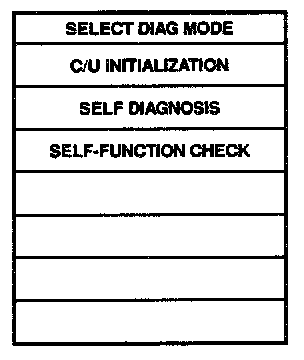

6. Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual, NVIS (NATS).

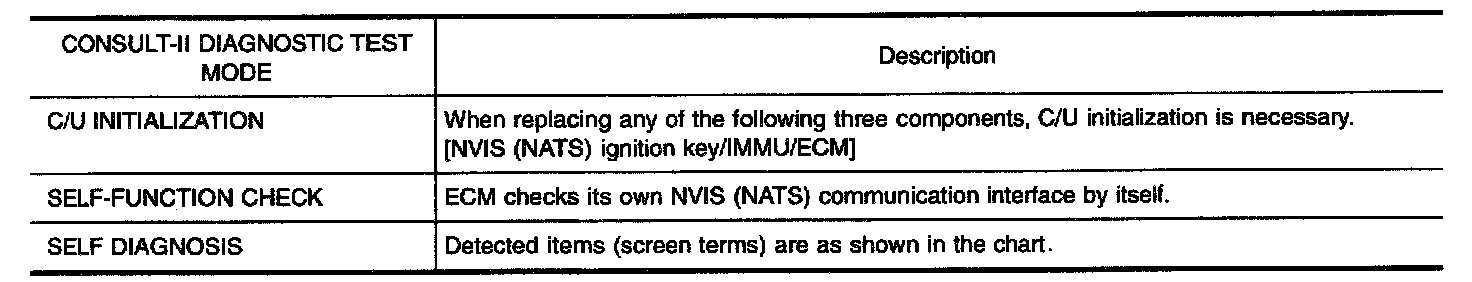

CONSULT-II DIAGNOSTIC TEST MODE FUNCTION


NOTE: When any initialization is performed, all ID previously registered will be erased and all NVIS (NATS) ignition keys must be registered again.
The engine cannot be started with an unregistered key. In this case, the system may show "DIFFERENCE OF KEY" or "LOCK MODE" as a self-diagnostic result on the CONSULT-II screen.
