Vehicle Security (Theft Warning) System

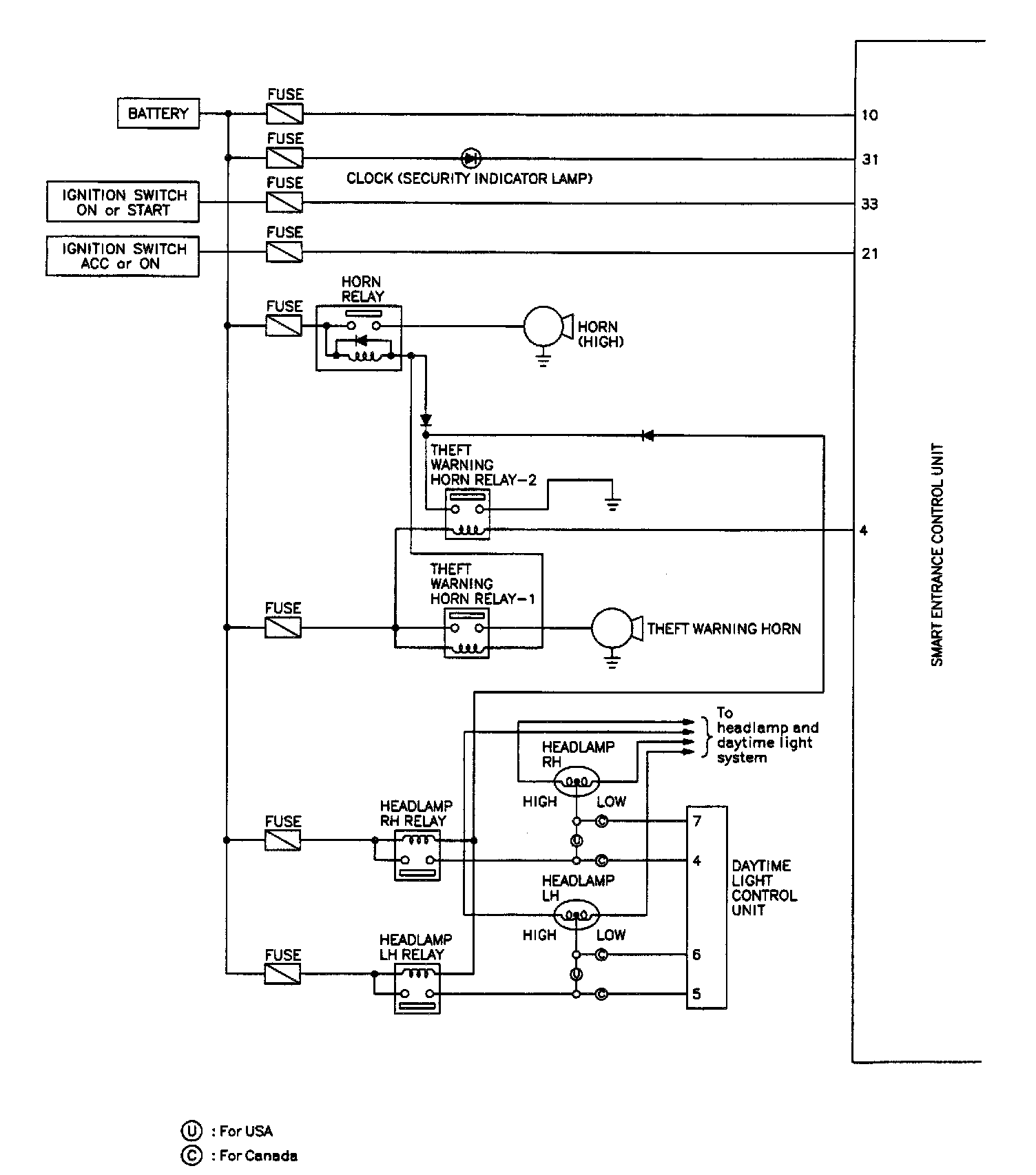

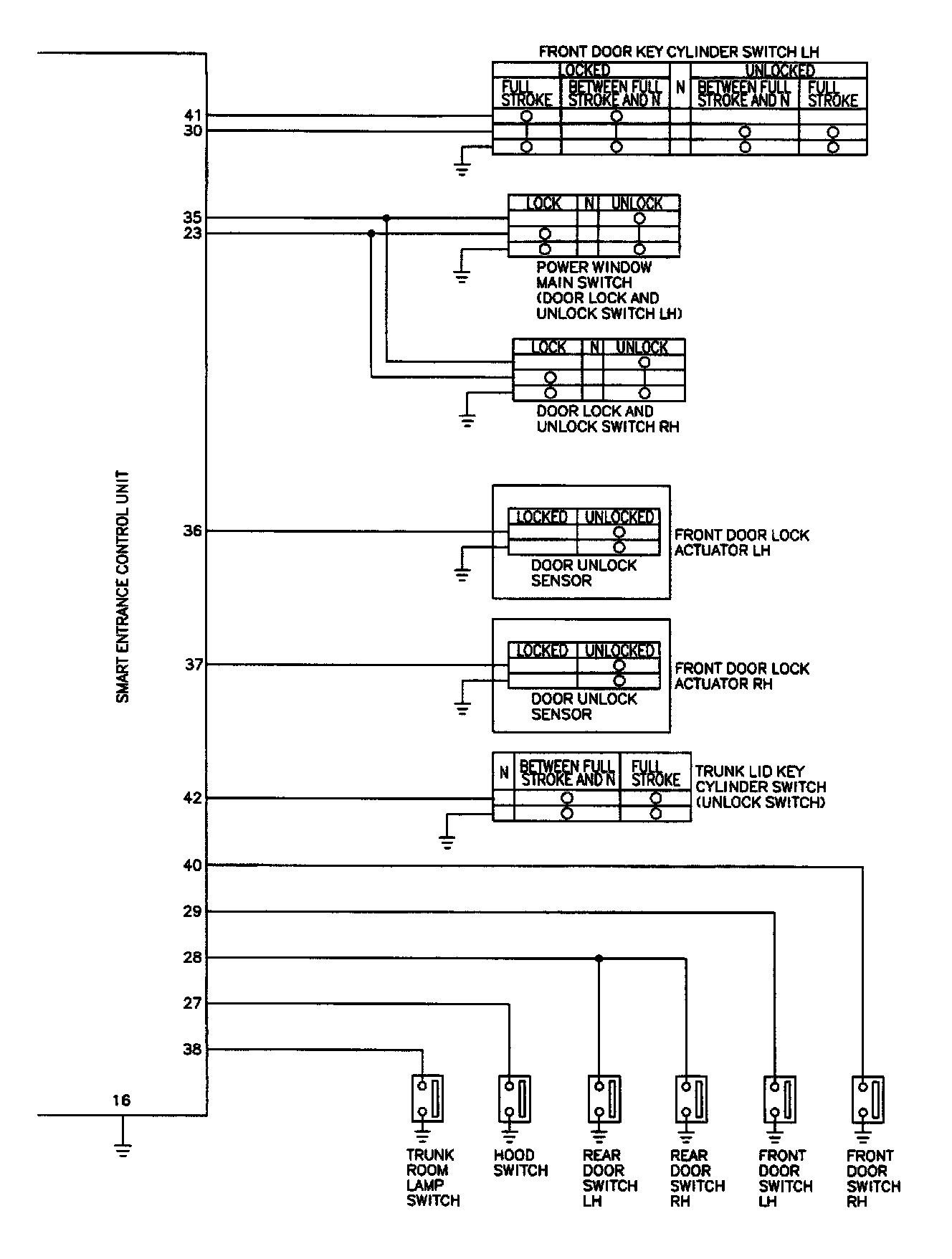

Schematic

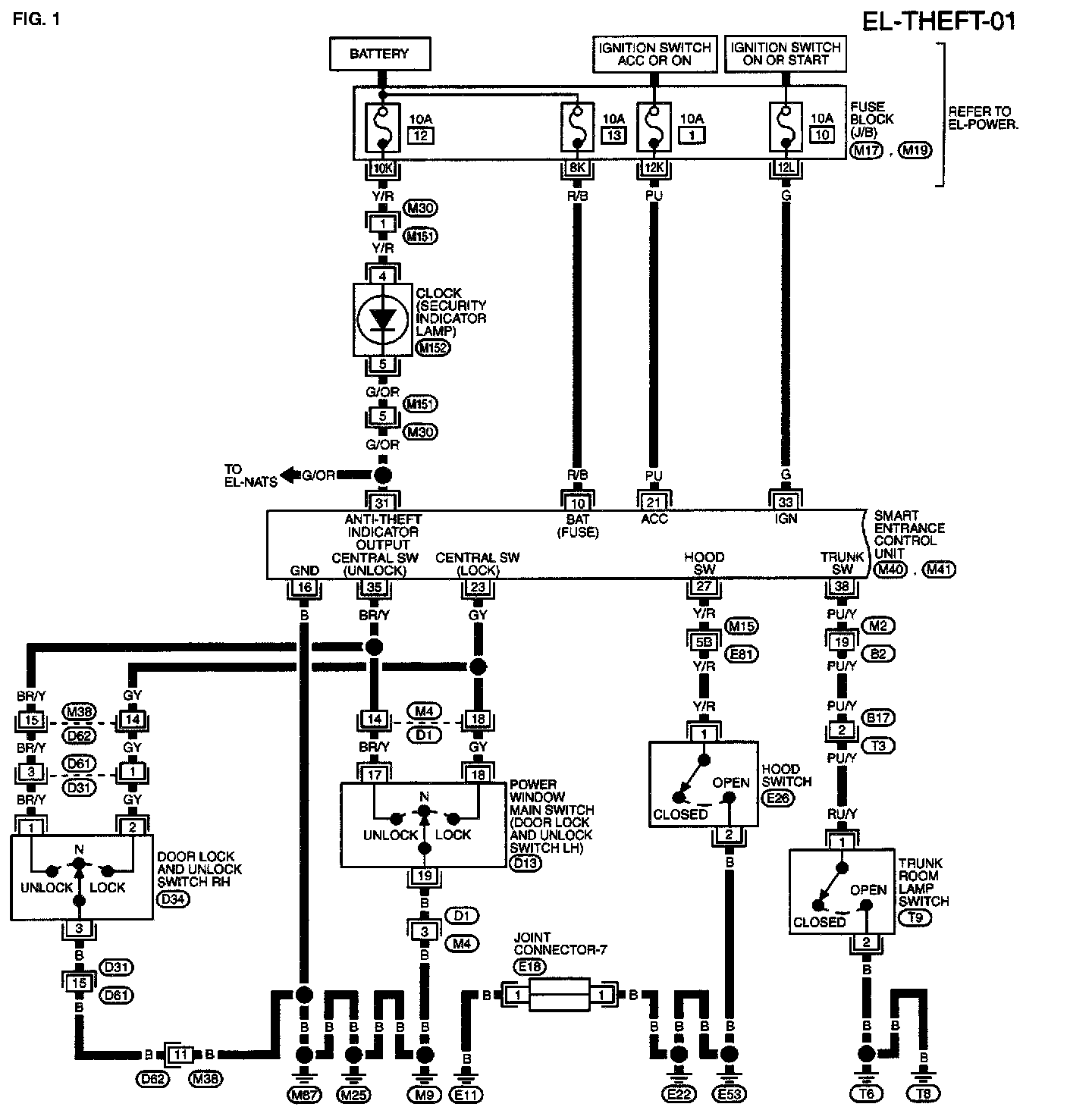

EL-THEFT-01:

Part 1 of 5
Battery
Fuse Block (J/B)
Clock (Security Indicator Lamp)
Smart Entrance Control Unit
Door Lock and Unlock Switch RH
Power Window Main Switch (Door Lock and Unlock Switch LH)
Hood Switch
Trunk Room Lamp Switch
Joint Connector - 7

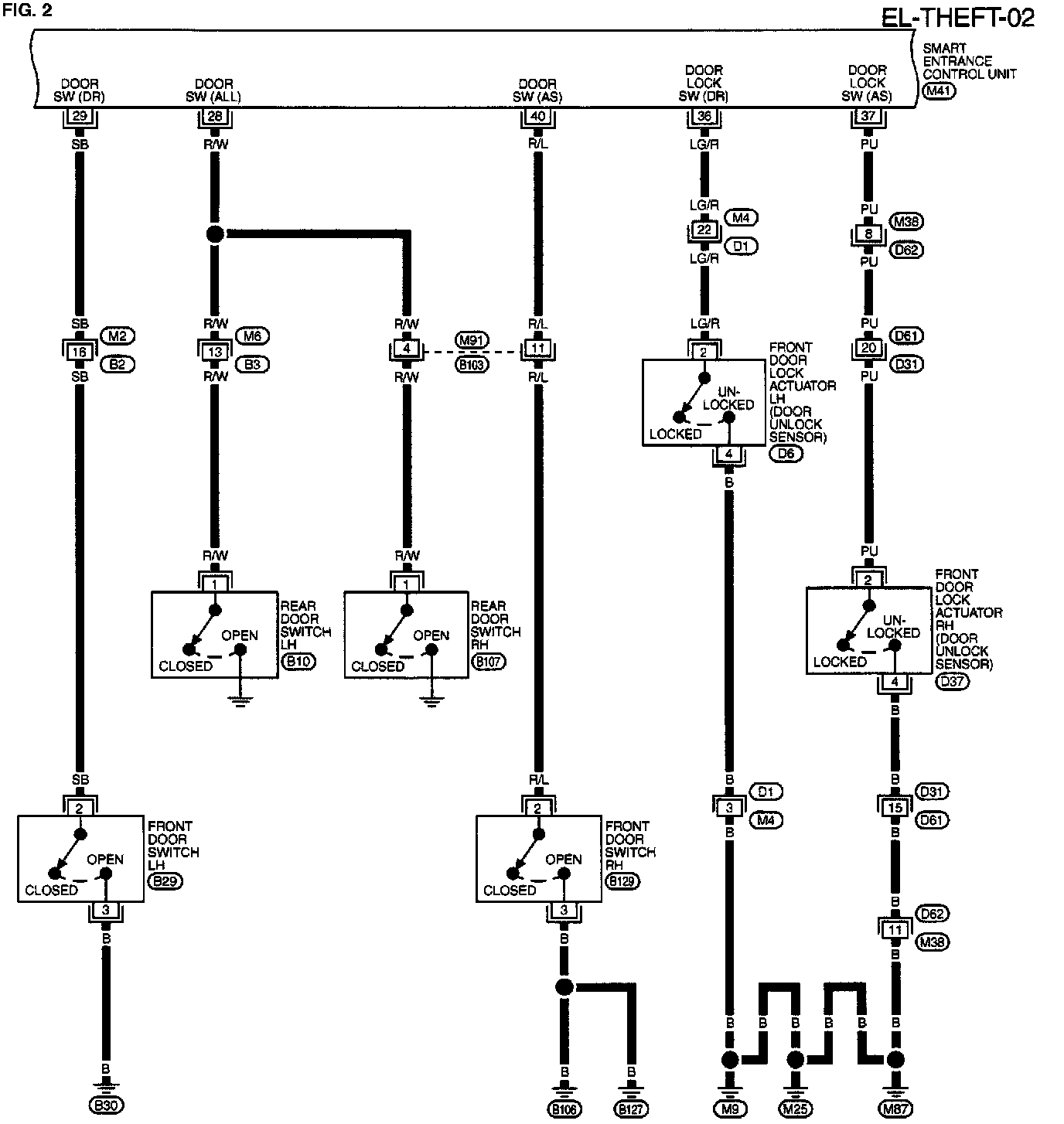

EL-THEFT-02:

Part 2 of 5
Smart Entrance Control Unit
Front Door Lock Actuator LH (Door Unlock Sensor)
Rear Door Switch LH
Rear Door Switch RH
Front Door Lock Actuator RH (Door Unlock Sensor)
Front Door Switch LH
Front Door Switch RH

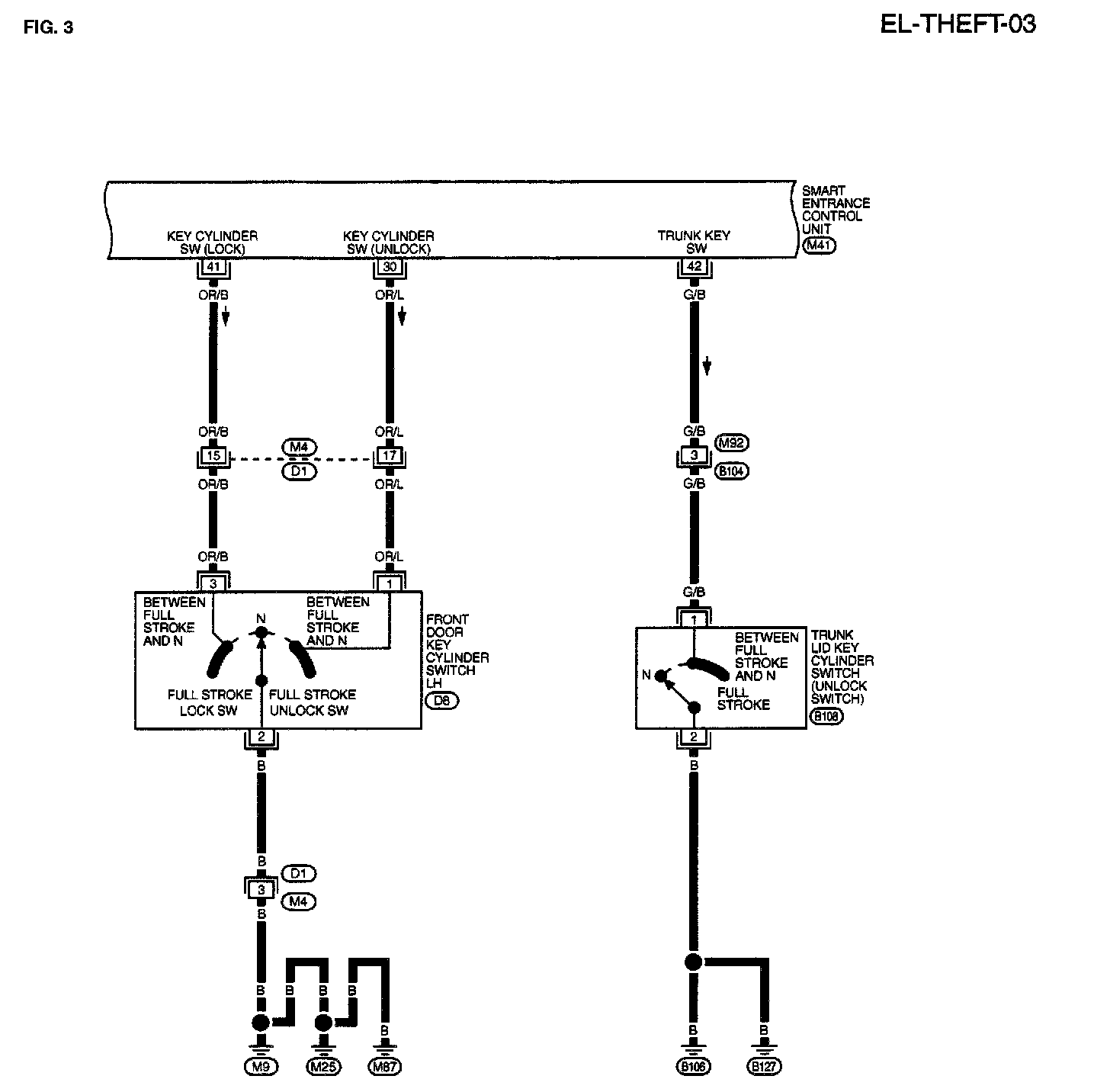

EL-THEFT-03:

Part 3 of 5
Smart Entrance Control Unit
Front Door Key Cylinder Switch LH
Trunk Lid Key Cylinder Switch (Unlock Switch)

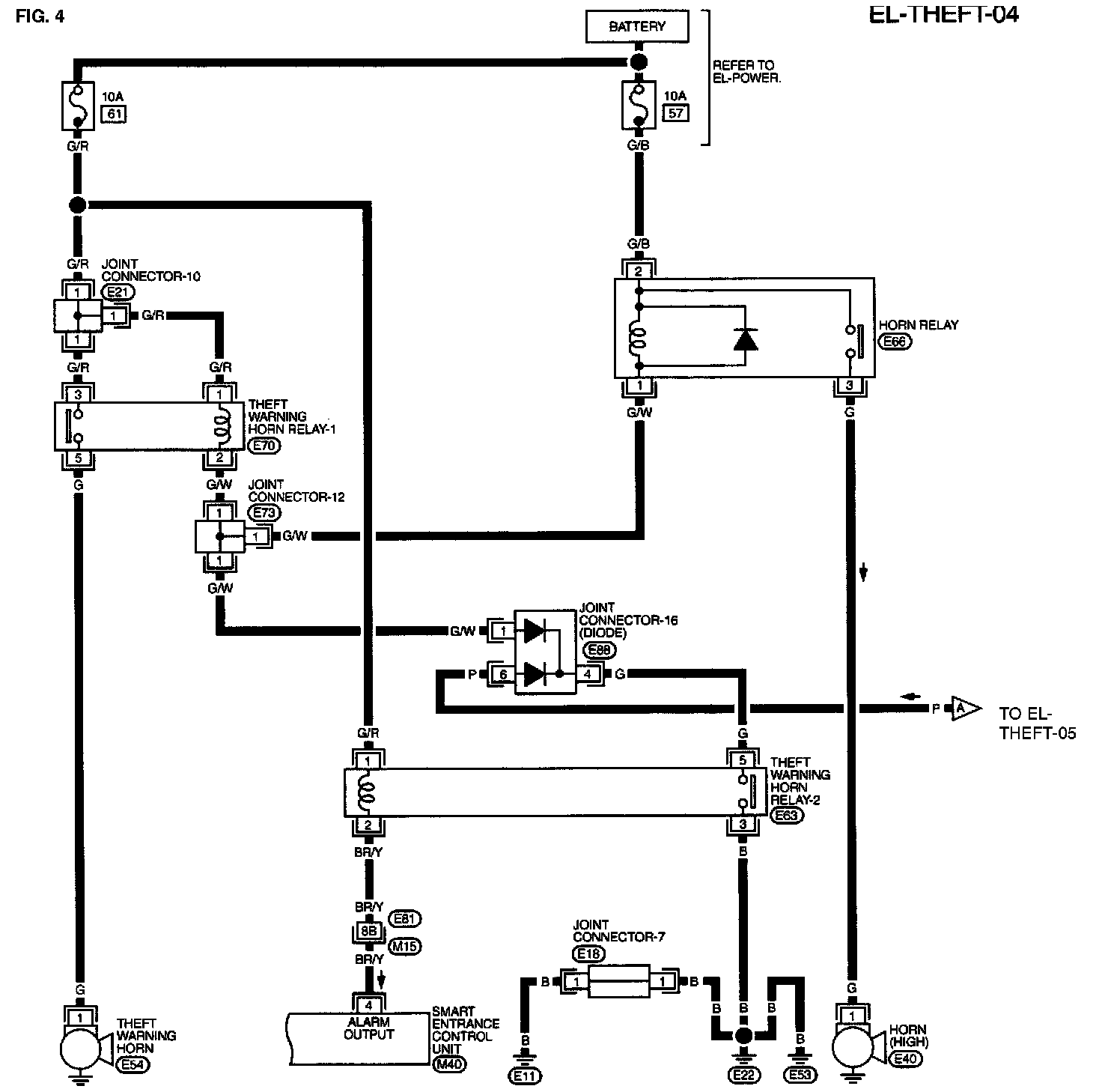

EL-THEFT-04:

Part 4 of 5
Battery
Joint Connector - 10
Horn Relay
Theft Warning Horn Relay - 1
Joint Connector - 12
Joint Connector - 16 (Diode)
Theft Warning Horn Relay - 2
Theft warning Horn
Smart Entrance Control Unit
Joint Connector - 7
Horn (High)

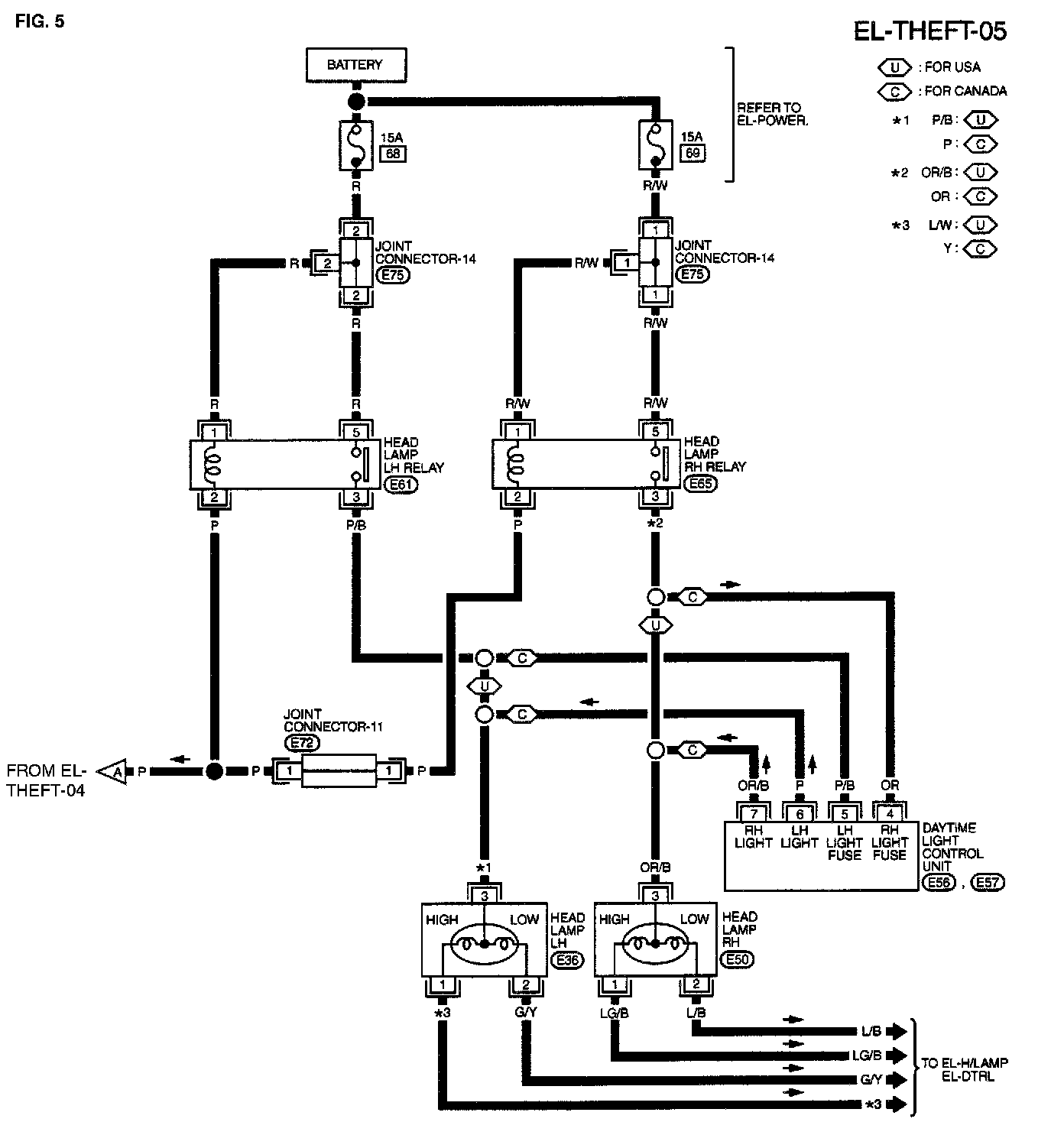

EL-THEFT-05:

Part 5 of 5
Battery
Joint Connector - 14
Joint Connector - 14
Head Lamp LH Relay
Head Lamp RH Relay
Joint Connector - 11
Day Time Light Control Unit
Headlamp LH
Headlamp RH

Circuit Diagrams
















Circuit Connector

M15, E81, D1, M4, D31, D61 Connector Views:

E87, E89, E83, B5, M17, M18, M19 Connector Views:

E81, M4, M15, D1, D31, D61, M17, M19 Super Multiple Junction and Fuse Block Junction Box (J/B) Terminal Arrangement

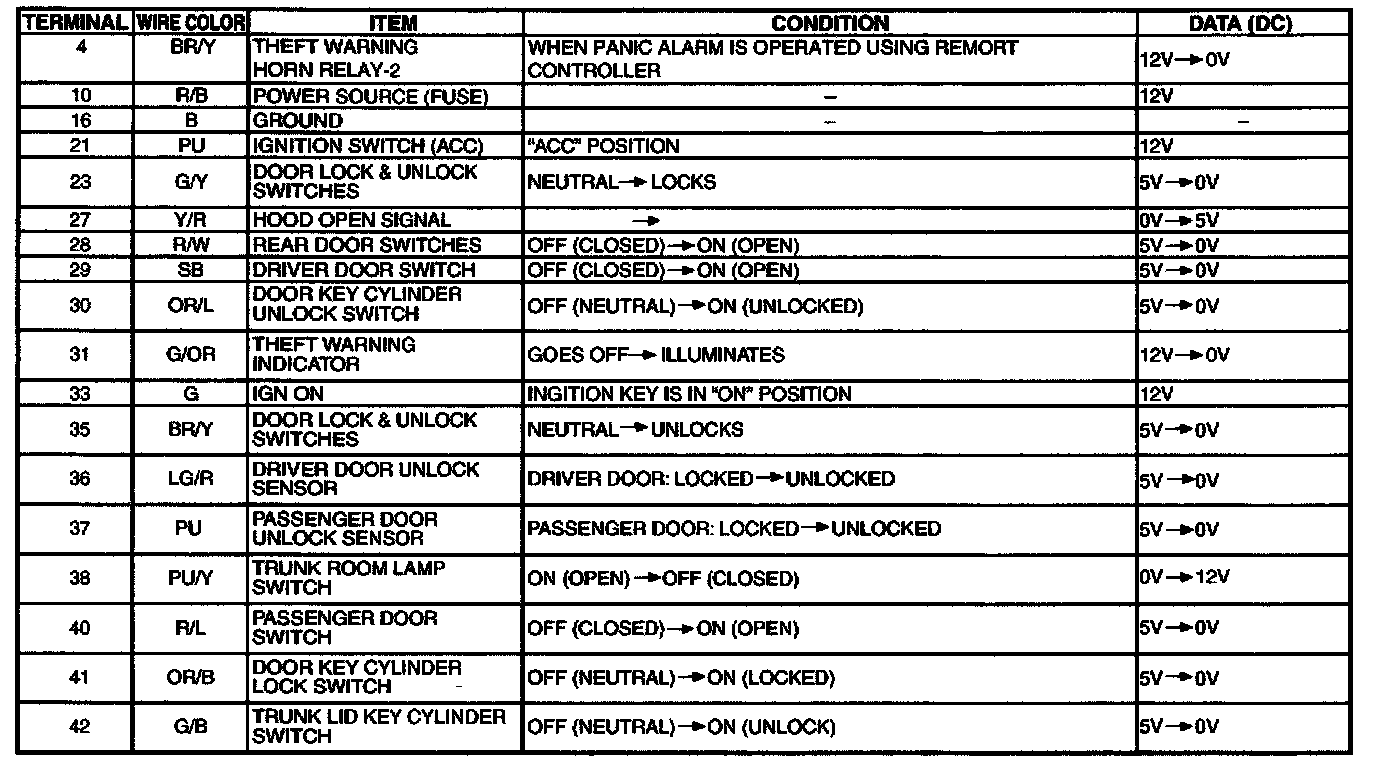

SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE BETWEEN EACH TERMINAL AND TERMINAL 16
