Automatic Air Conditioner
>>
Trouble Diagnosis Procedure For Insufficient Heating
Trouble Diagnosis Procedure For Insufficient Heating
TROUBLE DIAGNOSIS PROCEDURE FOR INSUFFICIENT HEATING
SYMPTOM:
-
Insufficient heating

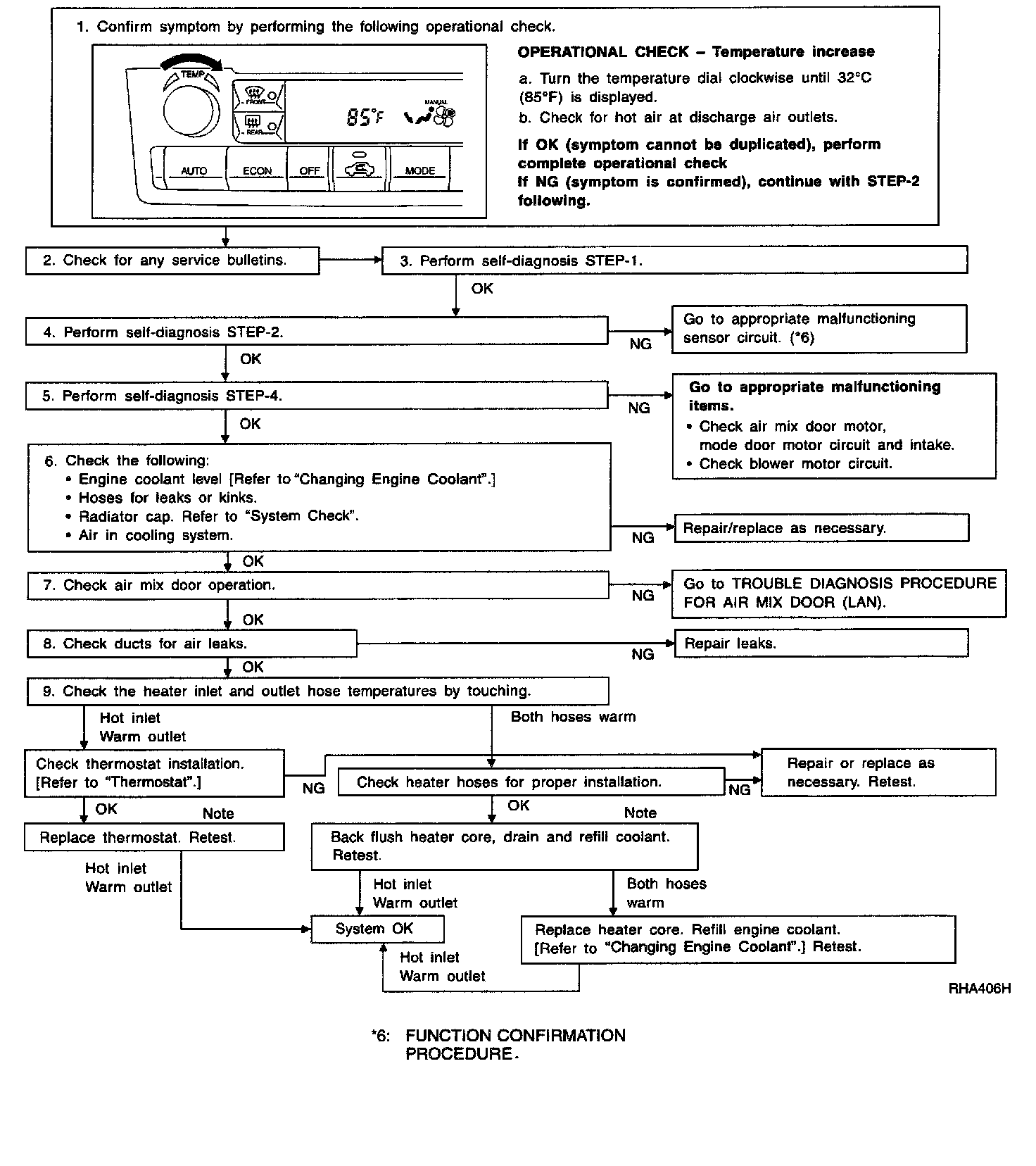

INSPECTION FLOW
