P1613

DIAGNOSTIC PROCEDURE 1




Self-diagnostic results:

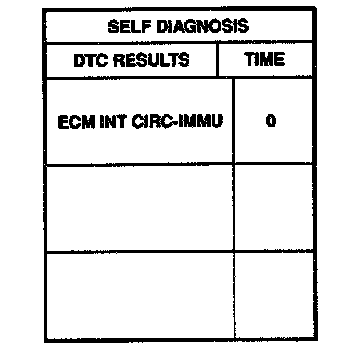

"ECM INT CIRC-IMMU" displayed on CONSULT-II screen
1. Confirm SELF-DIAGNOSTIC RESULTS "ECM INT CIRC-IMMU" displayed on CONSULT-II screen.
2. Replace ECM.
3. Perform initialization with CONSULT-II.
For initialization, refer to "CONSULT-II operation manual NVIS (NATS)".
