Maxima GXE V6-3.0L (VQ30DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P1612
P1612
DIAGNOSTIC PROCEDURE 2

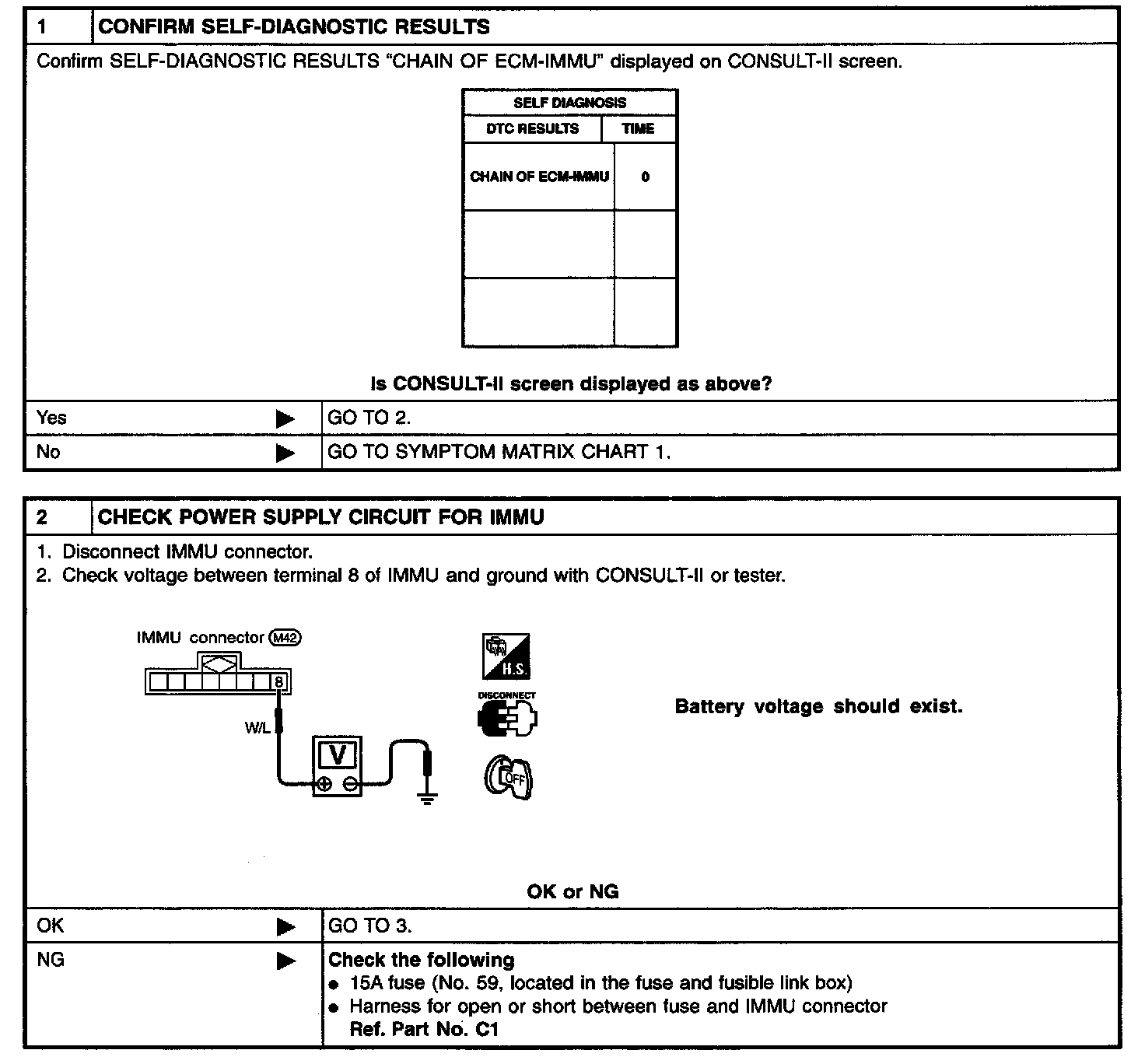

Self-diagnostic results:
"CHAIN OF ECM-IMMU" displayed on CONSULT-II screen
