P0450







Component Description

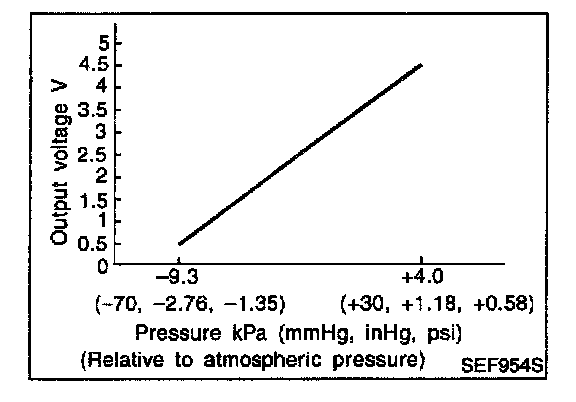

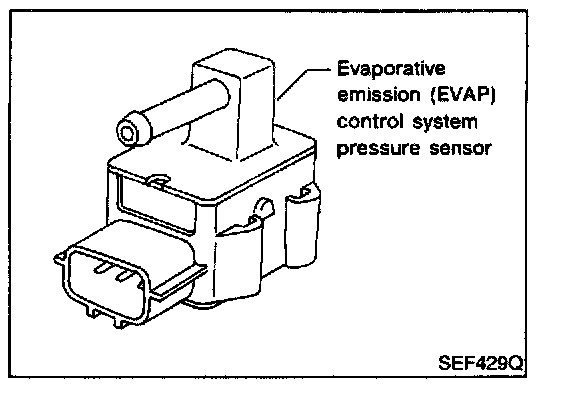

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases. The EVAP control system pressure sensor is not used to control the engine system. It is used only for on board diagnosis.




CONSULT-II Reference Value in Data Monitor Mode
Specification data are reference values.

On Board Diagnosis Logic
Malfunction is detected when an improper voltage signal from EVAP control system pressure sensor is sent to ECM.

Possible Cause
- Harness or connectors
(The EVAP control system pressure sensor circuit is open or shorted. )
- Rubber hose to EVAP control system pressure sensor is clogged, vent, kinked, disconnected or improper connection.
- EVAP control system pressure sensor
- EVAP canister vent control valve
- EVAP canister purge volume control solenoid valve
- EVAP canister
- Rubber hose from EVAP canister vent control valve to water separator

DTC Confirmation Procedure

NOTE: If "DTC Confirmation Procedure" has been previously conducted, always turn ignition switch "OFF" and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:
Always perform test at a temperature of 5° C (41° F) or more.




WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch "OFF" and wait at least 10 seconds.
3. Turn ignition switch "ON".

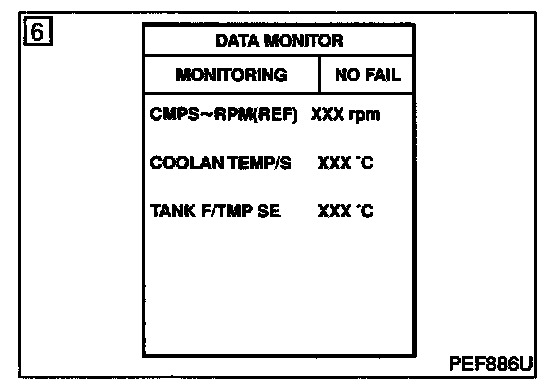

4. Select "DATA MONITOR" mode with CONSULT-II.
5. Make sure that "FUEL T/TEMP SE" is more than 0° C (32° F).
6. Start engine and wait at least 20 seconds.
7. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.




WITH GST
1. Start engine and warm it up to normal operating temperature.

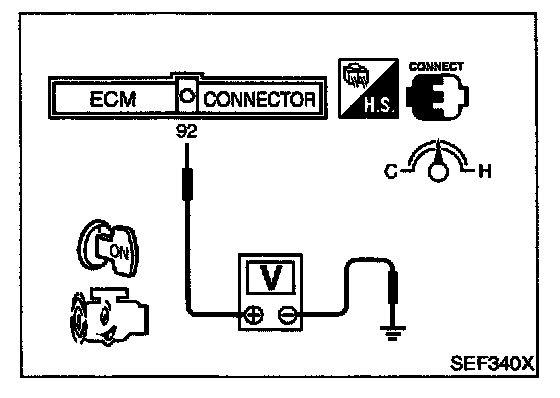

2. Check that voltage between ECM terminal 92 (Fuel tank temperature sensor signal) and ground is less than 4.2 V.
3. Turn ignition switch "OFF" and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select "MODE 7" with GST.
6. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.


EC-PRE/SE-01:

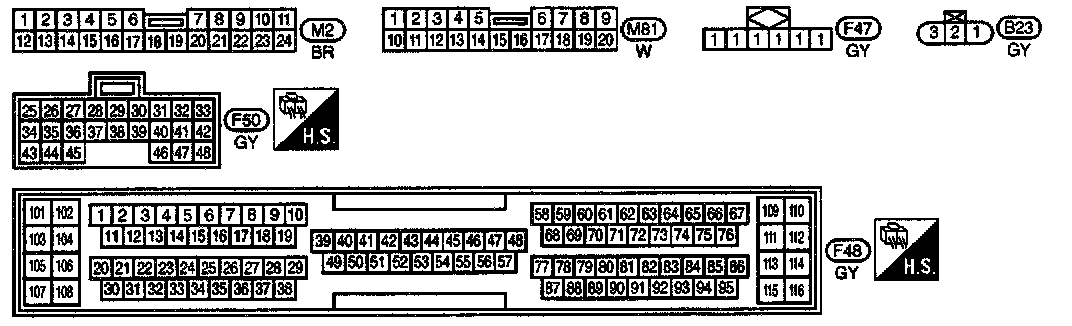

EC-PRE/SE-01 - Connector View:

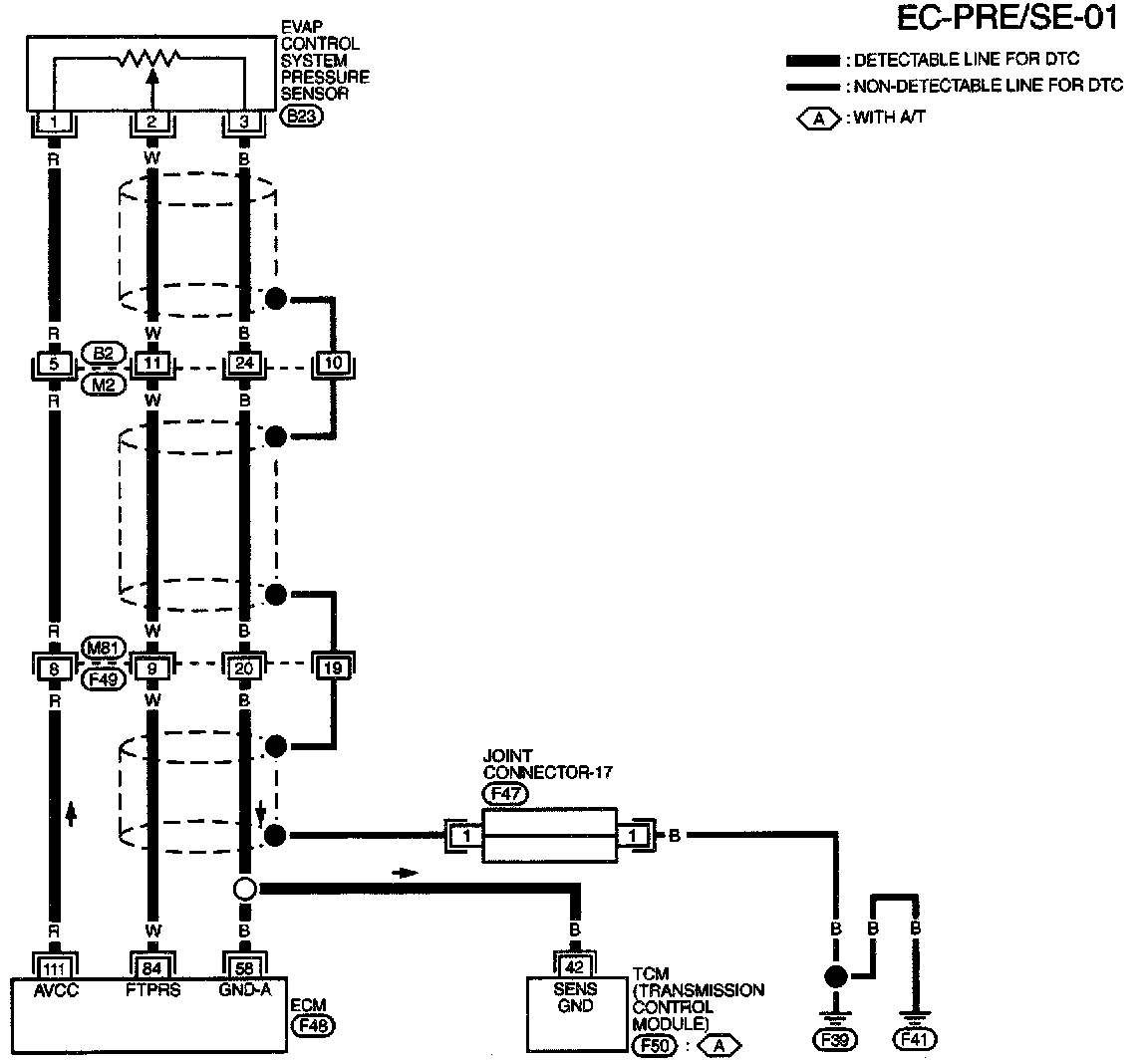

Wiring Diagram

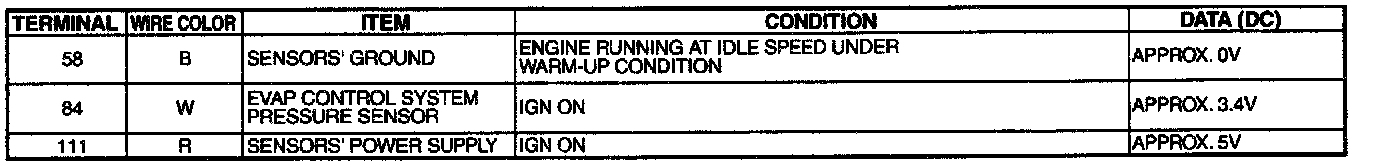

ECM TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL AND 48.:






Diagnostic Procedure

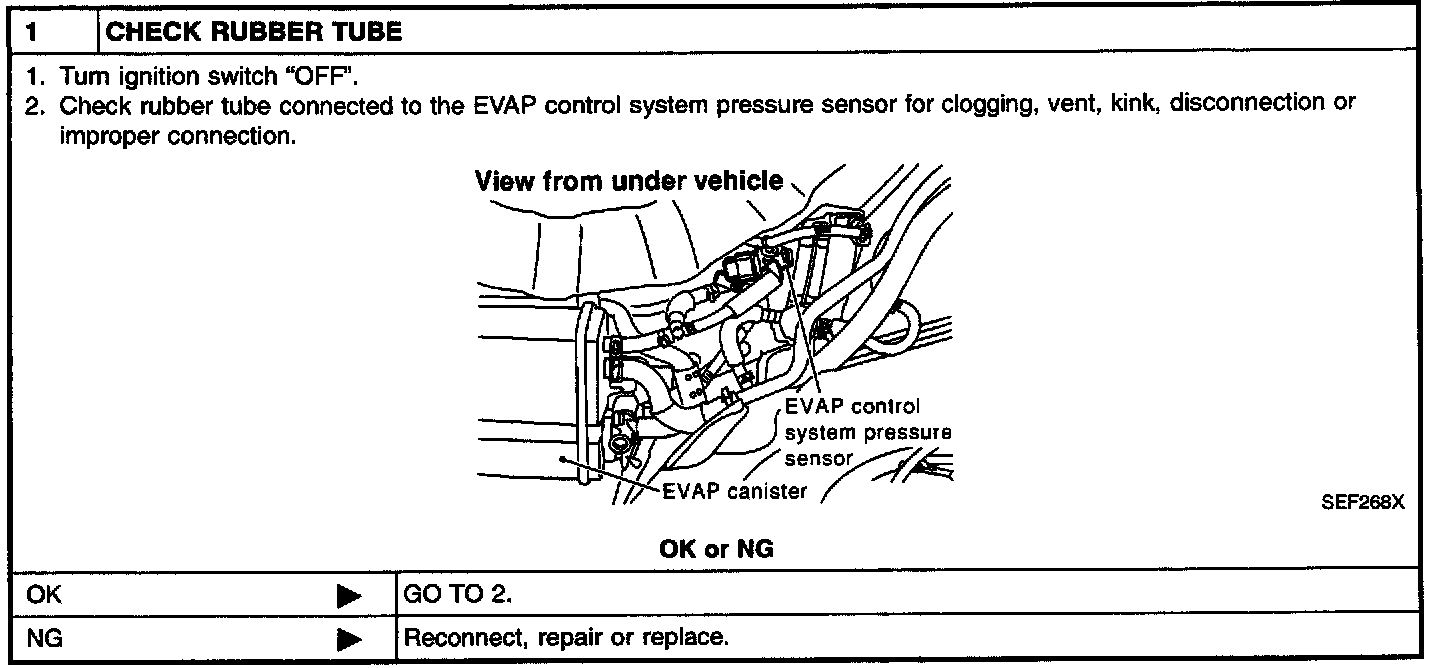

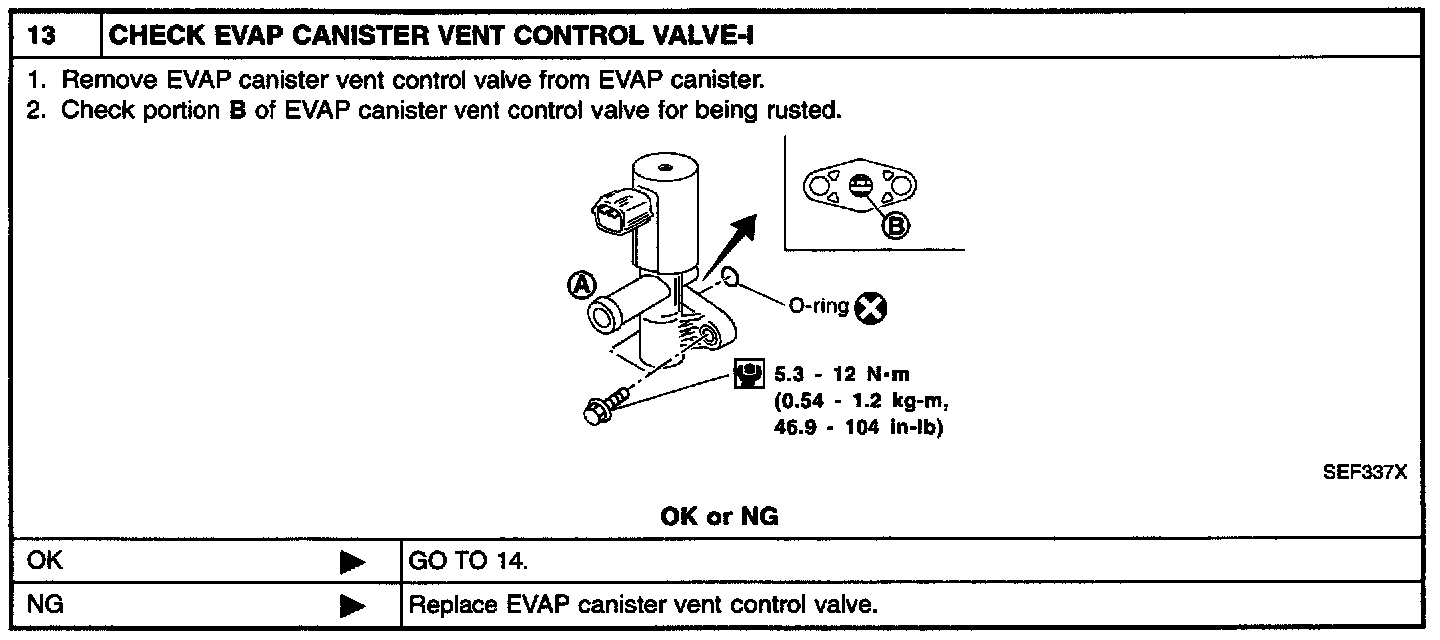

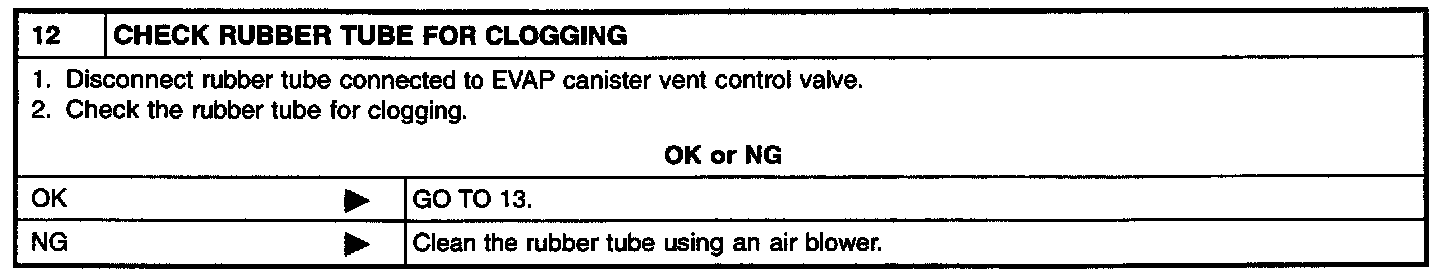

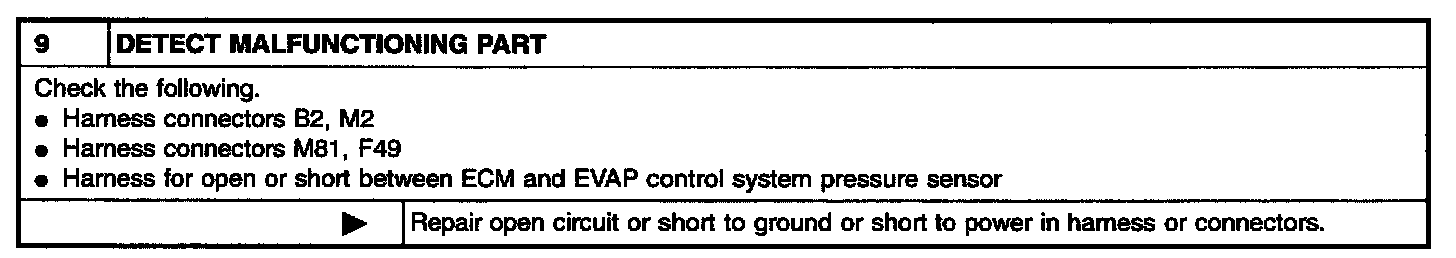

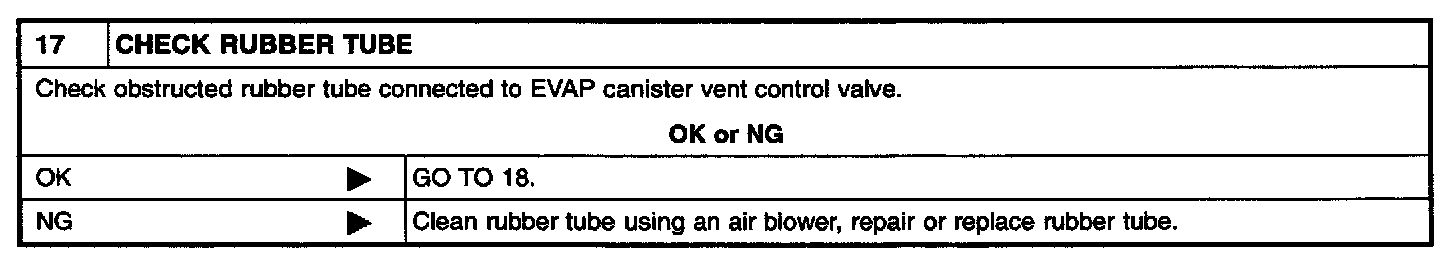

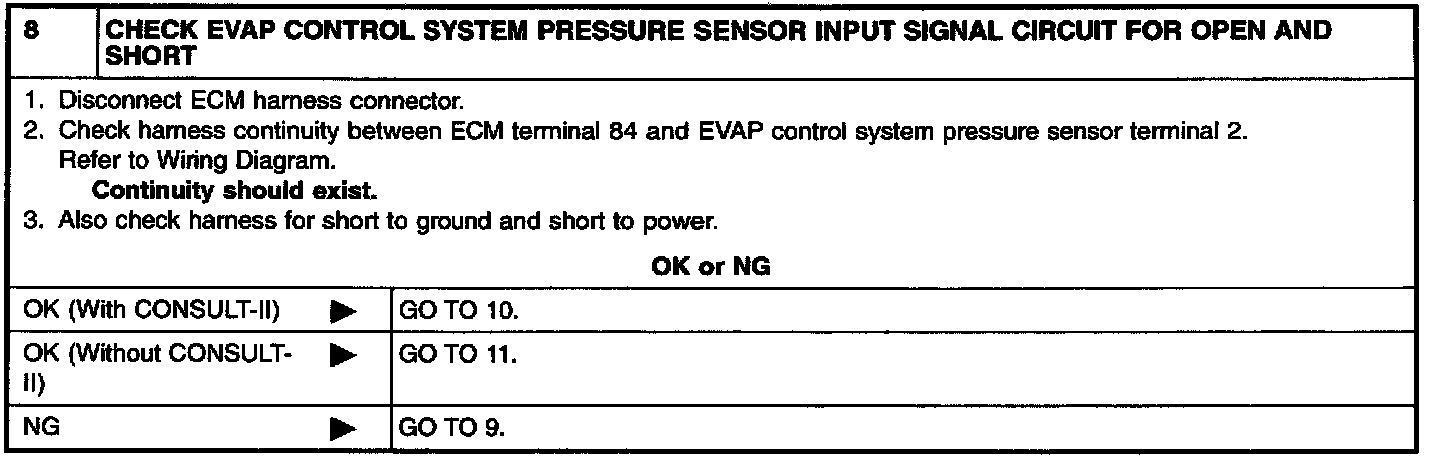

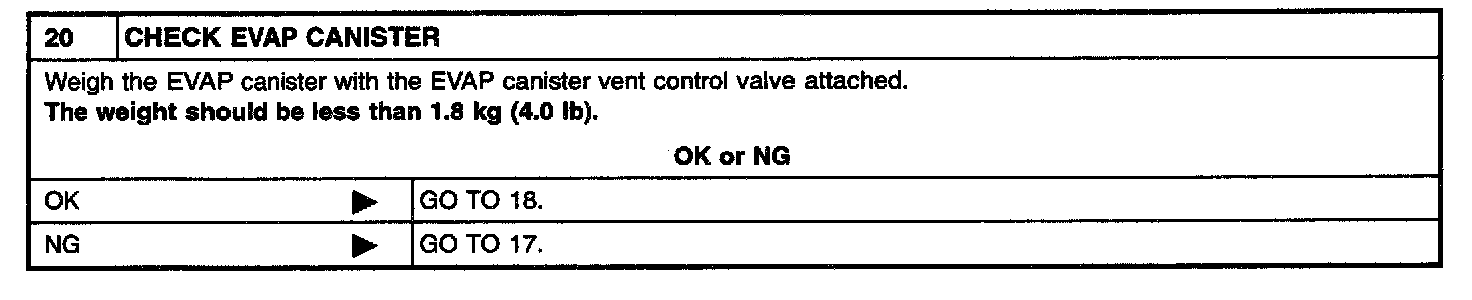

Diagnostic Procedure Step 1:




Diagnostic Procedure Step 2:

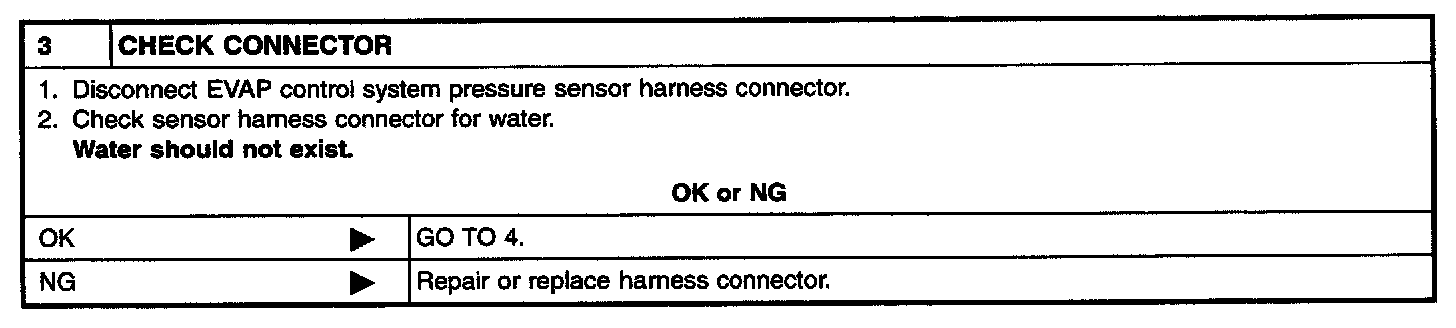

Diagnostic Procedure Step 3:

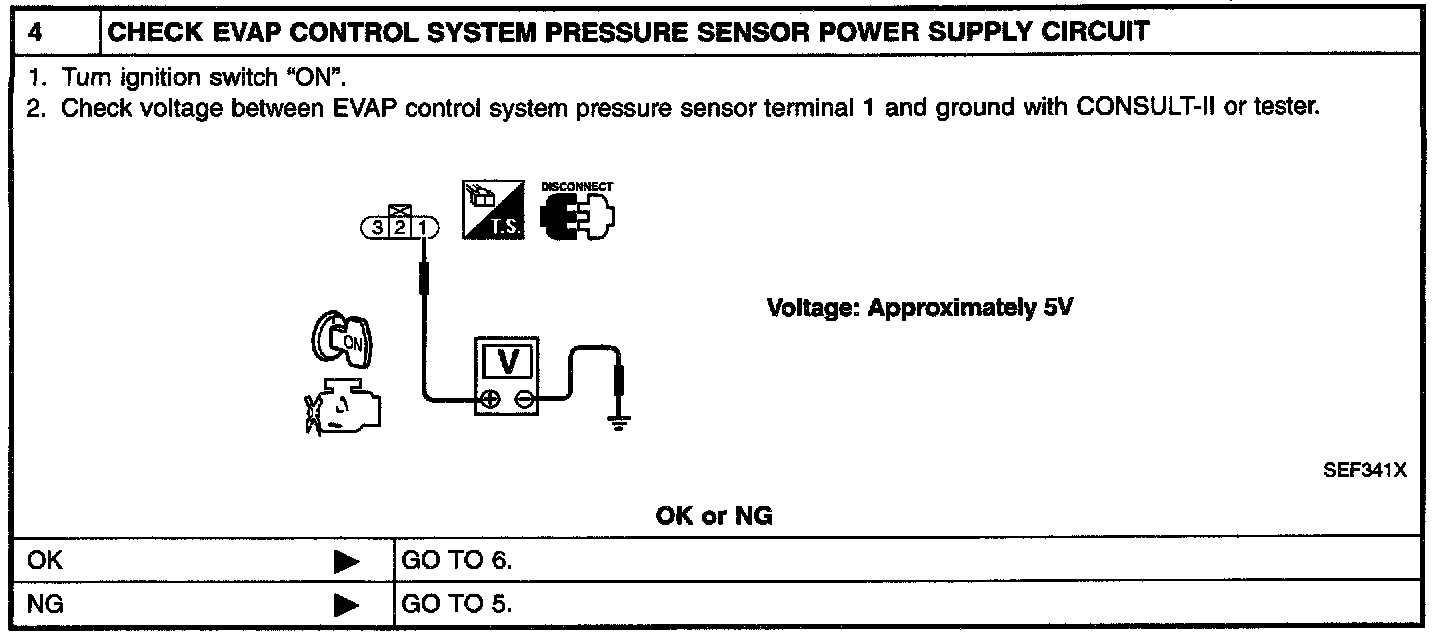

Diagnostic Procedure Step 4:




Diagnostic Procedure Step 5:

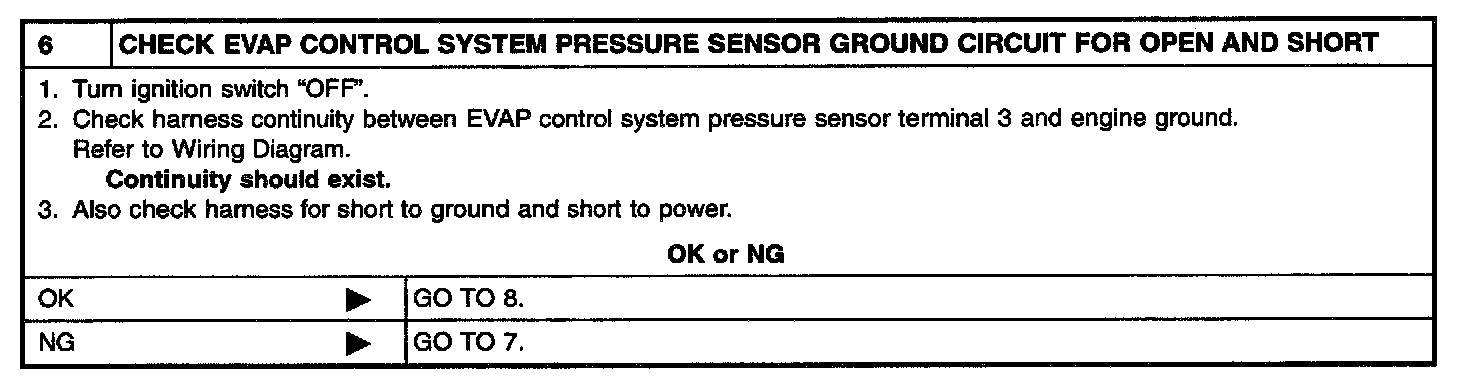

Diagnostic Procedure Step 6:

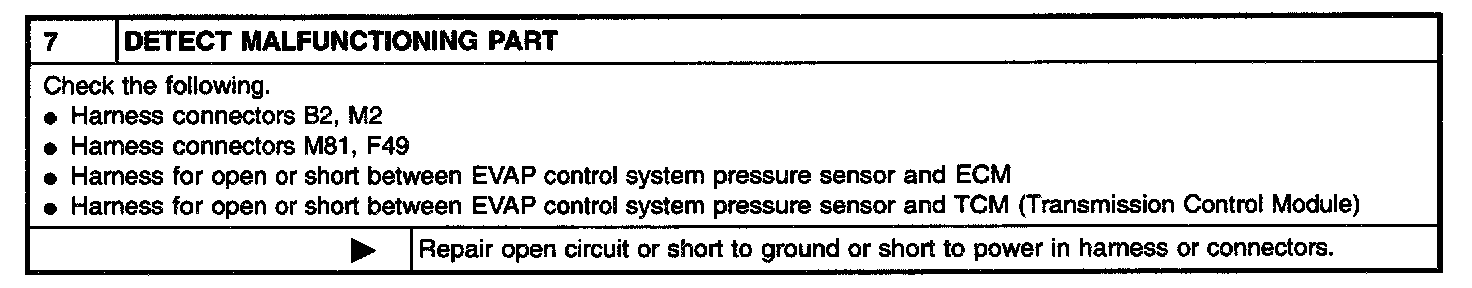

Diagnostic Procedure Step 7:

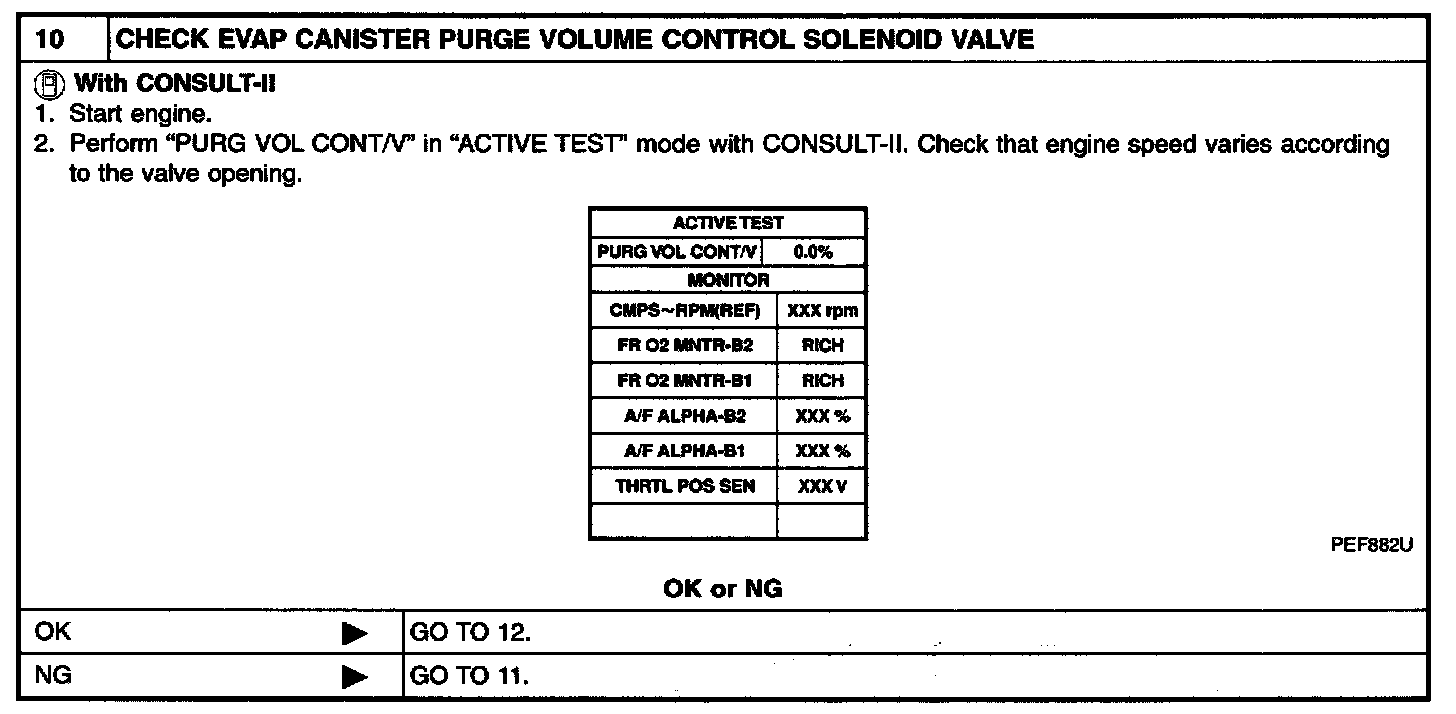

Diagnostic Procedure Step 8:

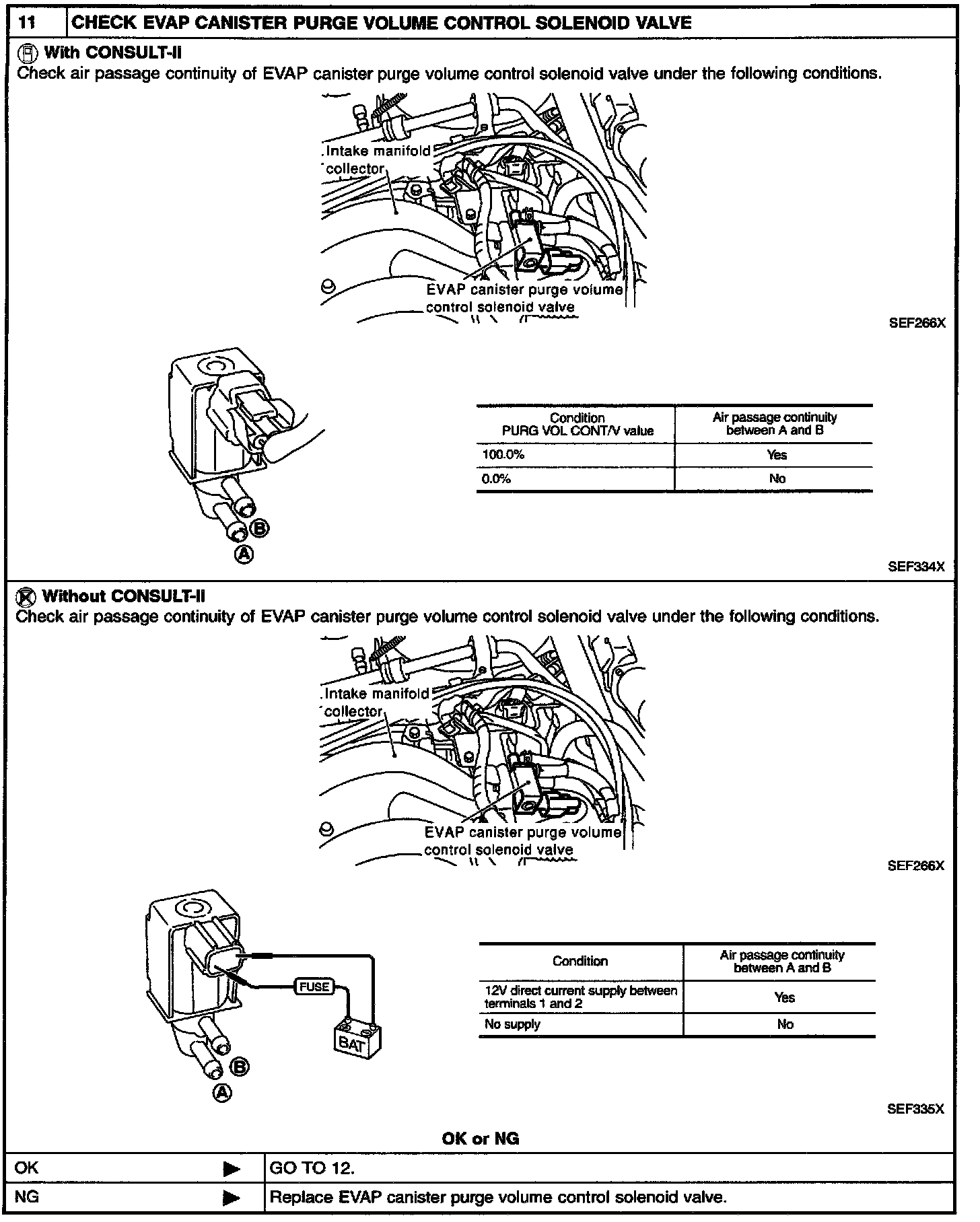

Diagnostic Procedure Step 9:




Diagnostic Procedure Step 10:




Diagnostic Procedure Step 11:




Diagnostic Procedure Step 12:




Diagnostic Procedure Step 13:




Step 14:

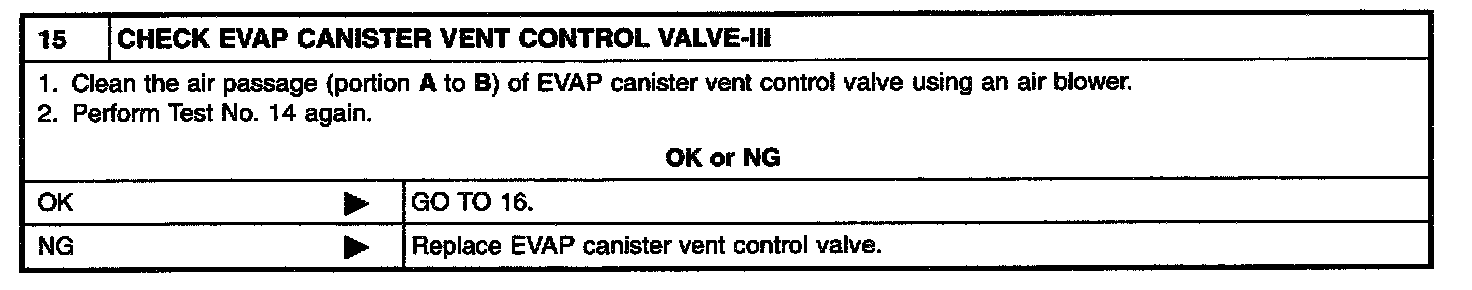

Diagnostic Procedure Step 15:

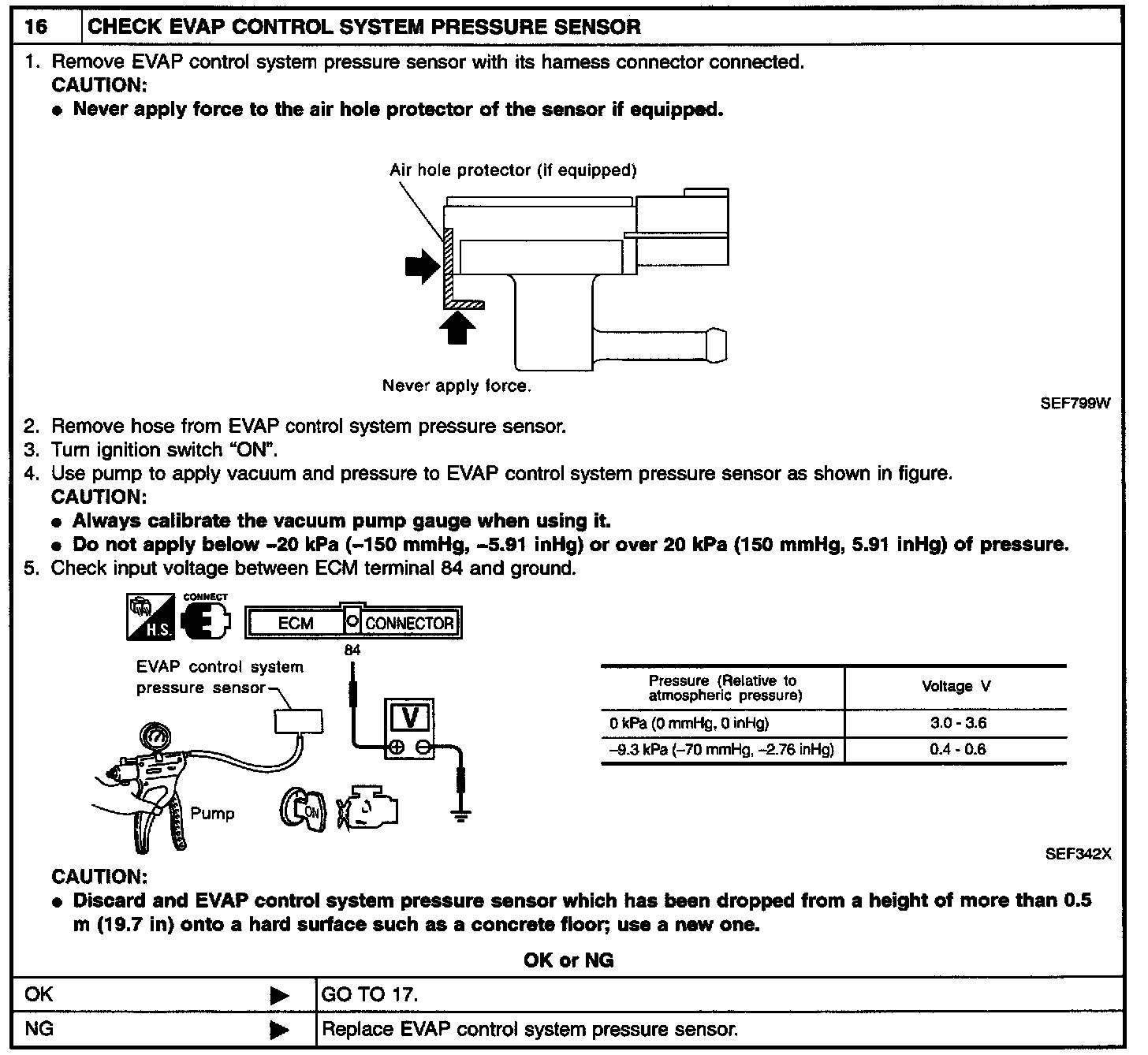

Diagnostic Procedure Step 16:




Diagnostic Procedure Step 17:

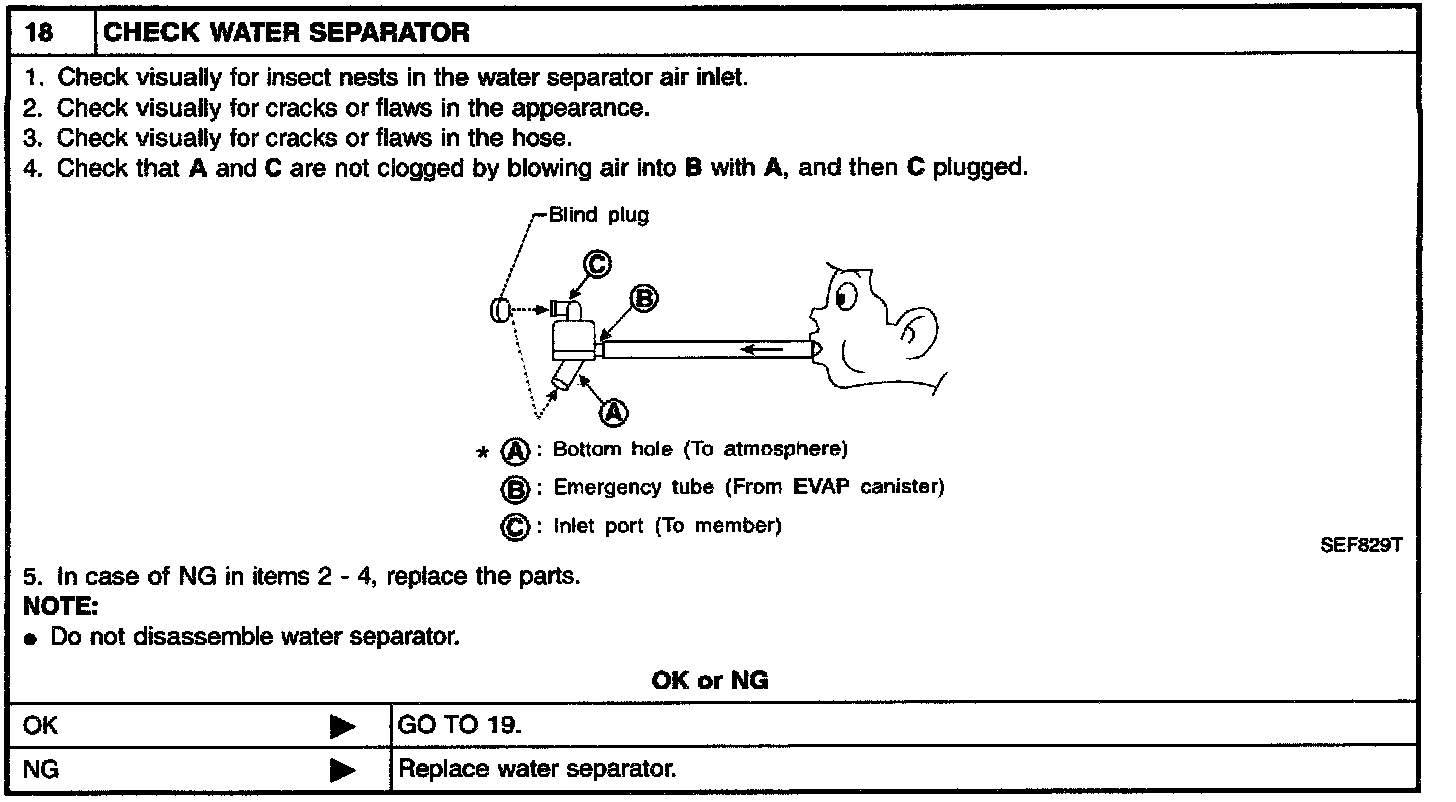

Diagnostic Procedure Step 18:

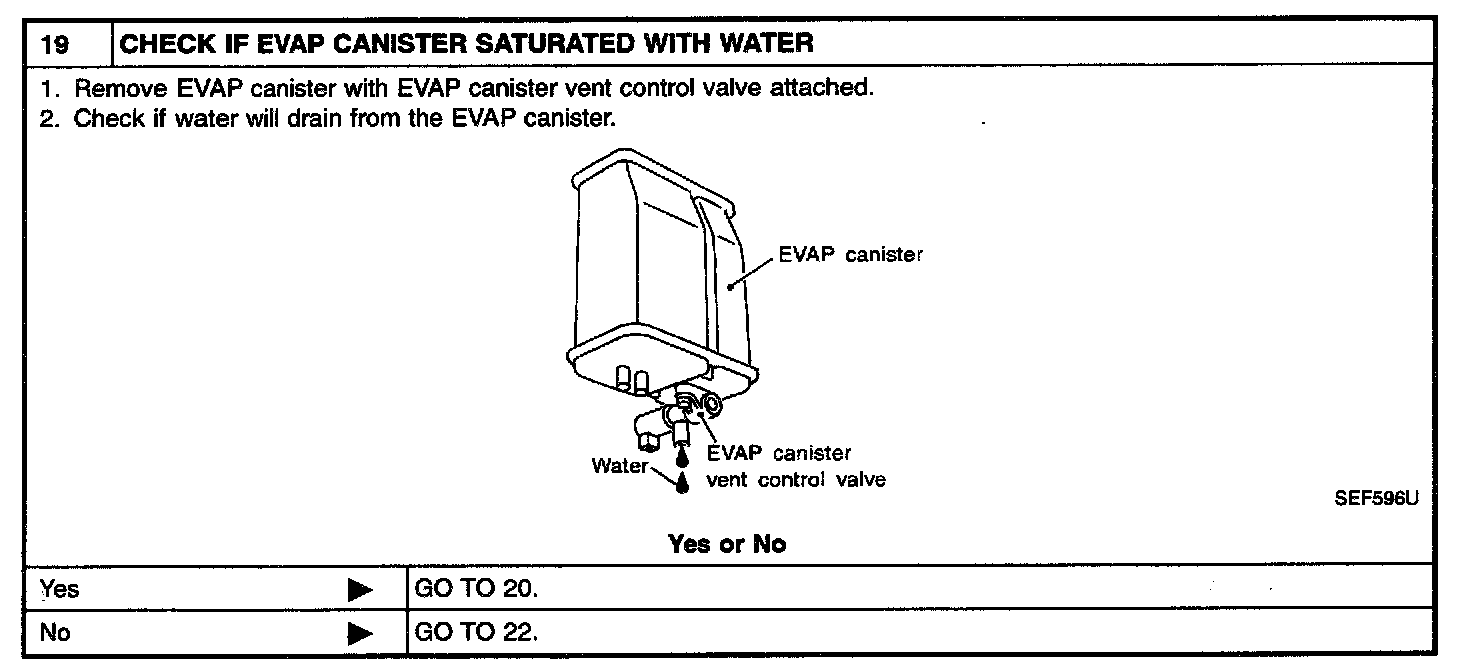

Diagnostic Procedure Step 19:




Diagnostic Procedure Step 20:

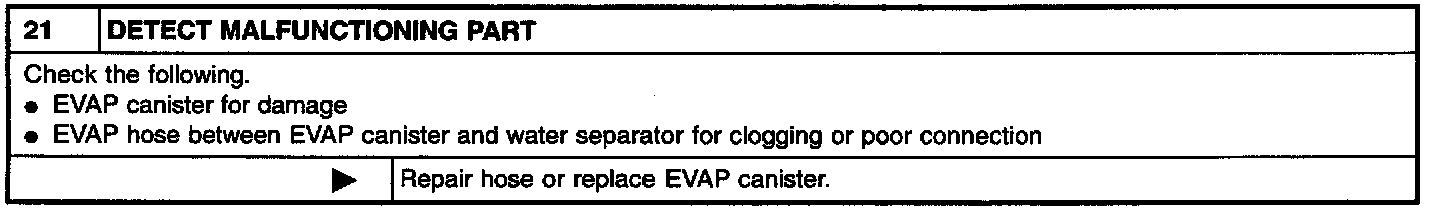

Diagnostic Procedure Step 21:

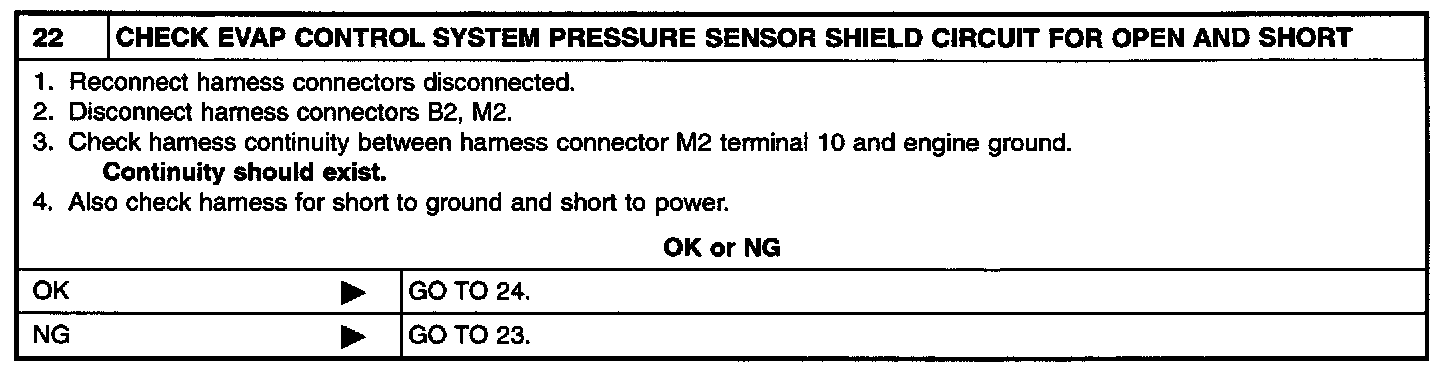

Diagnostic Procedure Step 22:

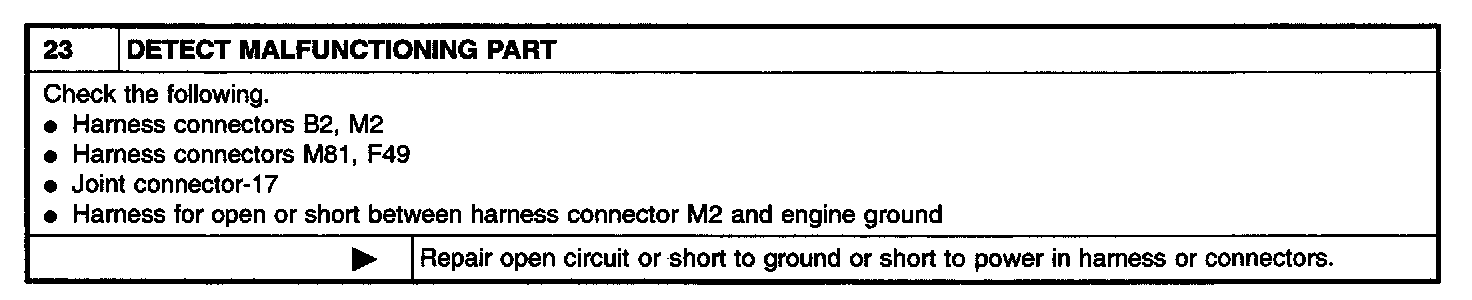

Diagnostic Procedure Step 23:




Diagnostic Procedure Step 24:
